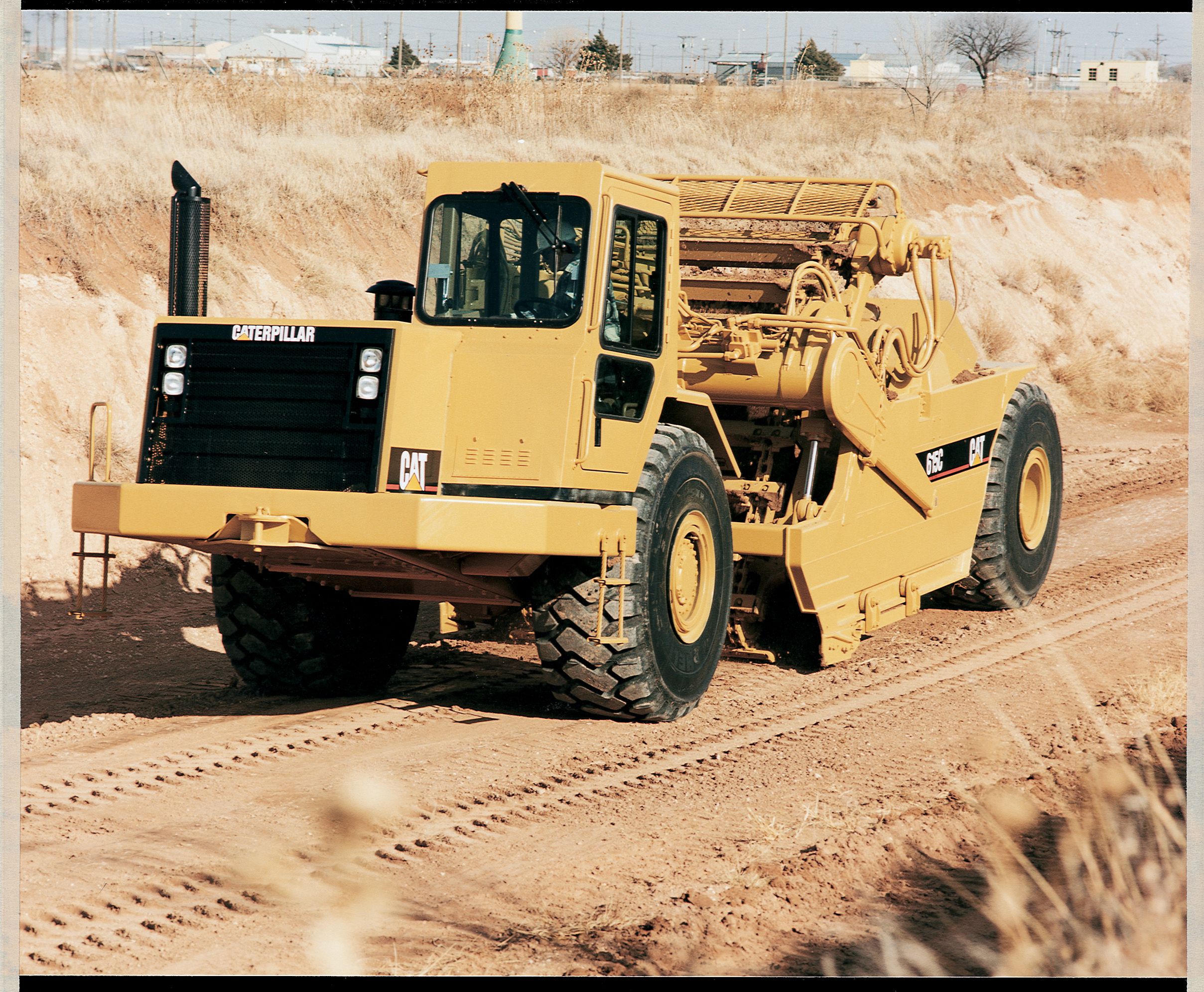

615C Series II Elevating Scraper

The 615C Series II Elevating Scraper is a versatile, fast machine with a two-speed elevator drive and high hydraulic horsepower for maximum hauling and loading performance.

Request Quote

Please contact your nearest store for rates and other details.

Product Specs

Engine

Flywheel Power - Tractor/Scraper: 197 kW (265 hp)
Flywheel Power: Tractor/Scraper: 197 kW (265 hp)
Tractor Engine: Cat® 3306
Tractor Engine: Cat® 3306
Net Power - Gears 1-2: 265 mm H2O
Net Power - Gears 3-8: 265 mm H2O
Gross Power - Gears 1-2: 279 mm H2O
Bore: 4.75 in
Bore: 4.75 in
Stroke: 6 in
Stroke: 6 in
Displacement: 638 in³
Displacement: 638 in3
Net Power: 265 mm H2O
Net Power: 265 hp

Scraper Bowl

Scraper Capacity - Heaped: 17 yd³
Scraper Capacity: Heaped: 17 yd3
Rated Load: 40800 lb
Rated Load: 40800 lb
Capacity - Struck: 14 yd³
Capacity Struck: 14 yd3
Depth of Cut - Maximum: 15.8 in
Depth of Cut - max: 15.8 in
Width - Cut - To Router Bits: 9.5 in
Width of Cut, to Router Bits: 9.5 in
Ground Clearance - Maximum: 17.3 in
Ground Clearance - max: 17.3 in
Depth of Spread - Maximum: 16.3 in
Depth of Spread - max: 16.3 in

Transmission

Top Speed - Loaded: 27.6 mile/h
1 Forward: 2.2 mile/h
1 Forward: 2.2 mph
2 Forward: 3.6 mile/h
2 Forward: 3.6 mph
3 Forward: 6.2 mile/h
3 Forward: 6.2 mph
4 Forward: 10.2 mile/h
5 Forward: 17.5 mile/h
6 Forward: 27.6 mile/h

Weights

Total Operating - Empty: 56450 lb
Front Axle: 37250 lb
Rear Axle: 19200 lb
Total Operating - Loaded: 97250 lb
Front Axle Weight - Loaded: 50010 lb
Rear Axle - Weight - Loaded: 47240 lb

Elevator

Length - Overall: 146.5 in
Width - Flight Face: 6.89 in
Length - Flights: 77.7 in
Spacing of Flights: 16.22 in
Number of Flights: 18

Dimensions

Height - Overall Shipping: 141.3 in
Height - Overall Shipping: 141.3 in
Length - Overall Machine: 457 in
Width - Overall Machine: 120 in
Width - Overall Machine: 120 in
Height - Top of Cab: 127 in
Height - Top of Cab: 127 in
Height - Scraper Blade Maximum: 19.5 in
Height - Scraper Blade Maximum: 19.5 in
Width - Inside of Bowl: 103 in
Width - Inside of Bowl: 103 in
Width - Rear Tire Center Lines: 83.25 in
Width - Outside Rear Tires: 120 in
Width - Outside Rear Tires: 120 in
Front of Tractor to Front Axle: 116.75 in
Front of Tractor to Front Axle: 116.75 in
Wheel Base: 274.75 in
Wheelbase: 274.75 in
Rear Axle - Rear of Machine: 55.9 in
Rear Axle to Rear of Machine: 55.9 in

Steering

Width - 180° Turn: 31.5 ft
Steering Angle - Right: 90 Degrees
Steering Angle - Left: 85 Degrees
Hydraulic Output: 50.99 gal/min

Service Refill Capacities

Fuel Tank: 105 gal (US)
Fuel Tank: 105 gal
Crankcase: 6 gal (US)
Crankcase: 6 gal
Transmission: 9.5 gal (US)
Transmission: 9.5 gal
Differential: 16 gal (US)
Final Drive - Each: 16 gal (US)
Final Drive (each side): 16 gal
Cooling System: 17 gal (US)
Cooling System: 17 gal
Hydraulic Reservoir: 42 gal (US)

Hydraulics

Bowl Cylinder Bore: 5 in
Bowl Cylinder Stroke: 22.6 in
Floor Cylinder Bore: 5.5 in
Floor Cylinder Stroke: 26.8 in
Ejector Cylinder Bore: 4.3 in
Ejector Cylinder Bore: 4.3 in
Ejector Cylinder Stroke: 43 in
Ejector Cylinder Stroke: 43 in
Steering Circuit: 51 gal/min
Scraper Circuit: 36 gal/min
Relief Valve - Steering Circuit: 1000.76 psi
Compensator Settings - Elevator Circuit: 1000.76 psi

Standards

Brakes: Meets SAE J1473 & ISO 3450 stds
Brakes: Meets SAE J1473 & ISO 3450 stds
