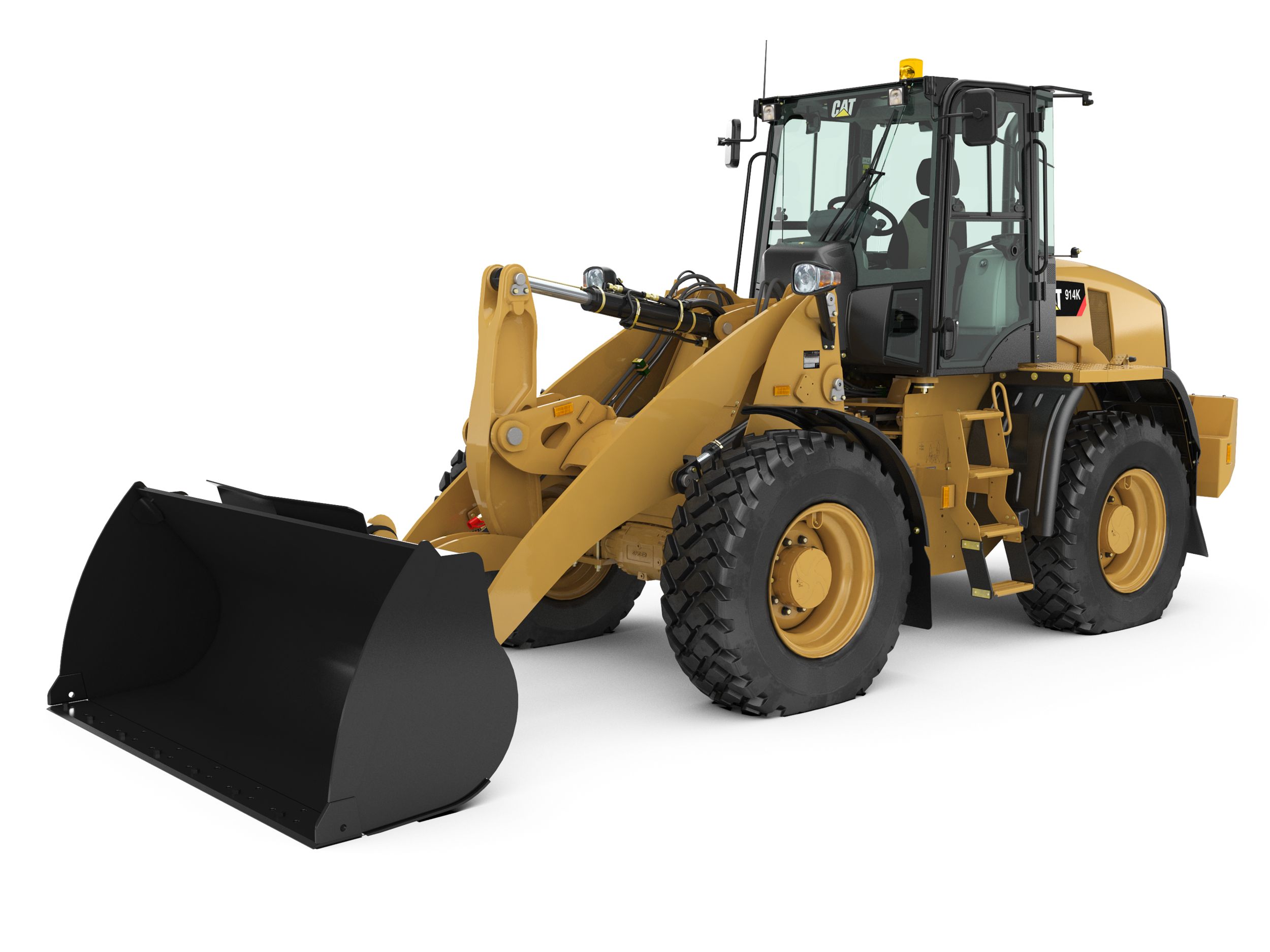

914K Compact Wheel Loaders

The Cat 914K Compact Wheel Loader sets a new standard for productivity, fuel efficiency and comfort. On-the-go operator tuned hydraulics and drivetrain adjust the machine’s response to the task at hand. Low sound levels, large spacious cab and intuitive controls keep you working comfortably all day long. The new Cat Optimized Z-bar Loader linkage delivers the performance and breakout forces of a traditional Z-bar linkage with the parallelism and load handling capability of a tool carrier. Experience the new industry benchmark.

Request Quote

Download a Product Brochure

Please contact your nearest store for rates and other details.

Product Specs

Engine

Maximum Gross Power: 97 HP
Maximum Gross Power: 97 hp
Net Power: 96 HP
Net Power: 96.0 hp
Bore: 3.9 in
Displacement: 231.8 in³
Engine Model: Cat� C3.8 Turbo
Maximum Gross Power - SAE J1995: 97 HP
Note: Engine meets U.S. EPA Tier 4 Interim/EU Stage IIIB emission standards.
Rated Net Power - SAE J1349: 92 HP
Stroke: 4.7 in
Maximum Gross Power - ISO 14396: 97 HP
Displacement: 231.8 in3
Engine Model: Cat® C3.8 Turbo
Maximum Gross Power - ISO 14396: 97.0 hp
Maximum Gross Power - SAE J1995: 97.0 hp
Note: Engine meets U.S. EPA Tier 4 Interim/EU Stage IIIB emission standards.
Peak Torque: 248 lb/ft
RPM at Peak Torque: 1500 r/min
RPM at Rated Power: 2400 r/min
Rated Net Power - ISO 9249/EEC: 96 HP
Rated Net Power - SAE J1349: 92.0 hp
Rated Torque: 237 lb/ft
Stroke: 4.7 in
Torque Rise: 17 %

Weights

Operating Weight: 17910 lb
Operating Weight: 17910.0 lb
Operating Weight - High Lift: 18030 lb
Operating Weight - Standard Lift: 17910 lb

Buckets

Bucket Capacities: 1.2 m3-2.5 m3 (1.6 yd3-3.3 yd3)
Bucket Capacities: 1.2 m3-2.5 m3 (1.6 yd3-3.3 yd3)
General Purpose: 1.2-1.5 m3 (1.6-2.0 yd3)
General Purpose: 1.2-1.5 m3 (1.6-2.0 yd3)
Type: Performance Series Buckets utilize a long floor and open throat resulting in easy loading and good material retention.

Operating Specifications

Rated Bucket Capacity: 3.3 yd³
Rated Bucket Capacity: 3.3 yd3
Clearance - Full Lift and 45° Dump: 112 in
Reach - Full Lift and 45° Dump: 31 in
Clearance: full lift and 45° dump: 112.0 in
Full Turn Tip Load: 12294 lb
Full Turn Tipping Load - High Lift: 8603 lb
Full Turn Tipping Load - Standard Lift: 10538 lb
Reach: full lift and 45° dump: 31.0 in
Steering Articulation Angle - Each Direction: 40 °

Cab

ROPS: ROPS: SAE J1040 MAY94, ISO 3471-1994.
ROPS: ROPS: SAE J1040 MAY94, ISO 3471-1994.
FOPS: FOPS: SAE J/ISO 3449 APR98, Level II, ISO 3449 1992 Level II.
FOPS: FOPS: SAE J/ISO 3449 APR98, Level II, ISO 3449 1992 Level II.
Sound: The declared dynamic operator sound pressure level per ISO 6396:2008 is: - Deluxe cab: 75 dB(A)

Service Refill Capacities

Cooling System: 4.4 gal (US)
Cooling System: 4.4 gal
Fuel Tank: 39.6 gal
Fuel Tank: 39.6 gal (US)
Hydraulic System: 22.5 gal
Hydraulic System: 22.5 gal (US)
Axle - Front, Center: 1.98 gal (US)
Axle - Front, Each Hub: 0.58 gal (US)
Axle - Rear, Center: 1.98 gal (US)
Axle - Rear, Each Hub: 0.58 gal (US)
Engine Crankcase: 3.4 gal
Hydraulic Tank - Refill: 15.9 gal (US)
Transmission (gear box): 0.85 gal
Engine Crankcase: 3.4 gal (US)
Transmission - Gear Box: 0.85 gal (US)

Power Train

Brakes - Park Brake: Cable applied, spring release
Brakes - Service Brakes: Inboard wet disc
Front Axle: Fixed
Front Axle - Traction Aid: Locking differential
Rear Axle: Oscillating
Rear axle - Oscillation: �11 degrees
Rear Axle - Traction Aid: Locking differential
Type (1): Power train is fully hydrostatic, operating with twin motors on a gear reduction system to amplify torque.
Type (2): A built-in clutch on one motor de-clutches at higher speeds to gain maximum travel speed.

Steering

Maximum Flow - Steering Pump: 22.2 gal/min
Maximum Steering Torque - 0° (Straight Machine): 27369 lb/ft
Maximum Steering Torque - 39° (Full Turn): 21593 lb/ft
Maximum Working Pressure - Steering Pump: 3263 psi
Steering Articulation Angle - Each Direction: 40 °
Steering Cylinder, Double Acting - Bore Diameter: 2.4 in
Steering Cylinder, Double Acting - Rod Diameter: 1.4 in
Steering Cylinder, Double Acting - Stroke: 15.7 in
Maximum flow - steering pump: 22.2 gal/min
Maximum steering torque - 0° (straight machine): 27369.0 lb ft
Maximum steering torque - 40° (full turn): 21593.0 lb ft
Maximum working pressure - steering pump: 3263.0 psi
Number of Steering Wheel Turns - Stop to Stop, Turning Wheel at < 27 rpm: 5.75 turns
Number of Steering Wheel Turns - Stop to Stop, Turning Wheel at > 67 rpm: 3.75 turns
Steering articulation angle each direction: 40.0 Degrees
Steering Cycle Times - Stop to Stop - At 2,400 rpm Engine Speed, 90 rpm Steering Wheel Speed: 2.8 s
Steering cylinder: double acting - Bore diameter: 2.4 in
Steering cylinder: double acting - Rod diameter: 1.4 in
Steering cylinder: double acting - Stroke: 15.7 in
Type: Steering system uses a dedicated pump with dual double acting cylinders.

Tires

Note: Wheel sets are interchangeable between the 910K and 914K.
Tire Size - Non-Pneumatic - Flexport: 53.5�9�16.5 (15.5/17.5�25 equivalent)
Tire Size - Optional (1): 17.5-R25
Tire size, optional: 17.5-25 16PR
Tire Size - Standard: 17.5-25 12PR
Tire Size - Optional (2): 17.5-25 16PR

Loader Hydraulic System

Maximum Working Pressure - Implement Pump: 3046 psi
Cycle Time - Dump: 1.8 s
Cycle time - Float: 3.7 s
Cycle Time - Lift: 5.3 s
Cycle Time - Lower, Float: 4 s
Cycle time - Rackback: 2.4 s
Lift Cylinder - Bore Diameter: 3.9 in
Lift Cylinder - Rod Diameter: 2.4 in
Lift cylinders - Stroke: 23.3 in
Main Relief Pressure: 4061 psi
Maximum Flow - Implement Pump - 3rd Function: 25 gal/min
Maximum Flow - Implement Pump - 4th Function: 25 gal/min
Maximum Pump Flow: 33 gal/min
Maximum working pressure - implement pump: 3046.0 psi
Tilt Cylinder - Bore Diameter: 3.9 in
Tilt Cylinder - Rod Diameter: 2.4 in
Tilt Cylinder - Stroke: 22.8 in

Transmission

Forward - High Range: 25 mile/h
Forward - Low Range, Speed Range 1: 6.3 mile/h
Forward - Low Range, Speed Range 2: 12.5 mile/h
Reverse - High Range: 25 mile/h
Reverse - Low Range, Speed Range 1: 6.3 mile/h
Reverse - Low Range, Speed Range 2: 12.5 mile/h
Type (1): Changing from Low Range to High Range is on-the-go for added convenience.
Type (2): Creeper control allows maximum speed range adjustability from 0 to 10 km/h (6 mph) in Speed Range 1.

Standard Equipment

Power Train
- Cat C3.8 electronic turbo diesel engine; direct injection, fuel system: - Common rail fuel injection - 3 stage - U.S. EPA Tier 4 Interim/EU Stage IIIB - Active regeneration, in-cylinder dosing
- Cooled EGR NOX reduction
- Particulate matter reduction
- Fuel: Ultra Low Sulfur Diesel @ <15 ppm
- Engine Oil: CJ-4
- Electric fuel pump with four micron filtration
- S∙O∙SSM port, transmission oil
- Hydrostatic transmission, 20 km/h (12.5 mph)
- Lubed for life universal joints
- Forward - Neutral - Reverse on joystick
- 100% locking differentials, while moving
- Brakes, service: - Enclosed, wet-disc full hydraulic
- Brakes, parking (also secondary brake): - Mechanical on drive-line
- Radiator, serviceable core, single plane
- Air cleaner, radial seal, dual filters
- Air inlet heater starting aid
- Cooling fan, hydraulic
- Radiator expansion tank
- Tires, 17.5-25 12PR
Loader
- Parallel lift, Z-bar loader
- Ground access grease points
Hydraulics
- Automatic lift kickouts
- Priority steering
- Hydraulics, two valve, one joystick
- Hydraulic diagnostic pressure taps
- S∙O∙S port, hydraulic oil
- Hydraulic oil cooler - single plane
- Hydraulically driven cooling fan
- Pump, variable displacement piston
Electrical
- 80-ampere alternator
- One 1,000 CCA maintenance free battery
- Halogen flood lights (front and rear)
- Directional Signals (front and rear)
- 12 volt direct electric starting
- Ignition key start/stop switch
- Switch, battery disconnect key
- Steering wheel mounted warning horn
- Product Link ready wiring
Operator Environment
- ROPS/FOPS cab, pressurized and sound suppressed
- Hydraulic control lever lockout
- Electro hydraulic implement controls
- Gauges: - Engine coolant temperature - Hydraulic oil temperature - Fuel level - Speedometer - Digital hour meter
- Operator warning system indicators: - Brake charge pressure low - Engine malfunction - Park brake applied - Electrical system voltage low - Hydraulic oil filter bypass - Action indicator - Diesel particulate filter
- Interior light
- Door
- Seat: - Fabric or vinyl - Adjustable height, backrest, armrest - Seat belt, retractable
- Heater/defroster
- Wiper/washer front (intermittent)
- Wiper/washer rear
- Tinted front glass, laminated
- Side and rear glass, tempered
- Adjustable steering column
- Rear window defrost
- Rearview mirrors, outside (two)
- Storage box with cup holder
- Ground level door release
- Internal 12V power source
- External 12V power source
Fluids
- Extended life coolant antifreeze, protected to -36° C (-33° F) hydraulic oil
- Cat Advanced Hydo 10
Chassis
- Fenders, front and rear
- Engine enclosure - lockable
- Recovery hitch
- Vandalism protection - locked service points
- Counterweight
Regional Standards (as Required)
- Alarm, back-up alarm
- Chocks, chassis mounted wheel
- Guard, bucket tooth or edge
- Decals, roading speed
- Decals, in cab, roof height
- Beacon
- Reflectors, roading
- Plate, year of manufacture

Attachments

Feature Package, Road
- Ride Control, Creeper, Implement Modulation, Hystat Aggressiveness, Throttle Lock
Feature Package, Load
- Return To Dig, Lift Kickout, Rimpull Control, Implement Modulation, Hystat Aggressiveness, Throttle Lock
Feature Package, Road And Load
- Combined above features
Tires
- 17.5-25 12PR L2
- 17.5-R25 XHA * L3
- 17.5-R25 * L2,3 PC RM
- 17.5-25 16PR L3, 3PC RIM
- 17.5-25 GY L2/L3
- 17.5-25 12PR L2, SNOW
- Flexport
For Canopy Only
- Guard, hose, three valve
- Guard, hose, four valve
- Guard, hose, three valve, high lift
- Guard, coupler hose, standard lift
- Guard, coupler hose, high lift
