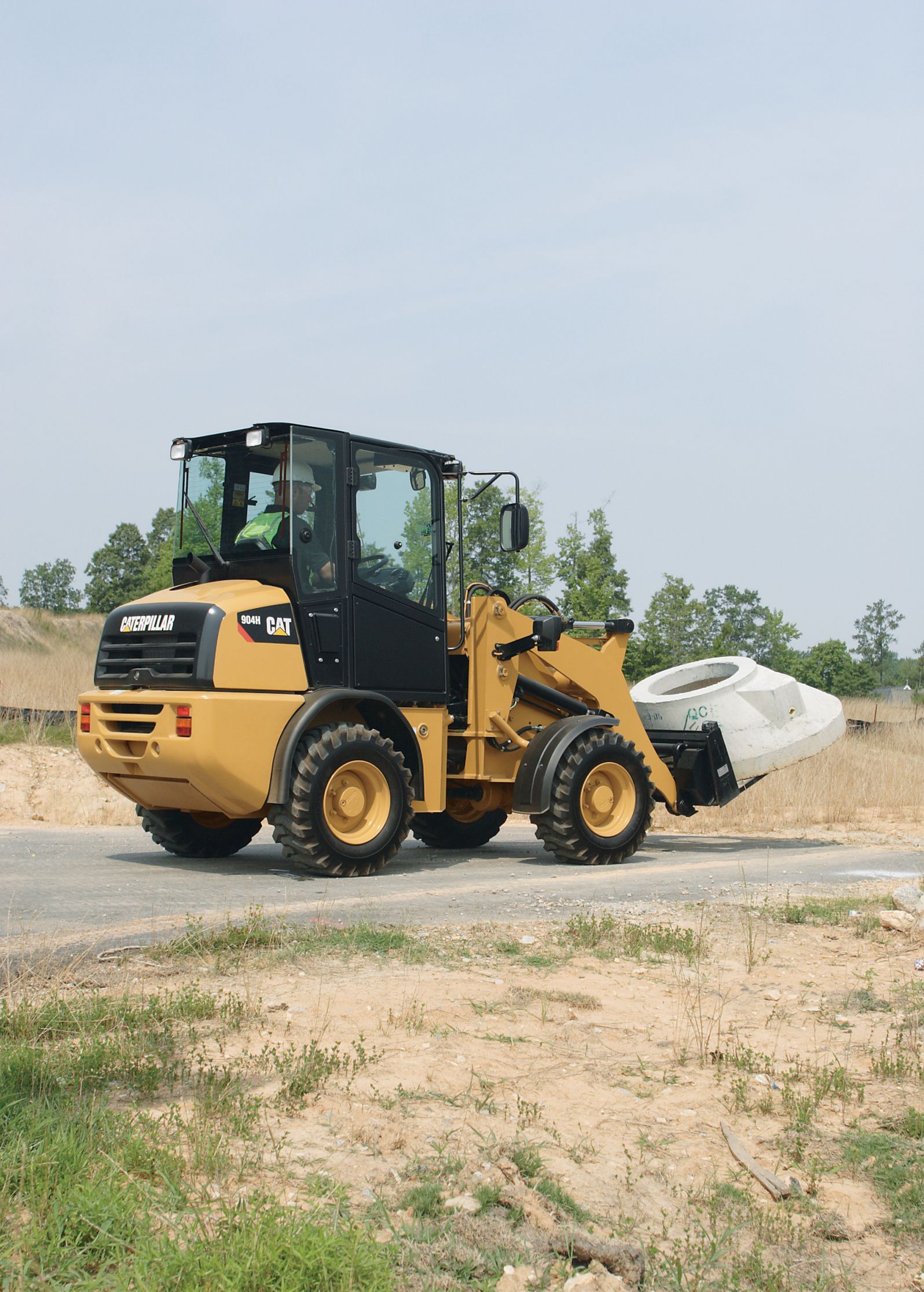

904H Compact Wheel Loader

The Cat 904H Compact Wheel Loader delivers high performance with outstanding versatility. Spacious cab with joystick control keeps you comfortable throughout the work day, allowing you to get more done. Loader design delivers strength and durability with superior control. Do more with one machine with the skid steer loader style coupler. This coupler allows the use of Cat Skid Steer and Multi Terrain Loader hydromechanical Work Tools on the Cat Compact Wheel Loader for greater machine versatility. Expand your business with the new 904H.

Request Quote
Please contact your nearest store for rates and other details.

Product Specs

Engine

Net Power
52 hp
Net Power
52 HP
Gross Power
55 hp
Gross Power
55 HP
ISO 9249 Rating
52 HP
EEC 80/1269 Rating
52 HP
SAE J1349 Rating
52 HP
Model
MHI S4Q2-T

Weights

Operating Weight
9900 lb
Operating Weight
9900 lb

Operating Specifications

Rated Bucket Capacity
0.8 yd3
Rated Bucket Capacity
0.8 yd³
Tire Size
12-16.5, 10PR
Tire Size
12-16.5, 10PR
Breakout Force
8003 lb
Rated Operating Load @ Full Turn, Forks (EN 474-3:2006, Firm and Level Ground, 500 mm [20 in] Load Center) (80% of FTSTL)
3527 lb
Breakout Force
8003 lb
Rated Operating Load at Full Turn - Forks (EN 474-3:2006, Firm and Level Ground, 500 mm [20 in] Load Center) (80% of FTSTL)
3527 lb
Rated Operating Load at Full Turn - Bucket
2756 lb
Rated Operating Load @ Full Turn, Forks (EN 474-3:2006, Rough Terrain, 500 mm [20 in] Load Center) (60% of FTSTL)
2646 lb
Rated Operating Load at Full Turn - Forks (EN 474-3:2006, Firm and Level Ground, 500 mm [20 in] Load Center) (60% of FTSTL)
2646 lb
Straight Tipping Load - Bucket
6614 lb
Full Turn Static Tipping Load - Bucket
5511 lb
Rack Back - Transport Position
49 °

Engine Dimensions

Bore
3.5 in
Stroke
4 in
Displacement
153 in³

Buckets

Bucket Capacities
0.6 m3 - 1.0 m3 0.8 yd3 - 1.3 yd3
Bucket Capacities
0.6 m3 - 1.0 m3 0.8 yd3 - 1.3 yd3

Transmission

Travel Speed 1
4.3 mile/h
Travel Speed 2
12.4 mile/h

Cab

ROPS
SAE J1040 MAY94, ISO 3471:1994
ROPS
SAE J1040 MAY94, ISO 3471:1994
FOPS
SAE J/ISO 3449 APR98 Level I and II; ISO 3449:1994 Level I and II
FOPS
SAE J/ISO 3449 APR98 Level I and II; ISO 3449:1994 Level I and II

Hydraulic System

3rd Valve Flow
22 gal/min
Hydraulic Cycle Time - Lift
4.5 seconds
Hydraulic Cycle Time - Lift
4.5 seconds
Hydraulic Cycle Time - Dump
0.8 seconds
Hydraulic Cycle Time - Dump
0.8 seconds
Hydraulic Cycle Time - Lower, Float
3.2 seconds
Main Relief
3000 psi
Main Relief
3000 psi

Service Refill Capacities

Cooling System
2 gal
Cooling System
2 gal (US)
Fuel Tank
22 gal
Fuel Tank
22 gal (US)
Hydraulic System
11 gal
Hydraulic System
11 gal (US)
Engine Oil
2 gal
Engine Oil
2 gal (US)

Standard Equipment

  • Transmission
    • Transmission, 20 km/h (12.4 mph) with standard axles
    • Transmission inching function
    • Hydrostatic drive
  • Loader
    • Skid steer loader quick coupler
    • Loader arm float function
    • Connect under pressure hydraulic quick connector
  • Engine
    • MHI S4Q2-T Interim Tier 4 emissions compliant
    • Two stage air cleaner with visual indicator
    • Cat Extended Life Coolant
    • Lockable engine compartments
    • Easy quick release fuel filter/water separator
    • Engine oil drain valve
  • Electrical
    • Battery, maintenance free, 650 CCA
    • Engine cold starter aid
    • Alternator, 90 amp
    • Roading lights
    • Back up alarm
  • General
    • Pressure test points
    • Recovery hitch pin ready
    • SOS ports
    • Fuel filler cap
  • Operator Environment
    • Multifunction joystick with direction control
    • Auxiliary control switch
    • Warning indicators for major systems
    • Wiper/washer front and rear (cab only)
    • Easy clean cab floor
    • Left side door (cab only)
    • Personal storage
    • Cup holder
    • Heated rear window
    • ROPS & FOPS
    • Wrist rest
    • Seat belt, 50 mm (2 in), retractable
    • Cabin light
    • Auxiliary power sockets
    • Coat hook
    • Heater with window, side, feet and defrost vents
    • Sound suppression
    • Steering column, fixed
    • Heavy duty floor mat
    • Seat, static, vinyl
    • Left sliding window (cab only)
    • Storage tray
    • Internal mirror

Attachments

  • Transmission
    • Creeper control
    • Hand throttle
    • Ride control
    • 100% Differential Lock on both axles
  • Loader
    • Proportional auxiliary hydraulic circuit
    • Return to dig work tool positioner
  • Engine
    • Engine block heater, 120V
    • Cat extended life coolant, protects to -50° C (-58­° F)
    • Turbine style precleaner
  • Electrical
    • Rotating beacon
    • Work tool wiring harness
    • Working lights, two front and two rear
    • Battery, heavy duty, 880 CCA
  • General
    • Tire options including Flexport and flotation tires
    • Recovery hitch pin
    • Guard, overhead, FOPS II rating
  • Work Tools
    • For all work tool options, consult your Cat dealer
  • Operator Environment
    • Air conditioning
    • Canopy
    • Cab, Comfort
    • Proportional auxiliary control
    • External mirrors (2)
    • Seat belt, 75 mm (3 in), retractable
    • Seat, adjustable suspension, vinyl
    • Seat, adjustable suspension, cloth
    • Radio ready kit including speakers (cab only)
    • Sun visor
