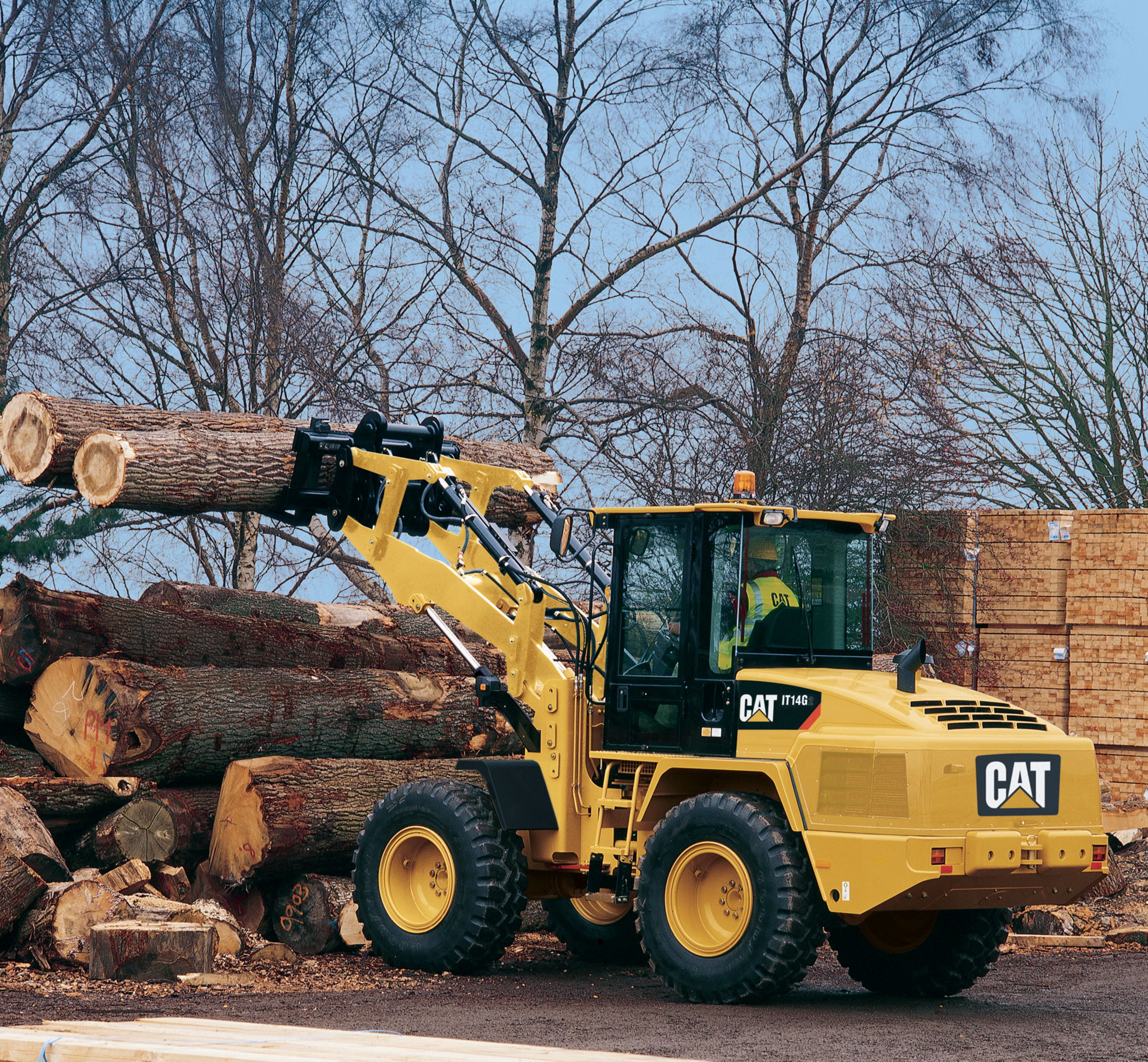

IT14G2 Integrated Toolcarrier

The Cat® IT14G2 delivers strong performance, high productivity and proven reliability. Spacious cab with joystick control keeps you comfortable throughout the work day, allowing you to get more done. Loader design provides strength and durability with superior control. Expand your business with the IT14G2.

Request Quote

Download a Product Brochure

Please contact your nearest store for rates and other details.

Product Specs

Engine

Net Power: 95.0 hp
Net Power: 95 HP
Model: Cat� C4.4 Electronic
Maximum Gross Power - ISO 14396: 101.0 hp
Maximum Gross Power - ISO 14396: 101 HP
Maximum Gross Power - ISO 14396 (DIN): 102.0 hp
Maximum Gross Power - ISO 14396 (DIN): 102 HP
Net Power - ISO 9249 (DIN): 98 HP
Net Power - SAE J1349: 95 HP
Net Power - ISO 9249 EEC: 97 HP
Net Power - SAE J1349: 95.0 hp
Rated Net Power - 2,300 rpm - ISO 9249 (DIN): 98 HP
Rated Net Power - 2,300 rpm - ISO 9249/EEC: 97 HP
Rated Net Power - 2,300 rpm - SAE J1349: 95 HP

Weights

Operating Weight: 18632 lb
Operating Weight: 18632.0 lb
Optional Counterweight*: 330 lb

Operating Specifications

Rated Bucket Capacity: 1.7 yd³
Rated Bucket Capacity: 1.7 yd3
Tire Size: 17.5-25
Tire Size: 17.5-25
Breakout Force: 17342 lb
Breakout Force: 17342.0 lb
Full Turn Static Tipping Load - Bucket: 10566 lb
Dump Height at Full Lift: 9.58 ft
Articulation: 40 °
Oscillation +/-: 11 °

Engine Dimensions

Bore: 4.13 in
Stroke: 5 in
Displacement: 268 in³

Buckets

Bucket Capacities: 1.2-1.4 m3 (1.6-1.8 yd3)
Bucket Capacities: 1.2-1.4 m3 (1.6-1.8 yd3)

Transmission

Travel Speed 1: 5.6 mile/h
Travel Speed 2: 20 mile/h

Cab

ROPS: SAE J394, SAE J1040, ISO 3471
ROPS: SAE J394, SAE J1040, ISO 3471
FOPS: SAE J231, ISO 3449
FOPS: SAE J231, ISO 3449
Sound: 74 dB(A)

Hydraulic System

Hydraulic Cycle Time - Lift: 5.6
Hydraulic Cycle Time - Lift: 5.6
Hydraulic Cycle Time - Dump: 2.1
Hydraulic Cycle Time - Dump: 2.1
Hydraulic Cycle Time - Lower, Float: 3.2
Main Relief: 3560 psi
Main Relief: 3560.0 psi
Flow: 23.8 gal/min
Lift Cylinder, Double Acting: 89 � 795 mm (3.5 � 31.3 in)
Tilt Cylinder, Double Acting: 76 � 805 mm (3.0 � 31.7 in)

Service Refill Capacities

Cooling System: 6.1 gal (US)
Cooling System: 6.1 gal
Fuel Tank: 39.6 gal (US)
Fuel Tank: 39.6 gal
Hydraulic System: 26.4 gal (US)
Hydraulic System: 26.4 gal
Hydraulic Tank: 18.5 gal (US)
Hydraulic Tank: 18.5 gal

Brakes

Brakes: Standards

Standard Equipment

Electrical
- 24V direct electric starting
- Alarm, back-up
- Alternator, 80-ampere
- Batteries, two 900 CCA maintenance free
- Battery disconnect switch
- Glow plug starting aid
- Horn, front, warning (electrical)
- Ignition key start/stop switch
- Lighting system: brake lights, interior light, turn signals (front and rear), halogen working lights (front and rear)
- Power receptacles; internal and external
Loader
- Linkage, 8-bar parallel lift linkage with sealed pins
- Bucket/fork positioner, automatic
- Lift kickout, automatic
- Lift/tilt kickout neutralizer
Hydraulics
- Hydraulic control, pilot-operated implement, single lever, 2 valve
- Hydraulics, third function
- Hydraulic oil cooler, tiltable
- Hydraulic diagnostic connectors
- SOS port - hydraulic oil
- Standard hydraulic oil cooler
- Steering, hydraulic
Operator Environment
- Bucket control, single lever, pilot
- Cab, ROPS (sound suppressed and pressurized):
- Adjustable steering column
- Cigar lighter
- Cup holder
- Ground level door release
- Heater/defroster
- Rearview mirrors, inside (2)
- Storage space, lockable
- Seat, adjustable fabric suspension
- Retractable seat belt
- Tinted safety glass
- Two doors
- Wiper and washer (front and rear), front intermittent
- Defroster, rear window, wired glass
- Indicators:
- Air cleaner
- Air filter
- Brake charge pressure
- Engine oil pressure
- Electrical system voltage
- Hystat oil filter bypass
- Parking brake
- Primary steering
- Instrumentation:
- Battery voltage gauge
- Engine coolant temperature gauge
- Fuel level gauge
- Digital hour meter
- Hydraulic oil level sight gauge
- Hydraulic oil temperature gauge
- Single lever transmission control
Power Train
- Air cleaner, radial seal
- Antifreeze (protected to -36° C/-33° F)
- Extended life coolant antifreeze
- Brakes, Service - inboard, oil-immersed, enclosed, wet-disc full hydraulic
- Brakes, Parking - mechanical on drive line, secondary
- Differentials, conventional (front and rear)
- Driveshaft, lubed for life
- Electric fuel pump
- Engine: Cat C4.4 Electronic diesel turbocharged, EU Stage IIIA and U.S. EPA Tier 3 emission compliant
- Engine enclosure, lockable
- Muffler
- Radiator, serviceable unit core
- Radiator expansion bottle
- SOSSM port - engine oil
- Suction fan
- Transmission, hydrostatic
Other
- Counterweight (with quick coupler)
- Fenders (front/rear)
- Hitch, drawbar
- Pressure test points
- Vandalism protection-locked service points

Attachments

Electrical
- Electrical Accessories Package (12V converter, accessory plug outlet, wiring)
- Lighting, auxiliary front: 2 additional cab-mounted halogen working lights
- Machine Security System
- Rotating beacon, magnetic
Hydraulics
- Drain valves, ecological
- Hydraulic fourth valve
- Hydraulic quick disconnects
- Steering, secondary
Operator Environment
- Air conditioner (R-134a refrigerant)
- Canopy, ROPS
- Mirrors, two external
- Radio prep package (12V) includes speakers, antenna, converter and mounts (radio not included)
- Ride Control System
- Seats:
- Heated, fabric, with parking brake alarm
- Cat Comfort Series, fabric, air suspension
- Sliding door window
- Speedometer
- Sun screen, rear window
- Sun visor
Power Train
- Antifreeze (protected to -50° C/-58° F)
- Creeper control, transmission
- Differential, Limited Slip (front and/or rear axle)
- Engine air filter precleaner, cyclone
- Engine Speed Control (ESC)
- Forward/Neutral/Reverse (FNR) remote transmission control
- Starting aid, engine block heater, 120V
Other
- Bottom guard, hystat
- Fenders, roading
- Ground engaging tools, bucket
- Low sound package
- “Blue Angel” low sound package
- Tires:
- Bias ply, 15.5 × 25 and 17.5 × 25
- Radial, 17.5 × R25
- Tire rims, 1- and 3-piece
- Tool box, lockable
- Tool kit
