325F L Hydraulic Excavator

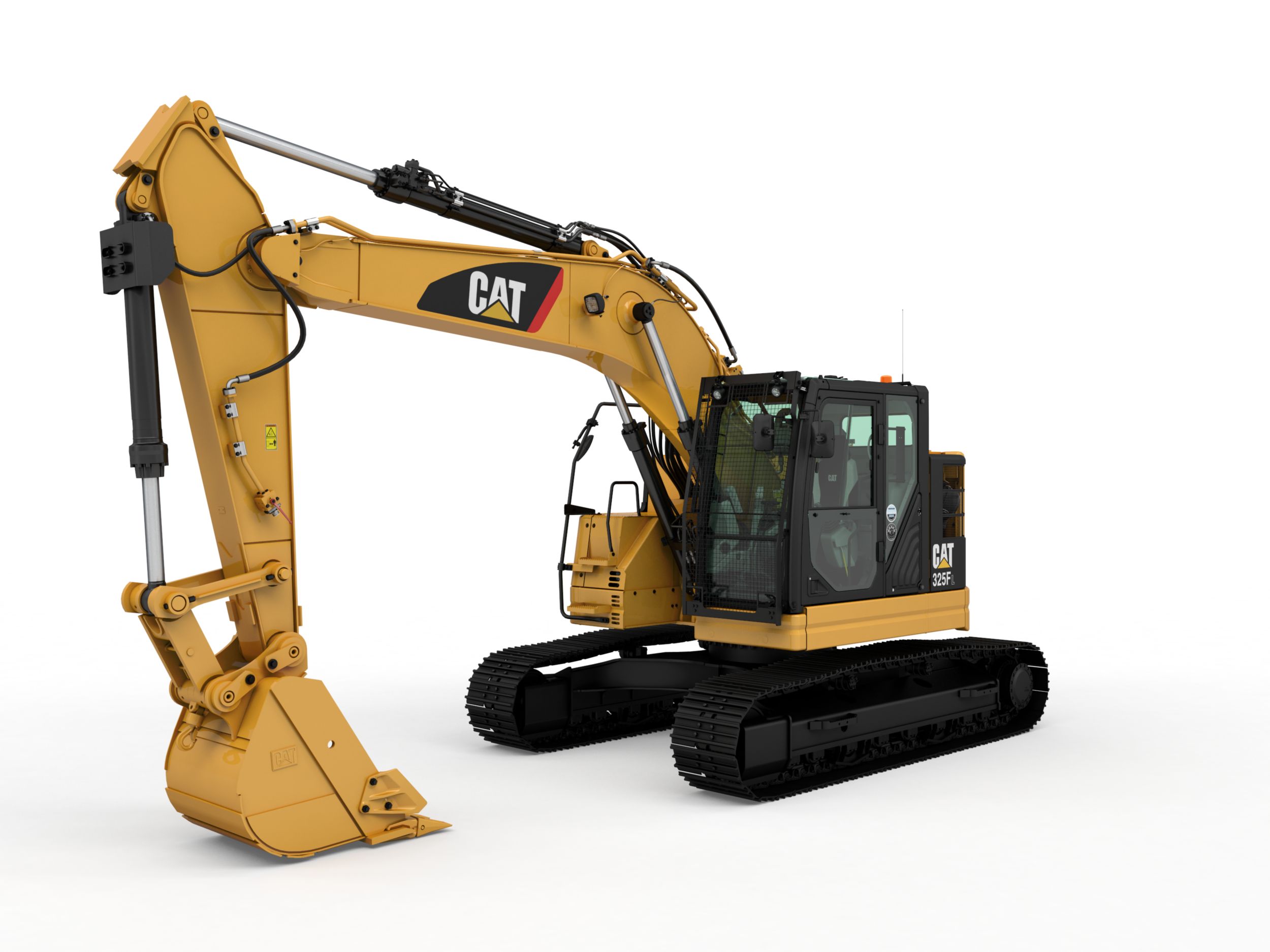

Exterior View
Please contact your nearest store for rates and other details.
Product Specs
Engine
- Engine Model
- Cat® C4.4 ACERT
- Net Flywheel Power
- 161 hp
- Bore
- 4 in
- Stroke
- 5 in
- Displacement
- 269 in³
- Engine Power - ISO 14396:2002
- 164 hp
- Emissions
- The 325F L meets Tier 4 Final emission standards.
- Net Power - SAE J1349:2011
- 161 hp
Weights
- Operating Weight
- 57115 lb
- Note
- Long Undercarriage, Reach Boom, R 2.9 m (9'6") Stick, 1.19 m3 (1.56 yd3) bucket and 790 mm (31") TG shoes.
Drive
- Maximum Drawbar Pull
- 45591 lbf
- Maximum Travel Speed
- 3.5 mile/h
Service Refill Capacities
- Fuel Tank Capacity
- 86.6 gal (US)
- Cooling System
- 7.9 gal (US)
- Engine Oil
- 6.6 gal (US)
- Swing Drive
- 2.1 gal (US)
- Hydraulic System - Including Tank
- 74 gal (US)
- Hydraulic Tank
- 33.8 gal (US)
- Final Drive
- 2.1 gal (US)
- DEF Tank Capacity
- 4.9 gal (US)
Swing Mechanism
- Swing Speed
- 11.2 r/min
- Swing Torque
- 45612 ft·lbf
Hydraulic System
- Boom Cylinder - Stroke
- 55 in
- Bucket Cylinder - Bore
- 5 in
- Bucket Cylinder - Stroke
- 43 in
- Main System - Maximum Flow - Implement
- 113 gal/min
- Maximum Pressure - Equipment - Lift Mode
- 5510 psi
- Maximum Pressure - Swing
- 3698 psi
- Maximum Pressure - Travel
- 5075 psi
- Stick Cylinder - Bore
- 6 in
- Stick Cylinder - Stroke
- 59 in
- Maximum Pressure - Equipment - Normal
- 5075 psi
- Pilot System - Maximum Flow
- 4.8 gal/min
- Boom Cylinder - Bore
- 5 in
- Pilot System - Maximum Pressure
- 595 psi
Sound Performance
- ISO 6395 - Exterior
- 99 dB(A)
- ISO 6396 - Inside Cab
- 69 dB(A)
Track
- Number of Carrier Rollers - Each Side
- 2
- Number of Shoes - Each Side
- 49
- Number of Track Rollers - Each Side
- 7
Standard Equipment
-
- Engine
-
- Diesel engine, Cat C4.4 ACERT, twin turbo, meets Tier 4 Final emission standards: – Three selectable power modes capability: HHP, STD and ECO – Aftertreatment system: CEM (DOC + DPF + SCR) and DEF system (DEF tank and DEF lines)
- Variable fan speed control with viscous clutch
- One-touch low idle with auto engine speed control
- Automatic (programmable) idling shut down function
- Three-stage fuel filtration system with water separator and indicator
- 3000 m (9,840 ft) altitude capability without de-rate
- 52° C (126° F) high-ambient cooling capability with de-rate from 48° C (118° F)
- 85 amp alternator
- Radial seal air filter with double filter element
- Electric fuel lifting pump
- Capability of using biodiesel fuel (up to B20)
-
- Hydraulic
-
- Electric boom regeneration circuit
- Stick regeneration circuit
- One-touch lifting mode
- Automatic two-speed travel
- Boom and stick drift reduction valve
- Reverse swing damping valve
- High-performance hydraulic return filter (capsule filter type)
- CRN compliant accumulator
-
- Cab
-
- Sound suppressed ROPS cab (ISO 12117-2 compliant) with viscous mount
- Openable skylight as emergency exit (dual exit hatch)
- Openable laminated front upper windshield with assist device
- Removable tempered lower windshield with in-cab storage bracket
- High back seat with air suspension, seat heater and head rest
- Fully adjustable seat, console and armrest
- Seat belt
- LCD monitor with distortion-free rearview camera picture
- Automatic bi-level air conditioner with pressurized function
- 12V×2 power supply with sockets (maximum 10 amp)
- Washable floormat
- Interior utilities (interior lighting, coat hook, beverage holder, literature holder, document holding space, and cab rear storage compartment)
-
- Undercarriage And Structures
-
- HD track rollers
- Grease-lubricated track link
- Tie-down points on base frame (ISO 15818 compliant)
- Swivel guard
-
- Electrical
-
- Maintenance-free battery
- Centralized electrical disconnect switch
- Cat Product Link
- Programmable time delay working lights (halogen); base machine frame (one), cab mounted (two), boom mounted both sides (two)
-
- Service And Maintenance
-
- Engine oil, fuel, and hydraulic oil filters grouped for ease of maintenance (secondary fuel filter is located separately)
- Sampling ports for Scheduled Oil Sampling (S·O·SSM)
-
- Safety And Security
-
- Rearview camera with three mirrors (ISO 5006 compliant) and one additional handrail mirror for right rear view
- RH handrail and hand hold (ISO 2867 compliant)
- Bolt-free service platform with anti-skid plate
- Neutral lever (lock out) for all controls
- Ground-level accessible secondary engine shutoff switch in cab
- Signaling/warning horn
- Jump start stud
- Safety hammer for cab evacuation
Attachments
-
- Engine (factory Installed)
-
- Cold start, –32° C (–26° F)
-
- Hydraulic (factory Installed)
-
- Tool control
- Medium circuit, ele. device (two way, third pump)
- Cat Pin Grabber coupler circuit (high pressure)
- Boom line, high pressure for reach
- Stick line, high pressure for reach (R2.9B1/9'6")
- Boom line, medium pressure for reach
- Stick line, medium pressure for reach (R2.9B1/9'6")
- Boom line, quick coupler for reach
- Stick line, quick coupler for reach (R2.9B1/9'6")
- Fine swing control
- Boom cylinders
- Stick cylinder
- Bucket cylinder
-
- Cab (factory Installed)
-
- Joysticks with three on/off switches and one modulation switch
- Straight travel pedal
- Control pattern quick-changer, two way
- 24V AM/FM radio with auxiliary input
-
- Undercarriage And Structures (factory Installed)
-
- Reach boom (5.7 m/18'8") with left-hand and right-hand boom lights
- Stick (R2.9 m/9'6") B1 linkage
- Bucket linkage, B1-family with lifting eye
- 600 mm (24'') triple grouser
- 790 mm (31") triple grouser
- 790 mm (31") HD triple grouser
- Track guiding guard, segmented two pieces
- Track guiding guard, full length
- HD bottom guards
- Standard bottom guards
-
- Technology (factory Installed)
-
- Cat Grade Control (GC) 2D depth and slope
-
- Safety And Security (factory Installed)
-
- Boom lowering control valve
- Stick lowering control valve
- Travel alarm
-
- Cab (dealer Installed)
-
- Rain protector for front windshield
-
- Safety And Security (dealer Installed)
-
- Seat belt, retractable (76 mm/3" width)
- FOGS retrofit kit package
- Mesh for front guard retrofit kit package
- Mesh guard, lower half front
- Vandalism guard with holder
-
- Service And Maintenance (dealer Installed)
-
- Electric refueling pump with auto shut off
