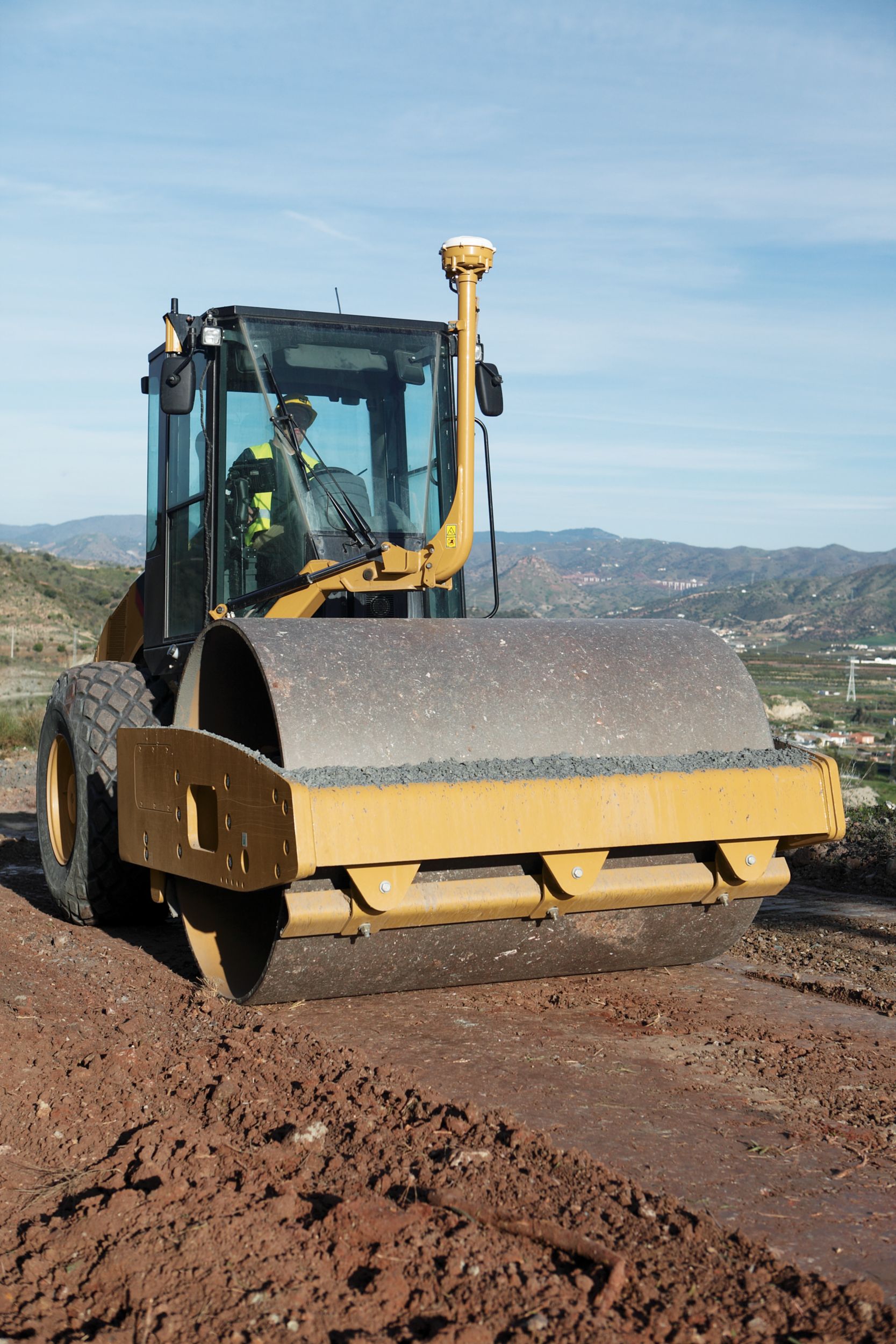

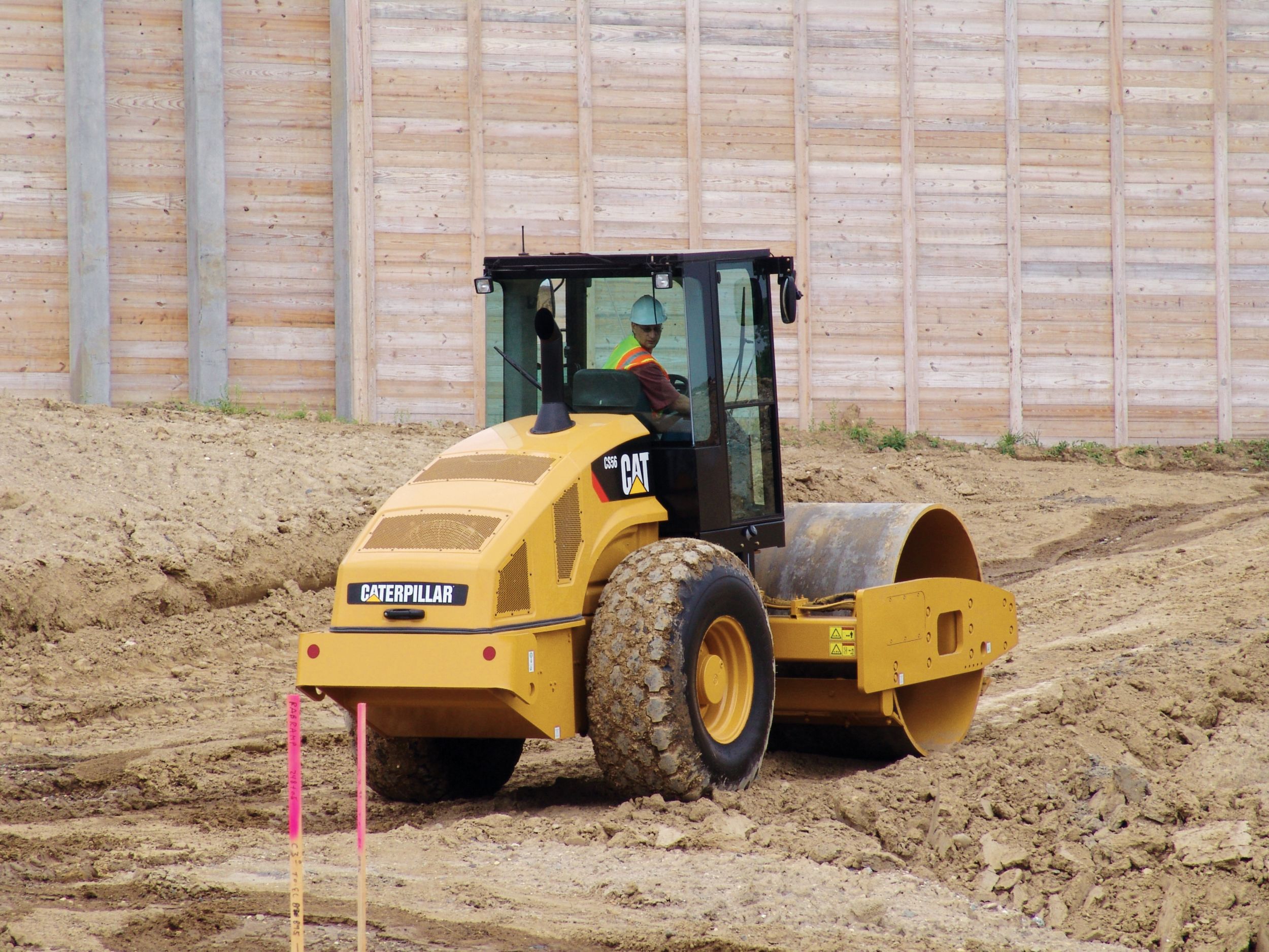

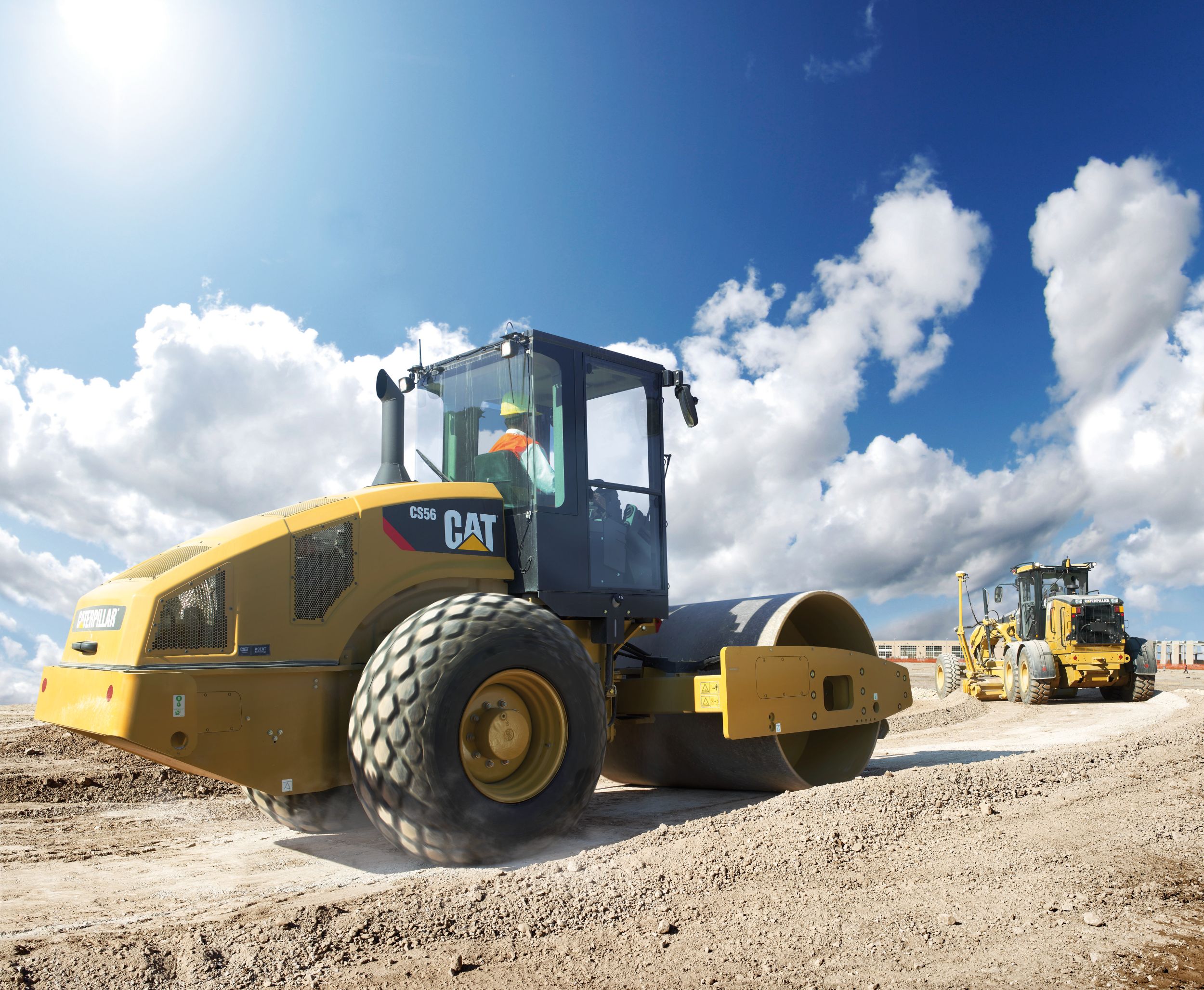

CS56 Vibratory Soil Compactor

The durable and reliable CS56 Vibratory Soil Compactors offer high compaction performance, speed and gradeability to maximize productivity.

Request Quote
Download a Product Brochure
Please contact your nearest store for rates and other details.

Product Specs

Weights

Operating Weight - With Cab
27571 lb
Operating Weight with Cab
27571.0 lb
Operating Weight - With ROPS/FOPS
26850 lb
Weight - Drum with ROPS/FOPS
14586 lb
Operating Weight with ROPS/FOPS
26850.0 lb
Weight - Drum with Cab
14775 lb
Weight at Drum with ROPS/FOPS
14586.0 lb

Operating Specifications

Compaction Width
84 in
Compaction Width
84.0 in
Ground Clearance
21.1 in
Travel Speed - Maximum
6.9 mile/h
Ground Clearance
21.1 in
Static Linear Load - With Cab
175.9 lb/in
Static Linear Load - With ROPS/FOPS
173.6 lb/in
Travel Speed – Maximum
6.9 mph
Turning Radius - Inside Drum Edge
12.08 ft

Engine

Gross Power
156 mm H2O
Gross Power
156.0 hp
Engine Model
Cat C6.6
Engine Model
Cat C6.6

Tires

Tires
23.1 × 26 8-ply flotation
Tires
23.1 × 26 8-ply flotation

Service Refill Capacities

Fuel Tank Capacity
91.0 gal
Fuel Tank Capacity
91 gal (US)

Vibratory System

Centrifugal Force - Maximum
63300 lb
Centrifugal Force - Minimum
31600 lb
Nominal Amplitude – High
0.07 in
Nominal Amplitude – Low
0.035 in
Variable Frequency Option Range
23.3-31.9 Hz (1,400-1,914 vpm)
Vibratory Frequency - Standard
1914.0 vpm
Nominal Amplitude - High
0.07 in
Nominal Amplitude - Low
0.035 in
Variable Frequency Option Range
23.3-31.9 Hz (1,400-1,914 vpm)
Vibratory Frequency - Standard
1914 V/m

Dimensions

Drum Diameter
60 in
Drum Width
84 in
Overall Length
19.25 ft
Overall Width
7.5 ft
Wheel Base
9.5 ft
Drum Diameter
60.0 in
Drum Width
84.0 in
Height - With ROPS/FOPS or Cab
10.08 ft
Optional Blade Height
27 in
Overall Length
19.25 ft
Overall Length - With Blade Option
21 ft
Overall Width
7.5 ft
Overall Width - With Blade Option
8.25 ft
Wheelbase
9.5 ft
