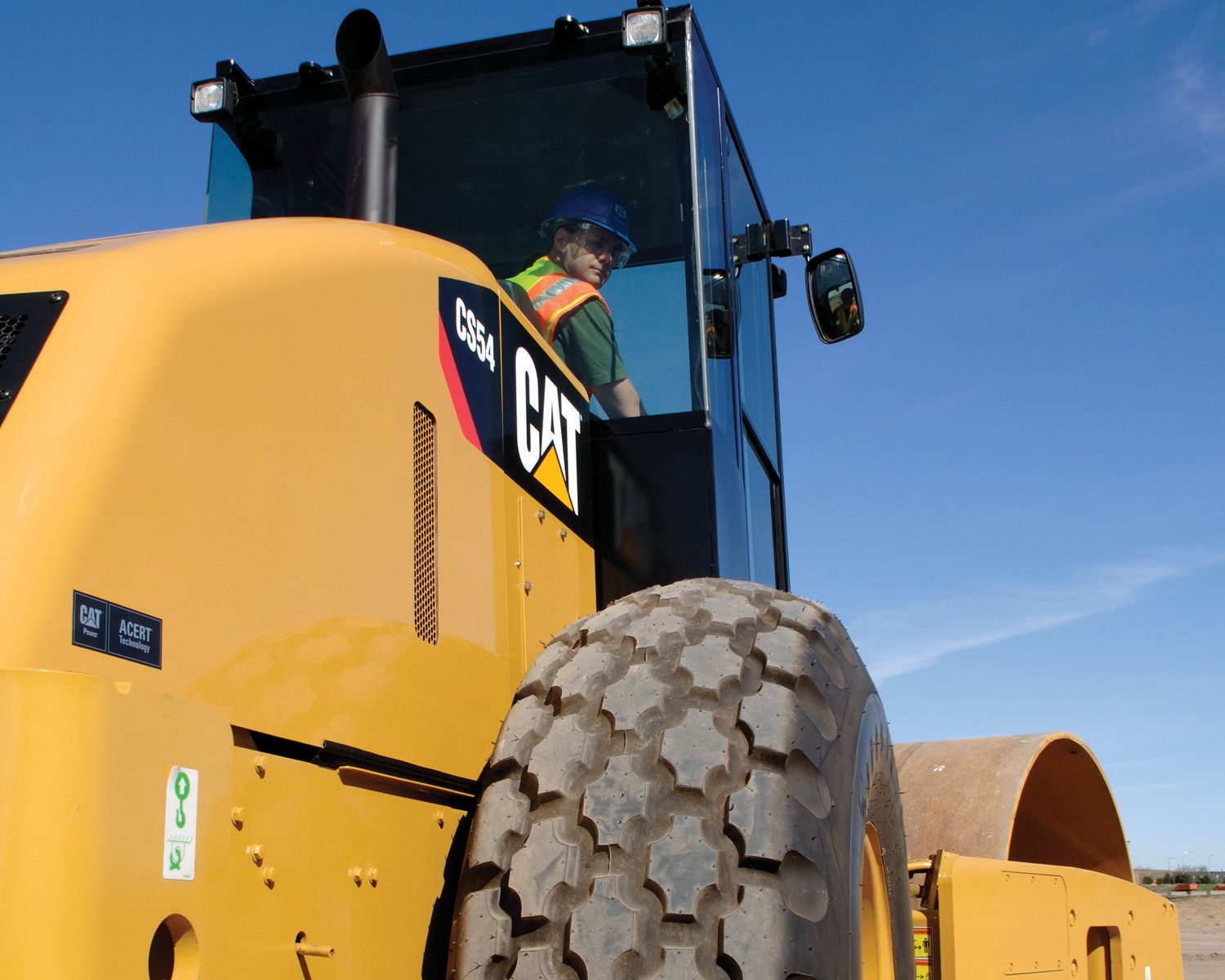

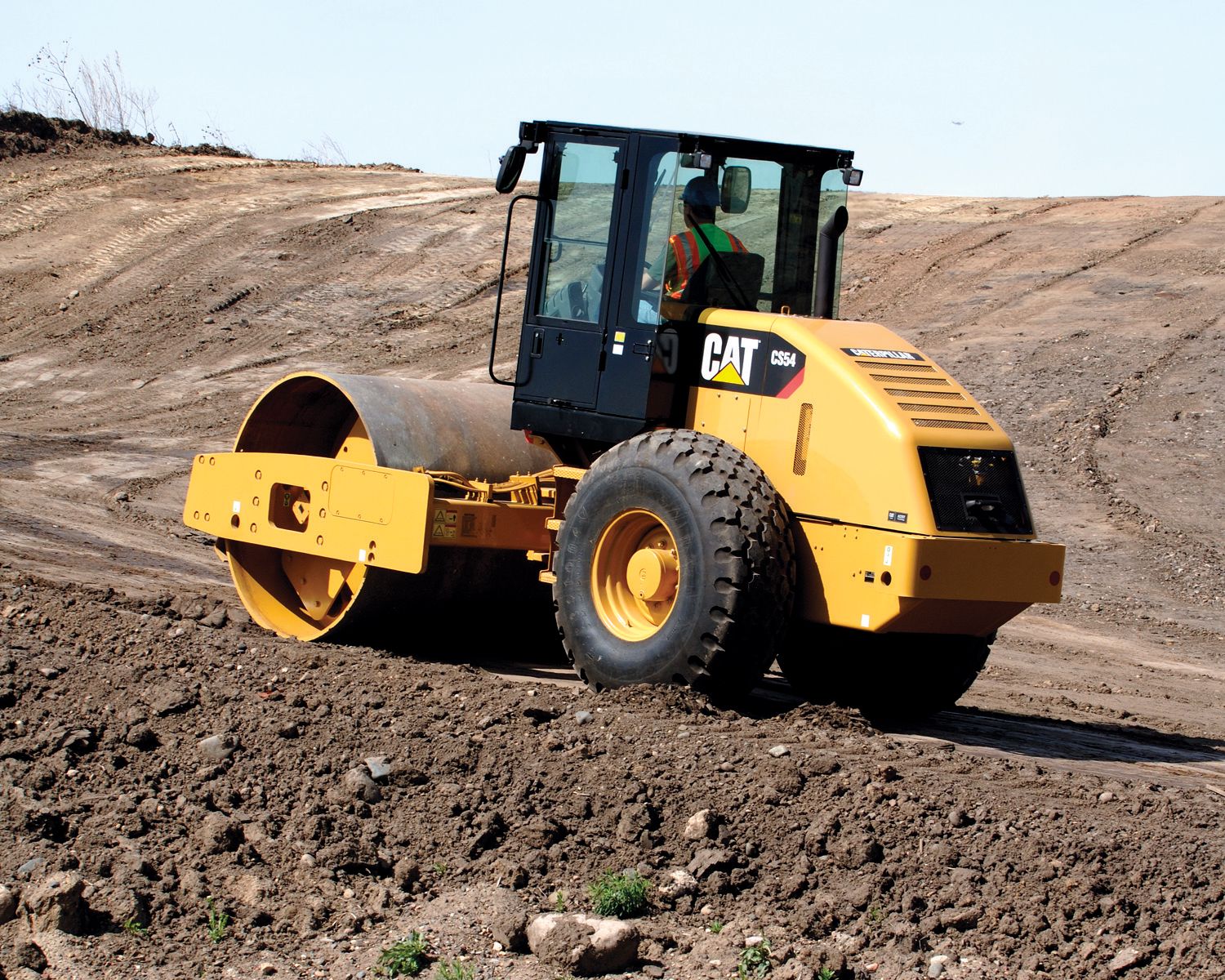

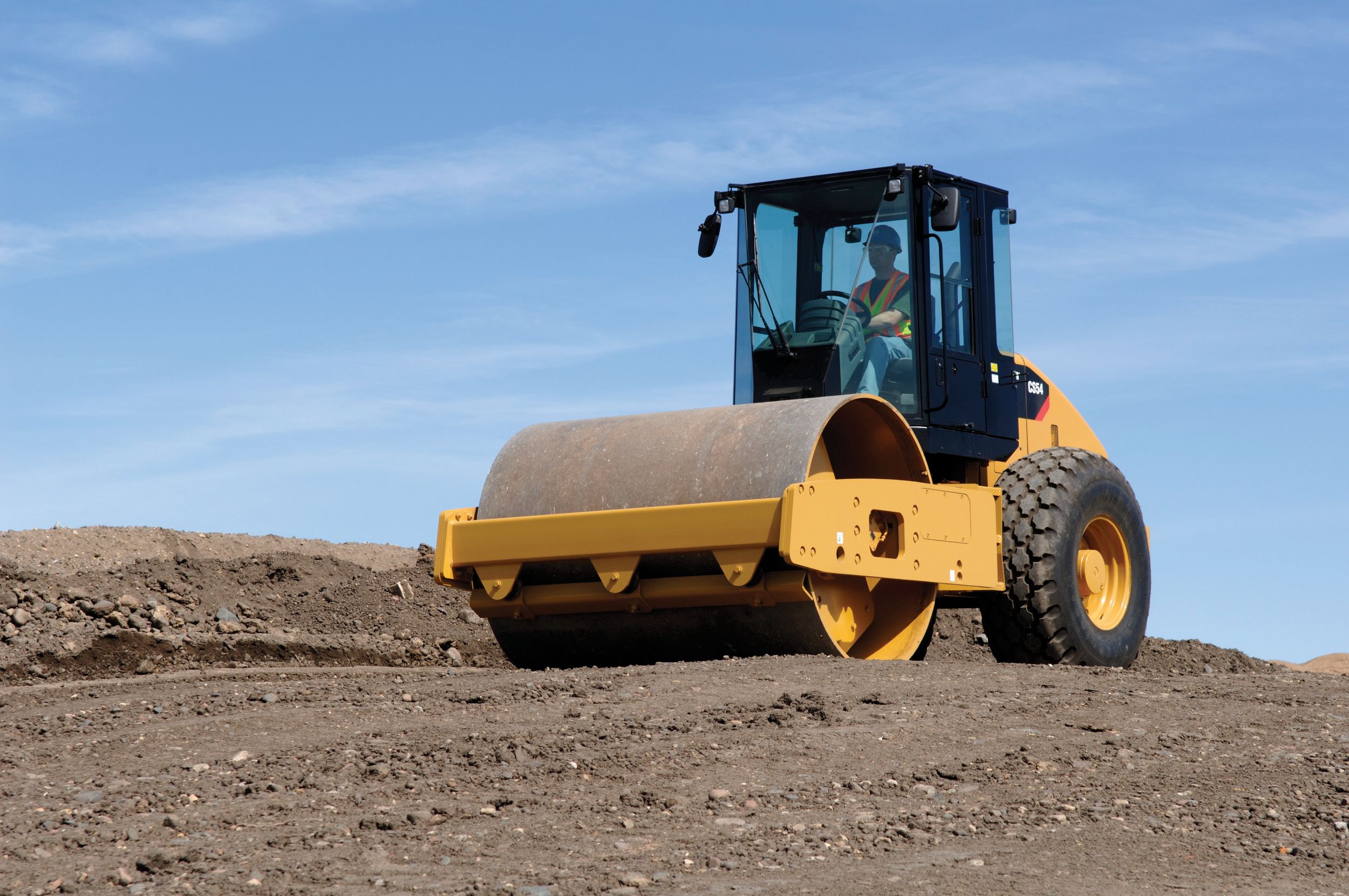

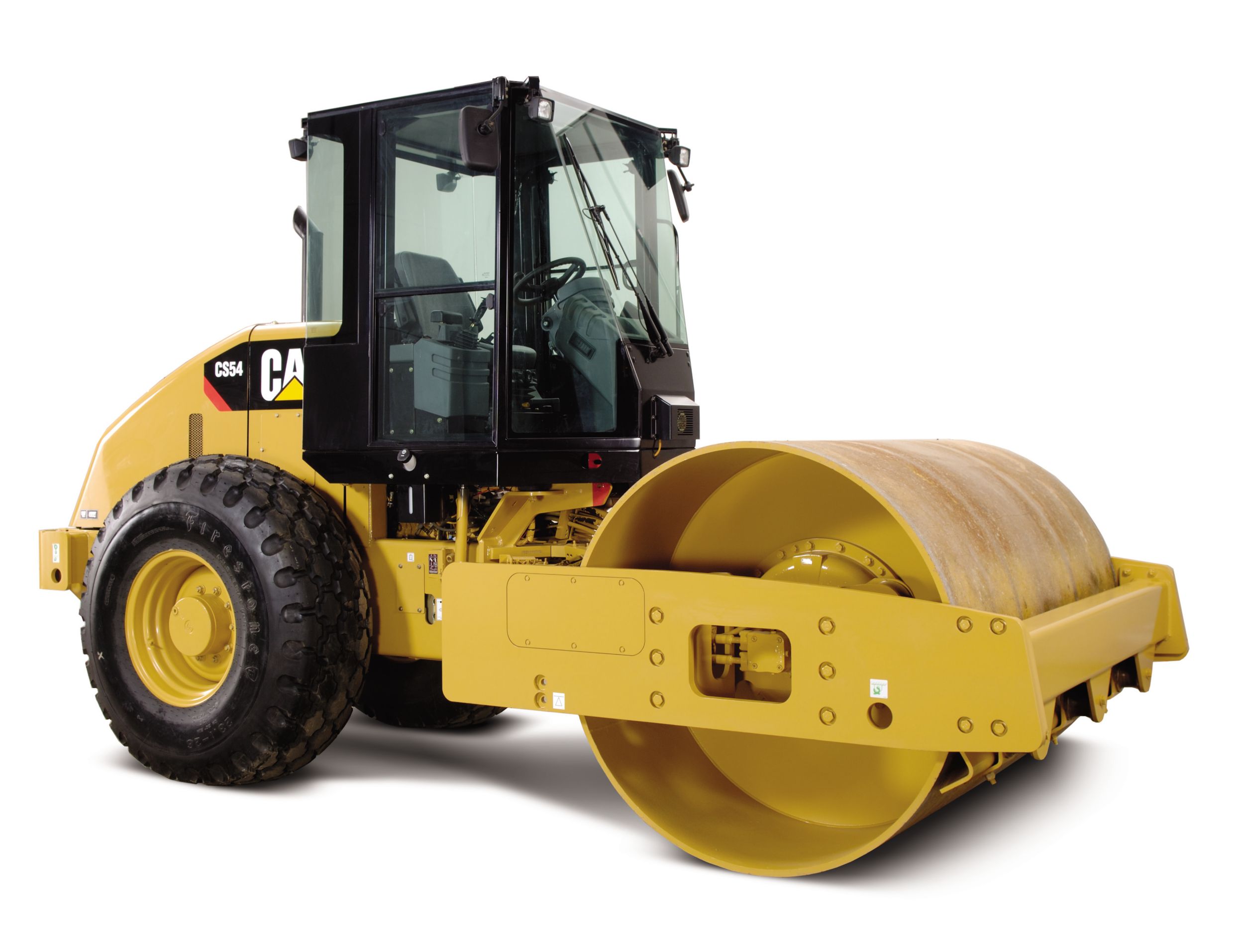

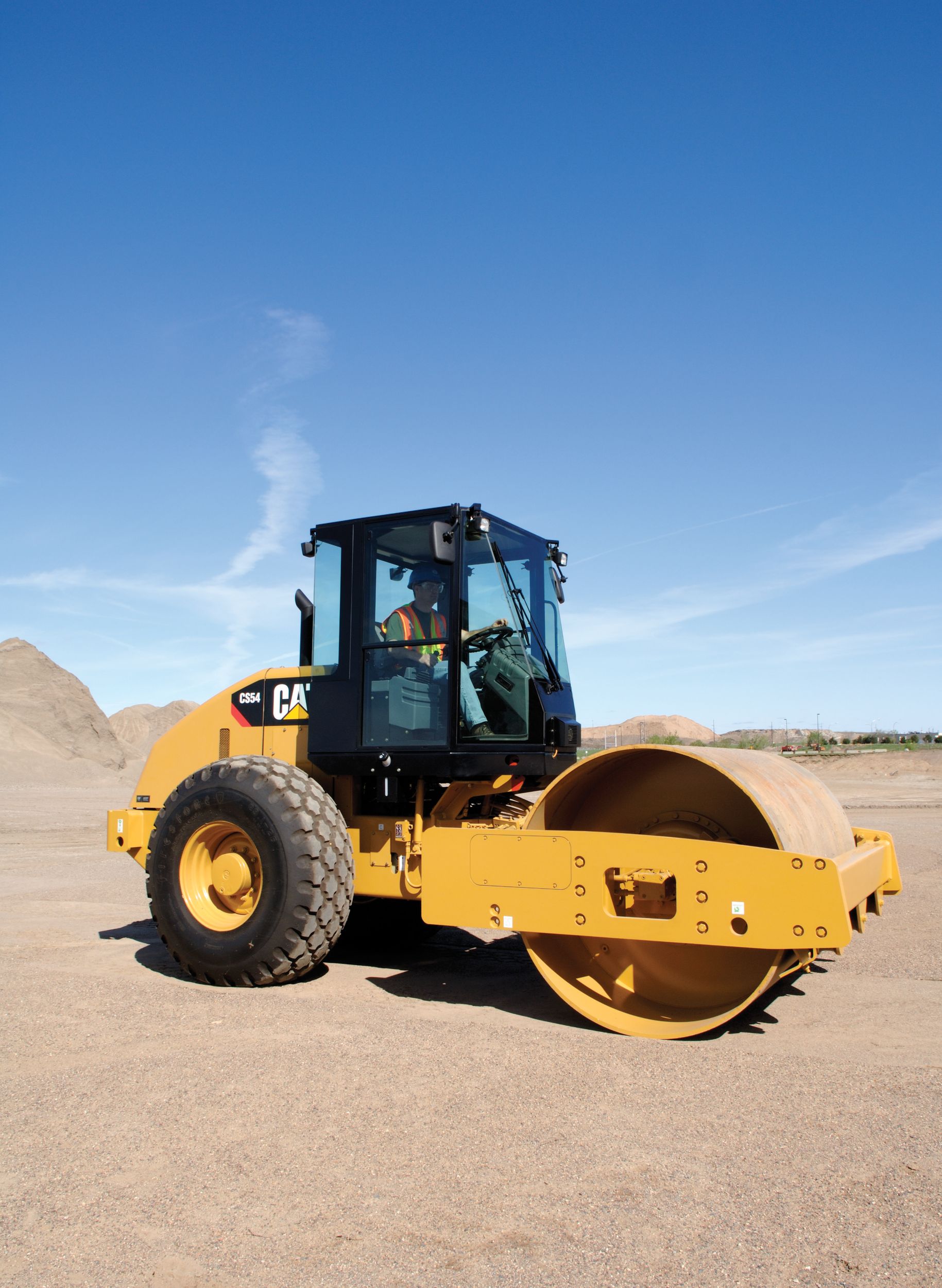

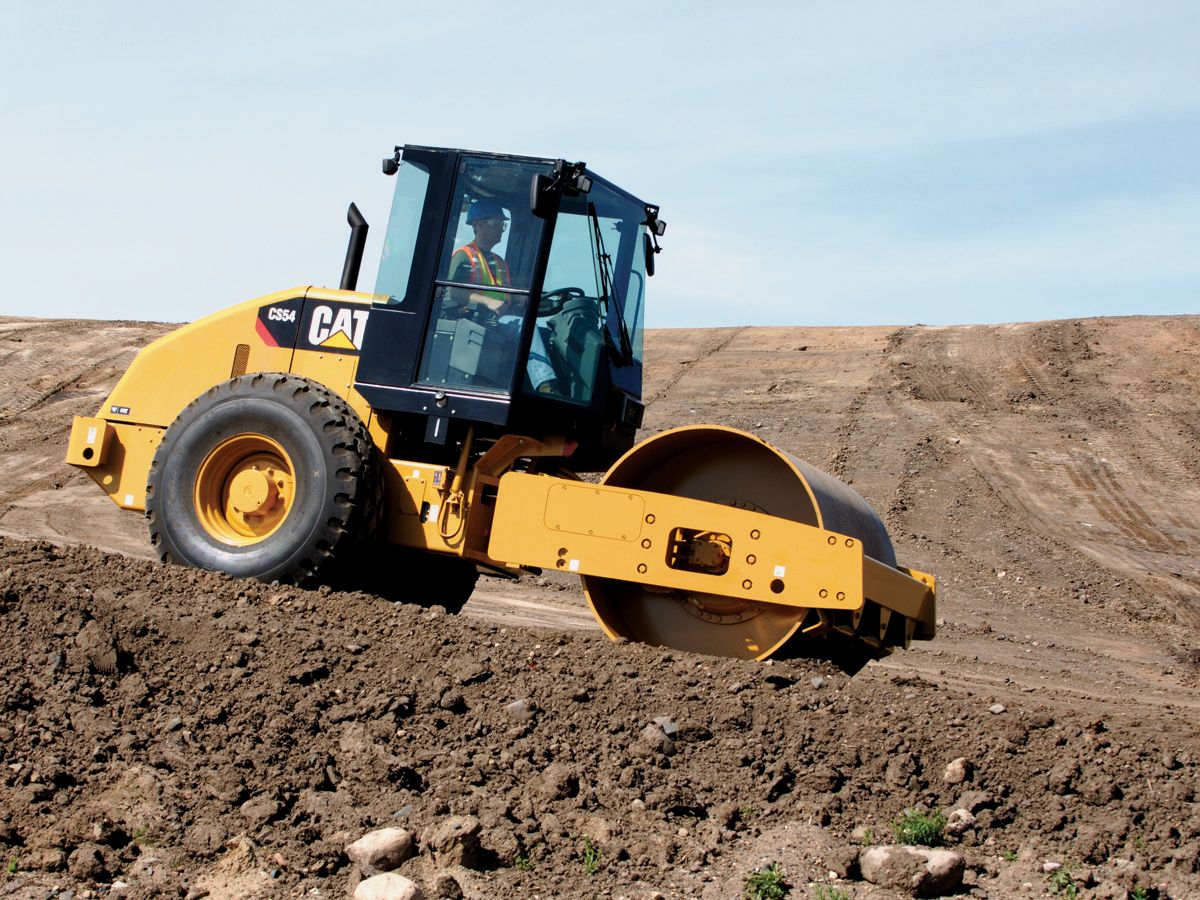

CS54 Vibratory Soil Compactor

The CS54 Soil Compactor offers high compaction performance, speed and gradeability to maximize productivity while providing exceptional reliability and durability.

Request Quote

Download a Product Brochure

Please contact your nearest store for rates and other details.

Product Specs

Weights

Operating Weight - With Cab: 23900 lb
Operating Weight with Cab: 23900.0 lb
Operating Weight - With ROPS/FOPS: 23120 lb
Weight - Drum with ROPS/FOPS: 12280 lb
Operating Weight with ROPS/FOPS: 23120.0 lb
Weight - Drum with Cab: 12700 lb
Weight at Drum with ROPS/FOPS: 12280.0 lb

Operating Specifications

Compaction Width: 84 in
Compaction Width: 84.0 in
Ground Clearance: 20.3 in
Travel Speed - Maximum: 6.9 mile/h
Ground Clearance: 20.3 in
Static Linear Load - With Cab: 151.2 lb/in
Static Linear Load - With ROPS/FOPS: 146 lb/in
Travel Speed – Maximum: 6.9 mph
Turning Radius - Inside Drum Edge: 12.08 ft

Engine

Gross Power: 130 mm H2O
Gross Power: 130.0 hp
Engine Model: Cat C4.4
Engine Model: Cat C4.4

Dimensions

Drum Diameter: 60.4 in
Drum Width: 84 in
Overall Length: 18.08 ft
Overall Width: 7.5 ft
Wheel Base: 9.5 ft
Drum Diameter: 60.4 in
Drum Width: 84.0 in
Height - With ROPS/FOPS or Cab: 10.08 ft
Overall Length: 18.08 ft
Overall Width: 7.5 ft
Wheelbase: 9.5 ft

Vibratory System

Nominal Amplitude - High: 0.071 in
Nominal Amplitude - Low: 0.033 in
Variable Frequency Option Range: 23.3-31 Hz (1,400-1,860 vpm)
Vibratory Frequency - Standard: 31/34 Hz (1,860/2,040 vpm)
Centrifugal Force - Maximum: 52600 lb
Centrifugal Force - Minimum: 30000 lb
Nominal Amplitude – High: 0.071 in
Nominal Amplitude – Low: 0.033 in
Variable Frequency Option Range: 23.3-31 Hz (1,400-1,860 vpm)
Vibratory Frequency - Standard: 31/34 Hz (1,860/2,040 vpm)

Tires

Tires: 23.1 × 26 8-ply flotation
Tires: 23.1 × 26 8-ply flotation

Service Refill Capacities

Fuel Tank Capacity: 53 gal (US)
Fuel Tank Capacity: 53.0 gal
