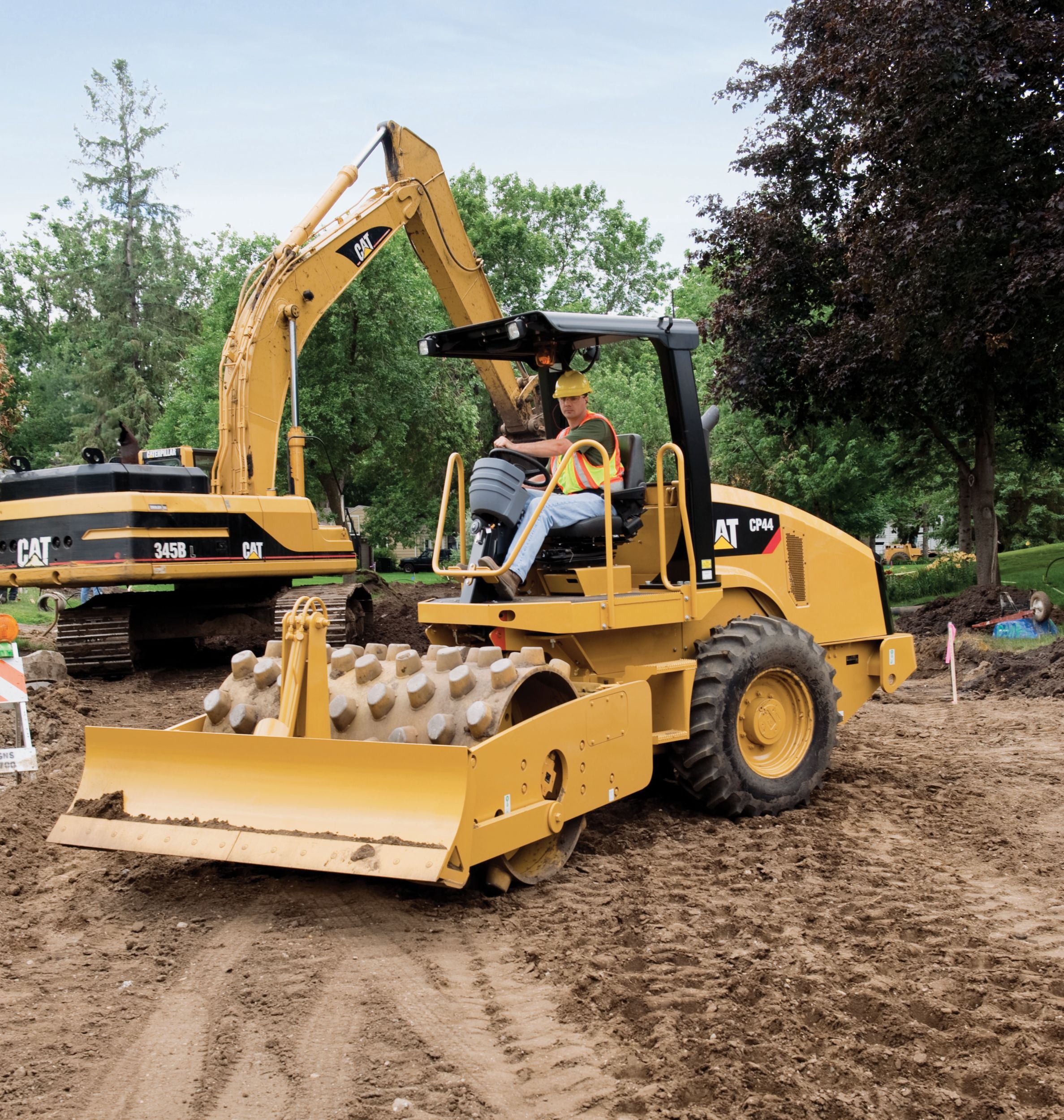

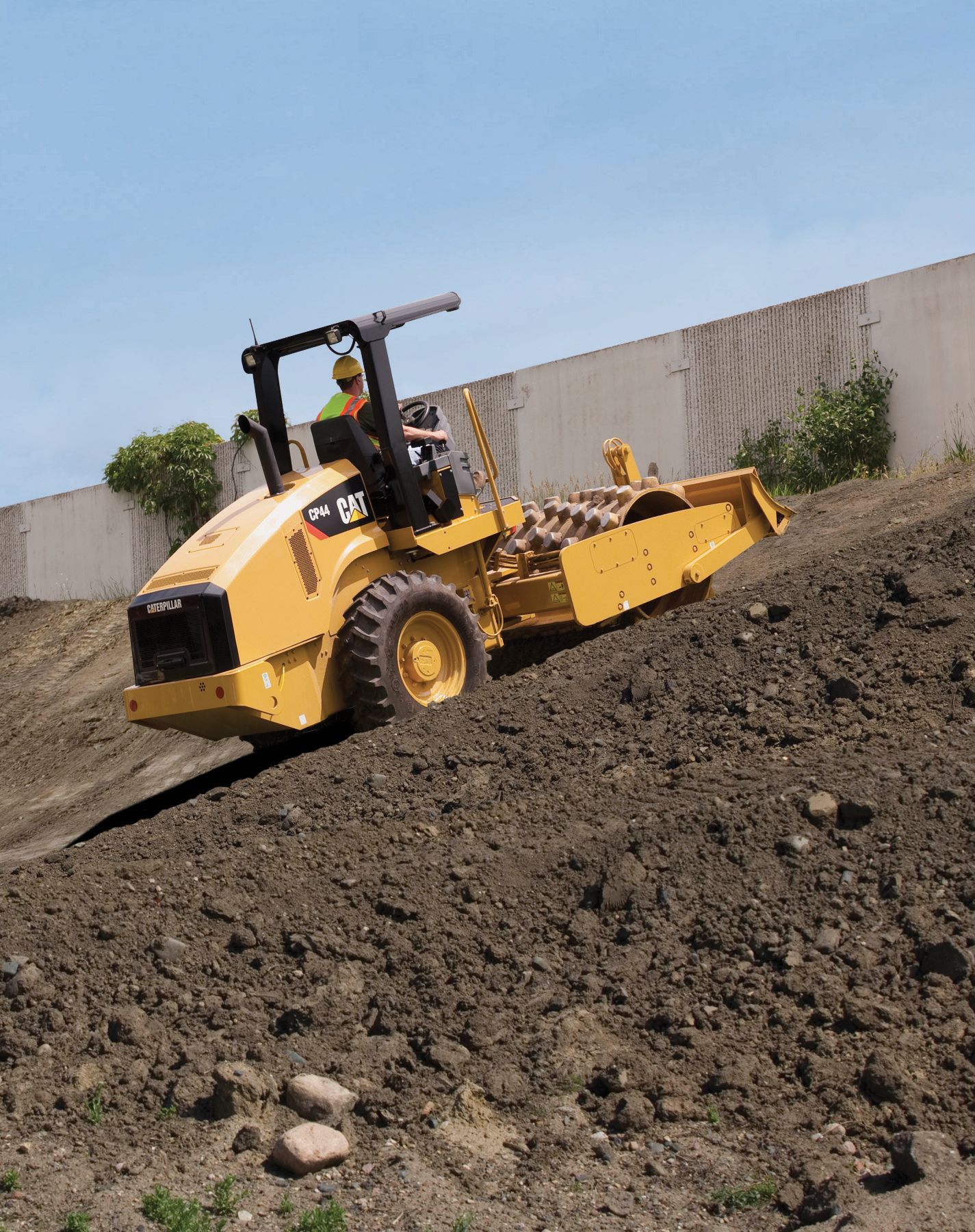

CP44 Vibratory Soil Compactor
Please contact your nearest store for rates and other details.
Product Specs
Weights
- Operating Weight - With Cab
- 16832 lb
- Weight - Drum with Cab
- 9502 lb
- Operating Weight - With ROPS/FOPS
- 16083 lb
- Weight - Drum with ROPS/FOPS
- 8289 lb
Operating Specifications
- Compaction Width
- 66 in
- Turning Radius - Inside Drum Edge
- 10.08 ft
- Ground Clearance
- 16.2 in
- Travel Speed - Maximum
- 7.6 mile/h
Engine
- Gross Power
- 100 hp
- Engine Model
- Cat C4.4
Dimensions
- Drum Diameter - Over Pads
- 48 in
- Height - With ROPS/FOPS or Cab
- 9.75 ft
- Optional Blade Height
- 22.6 in
- Overall Length - With Blade Option
- 17.83 ft
- Overall Width - With Blade Option
- 6.92 ft
- Drum Width
- 66 in
- Overall Length
- 16.67 ft
- Overall Width
- 5.92 ft
- Wheel Base
- 8.5 ft
Vibratory System
- Centrifugal Force - Maximum
- 30000 lb
- Centrifugal Force - Minimum
- 15000 lb
- Nominal Amplitude - High
- 0.063 in
- Nominal Amplitude - Low
- 0.032 in
- Variable Frequency Option Range
- 23.3-31.9 Hz (1,400-1,914 vpm)
- Vibratory Frequency - Standard
- 1914 V/m
Tires
- Tires
- 14.9 × 24 8-ply traction
Service Refill Capacities
- Fuel Tank Capacity
- 47.5 gal (US)
