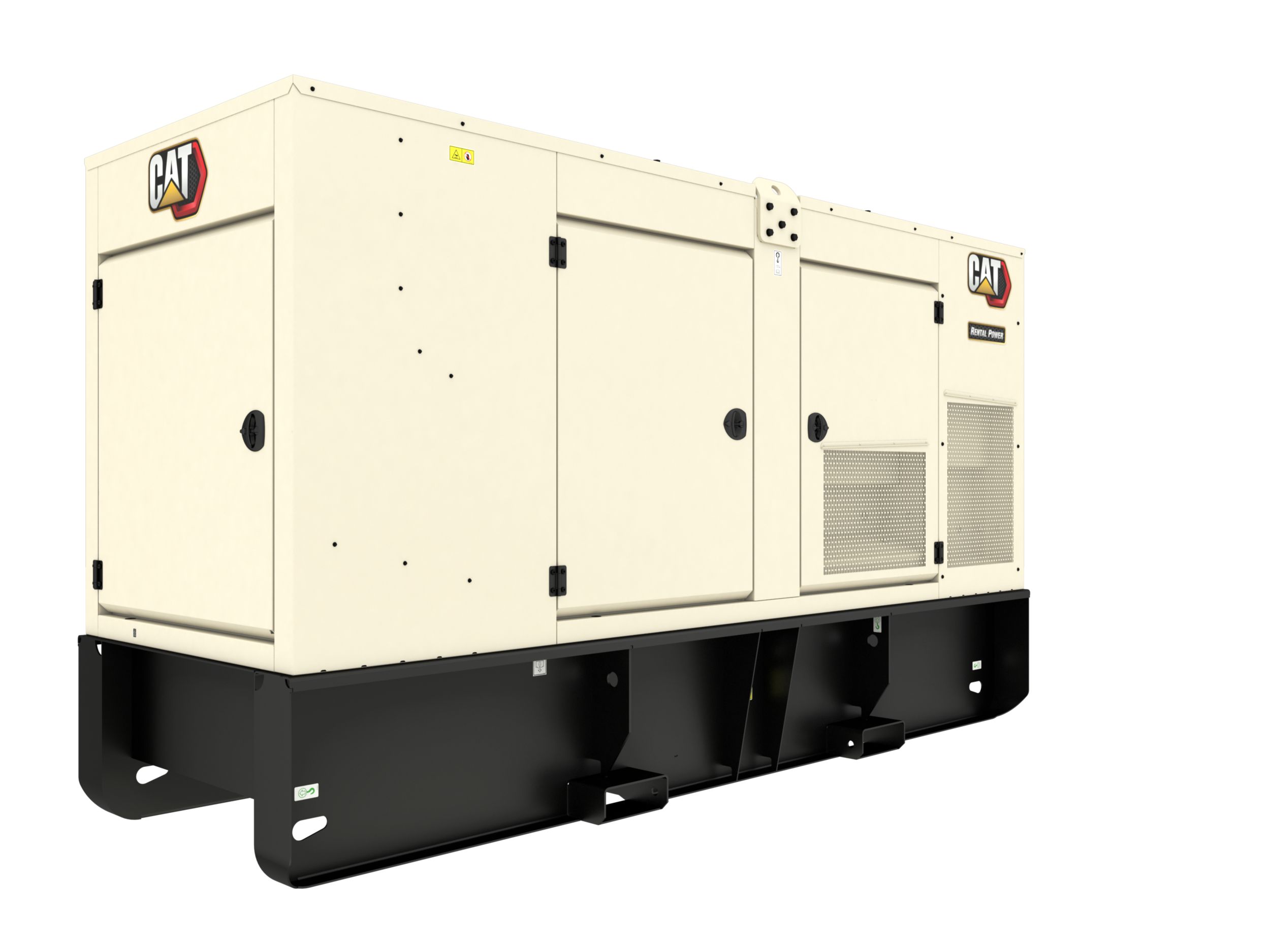

Exterior View
Product Specs
Generator Set
- Rating Prime
- 310 kVA
- Frequency
- 50/60 Hz
- Voltage
- 220 - 480 V
- Fuel/Emissions Strategy
- EU Stage V
Engine
- Engine
- Cat C9.3
- Fuel
- Diesel
Dimensions
- Width
- 60 in
- Height
- 90 in
- Length
- 161 in
- Weight - With Lube Oil and Coolant
- 9046 lb
Fuel Consumption
- 100% Load 50 Hz
- 17.7 gal/hr
- 100% Load 60 Hz
- 20.4 gal/hr
- 75% Load 50 Hz
- 13.2 gal/hr
- 75% Load 60 Hz
- 14.9 gal/hr
Standard Equipment
-
- Cat® C9.3b Diesel Engine
-
- Twin Turbocharged, air-to-air aftercooler
- Electronic ECM controlled
-
- After Treatment
-
- Engine Mounted Clean Emissions Module (CEM)
- Diesel Emissions Fluid (DEF)
-
- Alternator
-
- LC5114N Frame
- Coastal insulation protection
-
- Control Panel
-
- XQCP set mounted digital controller
-
- Air Filter
-
- High efficiency two stage air cleaner, with dust cup andservice indicator
-
- Cat Connect Remote Monitoring
-
- Provides package monitoring and management
-
- Cooling System
-
- Package mounted radiator with vertical air discharge. Filled from factory
- High ambient performance
-
- Charging / Starting System
-
- 24V heavy duty charging alternator with integral regulator
-
- Fuel System
-
- 12hour dual wall fuel tank with internal fuel fill
- Engine mounted primary and secondary fuel filter
-
- Distribution
-
- Separate robust steel enclosures for control & distribution sections
- 4 pole, 630A main circuit breaker
-
- Enclosure
-
- Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance
- Sealed quarter-turn compression latches with key orpadlock capabilities
-
- Lube Oil
-
- On engine primary and secondary oil filters. Filled from factory
-
- General
-
- Factory tested and inspected
- Full manufacturer's warranty
Attachments
-
- Control Panel
-
- ComAp InteliGen NTC, Deep Sea 8620, DEIF AGC-4
- Syncronising capabilities
-
- Distribution
-
- CE socket box with integrated MCB & RCBO protection
-
- Fuel Option Pack
-
- Inboard mounted 3-way valve for external fuel connection, electronic fuel gauge and Bund Level Sender
-
- Drains Option Pack
-
- Oil and coolant drains piped to base frame
