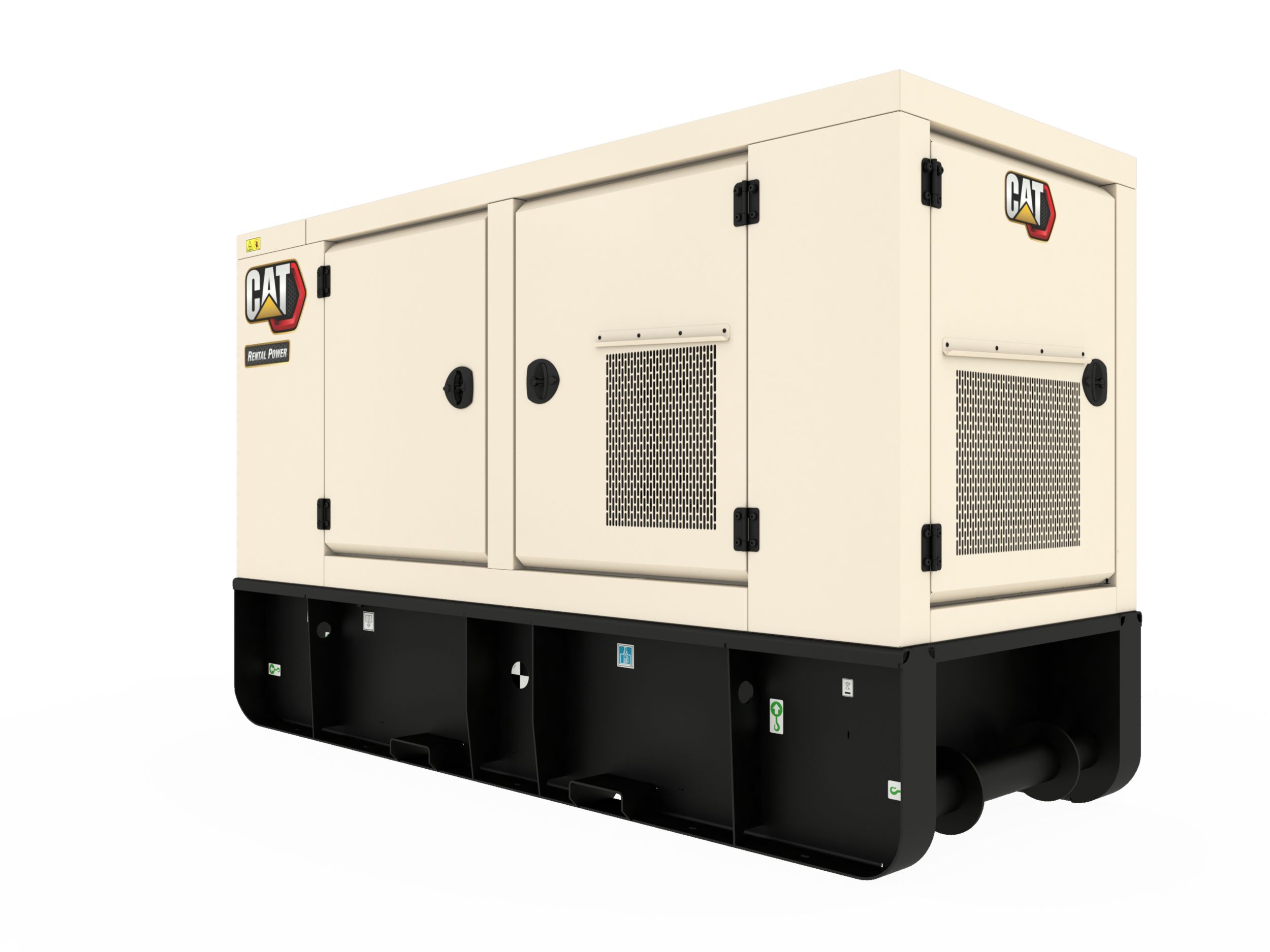

Exterior View
Product Specs
Generator Set
- Rating Prime
- 100 kVA
- Frequency
- 50/60 Hz
- Voltage
- 127 - 480 V
Engine
- Engine
- Cat C4.4
- Fuel
- Diesel
Dimensions
- Width
- 44.1 in
- Height
- 72.7 in
- Length
- 109.1 in
- Weight - With Lube Oil and Coolant
- 4469 lb
Fuel Consumption EU Stage IIIA
- 100% Load 50Hz
- 6.2 gal/hr
- 100% Load 60Hz
- 7.3 gal/hr
- 75% Load 50Hz
- 5.4 gal/hr
- 75% Load 60Hz
- 5.9 gal/hr
- 50% Load 50Hz
- 3.9 gal/hr
- 50% Load 60Hz
- 4.2 gal/hr
Fuel consumption Best Fuel Efficiency
- 100% Load 50Hz
- 6 gal/hr
- 100% Load 60Hz
- 7.1 gal/hr
- 75% Load 50Hz
- 4.5 gal/hr
- 75% Load 60Hz
- 5.3 gal/hr
- 50% Load 50Hz
- 3.1 gal/hr
- 50% Load 60Hz
- 3.7 gal/hr
Noise rating (with enclosure) EU Stage IIIA
- Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz)
- 77.5 dB(A)
- Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz)
- 79.5 dB(A)
Noise rating (with enclosure) Best Fuel Efficiency
- Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz)
- 80.3 dB(A)
- Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz)
- 81.6 dB(A)
Standard Equipment
-
- Cat C4.4 Diesel Engine
-
- Turbocharged
-
- Generator
-
- LC3114F Frame
-
- Air Filter
-
- Cyclonic/paper with dust cup and service indicator
-
- Cat Connect Remote Monitoring
-
- Provides package monitoring and management
-
- Cooling System
-
- Package mounted radiator with vertical air discharge. Filled from factory
-
- Charging / Starting System
-
- 12V heavy duty starting motor and charging alternator c/w battery isolator
-
- Fuel System
-
- 24 hour dual wall fuel tank with 3 way directional valve for external supply
-
- Control Panel
-
- Digital XQCP set mounted controller
-
- Distribution
-
- Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off
-
- Structure
-
- Heavy Duty steel base frame with integral fuel tank. Fork lift pockets. Dragging bars. Lifting frame and 4 point lift. base frame is wider than enclosure to protect generator set during transportation.
-
- Enclosure
-
- Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance
-
- Exhaust
-
- Integrated spark arresting silencer
-
- Lube Oil
-
- On engine primary and secondary oil filters. Filled from factory
-
- General
-
- Factory tested and inspected
