Product Specs
Technical Summary
- Configuration
- Floor Standing modular switchgear paralleling system (Master Breaker Panel for the first 2 gensets, separate structures for up to 8 additional gensets , utility, and load control/distribution)
- Modes of Operation
- Emergency Standby with redundant master control. Utility paralleling, peak shaving, and closed transition to/from Generator Power (with optional utility control panel)
- Application
- LV only (208V - 480V)
Generator Protective Devices
- ANSI Protective Devices
- 15/25. 27/59, 81 O/U, 32, 40, 90 (Industrial Grade)
Utility Protective Devices
- ANSI Protective Devices
- (Utility Grade) SR-750 / SEL-351S, 25, 27/59, 81 O/U, 32,47 (Industrial Grade) 15
Environmental Parameters
- Certifications
- UL891
- Control Panel Enclosure
- NEMA1
- Operating Temperature
- 0°C to 55°C
- Storage Temperature
- -20°C to 60°C
Standard Equipment
-

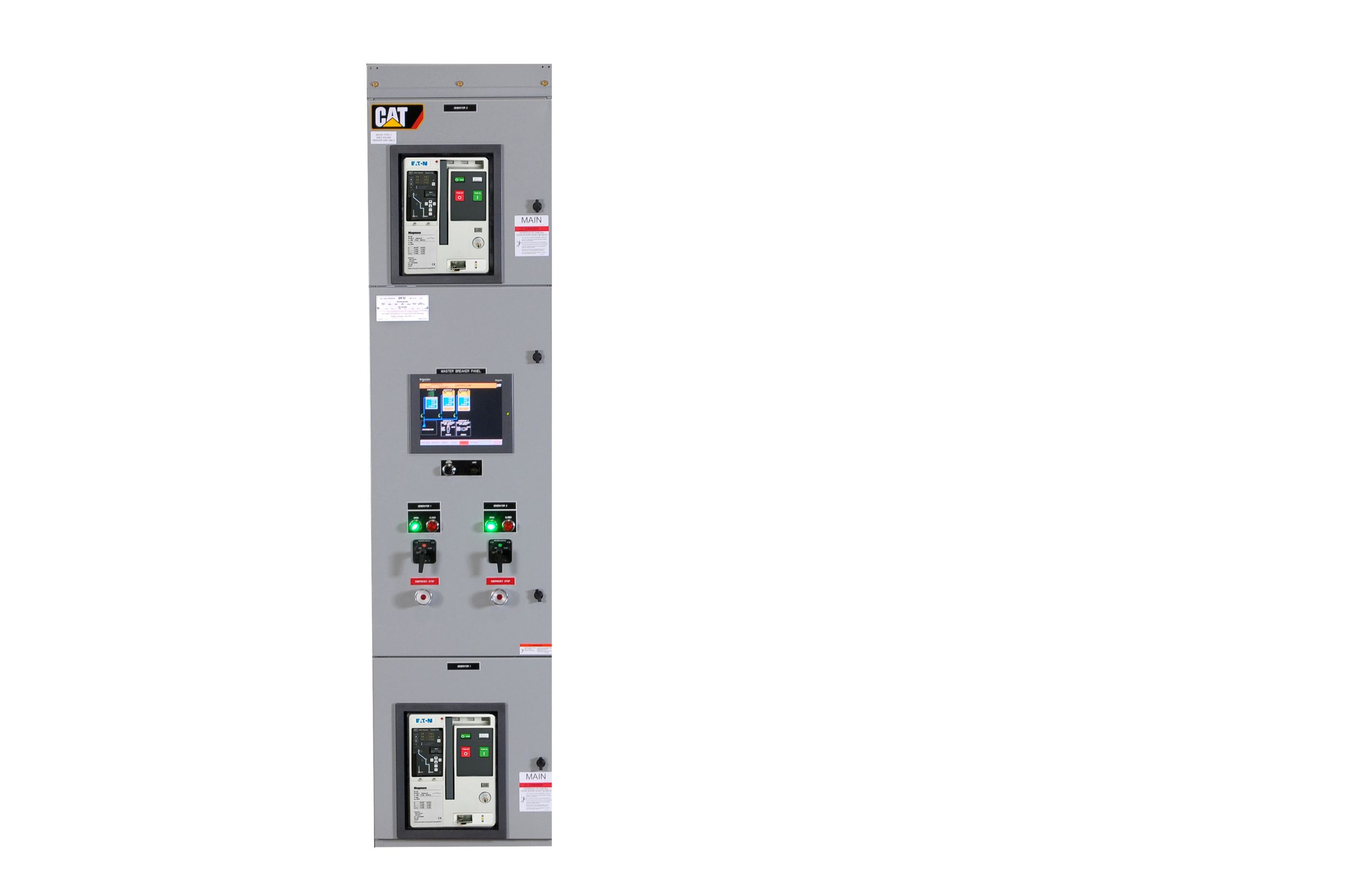

- Master Breaker Panel (mbp) For First 2 Gensets
-
- With electrically operated generator circuit breakers, lugs or cross-bus, and genset controls
-
- 12" Graphical Color Touchscreen Display (hmi) Instant Auto Selector Switch
-
- Allows user to return system to automatic in the event of a touchscreen failure
-
- Spare Inputs And Outputs
-
- 2 discrete inputs and 3 discrete outputs programmable from the HMI
Attachments
-
- Generator Breaker Panel For 1 Or 2 Incremental Gensets (up To 8 Additional Gensets)
-
- With breaker position indications, circuit breaker control switch, generator controller, and user programmable logic I/O
-
- Utility Breaker Panel
-
- With closed transition soft transfer and utility control for 1 LV circuit breaker, utility grade protective relay, utility close lockout switch, breaker position indications, and circuit breaker control switch
-
- Supplemental Hardware Synchronization Check Relay (ansi 25 Device)
-
- Provides additional discrete synchronization protection
-
- Data Table Interface
-
- Accomodates interface with a building management system for monitoring all system parameters via Modbus RTU or TCP
-
- Generator Demand Priority Control
-
- Automatically match the on-line generator capacity to the loads, and avoid unnecessary operation of generator sets.
-
- Distribution Breaker Panel Slave
-
- Each slave panel contains 3 distribution breakers
- With I/O module for control of up to 3 circuit breakers
