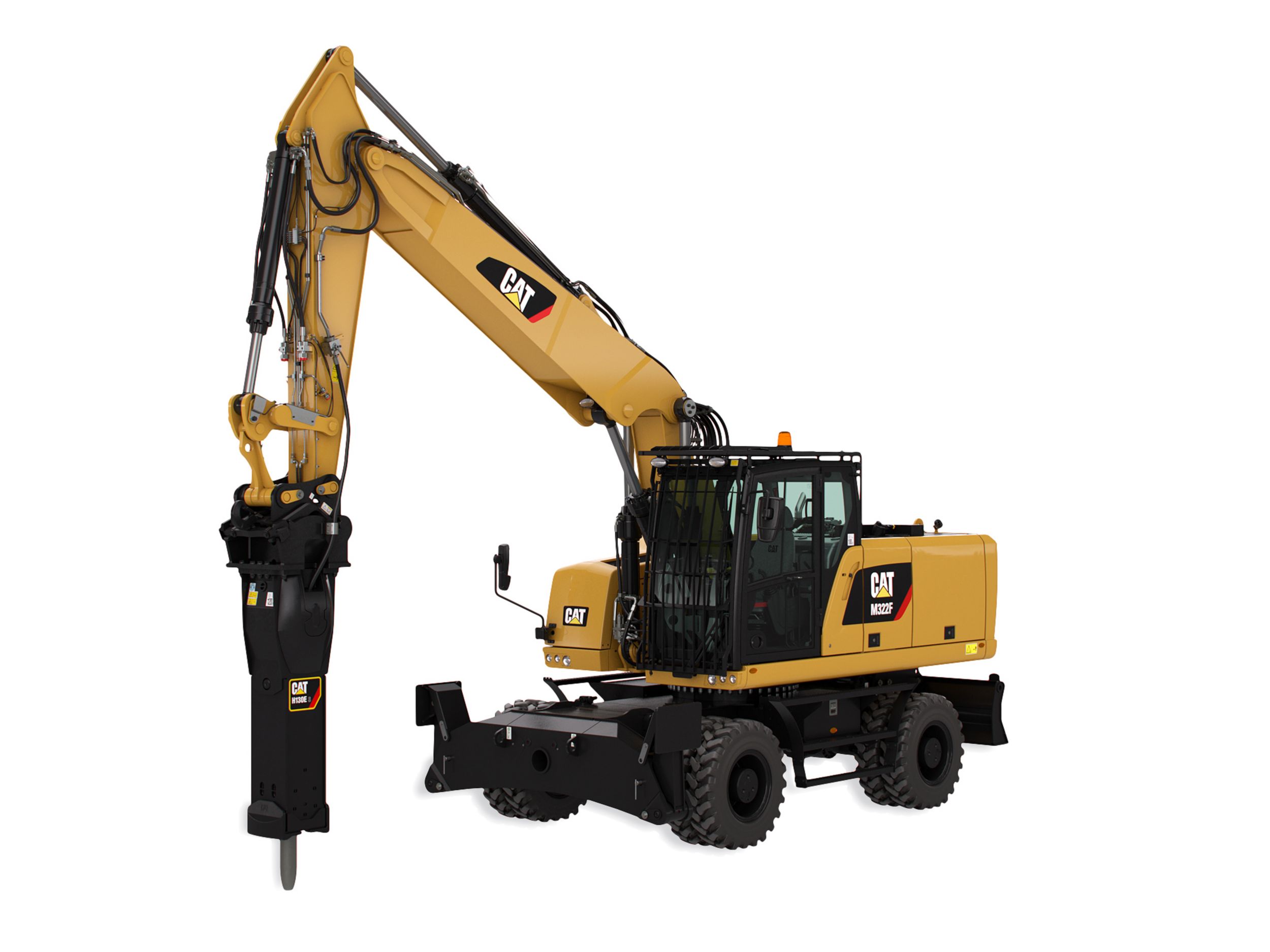

Exterior View
Product Specs
Engine
- Engine Model
- Cat® C7.1 ACERT™
- Net Power
- 169 hp
- Bore
- 4.1 in
- Stroke
- 5.3 in
- Displacement
- 427.8 in³
- Maximum Torque - 1,400 rpm
- 612 ft-lb
- Emissions
- U.S. EPA Tier 4 Final
- Net Power (Maximum) - ISO 9249/SAE J1349 at 1,700 rpm
- 169 hp
- Net Power - Maximum - ISO 9249/SAE J1349 at 1,700 rpm - (PS) - Metric
- 171 hp
- Number of Cylinders
- 6
- Ratings
- 1700 r/min
- Net Power - Maximum - ISO 9249/SAE J1349
- 169 hp
- Net Power - Rated - 80/1269/EEC
- 169 hp
- Net Power - Maximum - 80/1269/EEC
- 169 hp
- Engine Gross Power (Maximum) - ISO 14396
- 173 hp
- Engine Gross Power (Maximum) - ISO 14396 - (PS) - Metric
- 175 hp
- Net Power - Rated - ISO 9249/SAE J1349
- 169 hp
- Net Power (Rated) - ISO 9249/SAE J1349 - (PS) - Metric
- 171 hp
- Net Power - Maximum - ISO 9249/SAE J1349 - (PS) - Metric
- 171 hp
- Net Power (Maximum) - ISO 14396 at 1,700 rpm
- 173 hp
Drive
- Maximum Travel Speed
- 18.6 mile/h
Swing Mechanism
- Swing Speed
- 9 r/min
- Swing Torque
- 39220 ft-lb
Tires
- Standard
- 11.00-20 (Dual Pneumatic)
- Optional
- 10.00-20 (Dual Solid Rubber)
Transmission
- Drawbar Pull
- 28550.7 lbf
- Creeper Speed - 1st Gear
- 1.9 mile/h
- Creeper Speed - 2nd Gear
- 5.6 mile/h
- Forward/Reverse - 1st Gear
- 5.6 mile/h
- Forward/Reverse - 2nd Gear
- 18.6 mile/h
- Maximum Gradeability (25 000 kg/55,115 lb)
- 70%
Undercarriage
- Ground Clearance
- 14.2 in
- Maximum Steering Angle
- 35°
- Minimum Turning Radius - End of One-Piece Boom
- 30.5 ft
- Minimum Turning Radius - End of VA Boom
- 25.6 ft
- Minimum Turning Radius - Outside of Tire
- 22.3 ft
- Oscillation Axle Angle
- ±8.5°
Weights
- Weight - VA Boom - Rear Dozer Only
- 45856 lb
- Weight - VA Boom - Rear Dozer, Front Outriggers
- 48722 lb
- Weight - VA Boom - Front and Rear Outriggers
- 49229 lb
- Weight - One-Piece Boom - Rear Dozer, Front Outriggers
- 47377 lb
- Weight - One-Piece Boom - Front and Rear Outriggers
- 47884 lb
- Operating Weight
- 20 800-22 330 kg (45,856-49,229 lb)
- Operating Weight - With Attachment
- 20 560-24 700 kg (45,330-54,450 lb)
- Weight - Counterweight - Optional
- 10362 lb
- Weight - Counterweight - Standard
- 7716 lb
- Weight - Sticks - Long (2900 mm/9'6")
- 2392 lb
- Weight - Sticks - Medium (2500 mm/8'2")
- 2216 lb
Service Refill Capacities
- Engine Crankcase
- 4.9 gal (US)
- Cooling System
- 12.4 gal (US)
- Fuel Tank - Total Capacity
- 111 gal (US)
- Diesel Exhaust Fluid Tank
- 9.1 gal (US)
- Rear Axle - Housing (Differential)
- 3.7 gal (US)
- Front Steering Axle - Differential
- 2.9 gal (US)
- Powershift Transmission
- 0.7 gal (US)
- Final Drive
- 0.7 gal (US)
Hydraulic System
- Maximum Flow - Implement/Travel Circuit
- 94 gal/min
- Maximum Flow - Swing Mechanism
- 31.2 gal/min
- Maximum Pressure - Implement Circuit - Normal
- 5076 psi
- Maximum Pressure - Implement Circuit - Heavy Lift
- 5439 psi
- Maximum Pressure - Implement Circuit - Travel Circuit
- 5076 psi
- Maximum Pressure - Auxiliary Circuit - High Pressure
- 5076 psi
- Maximum Pressure - Auxiliary Circuit - Medium Pressure
- 2683 psi
- System
- 107 gal (US)
- Tank Capacity
- 52.8 gal (US)
- Maximum Flow - Auxiliary Circuit - High Pressure
- 66 gal/min
- Maximum Flow - Auxiliary Circuit - Medium Pressure - Eco Mode
- 11.4 gal/min
- Maximum Pressure - Swing Mechanism
- 4496 psi
- Maximum Flow - Auxiliary Circuit - Medium Pressure - Power Mode
- 13.2 gal/min
Bucket Specifications
- Bucket Capacities
- 0.6-1.43 m³ (0.78-1.87 yd³)
Working Ranges
- Maximum Digging Depth
- 21.8 ft
- Maximum Reach - Ground Level
- 33.8 ft
Blade
- Blade Roll - Over Height
- 1.9 ft
- Blade Type
- Parallel
- Width
- 9 ft
Sound Performance
- Operator Sound - 2000/14/EC
- 71 dB(A)
- Spectator Sound - 2000/14/EC
- 100 dB(A)
Sustainability
- Diesel Exhaust Fluid
- Must meet ISO 22241
- Engine Emissions
- Tier 4 Final
- Fluids (Optional) - Biodiesel Up to B20
- Meets EN 14214 or ASTM D6751 with EN590 or ASTM D975 Standard Mineral diesel fuels
- Fluids (Optional) - Cat Bio HYDO™ Advanced
- Readily biodegradable EU Flower eco-label certified
- Vibration Levels - Maximum Hand/Arm - ISO 5349:2001
- Less Than 2.5 m/s² (Less Than 8.2 ft/s²)
- Vibration Levels - Maximum Whole Body - ISO/TR 25398:2006
- Less Than 0.5 m/s² (Less Than 1.6 ft/s²)
- Vibration Levels - Seat Transmissibility Factor - ISO 7096:2000 - Spectral Class EM6
- Less Than 0.7
Standards
- Cab/Sound Levels
- Meets appropriate standards as listed in "Sound Performance"
- Operator Protective Structure - Top/Front Guards
- FOPS (Falling Object Protective Structure) meets FOPS criteria ISO 10262:1998 and SAE J1356:2008
- ROPS
- ROPS (Rollover Protective Structure) offered by Caterpillar meets ROPS criteria ISO 12117-2:2008
Standard Equipment
-
- Electrical
-
- Alternator, 115A
- Lighting: – LED light package, including all working lights (compatible with falling object guard). Working lights include cab mounted lights (two front, one rear and one on the counterweight for the rear camera) – Boom working light – Cab interior LED light – Roading lights two front, halogen – Roading lights two LED modules rear
- Main shut-off switch
- Maintenance free batteries, heavy duty
- Signal/warning horn
- Electrical refueling pump
-
- Engine
-
- Cat C7.1 engine with ACERT Technology Tier 4 Final compliant
- Aftertreatment technologies including the Cat Emission Module (Cat EM) package
- Automatic Engine Speed Control (AESC), including one touch low idle
- Engine Idle Shutdown (EIS)
- Power mode selector
- Altitude 3000 m (9,842 ft)
- Automatic starting aid
- Fuel/water separator with water in fuel switch
- Electric fuel priming pump
-
- Hydraulics
-
- Adjustable hydraulic sensitivity
- Auxiliary boom and stick lines
- All Cat XT™-6 ES hoses
- Anti-drift valves for bucket and tool control/multi-function circuits
- Basic control circuits: – Medium pressure
- Two-way, medium pressure circuit, for rotating or tilting of work tools
- One/two-way high pressure for hammer application or opening and closing of a work tool
- Boom Lowering Check Valve (BLCV), including overload warning device
- Heavy lift mode
- Load-sensing hydraulic system
- Electric Pump Control (EPC)
- Separate swing pump
- Stick Lowering Check Device (SLCV)
- Stick regeneration circuit
-
- Operator Station
-
- ROPS cab structure compliant with 2006/42/EC and tested according to ISO 12117-2:2008
- Adjustable armrests
- Air conditioner, heater and defroster with automatic climate control
- Cigarette lighter (24 volt)
- Beverage cup/can holder
- Bolt-on Falling Object Guards (FOGS) capability
- Bottle holder
- Bottom mounted intermittent (four speeds) wiping system that covers the upper and lower windshield glass
- Cameras: – Rear mounted wide angle camera (integrated into the counterweight) display through the cab monitor – Right side wide angle camera, mounted on the cooling hood, displayed on a dedicated large color monitor
- Coat hook
- Cruise Control System
- Fastened seat belt warning signal
- Floor mat, washable, with storage compartment
- FM Radio with CD player, speakers and USB port
- Fully adjustable suspension seat
- Instrument panel and gauges: – Information and warning messages in local language – Gauges for fuel level, engine coolant, Diesel Exhaust Fluid (DEF) and hydraulic oil temperature – Filters/fluids change intervals – Indicators for headlights, turning signal, low fuel, engine dial setting – Clock with 10-day backup battery
- Interior LED lighting with door switch
- Joystick pilot operated
- Laminated upper front windshield
- Left side console, tiltable, with lock out for all controls
- Literature holder in right hand side panel
- Mobile phone holder
- Parking brake
- Pin-code, engine start prevention
- Power supply, 12V-10A
- Rain protector (Not compatible with the falling objects guards)
- Rear window, emergency, tempered glass, with hammer
- Retractable seat belt, integrated into the seat
- Safety lever, integrated into the left console
- Sealed cab with positive filtered ventilation
- Skylight, laminated glass
- Sliding door windows
- Steering column, adjustable height and angle
- Storage area suitable for a lunch box
- Sunshade for windshield and skylight
-
- Undercarriage
-
- All wheel drive
- Automatic axle/brake lock
- Creeper speed
- Electronic swing and travel lock
- Heavy-duty axles, advanced disc brake system and travel motor, adjustable braking force
- Oscillating front axle, lockable, with remote greasing point
- Tires, 11.00-20 16 PR, dual
- Spacer rings for tires
- Steps with toolbox in undercarriage (left and right)
- Two-piece drive shaft, extended maintenance intervals (1,000 hours)
- Two speed hydrostatic transmission
-
- Other Equipment
-
- Auto-lube, centralized greasing (implement and swing gear)
- Automatic swing brake
- Bucket linkage with diverter valve
- Counterweight, 3500 kg (7,716 lb)
- Engine emergency shutoff switch
- Mirrors, wide angle, frame and cab
- Product Link
- S·O·SSM sampling valves for engine oil, hydraulic oil and coolant
Attachments
-
- Auxiliary Controls And Lines
-
- Basic control circuits: – Second high pressure
- Additional two-way, high pressure circuit, for tools requiring a second high or medium pressure function
- SmartBoom
- Basic control circuits: – Second high pressure
-
- Hydraulics
-
- Cat BIO HYDO Advanced HEES biodegradable hydraulic oil
-
- Front Linkage
-
- Booms: – One-piece boom, 5650 mm (18.6 ft) – VA boom (two piece), 5490 mm (18 ft)
- Sticks: – 2500 mm (8'2") – 2900 mm (9'6")
-
- Electrical
-
- Back-up alarm with three selectable modes
- Rotating beacon on cab
-
- Operator Station
-
- Joystick steering
- Seat, adjustable high-back, with vertical and horizontal air-suspension and head rest: – comfort, automatic weight adjustment, mechanical lumbar support, heated – the deluxe seat adds automatic height and weight adjustment, pneumatic lumbar support, premium fabric, heated and cooled
- Windshield: – One-piece high impact resistant (EN 356 P5A standard) – 70/30 split, openable
- Mirrors heated, frame and cab
- High pressure pedal
- Joystick pattern, changeable
- Falling Object Guards (top and front)
-
- Undercarriage
-
- Rear blade only (Parallel blade 2.75 m [9 ft])
- Front blade/rear outriggers (Parallel blade 2.75 m [9 ft])
- Front outriggers/rear blade (Parallel blade 2.75 m [9 ft])
- Front and rear outriggers
- Travel restraint, for roading with a clamshell
-
- Other Equipment
-
- Cat Machine Security System (MSS)
- Cooling protection package for dusty applications (includes fine mesh for enhanced radiator protection and engine air precleaner)
- Counterweight, 4700 kg (10,362 lb)
- Ride Control
- Tires (see "Specifications")
- Attachments (see "Bucket Specifications and Compatibility" and "Work Tools Matching Guide")
- Cooling package (kit) with reversible fan and vibrating grill
