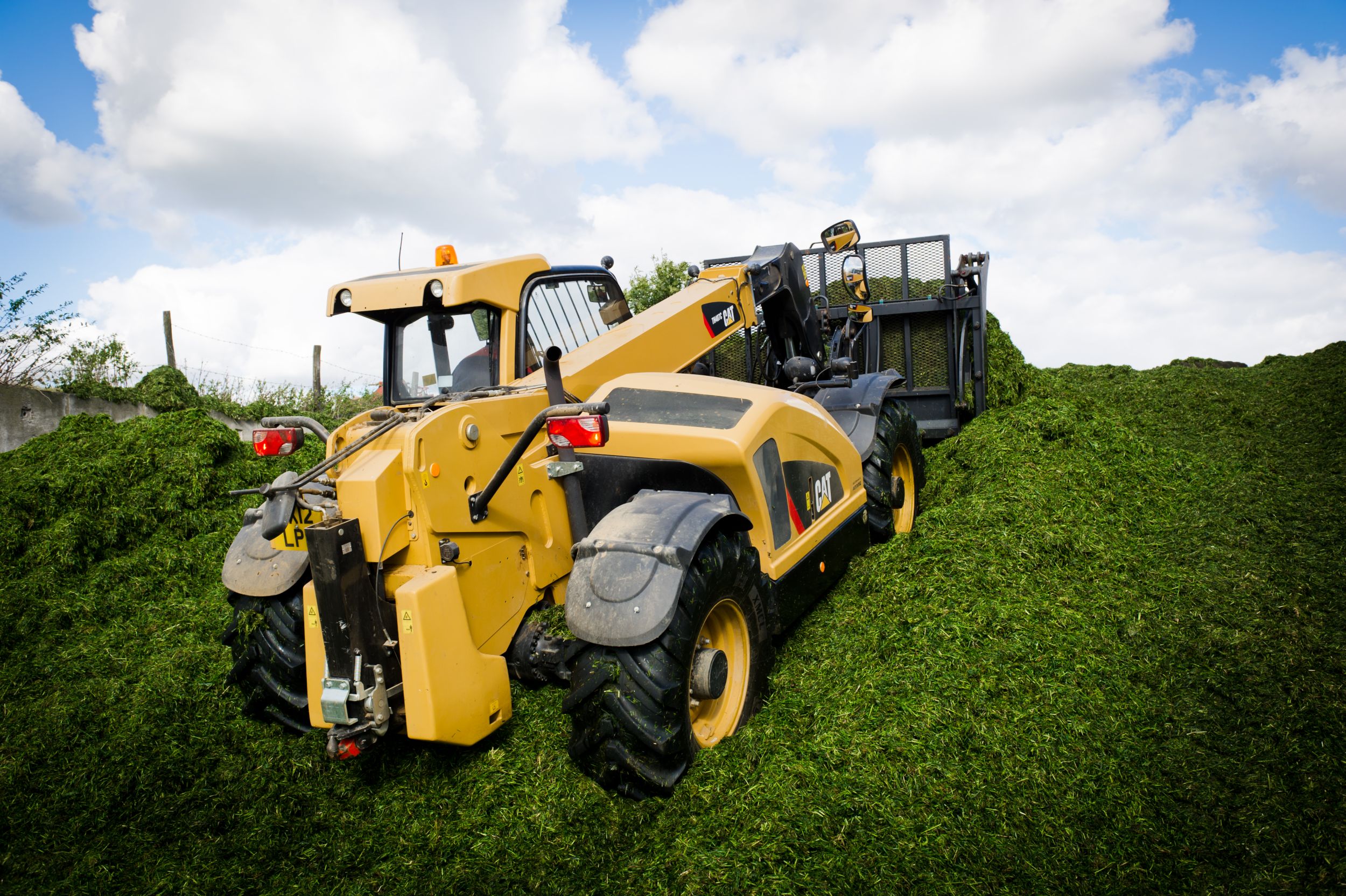

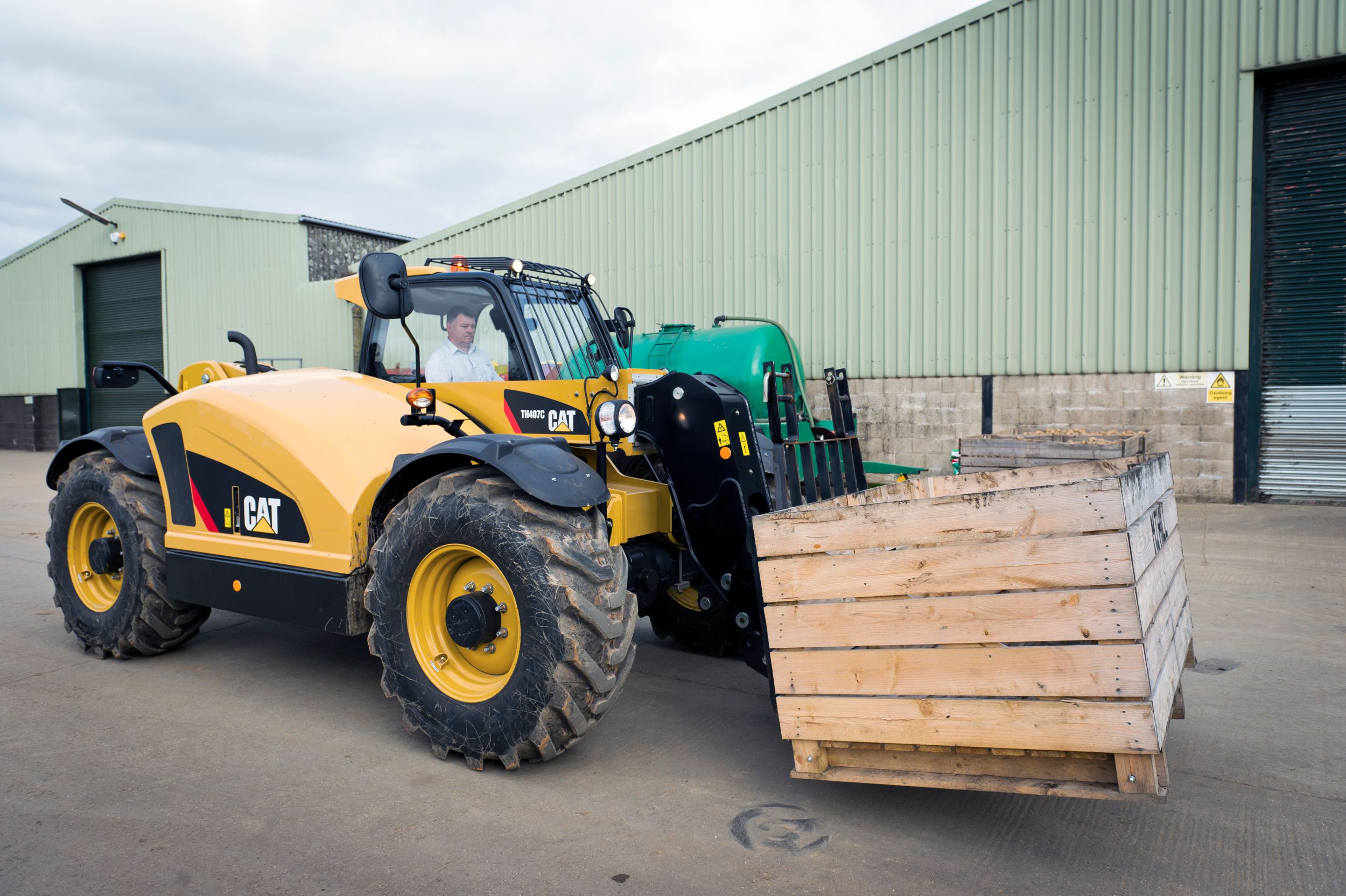

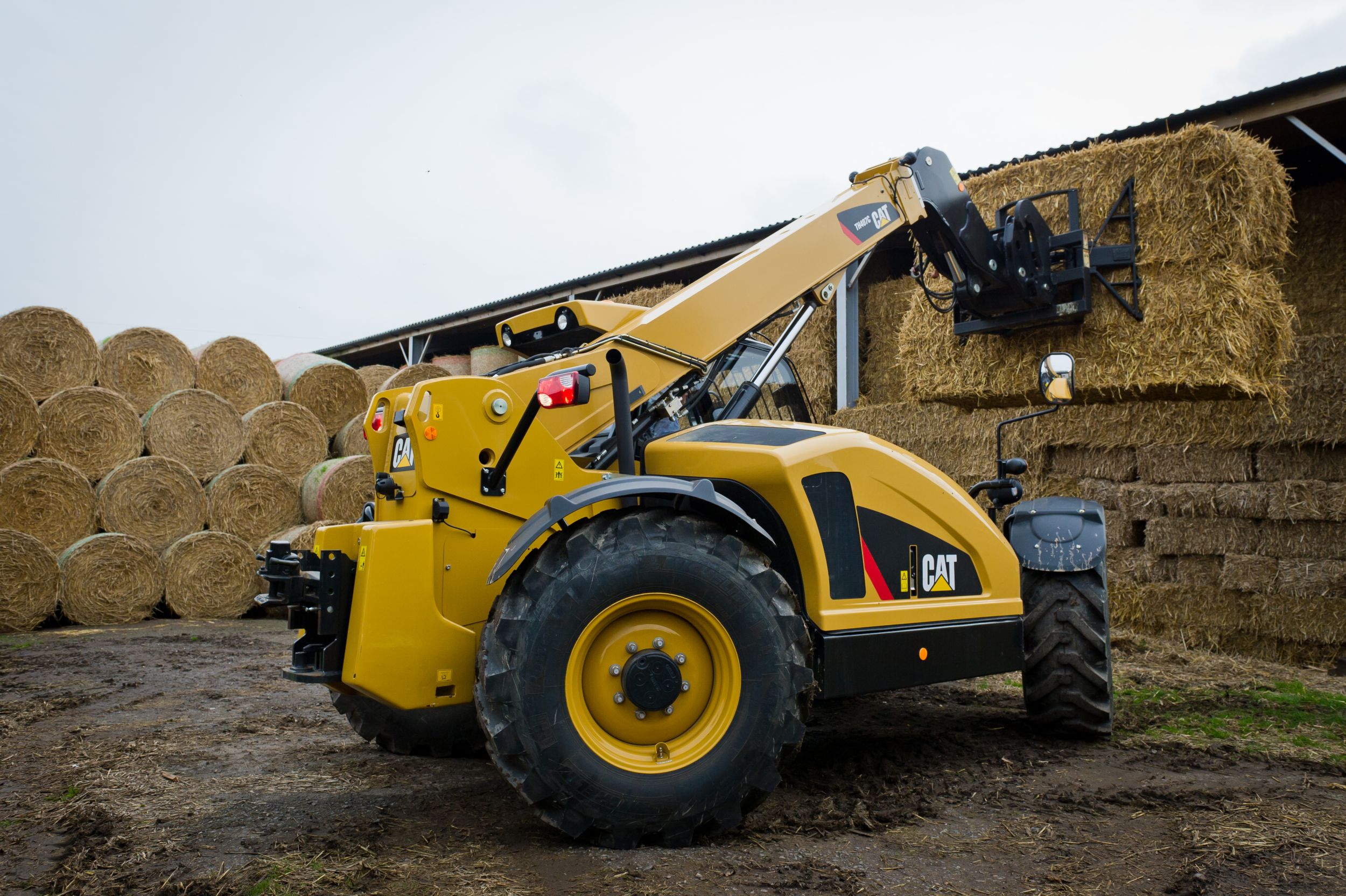

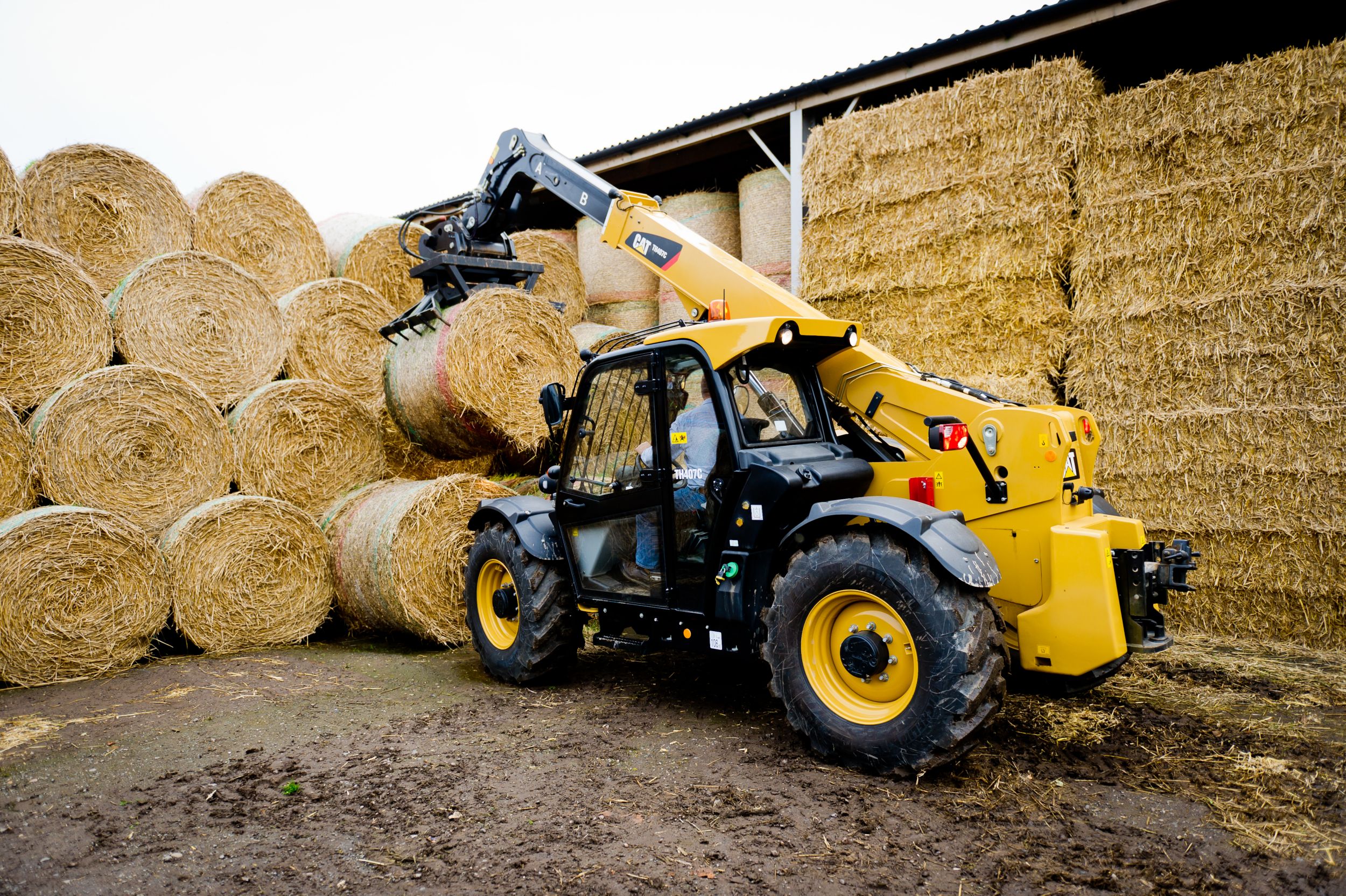

Product Specs
Operating Specifications
- Rated Load Capacity
- 8150 lb
- Maximum Lift Height
- 24 ft
- Maximum Forward Reach
- 12.3 ft
- Top Travel Speed
- 25 mile/h
- Load at Maximum Height
- 4000 lb
- Load at Maximum Reach
- 3300 lb
- Outside Turning Radius - Over Tires
- 148 in
- Drawbar Pull - Option 1
- 19191 lb
- Drawbar Pull - Option 2
- 20907 lb
- Drawbar Pull - Standard
- 17535 lb
- Outside Turning Radius - Over Forks
- 187 in
Engine
- Engine Model
- Cat® C3.4B*
- Gross Power - Standard
- 101 hp
- Note
- *Meets U.S. EPA Tier 4 Interim equivalent emission standards.
- Bore - Options 1 and 2
- 4.13 in
- Bore - Standard
- 3.9 in
- Displacement - Options 1 and 2
- 268.5 in³
- Displacement - Standard
- 207.5 in³
- Gross Power - Option 1
- 124 hp
- Gross Power - Option 2
- 142 hp
- Maximum Torque - Option 1
- 530 N·m/1,400 rpm
- Maximum Torque - Option 2
- 560 N·m/1,400 rpm
- Maximum Torque - Standard
- 420 N·m/1,400 rpm
- Model - Option 1
- Cat C4.4 ACERTâ„¢*
- Model - Option 2
- Cat C4.4 ACERT*
- Model - Standard
- Cat® C3.4B Tier 4 Interim
- Stroke - Options 1 and 2
- 4.99 in
- Stroke - Standard
- 4.33 in
Tires
- Standard
- 15.5-25 SGL
Hydraulic System
- Maximum System Pressure
- 3625 psi
- Maximum Pump Flow
- 39.63 gal/min
- Pump Type
- Variable displacement load sensing axial piston pump
- Auxiliary Hydraulic Circuit
- Used for all attachments equipped with cylinders or other hydraulic components; consists of valves, controls & hydraulic lines.
- Auxiliary Hydraulic Supply - Intermittent
- 21.13 gal/min
- Auxiliary Hydraulic Supply - Continuous
- 15.85 gal/min
Service Refill Capacities
- Fuel Tank
- 39.63 gal (US)
- Hydraulic Tank
- 23.78 gal (US)
Boom Performance
- Boom Up
- 7.6 s
- Boom Down
- 5.9 s
- Tele In
- 5.3 s
- Tele Out
- 6.4 s
- Crowd Forward - Dump
- 2.4 s
- Crowd Backward
- 2.8 s
- Combined - Up and Out
- 11.5 s
- Combined - Down and In
- 6.6 s
- Bucket Breakout Force - ISO 8313
- 14613 lb
- Boom Breakout Force
- 9442 lb
Transmission Speeds - C3.4B Engine Only
- Reverse - 2
- 8.5 mile/h
- Reverse - 3
- 18.6 mile/h
- Forward - 1
- 4.3 mile/h
- Forward - 2
- 8.5 mile/h
- Forward - 3
- 12.7 mile/h
- Forward - 4
- 18.6 mile/h
- Reverse - 1
- 4.3 mile/h
Braking System
- Parking Brakes
- Mechanical on front axle
- Service Brakes
- Servo assisted on front axle
Transmission Speeds - All Engine Options
- Forward - 1
- 4.2 mile/h
- Forward - 2
- 6.2 mile/h
- Forward - 3
- 8 mile/h
- Forward - 4
- 12.1 mile/h
- Forward - 5
- 18.5 mile/h
- Forward - 6
- 24.9 mile/h
- Reverse - 1
- 4.2 mile/h
- Reverse - 2
- 8 mile/h
- Reverse - 3
- 18.5 mile/h
Weights
- Operating Weight - With Carriage and Forks
- 19246 lb
Instruments
- Types
- Engine speed, boom angle, machine speed, operation hours, % of continuous flow selected, gear selected, and direction.
