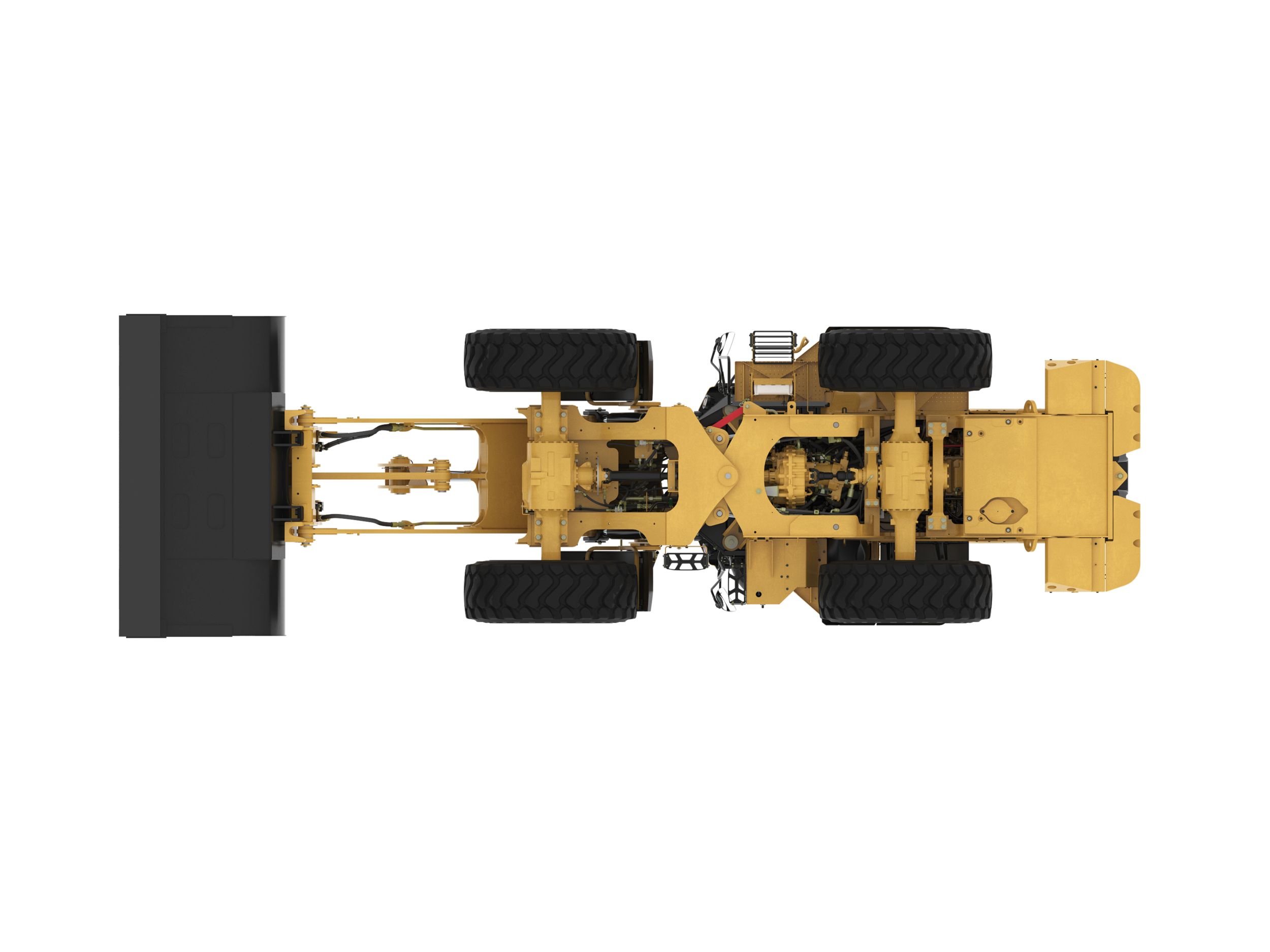

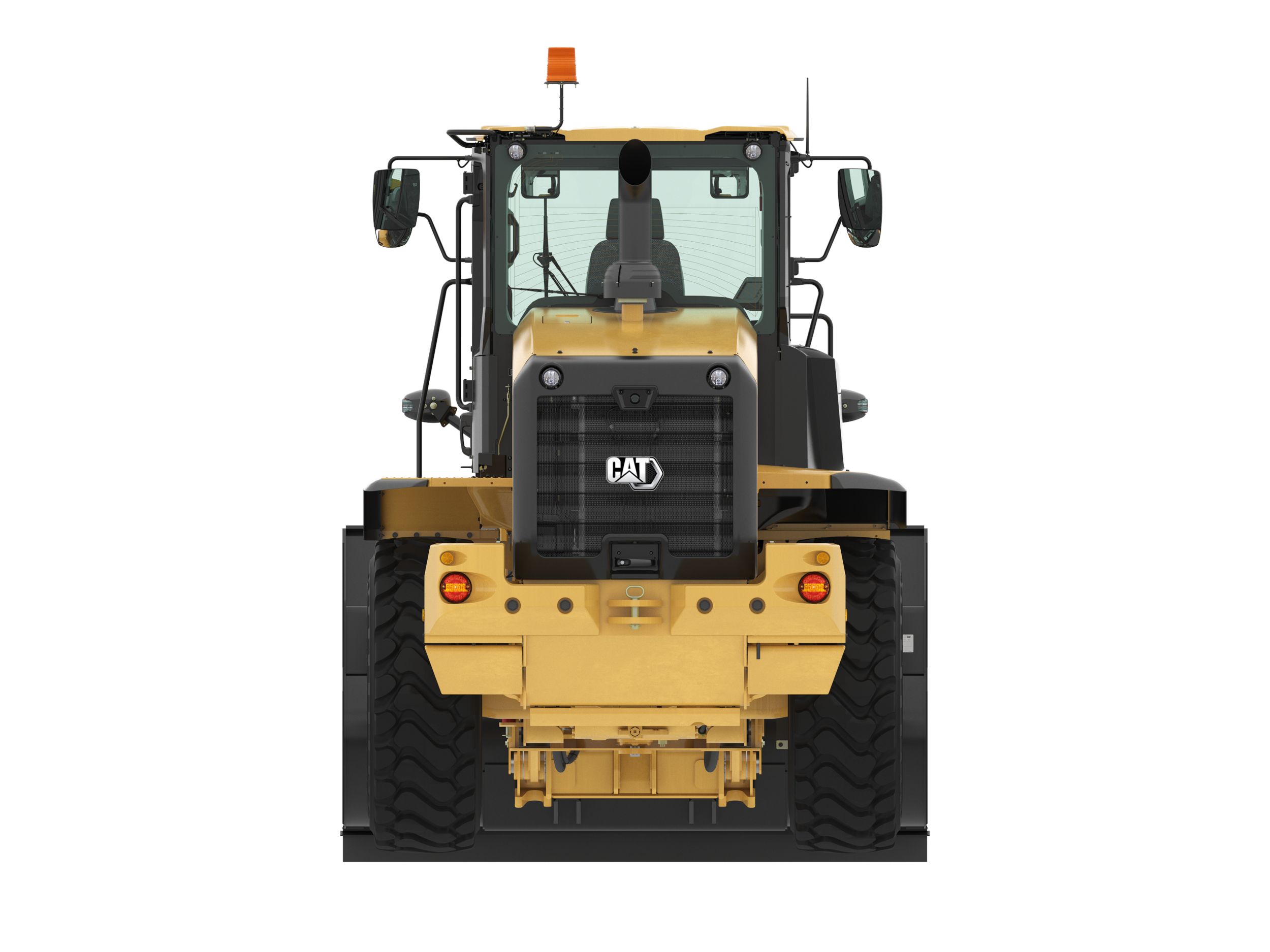

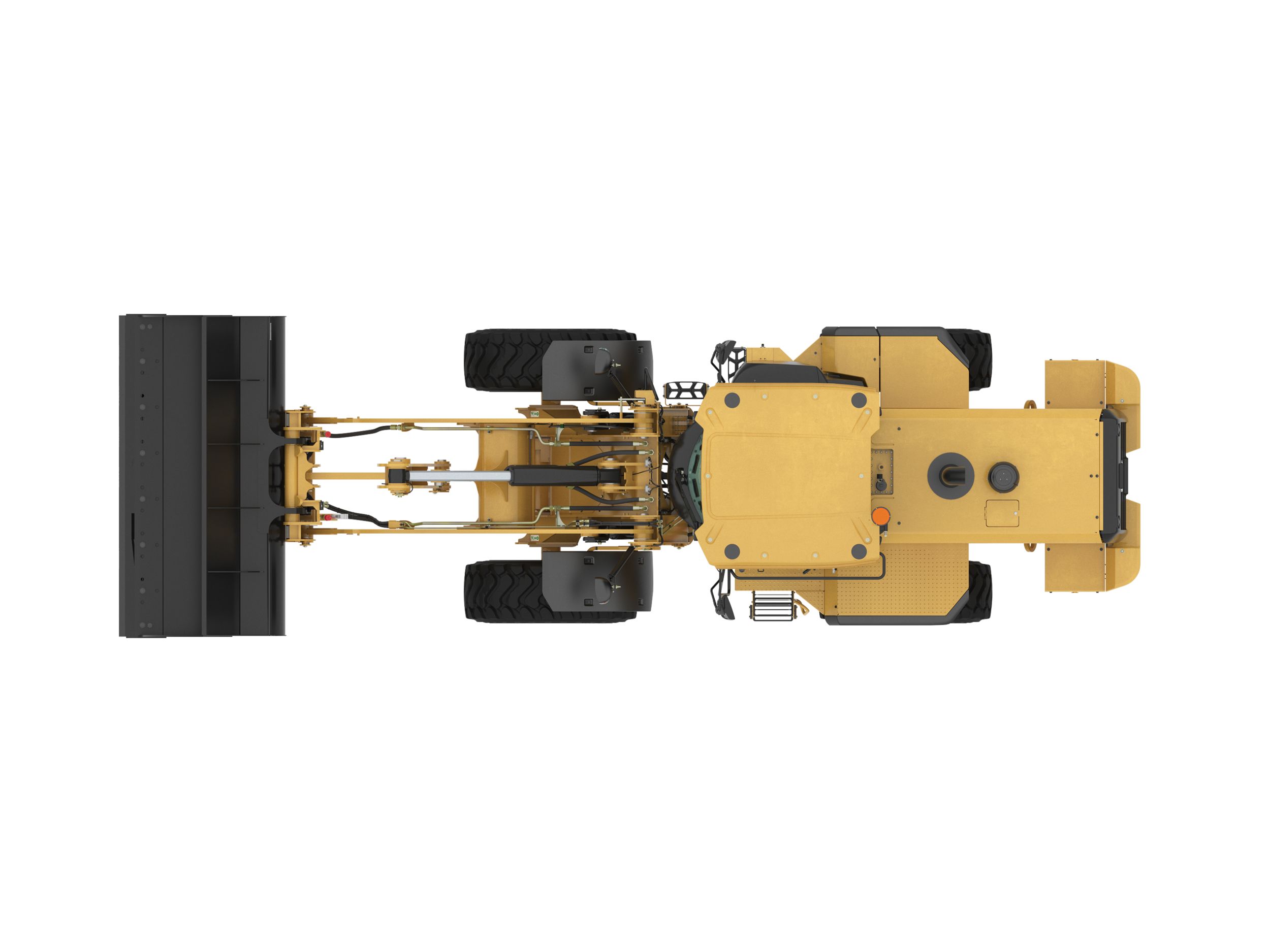

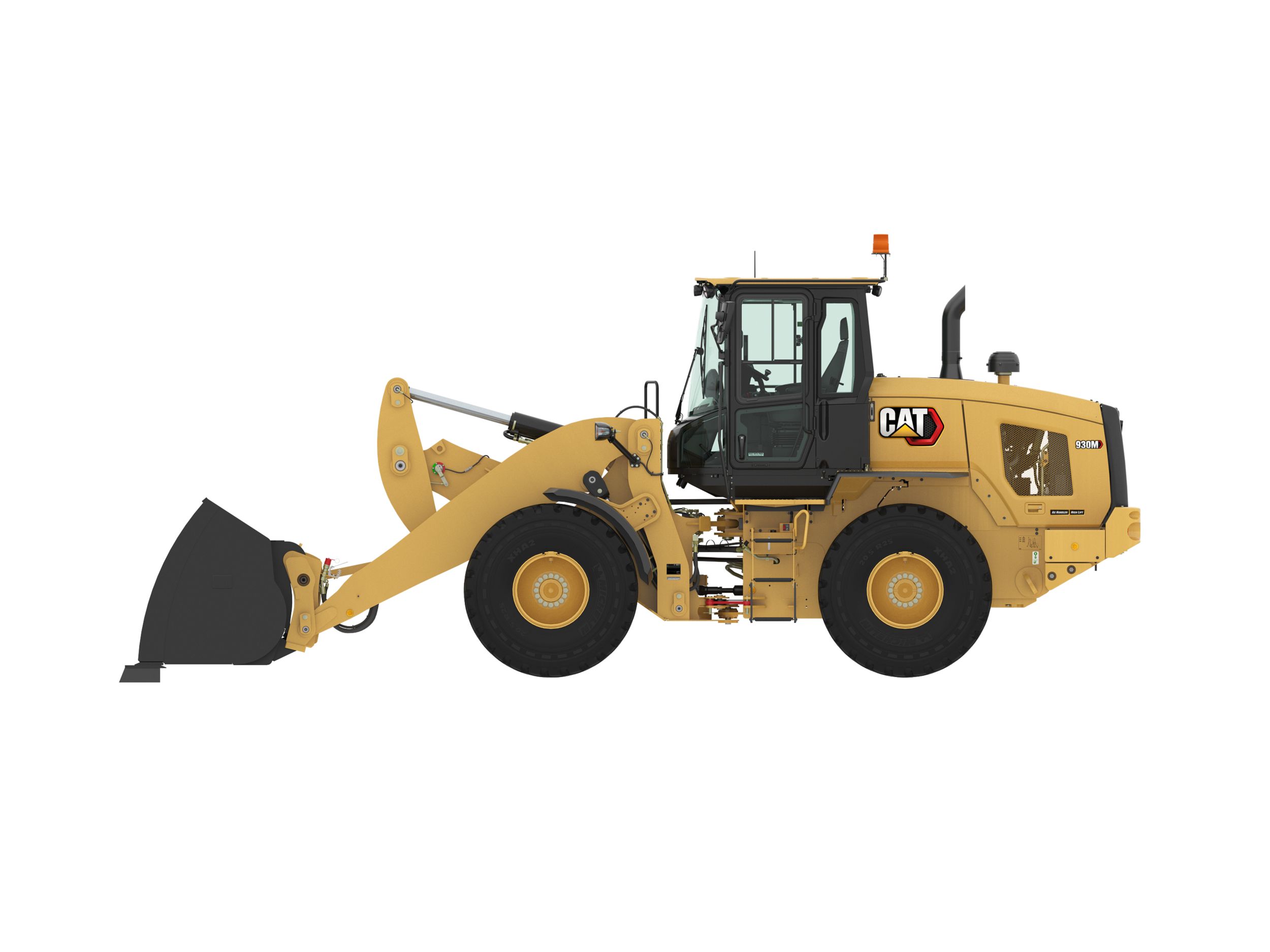

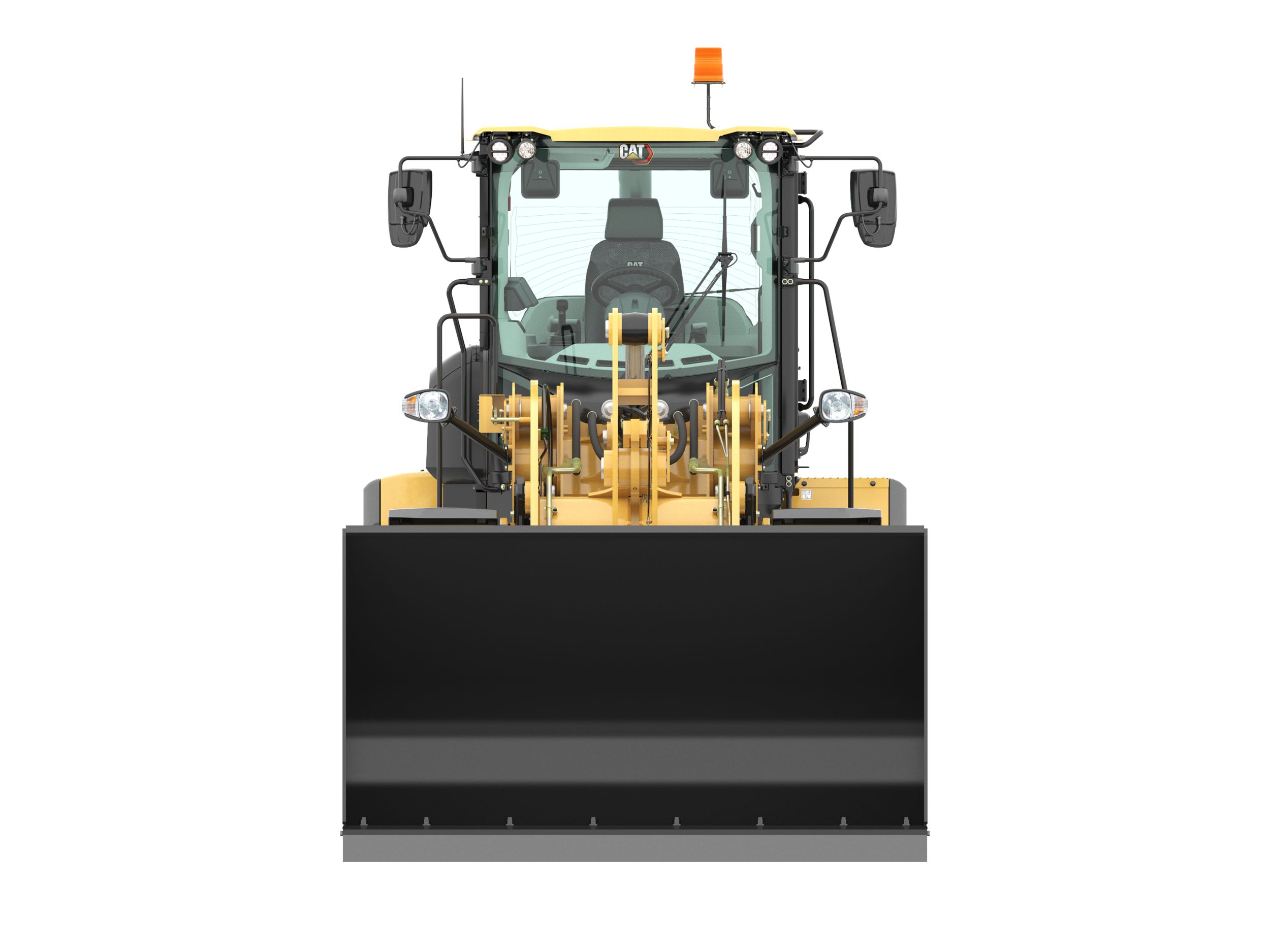

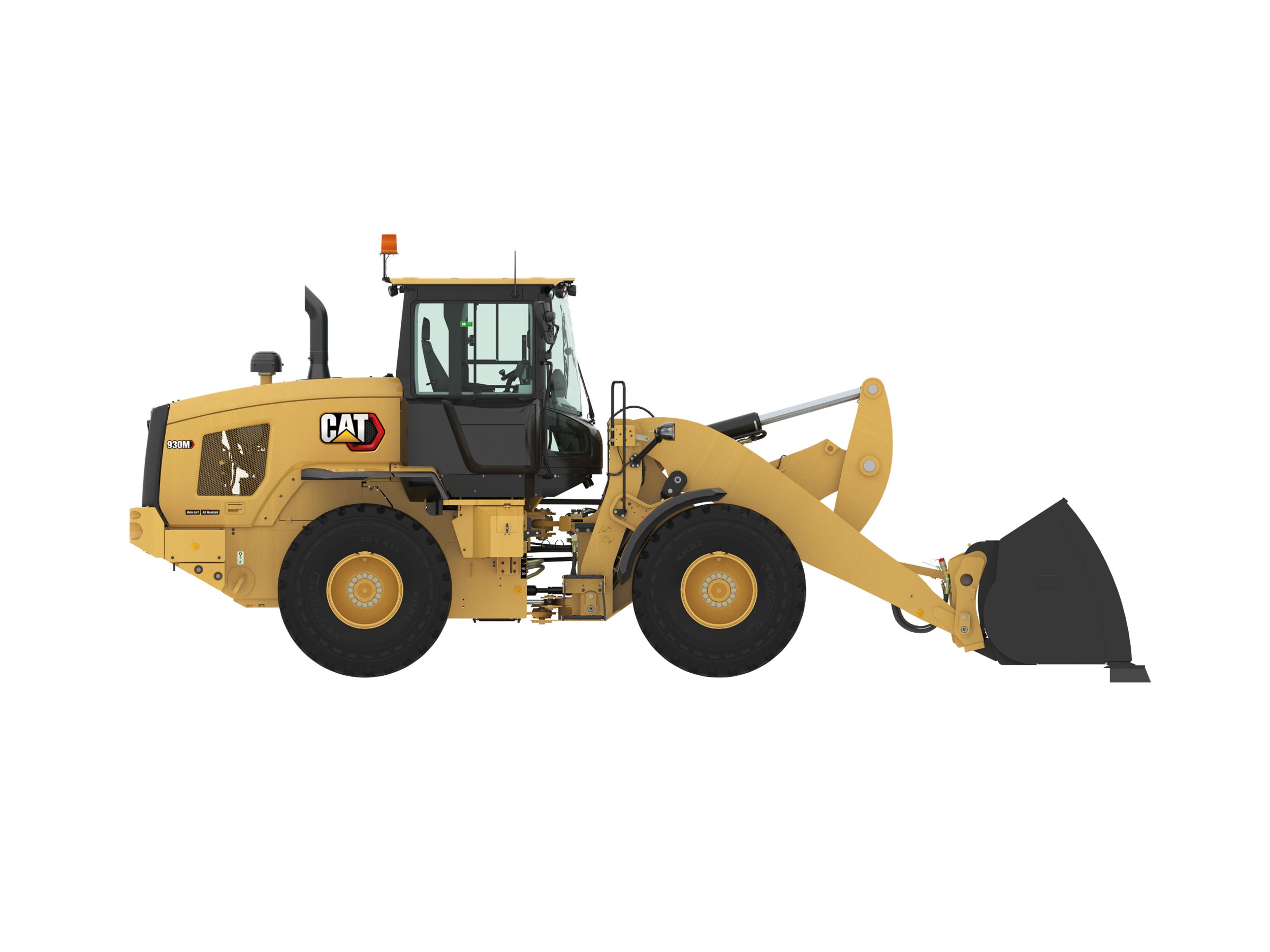

930M Ag Handler Small Wheel Loader

Engine

Maximum Gross Power

168 hp

Net Power - SAE J1349 at Minimum Fan Speed (Standard Power Mode: Range 1-3**)

156 hp

Maximum Gross Power - Maximum Engine Speed (Standard Power Mode: Range 1-3**)

1600 r/min

Net Power - ISO 9249 (metric) at Minimum Fan Speed (Standard Power Mode: Range 1-3**)

158 hp

Maximum Gross Power - ISO 14396 (Standard Power Mode: Range 1-3**)

160 hp

Maximum Gross Power - ISO 14396 (metric) (Standard Power Mode: Range 1-3**)

162 hp

Stroke - Performance Power Mode: Range 1-4

5.3 in

Maximum Net Torque - SAE J1349 (Performance [HP+] Power Mode: Range 1-4)

797 N·m

Note (4)

No derating required up to 3000 m (10,000 ft) altitude. Auto derate protects hydraulic and transmission systems.

Maximum Rated Gross Power - ISO 14396 (metric)

170 mhp

Bore (Standard Power Mode: Range 1-4)

4.1 in

Net Power - ISO 9249 at Minimum Fan Speed (Standard Power Mode: Range 1-3**)

156 hp

Stroke (Standard Power Mode: Range 1-3**)

5.3 in

Net Power - ISO 9249 (metric) at Minimum Fan Speed (Performance Power Mode: Range 1-4)

166 hp

Net Power - ISO 9249 at Minimum Fan Speed (Performance Power Mode: Range 1-4)

164 hp

Bore (Standard Power Mode: Range 1-3**)

4.1 in

Maximum Net Torque - ISO 9249 (Performance Power Mode: Range 1-4)

587 ft·lbf

Maximum Gross Torque - ISO 14396 (Standard Power Mode: Range 1-3**)

795 N·m

Maximum Net Torque - ISO 9249 (Standard Power Mode: Range 1-3**)

776 N·m

Net Power - SAE J1349 at Minimum Fan Speed (Performance Power Mode: Range 1-4)

163 hp

Displacement (Standard Power Mode: Range 1-3**)

428 in³

Maximum Net Torque - SAE J1349 (Standard Power Mode: Range 1-3**)

573 ft·lbf

Maximum Rated Gross Power - ISO 14396

168 hp

Engine Model

Cat® C7.1

Maximum Gross Power - Maximum Engine Speed (Performance Power Mode: Range 1-4)

1800 r/min

Displacement (Performance Power Mode: Speed Range 1-4)

428 in³

Emissions

Engine meets U.S. EPA Tier 4 Final emission standards.

Maximum Gross Power - ISO 14396 (DIN) (Performance Power Mode: Range 1-4)

170 hp

Maximum Gross Power - ISO 14396 (Performance Power Mode: Range 1-4)

168 hp

Maximum Gross Torque - ISO 14396 (Performance Power Mode: Range 1-4)

601 ft·lbf

Note (1)

*The Cat C7.1 engine meets U.S. EPA Tier 4 Final/EU Stage V emission standards.

Note (2)

**Range 4 power and torque is equal to Performance Mode with Caterpillar Power by Range technology.

Note (3)

Net power ratings are tested at the reference conditions for the specified standard and denote power available at the flywheel when the engine is equipped with alternator, air cleaner, emission components and fan at specified speed.

Weights

Operating Weight

31382 lb

Buckets

Bucket Capacities

2.1-5.0 m³ (2.7-6.5 yd³)

Bucket Capacities - Light Material

3.1-5.0 m³ (4.0-6.5 yd³)

Cab

ROPS

ISO 3471:2008

FOPS

ISO 3449:2005 Level II

Declared Sound Levels - Exterior Sound Power Level (ISO 6395:2008)*

101 dB(A)

Declared Sound Levels - Operator Sound Pressure Level (ISO 6396:2008)*

68 dB(A)

Note (1)

*The measurements were conducted at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds. The cab was properly installed and maintained. The measurements were conducted with the cab doors and the cab

Dimensions with Bucket - Standard Lift

Clearance - Level Bucket**

11.75 ft

Clearance - Bucket at 45°*

9.1 ft

Rack Angle at Full Lift

54 °

Height - Overall**

17.1 ft

Width - Bucket

8.4 ft

Height - Ground to Axle Center**

2.25 ft

Height - Bucket Pin**

12.8 ft

Operating Weight

31125 lb

Width - Tread Center

6.3 ft

Turning Radius - Inside of Tires

9.4 ft

Reach - Bucket at 45°*

3.6 ft

Length - Overall*

24.9 ft

Clearance - Load over Height**

10.9 ft

Length - Hitch to Front Axle

4.9 ft

Height - Ground to Beacon**

12.2 ft

Articulation Angle

40 °

Height - Ground to Cab**

10.9 ft

Note (3)

Dimensions listed are for a 930M Ag Handler configured with General Purpose 2.3 m³ (3.0 yd³) Fusion bucket, bolt-on cutting edges, heavy counterweights, 80 kg (176 lb) operator, and Michelin 20.5 R25 XHA2 tires.

Note (1)

*Vary with bucket.

Dump Angle at Full Lift

48 °

Height - Ground Clearance**

1.3 ft

Rack Angle at Carry

43 °

Departure Angle

33 °

Length - Wheel Base

9.8 ft

Length - Rear Axle to Bumper

6.5 ft

Turning Radius - Over Bucket

19.5 ft

Carry Height - Bucket Pin

1.3 ft

Width - Over Tires

8.3 ft

Note (2)

**Vary with tire.

Dig Depth**

3.9 in

Turning Radius - Outside of Tires

17.7 ft

Dimensions with Bucket - High Lift

Length - Wheel Base

9.8 ft

Width - Tread Center

6.3 ft

Length - Hitch to Front Axle

4.9 ft

Height - Ground to Axle Center**

2.25 ft

Note (1)

*Vary with bucket.

Clearance - Bucket at 45°*

10.7 ft

Height - Bucket Pin**

14.4 ft

Height - Ground to Beacon**

12.2 ft

Carry Height - Bucket Pin

1.9 ft

Clearance - Load over Height**

11.6 ft

Turning Radius - Outside of Tires

17.7 ft

Turning Radius - Over Bucket

20.6 ft

Rack Angle at Full Lift

51 °

Rack Angle at Carry

47 °

Length - Overall*

27 ft

Note (2)

**Vary with tire.

Height - Ground to Cab**

10.9 ft

Turning Radius - Inside of Tires

9.4 ft

Clearance - Level Bucket**

13.4 ft

Width - Over Tires

8.3 ft

Note (3)

Dimensions listed are for a 930M Ag Handler configured with General Purpose 2.3 m³ (3.0 yd³) Fusion bucket, bolt-on cutting edges, heavy counterweights, 80 kg (176 lb) operator, and Michelin 20.5 R25 XHA2 tires.

Dig Depth**

5.3 in

Articulation Angle

40 °

Operating Weight

31441 lb

Height - Ground Clearance**

1.3 ft

Length - Rear Axle to Bumper

6.5 ft

Departure Angle

33 °

Height - Overall**

18.7 ft

Reach - Bucket at 45°*

4.4 ft

Dump Angle at Full Lift

48 °

Width - Bucket

8.4 ft

Steering

Note (2)

Flow values listed are for a machine running in Performance Power Mode (1,800 rpm).

Steering Cylinder, Double Acting - Bore Diameter

2.8 in

Steering Cylinder, Double Acting - Stroke

17.2 in

Note (1)

Steering system uses a dedicated load sensing variable displacement pump with dual double acting cylinders.

Steering Cycle Times - Full Left to Full Right - Minimum RPM: Pump Flow Limited

2.8 s

Steering Cycle Times - Full Left to Full Right - Maximum RPM: 90 rpm Steering Wheel Speed

2.4 s

Steering Cylinder, Double Acting - Rod Diameter

1.6 in

Maximum Flow - Steering Pump

34 gal/min

Maximum Working Pressure - Steering Pump

3500 psi

Number of Steering Wheel Turns - Full Left to Full Right or Full Right to Full Left

3.5 turns

Steering Articulation Angle - Each Direction

40°

Loader Hydraulic System

Cycle Times - 1,600 rpm - Standard: Total Cycle Time

10.1 s

Note (2)

Flow values listed are for a machine running in Performance Power Mode (1,800 rpm).

Cycle Times - 1,800 rpm - Performance (HP+): Dump (at Maximum Lift Height)

1.5 s

Cycle Times - 1,800 rpm - Performance (HP+): Total Cycle Time

9.3 s

Cycle Times - 1,600 rpm - Standard: Float Down (Maximum Lift to Ground Level)

2.7 s

Cycle Times - 1,800 rpm - Performance (HP+): Raise (Ground Level to Maximum Lift)

5.1 s

Cycle Times - 1,800 rpm - Performance (HP+): Float Down (Maximum Lift to Ground Level)

2.7 s

Relief Pressure - Tilt Cylinder - 3rd and 4th Function Maximum Working Pressure

4061 psi

Cycle Times - 1,600 rpm - Standard: Dump (at Maximum Lift Height)

1.7 s

Relief Pressure - Tilt Cylinder - 3rd and 4th Function Relief Pressure

4351 psi

Note (1)

Implement system uses a dedicated load sensing variable displacement pump with dual double acting lift cylinders and a single double acting tilt cylinder.

Cycle Times - 1,600 rpm - Standard: Raise (Ground Level to Maximum Lift)

5.7 s

Maximum Flow - Implement Pump - 3rd Function Maximum Flow*

50 gal/min

Lift Cylinder: Standard Lift Linkage - Bore Diameter

4.3 in

Tilt Cylinder: Standard Lift Linkage - Stroke

21.9 in

Tilt Cylinder: Standard Lift Linkage - Rod Diameter

2.8 in

Lift Cylinder: Standard Lift Linkage - Rod Diameter

2.4 in

Tilt Cylinder: Standard Lift Linkage - Bore Diameter

5.1 in

Lift Cylinder: Standard Lift Linkage - Stroke

28.7 in

Maximum Flow - Implement Pump

50 gal/min

Maximum Flow - Implement Pump - 4th Function Maximum Flow*

42 gal/min

Maximum Working Pressure - Implement Pump

4061 psi

Note

*3rd and 4th function flow is fully adjustable from 20% to 100% of maximum flow through the secondary display.

Relief Pressure - Tilt Cylinder

4351 psi

Power Train

Note

*Differential front locking axle can be engaged on the go at full torque to 10 km/h (6.2 mph).

Rear Axle

Oscillating

Note (2)

Power train is governed by the Caterpillar exclusive Intelligent Power Management system to deliver peak performance and efficiency.

Front Axle

Fixed

Front Axle - Traction Aid*

Locking differential standard

Rear Axle - Oscillation Angle by Tire Size - 20.5 R25

± 10.5 degrees

Brakes - Service

Inboard wet disc

Rear Axle - Traction Aid

Limited slip differential optional

Brakes - Parking

Spring applied hydraulically released

Rear Axle - Oscillation Angle by Tire Size - 750/65, 620/65

± 7 degrees

Transmission

Forward - Range 2

8 mile/h

Forward - Range 1*

1-13 km/h (0.6-8 mph)

Reverse - Range 4

25 mile/h

Reverse - Range 2

8 mile/h

Forward - Range 3

17 mile/h

Forward - Range 4

25 mile/h

Reverse - Range 3

17 mile/h

Reverse - Range 1*

8 mile/h

Note

Creeper control allows maximum speed range adjustability in the forward direction from 1 km/h (0.6 mph) to 13 km/h (8 mph) in Range 1 through the secondary display when equipped. Factory default is 7 km/h (4.4 mph). Maximum reverse speed will be maintaine

Air Conditioning System

Air Conditioning

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.9 kg of refrigerant which has a CO2 equivalent of 2.717 metric tonnes.

Operating Specifications

Full Turn Tip Load

19424 lb

Axles

Front

Fixed; Locking differential (standard)

Rear

Oscillating ±11 degrees; Open differential (standard); Limited slip differential (optional)

Service Refill Capacities

Axles - Front

6.9 gal (US)

Axles - Rear

6.6 gal (US)

Cooling System

7.9 gal (US)

Diesel Exhaust Fluid (DEF) Tank

5 gal (US)

Engine Crankcase

5.3 gal (US)

Fuel Tank

51.5 gal (US)

Hydraulic System - Including Tank

43.6 gal (US)

Hydraulic Tank

23.8 gal (US)

Transmission - Gear Box

2.2 gal (US)

Tires

Note (1)

Other tire choices are available. Contact your Cat dealer for details.

Note (2)

Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model.

Other Choices Include

20.5 R25, Radial (L-2); 620/75 R26 MegaX, 750/65 R26 MegaX

Standard Size

20.5 R25, radial (L-3)

Sustainability

Recyclability

94%
