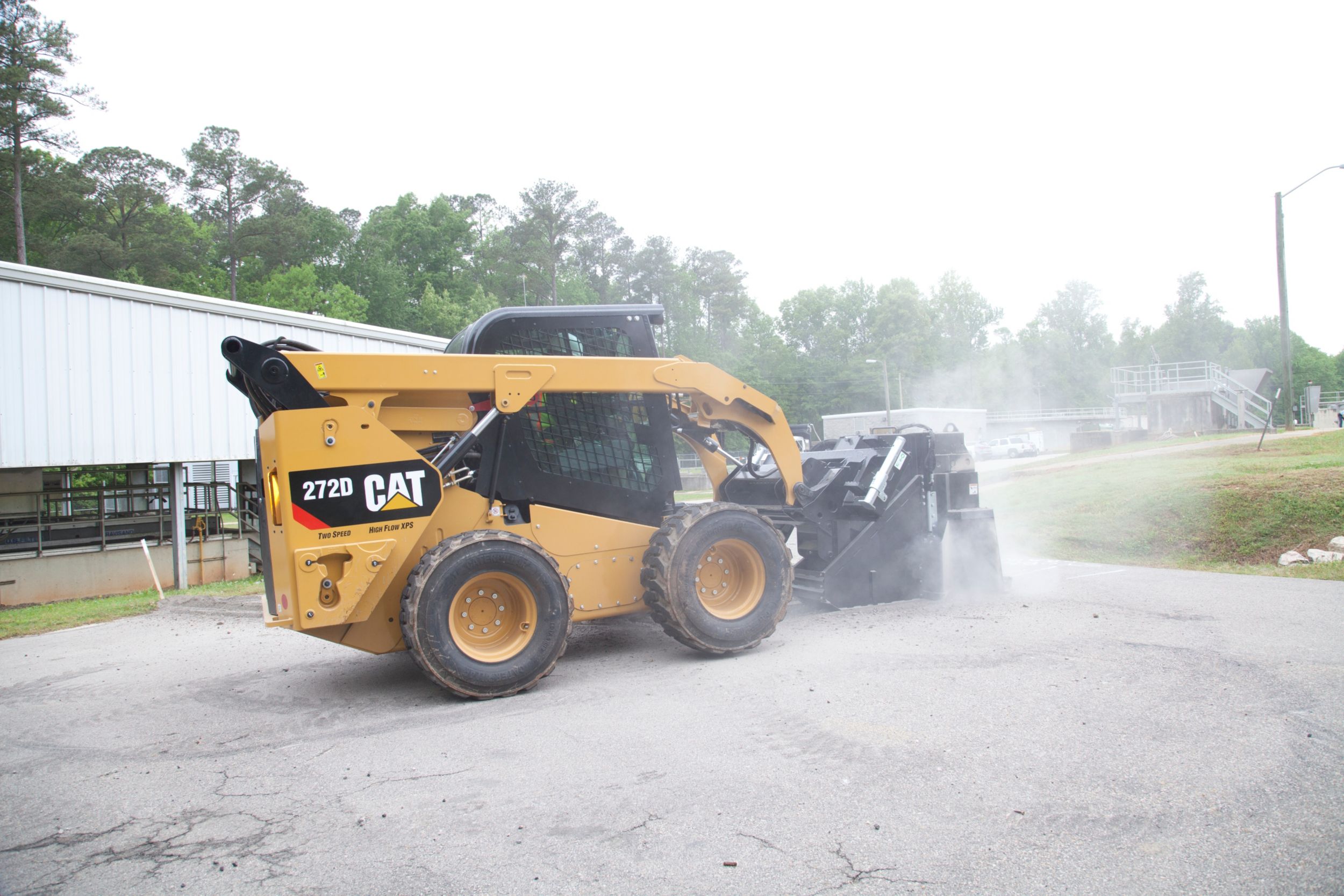

Product Specs
Engine
- Engine Model
- Cat C3.8 (turbocharged)
- Net Flywheel Power
- 95 hp
- Gross Power
- 98 hp
- Gross Power - SAE J1995:2014
- 98 hp
- Net Power - ISO 9249 EEC
- 95 hp
- Net Power - SAE 1349
- 95 hp
- Displacement
- 232 in³
- Stroke
- 4.7 in
- Bore
- 3.9 in
Operating Specifications
- Rated Operating Capacity
- 3200 lb
- Rated Operating Capacity with Optional Counterweight
- 3450 lb
- Tipping Load
- 6400 lb
- Breakout Force - Tilt Cylinder
- 7443 lb
- Breakout Force - Lift Cylinder
- 6079 lb
Weights
- Operating Weight
- 8252 lb
Dimensions
- Wheel Base
- 54.6 in
- Length - With Bucket on Ground
- 152.6 in
- Length - Without Bucket
- 124.3 in
- Height - Top of Cab
- 83.1 in
- Vehicle Width over Tires
- 72 in
- Maximum Overall Height
- 159.9 in
- Bucket Pin Height - Maximum Lift
- 127.1 in
- Bucket Pin Height - Carry Position
- 7.8 in
- Reach - Maximum Lift/Dump
- 31.4 in
- Clearance at Maximum Lift and Dump
- 95.7 in
- Ground Clearance
- 8.6 in
- Departure Angle
- 27°
- Bumper Overhang - Rear Axle
- 42.8 in
- Maximum Dump Angle
- 52°
- Turn Radius from Center - Rear
- 73.7 in
- Turn Radius from Center - Coupler
- 58.4 in
- Turn Radius from Center - Bucket
- 90.2 in
- Maximum Reach - With Arms Parallel
- 51.1 in
- Rack Back Angle - Maximum Height
- 83°
- Bucket Pin Reach - Maximum Lift
- 16.4 in
Cab
- ROPS
- ISO 3471:2008
- FOPS
- ISO 3449:2005 Level I
- FOPS Level II
- ISO 3449:2005 Level I
Power Train
- Travel Speed Forward
- 6.6 mile/h
- Travel Speed Reverse
- 6.6 mile/h
- Travel Speed Forward - 2-Speed Option
- 9.4 mile/h
- Travel Speed Reverse - 2-Speed Option
- 9.4 mile/h
Service Refill Capacities
- Chain Box - Each Side
- 2.7 gal (US)
- Cooling System
- 4.1 gal (US)
- Engine Crankcase
- 3.5 gal (US)
- Fuel Tank
- 32.2 gal (US)
- Hydraulic System
- 14.5 gal (US)
- Hydraulic Tank
- 10.3 gal (US)
Hydraulic System
- Hydraulic Flow (1)
- Standard
- Hydraulic Flow (2)
- High Flow XPS
- Loader Hydraulic Pressure (2)
- 4061 psi
- Loader Hydraulic Pressure (1)
- 3335 psi
- Loader Hydraulic Flow (1)
- 23 gal/min
- Loader Hydraulic Flow (2)
- 32 gal/min
- Hydraulic Power - Calculated (1)
- 44 hp
- Hydraulic Power - Calculated (2)
- 76 hp
Standard Equipment
-
- Electrical
-
- 12 volt Electrical System
- 100 ampere Alternator
- Ignition Key Start/Stop Switch
- Lights: Gauge Backlighting, Two Rear Tail Lights, Two Adjustable Front and Rear Halogen Lights, Dome Light
- Backup Alarm
- Heavy Duty Battery, 880 CCA
-
- Operator Environment
-
- Gauges: Fuel Level, Hour Meter
- Operator Warning System Indicators: Air Filter Restriction, Alternator Output, Armrest Raised/Operator Out of Seat, Engine Coolant Temperature, Engine Oil Pressure, Glow Plug Activation, Hydraulic Filter Restriction, Hydraulic Oil Temperature, Parking Brake Engaged, Engine Emission System
- Adjustable Vinyl Seat
- Fold In Ergonomic Contoured Armrest
- Control Interlock System, when operator leaves seat or armrest raised: Hydraulic System Disables, Hydrostatic Transmission Disables, Parking Brake Engages
- ROPS Cab, Open, Tilt Up
- FOPS, Level 1
- Top and Rear Windows
- Floor Mat
- Interior Rear View Mirror
- 12 volt Electric Socket
- Horn
- Hand (Dial) Throttle, Electronic
- Adjustable Joystick Controls
- Anti-theft Security System with 6-button Keypad
- Storage Compartment with Netting
-
- Power Train
-
- Cat C3.8, Turbo Diesel Engine, Meeting U.S. EPA Tier 4 Interim (EU Stage IIIB) Emission Standards
- Air Cleaner, Dual Element, Radial Seal
- SOS Sampling Valve, Hydraulic Oil
- Filters, Cartridge-type, Hydraulic
- Filters, Cartridge-type, Fuel and Water Separator
- Radiator/Hydraulic Oil Cooler (side-by-side)
- Spring Applied, Hydraulically Released Parking Brakes
- Hydrostatic Transmission
- Four Wheel Chain Drive
-
- Other
-
- Engine Enclosure, Lockable
- Extended Life Antifreeze, -37° C (-34° F)
- Machine Tie Down Points (6)
- Support, Lift Arm
- Hydraulic Oil Level Sight Gauge
- Radiator Coolant Level Sight Gauge
- Radiator, Expansion Bottle
- Cat ToughGuard™ Hose
- Auxiliary, Hydraulics, Continuous Flow
- Heavy Duty, Flat Faced Quick Disconnects with Integrated Pressure Release
- Split D-Ring to Route Work Tool Hoses Along Side of Left Lift Arm
- Electrical Outlet, Beacon
- Belly Pan Cleanout
- Variable Speed Demand Fan
-
- Mandatory Equipment
-
- Hydraulics, Standard or High Flow XPS
- Quick Coupler, Mechanical or Electric
- Seat Belt, 50 mm (2 in) or 75 mm (3)
- Power Train: One Speed, Two Speed or Two Speed with Ride Control
- Comfort Package (must select one of the following):
- Tires, 12 x 16.5 or 14 x 17.5
- Open ROPS (C0): Static Seat (No Foot Throttle, Headliner, Heater or Door)
- Open ROPS (C1): Foot Throttle, Headliner, Cup Holder, and choice of Seat (Mechanical Suspension or High Back, Heated, Air Ride Seat) (No Heater or Door)
- Enclosed ROPS with Heater (C2): Foot Throttle, Headliner, Heater and Defroster, Side Windows, Cup Holder, Radio Ready, choice of Seat (Mechanical Suspension or High Back, Heated, Air Ride Seat) and Door (Glass or Polycarbonate)
- Enclosed ROPS with A/C (C3): C2 plus Air Conditioner
- Performance Package (must select one of the following):
- Performance Package H1: Standard Flow Hydraulics (No Self Level)
- Performance Package H2: Standard Flow, Dual Direction Electronic Self Level (Raise and Lower), Electronic Snubbing (Raise and Lower)
- Performance Package H3: High Flow XPS, Dual Direction Electronic Self Level (Raise and Lower), Electronic Snubbing (Raise and Lower)
