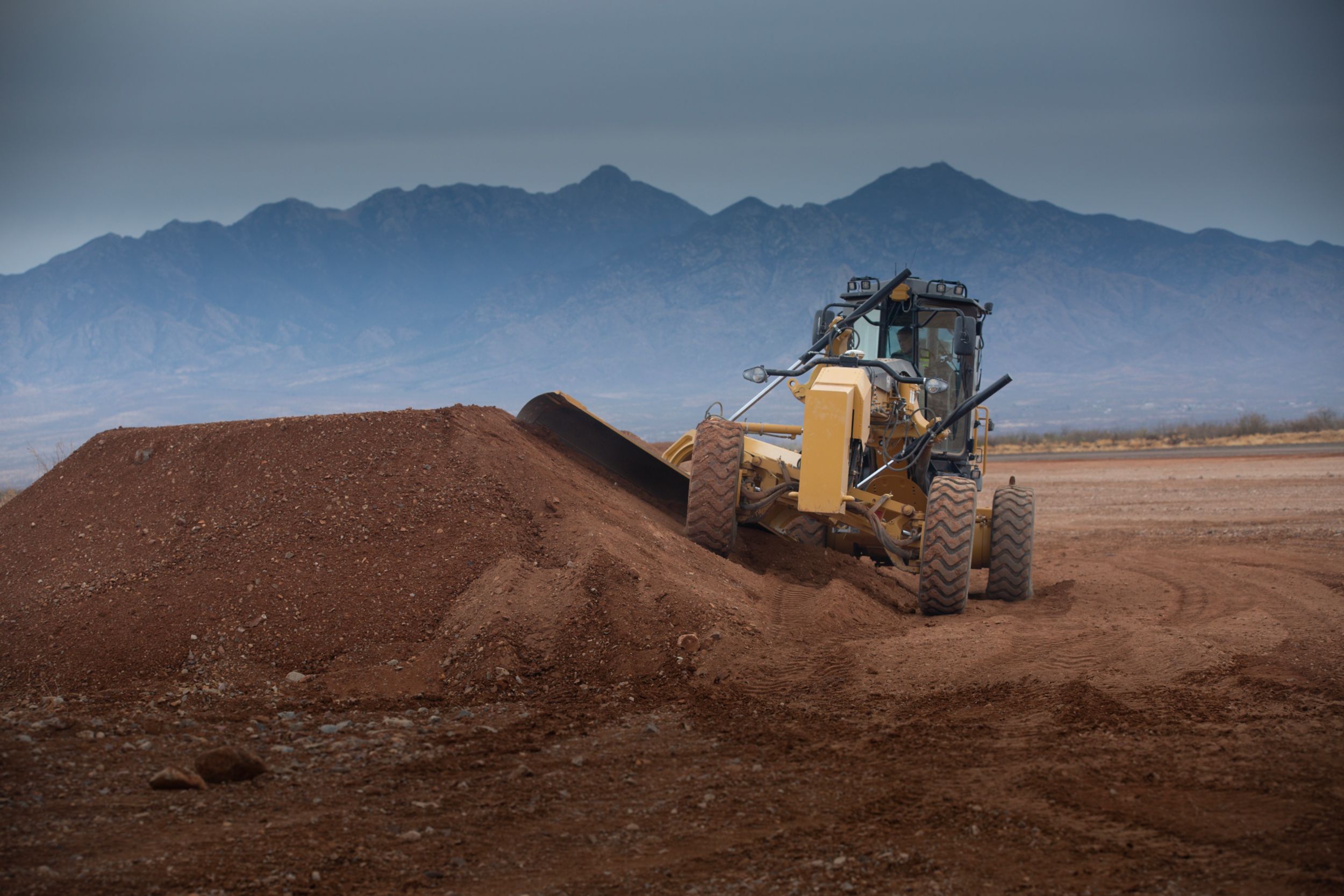

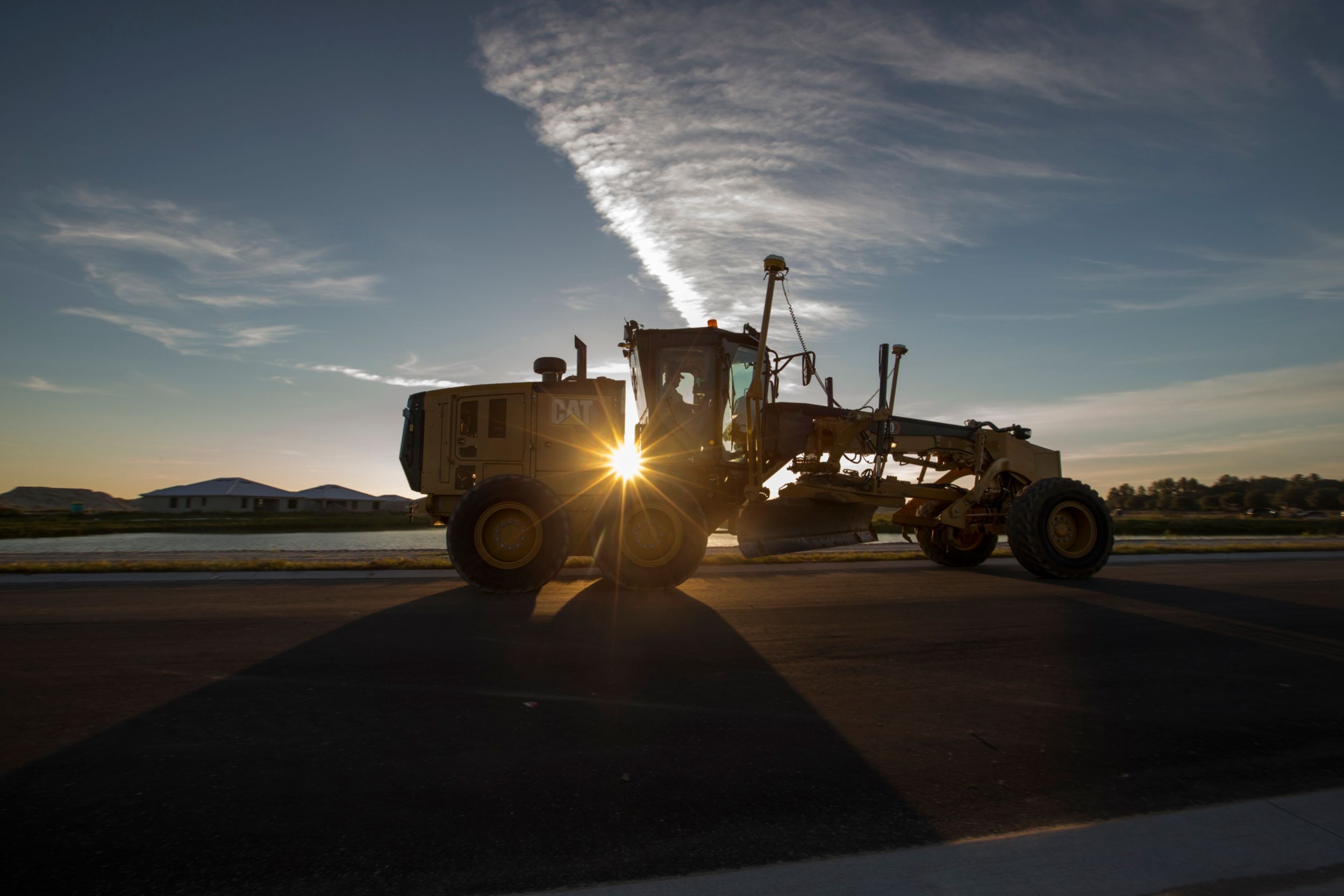

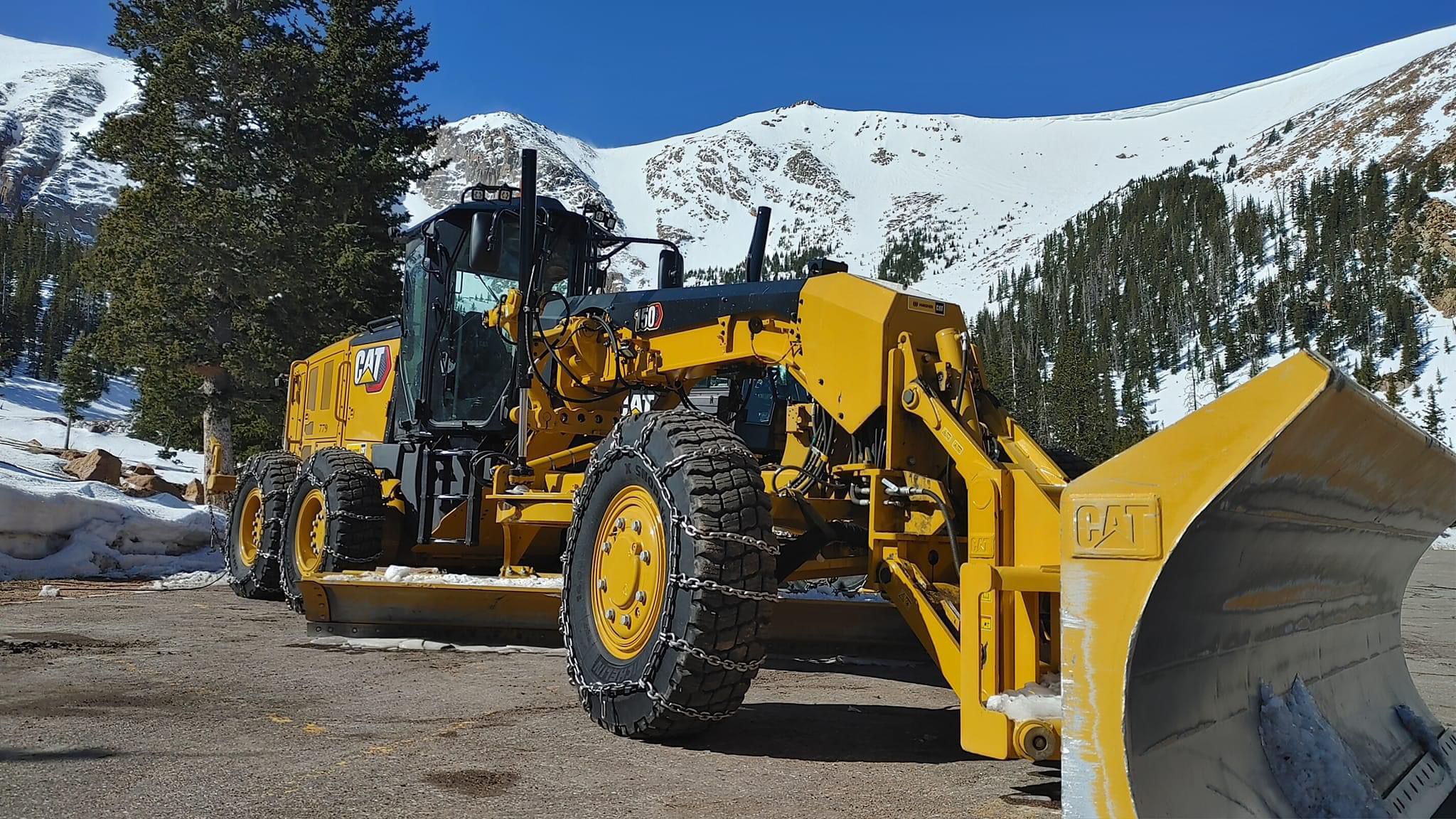

Exterior View
Product Specs
Engine
- Net Power Range (Tier 4)
- 200 hp
- Engine Model
- Cat® C9.3
- Bore
- 4.5 in
- Stroke
- 5.9 in
- Speed at Rated Power
- 2,000 rpm
- Maximum Torque - VHP Plus
- 920 lb/ft
- Emissions
- U.S. EPA Tier 4 Final/EU Stage V
- High Ambient - Fan Speed - Standard
- 1,400 rpm
- VHP Plus Range - Net - Metric
- 149-188 kW (202-255 hp)
- Standard Capability
- 109 °F
- VHP Plus Range - Net
- 149-188 kW (200-252 hp)
- Torque Rise
- 39%
- VHP Plus - Gear - Net Power - Reverse 1st
- 200 hp
- VHP Plus - Gear - Net Power - Forward 1st
- 200 hp
- VHP Plus - Gear - Net Power - Forward 8th
- 252 hp
- VHP Plus - Gear - Net Power - Forward 6th
- 241 hp
- VHP Plus - Gear - Net Power - Forward 2nd
- 210 hp
- VHP Plus - Gear - Net Power - Forward 7th
- 247 hp
- VHP Plus - Gear - Net Power - Forward 5th
- 236 hp
- VHP Plus - Gear - Net Power - Reverse 3rd-6th
- 220 hp
- VHP Plus - Gear - Net Power - Forward 4th
- 231 hp
- Base Power (1st Gear) - Net - Metric
- 202 hp
- VHP Plus - Gear - Net Power - Reverse 2nd
- 210 hp
- VHP Plus - Gear - Net Power - Forward 3rd
- 220 hp
- Displacement
- 567.5 in³
- Number of Cylinders
- 6
- Derating Altitude
- 10000 ft
- High Ambient - Fan Speed - Maximum
- 1,550 rpm
- High Ambient - Fan Speed - Minimum
- 500 rpm
- High - Ambient Capability
- 122 °F
Weights
- Operating Weight - Typically Equipped
- 43950 lb
- Gross Vehicle Weight - Maximum - Front Axle
- 17075 lb
- Gross Vehicle Weight - Maximum - Rear Axle
- 38069 lb
- Operating Weight - Typically Equipped - Front Axle
- 12549 lb
- Operating Weight - Typically Equipped - Rear Axle
- 31401 lb
- Gross Vehicle Weight - Base - Front Axle
- 9601 lb
- Gross Vehicle Weight - Base - Rear Axle
- 28590 lb
- Gross Vehicle Weight - Maximum - Total
- 55144 lb
- Operating Weight - Typically Equipped - Total
- 43950 lb
- Gross Vehicle Weight - Base - Total
- 38191 lb
Moldboard
- Blade Width
- 12 ft
- Moldboard - Height
- 24 in
- Moldboard - Thickness
- 0.87 in
- Arc Radius
- 16.3 in
- Throat Clearance
- 6.5 in
- Cutting Edge Width
- 6 in
- Cutting Edge Thickness
- 0.6 in
- End Bit - Width
- 6 in
- End Bit - Thickness
- 0.6 in
- Blade Pull - Base GVW
- 25732 lb
- Blade Pull - Maximum GVW
- 34262 lb
- Blade Down Pressure - Base GVW
- 16480 lb
- Blade Down Pressure - Maximum GVW
- 29308 lb
- Moldboard - Blade Width
- 12 ft
Operating Specifications
- Top Speed - Forward
- 29 mile/h
- Top Speed - Reverse
- 23 mile/h
- Turning Radius - Outside Front Tires
- 25.59 ft
- Steering Range - Left/Right
- 50°
- Articulation Angle - Left/Right
- 20°
- Forward - 1st
- 2.5 mile/h
- Forward - 2nd
- 3.4 mile/h
- Forward - 3rd
- 5 mile/h
- Forward - 4th
- 6.9 mile/h
- Forward - 5th
- 10.6 mile/h
- Forward - 6th
- 14.5 mile/h
- Forward - 7th
- 19.9 mile/h
- Forward - 8th
- 29 mile/h
- Reverse - 1st
- 2 mile/h
- Reverse - 2nd
- 3.7 mile/h
- Reverse - 3rd
- 5.4 mile/h
- Reverse - 4th
- 8.4 mile/h
- Reverse - 5th
- 15.7 mile/h
- Reverse - 6th
- 23 mile/h
Service Refill
- Fuel Capacity
- 104 gal (US)
- Cooling System
- 15 gal (US)
- Hydraulic System - Total
- 26.4 gal (US)
- Hydraulic System - Tank
- 16.9 gal (US)
- Transmission - Differential - Final Drives
- 18.5 gal (US)
- Diesel Exhaust Fluid
- 5.8 gal (US)
- Engine Oil
- 7.9 gal (US)
- Tandem Housing - Each
- 20 gal (US)
- Front Wheel Spindle Bearing Housing
- 0.13 gal (US)
- Circle Drive Housing
- 1.8 gal (US)
Power Train
- Forward/Reverse Gears
- 8 Forward/6 Reverse
- Transmission
- APECS, Direct Drive, Powershift
- Brakes - Service
- Multiple Oil Disc
- Brakes - Service - Surface Area
- 3565 in²
- Brakes - Parking
- Multiple Oil Disc
- Brakes - Secondary
- Dual Circuit
Hydraulic System
- Circuit Type
- Parallel
- Pump Type
- Variable Piston
- Pump Output
- 55.7 gal/min
- Maximum System Pressure
- 3500 psi
- Reservoir Tank Capacity
- 16.9 gal (US)
- Standby Pressure
- 885 psi
Frame
- Drawbar - Width
- 3 in
- Circle - Diameter
- 60.2 in
- Circle - Blade Beam Thickness
- 1.6 in
- Drawbar - Height
- 6 in
- Front Frame Structure - Width
- 12 in
- Front Frame Structure - Height
- 12.6 in
- Circle - Height
- 5.4 in
- Drawbar - Thickness
- 0.5 in
- Front-Top/Bottom Plate - Width
- 12 in
- Front-Top/Bottom Plate - Thickness
- 0.87 in
- Front Axle - Height to Center
- 23.5 in
- Front Axle - Wheel Lean - Left/Right
- 18°
- Front Axle - Total Oscillation per Side
- 32°
Blade Range
- Circle Centershift - Right
- 28.7 in
- Circle Centershift - Left
- 27.4 in
- Moldboard Sideshift - Right
- 26 in
- Moldboard Sideshift - Left
- 20.1 in
- Maximum Blade Position Angle
- 90°
- Blade Tip Range - Forward
- 40°
- Blade Tip Range - Backward
- 5°
- Maximum Shoulder Reach Outside of Tires - Right
- 77.9 in
- Maximum Shoulder Reach Outside of Tires - Left
- 70.5 in
- Maximum Lift Above Ground
- 18.9 in
- Maximum Depth of Cut
- 28.1 in
Ripper
- Ripper Shank Holder Spacing
- 21 in
- Ripping Depth - Maximum
- 16.8 in
- Ripper Shank Holders
- 5
- Penetration Force
- 20812 lb
- Pry-Out Force
- 27794 lb
- Machine Length Increase, Beam Raised
- 40.6 in
Scarifier
- Front, V-Type, 5 or 11 Tooth - Scarifier Shank Holders
- 11-May
- Front, V-Type, 5 or 11 Tooth - Scarifying Depth, Maximum
- 18.4 in
- Rear - Scarifying Depth, Maximum
- 16.8 in
- Mid, V-Type - Working Width
- 46.6 in
- Front, V-Type - Working Width
- 47.4 in
- Front, V-Type, 5 or 11 Tooth - Working Width
- 40.6 in
- Mid, V-Type - Scarifying Depth, Maximum
- 11.5 in
- Mid, V-Type - Scarifier Shank Holders
- 11
- Mid, V-Type - Scarifier Shank Holder Spacing
- 4.6 in
- Front, V-Type, 5 or 11 Tooth - Scarifier Shank Holder Spacing
- 4.6 in
- Rear - Working Width
- 84 in
- Rear - Scarifier Shank Holders
- 9
- Rear - Scarifier Shank Holder Spacing
- 10.5 in
Standards
- Steering
- ISO 5010
- ROPS/FOPS
- ISO 3471/ISO 3449
- Brakes
- ISO 3450
- Sound
- ISO 6394; ISO 6395
Air Conditioning System
- Air Conditioning
- The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.8 kg of refrigerant which has a CO2 equivalent of 2.574 metric tonnes.
Tandems
- Height
- 19.9 in
- Width
- 7.9 in
- Sidewall Thickness - Inner
- 0.63 in
- Sidewall Thickness - Outer
- 0.71 in
- Drive Chain Pitch
- 2 in
- Wheel Axle Spacing
- 60 in
- Tandem Oscillation - Front Up
- 15°
- Tandem Oscillation - Front Down
- 25°
Dimensions
- Height - Top of Cab
- 130 in
- Length - Counterweight to Ripper
- 399 in
- Width - Outside Front Tires
- 98.9 in
- Length - Front Axle to Mid Tandem
- 241 in
- Length - Front Tire to Rear of Machine
- 351 in
- Length - Front Axle to Moldboard
- 100 in
- Length - Between Tandem Axles
- 60 in
- Width - Outside Rear Tires
- 98.9 in
- Width - Tire Center Lines
- 84.3 in
- Height - Front Axle Center
- 23.5 in
- Height - Exhaust Stack
- 128 in
- Height - Top of Cylinders
- 120 in
- Ground Clearance - Rear Axle
- 13.3 in
Standard Equipment
-
- Note
-
- Standard and optional equipment may vary. Consult your Cat dealer for details.
-
- Power Train
-
- Air cleaner, dual stage, dry type, diesel, with automatic engine derate and automatic dust ejector, service indicator through Cat Messenger
- Air-to-air after cooler (ATAAC)
- Belt, serpentine, automatic tensioner
- Brakes, oil disc, four-wheel, hydraulic
- Demand fan, hydraulic, swing-out
- Diesel exhaust fluid tank, 22.0 L (5.8 gal) ground level access, and sediment drain
- Differential Lock/Unlock, Automatic
- Drain, engine oil, ecology
- Economy mode
- Electronic over speed protection
- Engine, C9.3 U.S. EPA Tier 4 Final/EU Stage V emission standards
- Fuel tank, 394 L (104 gal), ground level access and sediment drain
- Parking brake - multi-disc, sealed, oil-cooled
- Priming pump, fuel
- Rear axle, modular
- Sediment drain, fuel tank
- Tandem drive
- Transmission, 8F/6R, powershift, direct drive, Advanced Productivity Electronic Control Strategy (APECS)
-
- Electrical
-
- Alarm, back up
- Alternator, 150 ampere, sealed
- Batteries, maintenance free, heavy duty, 1125 CCA
- Breaker panel, ground accessible
- Cab harness and electrical hydraulic valves
- Electrical system, 24V
- Grade Control Ready - Cab harness, software, electrical hydraulic valves, bosses and brackets
- Lights, roof-mounted roading, reversing, LED stop and tail
- Product Link
- Starter, electric
-
- Operator Environment
-
- Accelerator
- Air conditioning with heater
- Arm and wrist rest, electronically adjustable
- Articulation, automatic Return-to-Center
- Cat Messenger operator information system
- Centershift pin indicator
- Coat hook
- Cup holder
- Display, digital speed and gear
- Doors, left and right side with wiper
- Gauge, machine level
- Gauge cluster (analog) - fuel, articulation, engine coolant temp, engine RPM, hydraulic oil temp, regen, DEF
- Hour meter, digital
- Joystick hydraulic controls right/left blade lift with float position, circle drive, blade sideshift and tip, centershift, front wheel lean, articulation and power steering
- Joystick, adjustable armrests
- Joystick gear selection
- Joystick hydraulic power steering
- Ladders, cab, left and right side
- Lights, night time cab
- Mirror, inside rearview, wide angle
- Power port, 12V
- Radio Ready, Entertainment
- ROPS cab, sound suppressed 70 dB(A)
- Seat, cloth-covered, comfort suspension
- Seat belt, retractable 76 mm (3 in)
- Storage area for cooler/lunchbox
- Throttle control, electronic
- Windows, laminated glass: - fixed front with intermittent wiper - door with intermittent wipers (3)
- Windows: tempered: - left and right side wipers - rear and intermittent wiper
-
- Fluids
-
- Antifreeze
- Extended Life Coolant to -35° C (-30° F)
-
- Tires, Rims And Wheels
-
- Partial allowance for tires on 254 — 607 mm (10 — 24 in) multi-piece rims is included in the base machine price and weight
-
- Other Standard Equipment
-
- Accumulators, brake, dual certified
- Anti-glare paint
- Bumper, rear, integrated with hitch
- CD ROM Parts Book
- Clutch, circle drive slip
- Cutting edges: - 152 — 16 mm (6 — 5/8 in) - curved DH-2 steel - 19 mm (3/4 in) mounting bolts
- Doors (3), engine compartment, locking
- Drawbar - 6 shoes, replaceable wear strips
- Electrical hydraulic valves, hydraulic lines for base 8 functions
- Endbits: - 16 mm (5/8 in) DH-2 steel - 19 mm (3/4 in) mounting bolts
- Fluid check, ground level
- Frame, articulated, with safety lock
- Ground level engine shutdown
- Hammer (emergency exit)
- Horn, electric
- Hydraulic lines for base functions
- Lockout, hydraulic implement (for roading and servicing)
- Moldboard
- Mounting, cab roof accessories
- Pump, hydraulic, high capacity, 98 cm³ (6 in³)
- Radiator, cleanout access (both sides with swing doors)
- Secondary steering
- Serviceability, LH side
- S·O·S„ ports: engine, hydraulic, transmission, coolant, fuel
- Tandem walkway/guards
- Tool box
Attachments
-
- Note
-
- Standard and optional equipment may vary. Consult your Cat dealer for details.
-
- Electrical
-
- Alternator, 280 ampere
- Batteries: extreme duty, 1,400 CCA
- Lights: Headlights, high
- Lights: Headlights, low
- Lights: Working lights, basic
- Lights: Working lights, plus, LED
- Lights: Warning: beacon or strobe
- Lights: Mounting for warning light
-
- Guards
-
- Articulation guard
- Fenders, front
- Fenders, rear
- Front axle guard
- Sound suppression (bottom)
- Sound suppression (enclosure)
- Transmission
-
- Operator Environment
-
- Mirrors, outside: heated 24V
- Mirrors, outside: mounted
- Comfort Plus Arrangement
- Comfort Premium Arrangement
-
- Power Train
-
- All Wheel Drive
- Precleaner, snow
- Starter, extreme duty, 1,000 Amps
- Transmission, autoshift
-
- Other Attachments
-
- Attachment Ready Option (ARO)
- Cross Slope
- Accumulators, blade lift
- Camera, rearview
- Cat Product Link 321SR
- Cat Product Link 522
- Drain, ecology, engine Wiggins
- Heater, engine coolant: 120V
- Heater, engine coolant: 240V
- Hydraulic arrangements with one or more additional hydraulic valves are available for rear ripper, dozer, snow plow and snow wing.
- Snow wing mounting, frame ready
- Starting aid, ether
- Reversing fan, automatic or manual
- Cat Grade with 3D
-
- Work Tools/g.e.t.
-
- Blade extension, left hand, 610 mm (2 ft)
- Blade extension, right hand, 610 mm (2 ft)
- Counterweight
- Cutting edges, curved
- Endbits, overlay
- Front lift group, mounting
- Front lift group, mechanical
- Grader bit, narrow and super penetration
- Mid-Mount Scarifier, Package
- Moldboard: 4267 mm — 610 mm — 22 mm (14 ft× 24 in — 7/8 in)
- Moldboard: 4267 mm — 686 mm — 25 mm (14 ft — 27 in — 1 in)
- Push plate
- Ripper, rear
- Ripper tooth
- Scarifier, front
- Snow Arrangement
- Snow Wing Ready Package
- Tow hitch
-
- Machine Arrangements
-
- Canadian Arrangement
- European Arrangement
- TUV Roading Arrangement
-
- Optional Tire Arrangements
-
- Rim Size - 9 × 24; Wheel Group - Single-Piece; Tires - 14.0R24
- Rim Size - 13 × 25; Wheel Group - Single-Piece; Tires - 17.5R25
- Rim Size - 10 × 24; Wheel Group - Multi-Piece; Tires - 14.0R24
- Rim Size - 10 × 24; Wheel Group - Multi-Piece; Tires - 14.0-24
- Rim Size - 14 × 25; Wheel Group - Multi-Piece; Tires - 17.5R25
- Rim Size - 14 × 25; Wheel Group - Multi-Piece; Tires - 17.5-25
- Note: Consult your dealer for individual tire width, size and brand.
