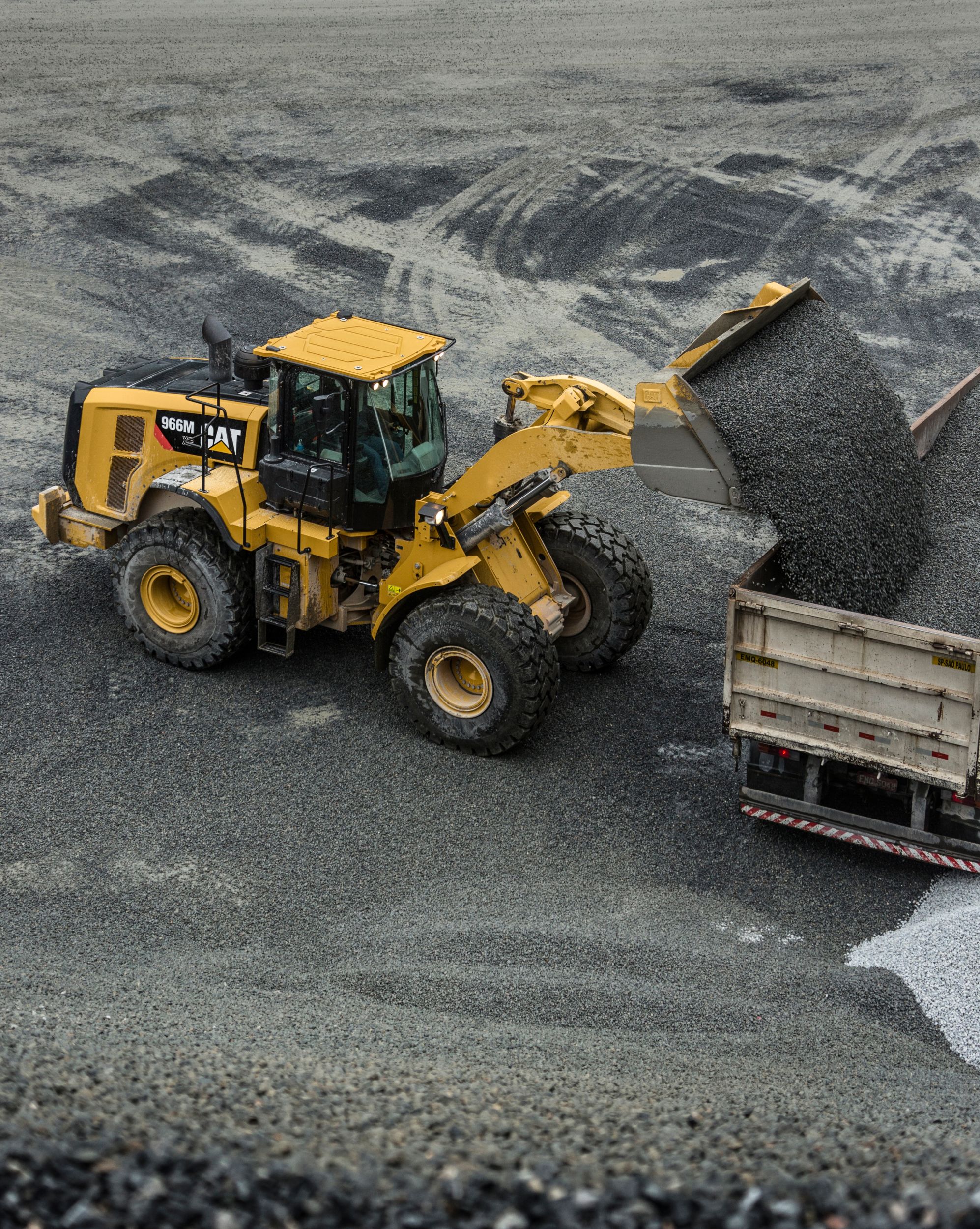

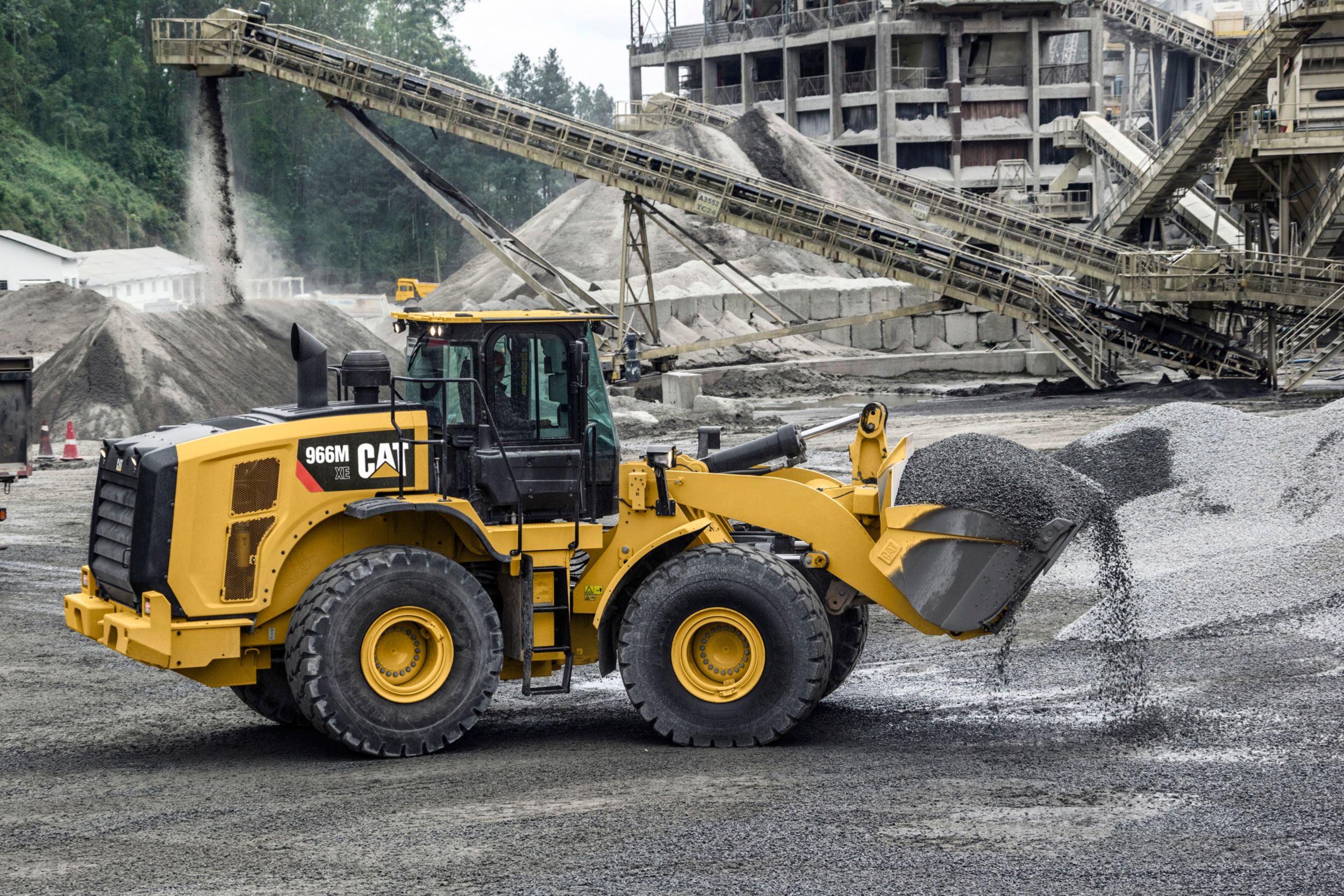

Exterior View
Product Specs
Engine
- Net Power - ISO 9249
- 298 hp
- Emissions
- Tier 4/Stage IV
- Maximum Net Torque - 1,200 rpm
- 1193 ft·lbf
- Engine Model
- Cat C9.3
- Maximum Net Power - 1,600 rpm - ISO 9249
- 298 hp
- Maximum Net Power - 1,600 rpm - ISO 9249 - Metric
- 302 hp
- Maximum Net Power - 1,600 rpm - SAE J1349
- 298 hp
- Maximum Net Power - 1,600 rpm - SAE J1349 - Metric
- 302 hp
- Peak Gross Torque - 1,200 rpm - SAE J1995
- 1275 ft·lbf
- Peak Gross Torque - 1,200 rpm - ISO 14396
- 1260 ft·lbf
- Displacement
- 568 in³
- Note
- The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.6 kg of refrigerant which has a CO2 equivalent of 2.288 metric tonnes.
Weights
- Operating Weight
- 51176 lb
- Note
- Weight based on a machine configuration with Michelin 26.5R25 XHA2 L3 radial tires, full fluids, operator, standard counterweight, cold start, roading fenders, Product Link™, manual diff lock/open axles (front/rear), power train guard, secondary steering,
Buckets
- Bucket Capacities
- 3.20-7.40 m³ (4.19-9.68 yd³)
Hydraulic System
- Implement Pump Type
- Variable Displacement Piston
- Implement System - Maximum Operating Pressure
- 4496 psi
- Implement System - Maximum Pump Output at 1,600 rpm
- 102 gal/min
- Hydraulic Cycle Time - Total
- 10.1 s
Transmission - Virtual Gears
- Reverse - 1
- 4.1 mile/h
- Reverse - 2
- 7.7 mile/h
- Reverse - 3
- 17.1 mile/h
- Forward - 1
- 4.1 mile/h
- Forward - 2
- 7.7 mile/h
- Forward - 3
- 13.5 mile/h
- Forward - 4
- 24.5 mile/h
- Note
- Maximum travel speed in standard vehicle with empty bucket and standard L3 tires with 826 mm (32.5 in) roll radius.
Service Refill Capacities
- Cooling System
- 19 gal (US)
- Crankcase
- 6.5 gal (US)
- Transmission
- 16.6 gal (US)
- Hydraulic Tank
- 33 gal (US)
- Differential - Final Drives - Front
- 15.1 gal (US)
- Differential - Final Drives - Rear
- 15.1 gal (US)
- Fuel Tank
- 79.8 gal (US)
- DEF Tank
- 4.4 gal (US)
Sound
- Note (1)
- *Distance of 15 m (49.2 ft), moving forward in second gear ratio.
- With Cooling Fan Speed at 70% of Maximum Value - Operator Sound Pressure Level (ISO 6396:2008)**
- 67 dB(A)
- With Cooling Fan Speed at 70% of Maximum Value - Exterior Sound Power Level (ISO 6395:2008)**
- 105 LWA***
- Note (2)
- **For machines in European Union countries and in countries that adopt the EU Directives.
- With Cooling Fan Speed at Maximum Value - Operator Sound Pressure Level (ISO 6396:2008)
- 67 dB(A)
- Note (3)
- ***European Union Directive 2000/14/EC as amended by 2005/88/EC.
- With Cooling Fan Speed at Maximum Value - Exterior Sound Power Level (ISO 6395:2008)
- 107 dB(A)
- With Cooling Fan Speed at Maximum Value - Exterior Sound Pressure Level (SAE J88:2013)
- 76 dB(A)*
Operating Specifications
- Breakout Force
- 38984 lbf
- Static Tipping Load - Full 37° Turn - No Tire Deflection
- 34873 lb
- Static Tipping Load - Full 37° Turn - With Tire Deflection
- 32329 lb
- Note (1)
- For a machine configuration as defined under "Weight."
- Note (2)
- Full compliance to ISO 143971:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing.
Dimensions - Standard Lift
- Height - Top of Hood
- 9.25 ft
- Height - Top of Exhaust Pipe
- 11.58 ft
- Height - Top of ROPS
- 11.75 ft
- Ground Clearance
- 1.42 ft
- Centerline of Rear Axle to Edge of Counterweight
- 7.17 ft
- Centerline of Rear Axle to Hitch
- 5.83 ft
- Wheel Base
- 11.67 ft
- Overall Length - Without Bucket
- 23.92 ft
- Hinge Pin Height at Maximum Lift
- 13.92 ft
- Hinge Pin Height at Carry
- 2.08 ft
- Lift Arm Clearance at Maximum Lift
- 11.92 ft
- Rack Back - Maximum Lift
- 62 degrees
- Rack Back - Carry Height
- 50 degrees
- Rack Back at Ground
- 42 degrees
- Maximum Width over Tires
- 9.83 ft
- Tread Width
- 7.33 ft
- Note
- All dimensions are approximate and based on L3 XHA2 tires.
Dimensions - High Lift
- Height - Top of Hood
- 9.25 ft
- Height - Top of Exhaust Pipe
- 11.58 ft
- Height - Top of ROPS
- 11.75 ft
- Ground Clearance
- 1.42 ft
- Centerline of Rear Axle to Edge of Counterweight
- 8.17 ft
- Centerline of Rear Axle to Hitch
- 5.83 ft
- Wheel Base
- 11.67 ft
- Overall Length - Without Bucket
- 26.58 ft
- Hinge Pin Height at Maximum Lift
- 15.75 ft
- Hinge Pin Height at Carry
- 2.58 ft
- Lift Arm Clearance at Maximum Lift
- 13.58 ft
- Rack Back - Maximum Lift
- 71 degrees
- Rack Back - Carry Height
- 49 degrees
- Rack Back at Ground
- 39 degrees
- Maximum Width over Tires
- 9.83 ft
- Tread Width
- 7.33 ft
- Note
- All dimensions are approximate and based on L3 XHA2 tires.
Bucket Capacities
- Bucket Capacities
- 3.20-7.40 m³ (4.19-9.68 yd³)
Engine - Tier 4 Final/Stage IV
- Emissions
- Tier 4/Stage IV
Standard Equipment
-
- Note
-
- Standard and optional equipment may vary. Consult your Cat dealer for details.
-
- Power Train
-
- Engine, Cat 9.3 meets Stage IV emission standards
- Cat Clean Emissions Module (CEM) with Diesel Exhaust Fluid (DEF) tank and pump
- Fuel priming pump (electric)
- Fuel/water separator
- Precleaner, engine air intake
- Cat continuously variable transmission
- Axles, manually actuated differential lock front axle, open differential rear axle
- Axles, ecology drains
- Brakes, full hydraulic enclosed wet-disc with modulated neutralizer and integrated retarding
- Brake wear indicators
- Parking brake, disc and caliper
- Right pedal lock, maximum rimpull control and machine speed limit in the cab
- Fan, radiator, on demand
-
- Hydraulics
-
- Hydraulic system, load sensing
- Steering, load sensing
- Ride control, 2V
- Remote diagnostic pressure taps
- Hoses, Cat XT™
- Couplings, Cat O-ring face seal
- Hydraulic oil cooler (swing out)
- Oil sampling valves
-
- Electrical And Lighting
-
- Batteries (2), maintenance free 1,400 CCA
- Ignition key; start/stop switch
- Starter, electric, heavy duty
- Starting and charging system (24V)
- Lighting system: Four halogen work lights (cab mounted); Two halogen roading lights (with signals); Two halogen rear vision lights (hood mounted); Two rear LED position/stop/turn
- Alarm, back up
- Alternator, 145-amp brushed
- Main disconnnect switch
- Emergency engine shutdown switch
- Receptable start (cables not included)
- Secondary steering
- Speed limiter, adjustable
-
- Operator Environment
-
- Cab, pressurized and sound suppressed (ROPS/FOPS)
- Viscous mounts
- Multi-function 18 cm color touchscreen display for rear vision camera, clock and machine parameters
- EH controls, SAL (single axis lever) lift and tilt function
- Steering, EH joystick, speed sensing with force feedback
- Radio ready (entertainment) includes antenna, speakrs and converter (12V, 10-amp)
- Air conditioner, heater, and defroster (auto temp and fan)
- EH parking brake
- Beverage holders (2) with storage compartment for cell phone/MP3 player
- Bucket/work tool function lockout
- Coat hook (2)
- Cab air filter
- Ergonomic cab access ladders and handrails
- Horn, electric
- Light, two dome (cab)
- Mirrors, rearview external with integrated spot mirrors
- Post mounted membrane 16 switch keypad
- 2 receptables, 12V
- Seat, Cat Comfort (cloth) air suspension
- Seat belt, 51 mm retractable, with indicator
- Sun visor, front
- Wet-arm wipers/washer front and rear, intermittent front wiper
- Window, sliding (left and right sides)
- Cab tie-off
-
- Computerized Monitoring System
-
- With following gauges: Speedometer/tachometer; Digital gear range indicator; Diesel Exhaust Fluid (DEF) level; Temperature: engine coolant, hydraulic oil, transmission oil; Fuel level
- With following warning indicators: Regeneration; Temperature: axle oil, engine intake manifold; Pressure: engine oil, fuel pressure hi/low, primary steering oil, service brake oil; Battery voltage hi/low; Engine air filter restriction; Hydraulic oil filter restriction; Hydraulic oil low; Parking brake; DEF low level; Transmission filter bypass
-
- Cat Connect Technologies
-
- Link technologies: Product Link
- Detect technologies: rear vision camera
-
- Linkage
-
- Linkage, Z-bar, cast crosstube/tilt lever
- Kickout, lift and tilt, automatic
-
- Fluids
-
- Premixed extended life coolant with freeze protection to -34° C
-
- Other Standard Equipment
-
- Hood, non-metallic power tilting
- Service centers (electrical and hydraulic)
- Platform, window washing
- Auto idle shutdown
- Fenders, steel front with mud-flap/rear with extension
- Ecology drains for engine, transmission, and hydraulics
- Ether aid ready
- Grill, airborne debris
- Filters: fuel, engine air, engine oil, hydraulic oil, transmission
- Fuel cooler
- Grease zerks
- Hitch, drawbar with pin
- Precleaner rain cap
- Sight gauges: engine coolant, hydraulic oil, and transmissin oil level
- Toolbox
- Vandlism protection caplocks
Attachments
-
- Note
-
- Standard and optional equipment may vary. Consult your Cat dealer for details.
-
- Power Train
-
- Axles - Automatic front/rear differential locks; Axle oil cooler; Extreme temperature seals; Seal guards
- Fan, VPF (variable pitch fan), automatic and manual control
- Radiator, high debris with wider fin spacing
-
- Hydraulics
-
- 3rd function with Ride Control
- 4th function with Ride Control
-
- Electrical And Lighting
-
- Four additional halogen cab mounted work lights or;
- Two additional auxiliary front HI LED and two additional auxiliary rear LED cab mounted work lights, two LED work lights in the radiator grill, LED front turn signals, replacement of the standard four halogen cab mounted work lights with four LED work lights, LED roading lights
- Speed limiter - 20 km/h
- External seat belt indicator light
- Reversing strobes
-
- Operator Environment
-
- Door, remote opening system
- Cover, HVAC metallic
- EH controls, SAL 3rd function - Additional roller switch for 4th function
- EH controls, joystick lift and tilt - Additional integrated roller switches for 3rd and 4th functions
- Filter, carbon fresh air
- Mirrors, heated rearview external with integrated spot mirrors
- Precleaner, HVAC
- Precleaner, HVAC (RESPA)
- Radio, AM/FM/CD/USB/MP3 Bluetooth™
- Seat, heated, air suspension
- Seat belt, 4 point harness, with indicator
- Seat, deluxe with leather inserts and headrest, heated and ventilated, air-suspended, adjustable lumbar support
- Roof, metallic
- Sun visor, rear
- Windows, rubber mounted
- Windows, with front guard
- Windows, with heavy duty front guard
- Windows, with full guards front, rear and sides
- Cat seat cover, removable
-
- Cat Connect Technologies
-
- Link technologies: VIMS™
- Payload technologies: Cat Production Measurement 2.0 (CPM); Printer, Cat Production Measurement; Aggregate Autodig
- Advanced Productivity subscription
- Detect technologies: Cat Rear Object Detection
- Machine Security System
-
- Linkage
-
- High lift
- Forestry
- Quick coupler ready
-
- Fluids
-
- Premixed extended life coolant with freeze protection to -50° C
- Bio-degradable oil, Cat HYDO™
-
- Starters, Batteries, And Alternators
-
- Cold start - 240V
-
- Work Tools
-
- Performance Series buckets
- Fusion quick coupler
- Forks, pallet
- Forks, logging
-
- Other Optional Equipment
-
- Cat Autolube System
- Fenders, roading
- Guard, power train
- Guard, rear radiator grill
- Oil change, high speed engine
- Precleaner, turbine
- Precleaner, trash
- Wheel clocks
-
- Optional Application Specific Configurations
-
- Aggregate Handler
- Industrial and Waste Handler
- Forestry
- Corrosion Resistance
