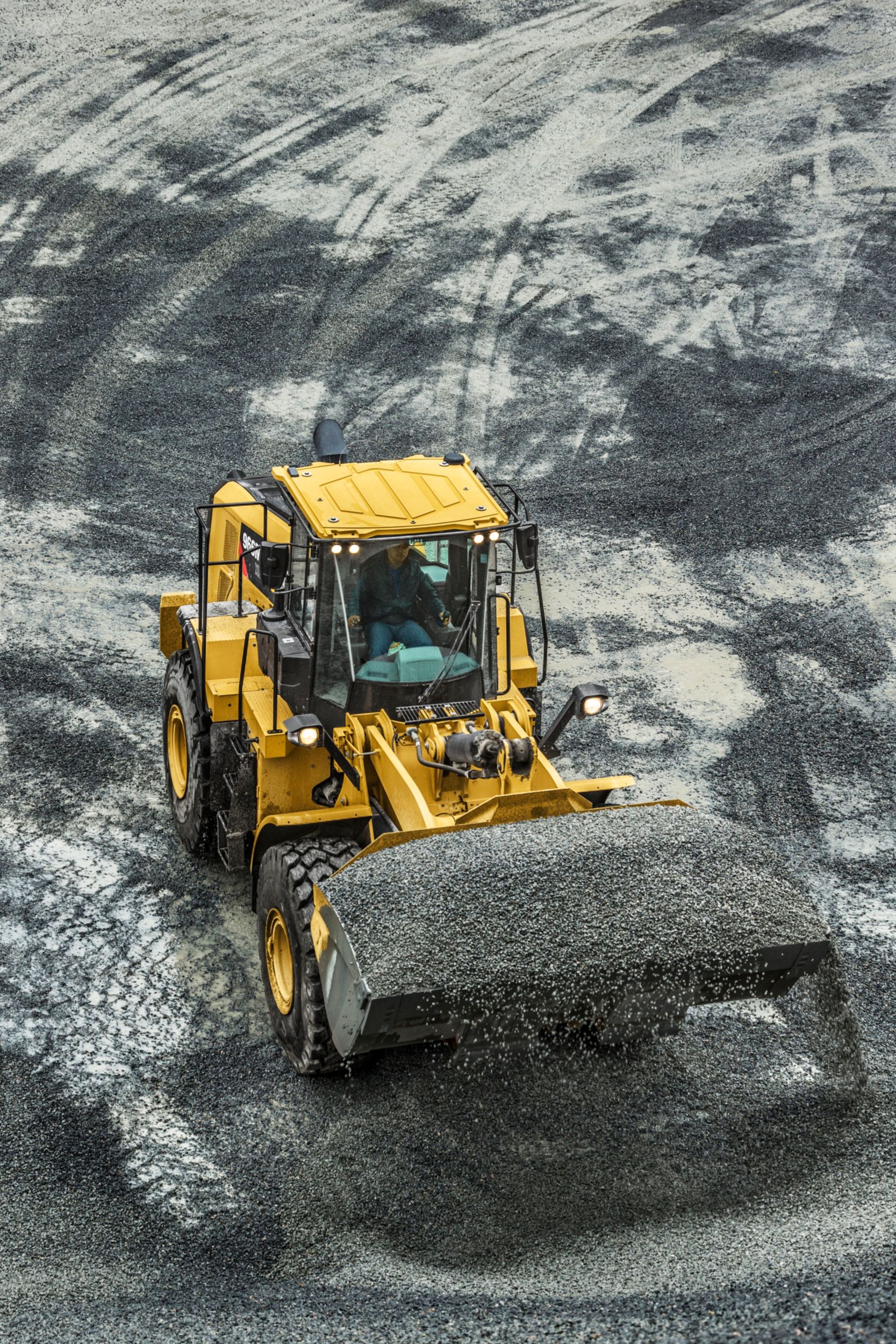

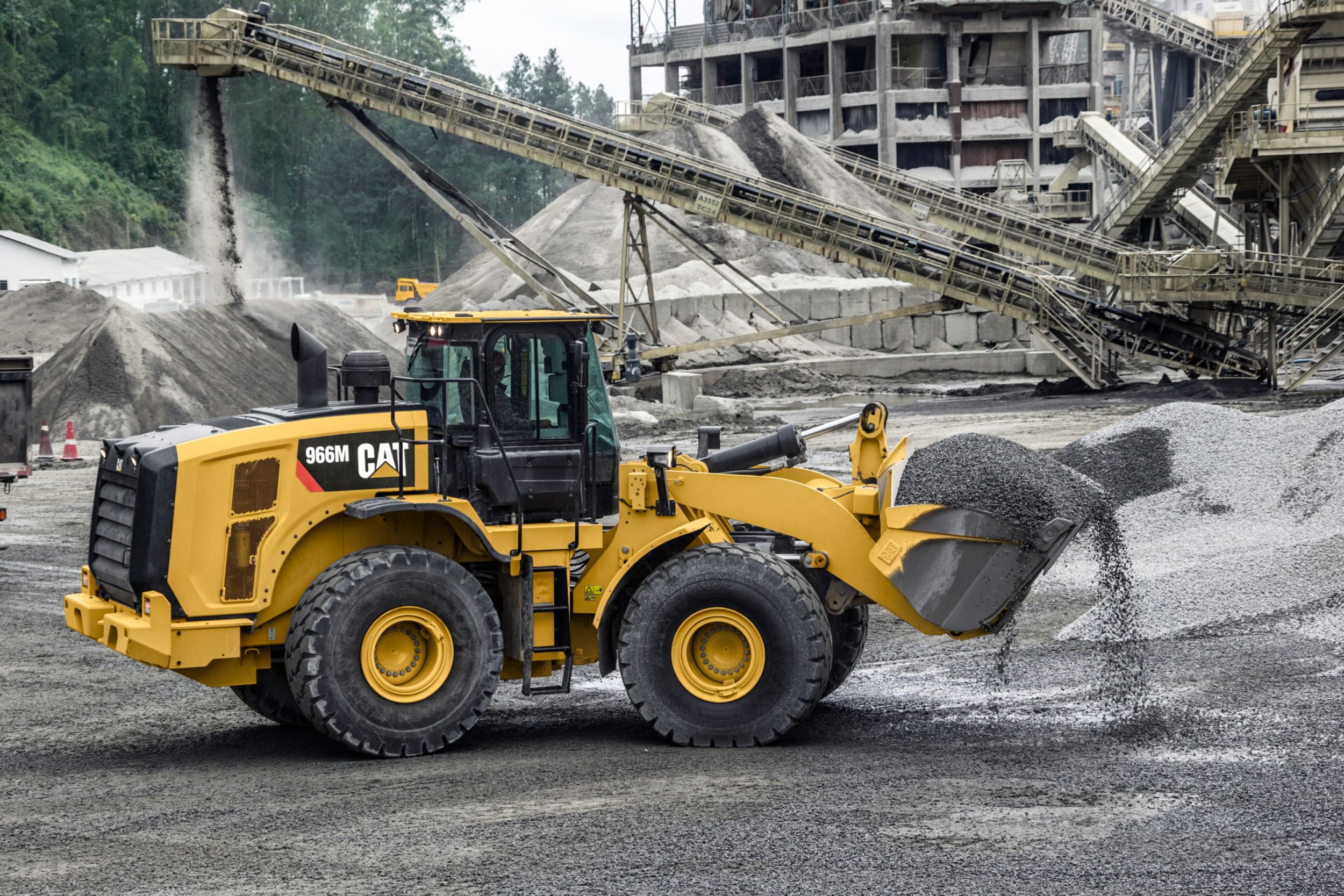

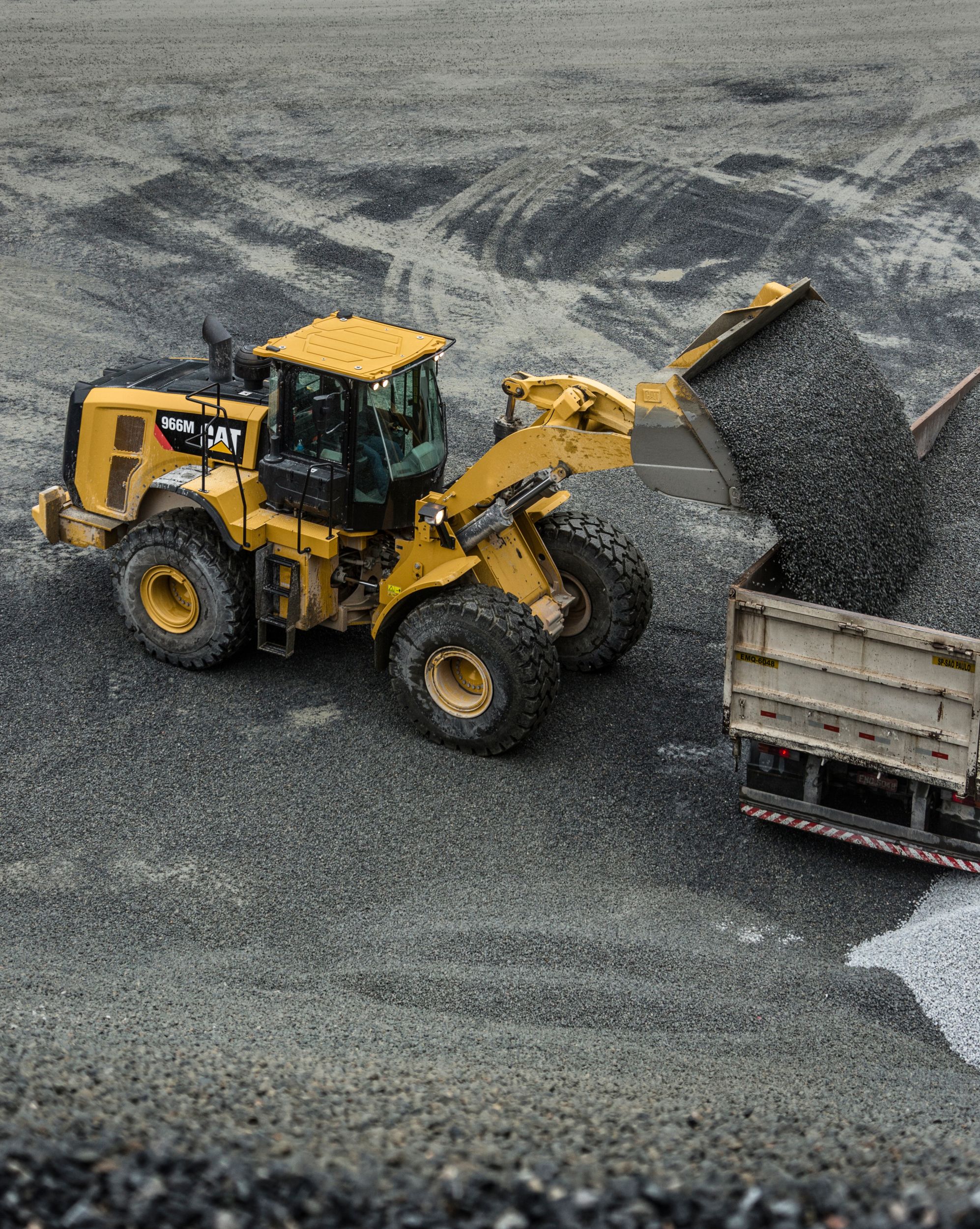

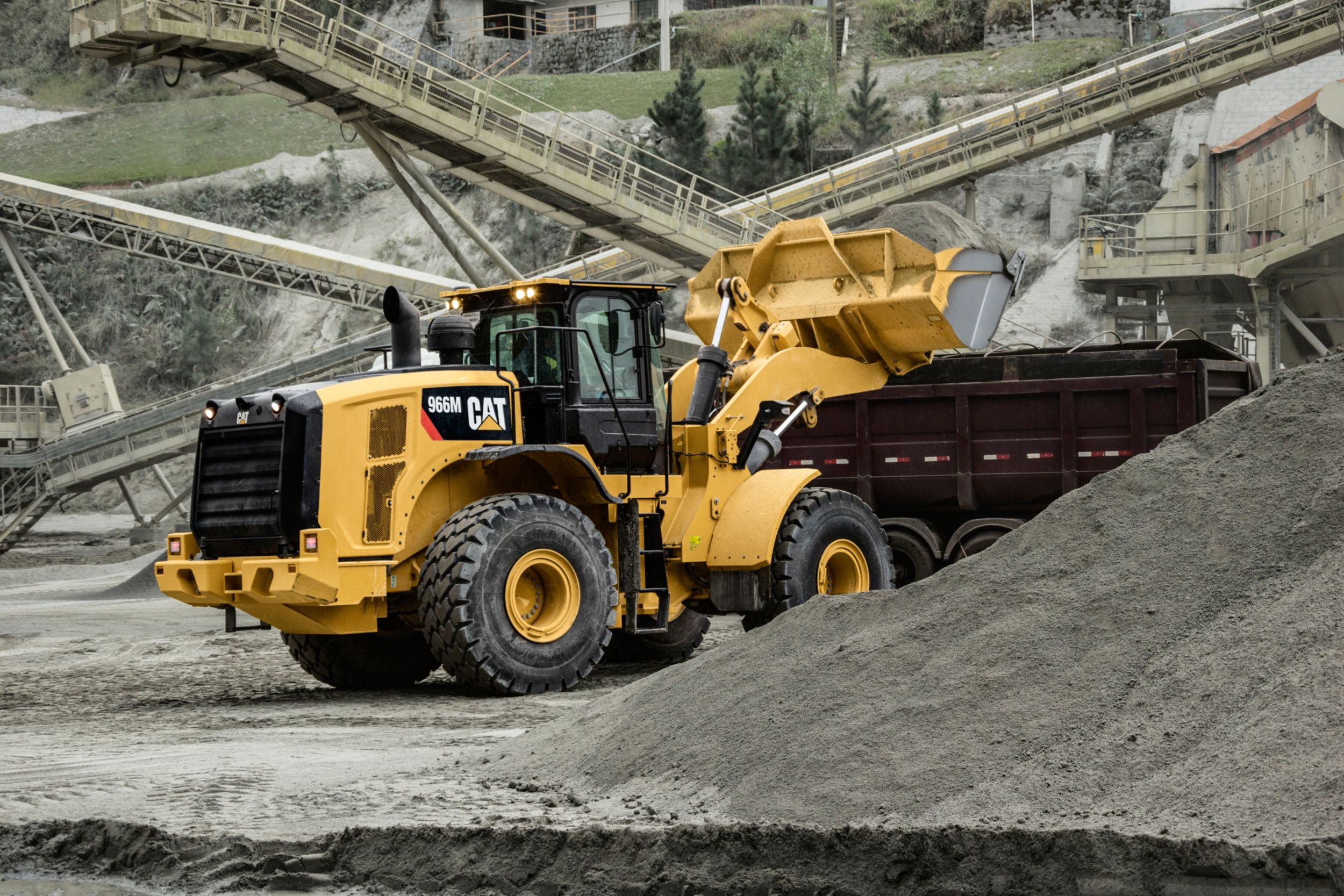

966M Wheel Loader | Front Loader | Tier 4

Engine

Net Power - ISO 9249

276 hp

Emissions

Tier 4/Stage IV

Peak Gross Torque - 1,200 rpm - ISO 14396

1166 ft·lbf

Maximum Power - 1,800 rpm - SAE J1995

311 hp

Maximum Net Power - 1,700 rpm - ISO 9249 - Metric

280 hp

Maximum Net Power - 1,700 rpm - ISO 9249

276 hp

Engine Model

Cat C9.3

Displacement

568 in³

Maximum Power - 1,800 rpm - ISO 14396 - Metric

311 hp

Maximum Power - 1,800 rpm - SAE J1995 - Metric

315 hp

Maximum Net Torque - 1,000 rpm

1126 ft·lbf

Note

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.6 kg of refrigerant which has a CO2 equivalent of 2.288 metric tonnes.

Maximum Net Power - 1,700 rpm - SAE J1349

276 hp

Maximum Net Power - 1,700 rpm - SAE J1349 - Metric

280 hp

Peak Gross Torque - 1,200 rpm - SAE J1995

1179 ft·lbf

Maximum Power - 1,800 rpm - ISO 14396

307 hp

Weights

Operating Weight

51176 lb

Note

Weight based on a machine configuration with Michelin 26.5R25 XHA2 L3 radial tires, full fluids, operator, standard counterweight, cold start, roading fenders, Product Link™, manual diff lock/open axles (front/rear), power train guard, secondary steering,

Buckets

Bucket Capacities

3.20-7.40 m³ (4.19-9.68 yd³)

Dimensions - High Lift

Hinge Pin Height at Maximum Lift

15.75 ft

Centerline of Rear Axle to Edge of Counterweight

8.17 ft

Centerline of Rear Axle to Hitch

5.83 ft

Ground Clearance

1.42 ft

Height - Top of Exhaust Pipe

11.58 ft

Height - Top of Hood

9.25 ft

Height - Top of ROPS

11.75 ft

Hinge Pin Height at Carry

2.58 ft

Lift Arm Clearance at Maximum Lift

13.58 ft

Maximum Width over Tires

9.83 ft

Note

All dimensions are approximate and based on L3 XHA2 tires.

Overall Length - Without Bucket

26.58 ft

Rack Back - Carry Height

49 degrees

Rack Back - Maximum Lift

71 degrees

Rack Back at Ground

39 degrees

Tread Width

7.33 ft

Wheel Base

11.67 ft

Dimensions - Standard Lift

Centerline of Rear Axle to Hitch

5.83 ft

Hinge Pin Height at Carry

2.08 ft

Maximum Width over Tires

9.83 ft

Centerline of Rear Axle to Edge of Counterweight

7.17 ft

Ground Clearance

1.42 ft

Height - Top of Exhaust Pipe

11.58 ft

Height - Top of Hood

9.25 ft

Height - Top of ROPS

11.75 ft

Hinge Pin Height at Maximum Lift

13.92 ft

Lift Arm Clearance at Maximum Lift

11.92 ft

Note

All dimensions are approximate and based on L3 XHA2 tires.

Overall Length - Without Bucket

23.92 ft

Rack Back - Carry Height

50 degrees

Rack Back - Maximum Lift

62 degrees

Rack Back at Ground

42 degrees

Tread Width

7.33 ft

Wheel Base

11.67 ft

Hydraulic System

Implement Pump Type

Variable Displacement Piston

Implement System - Maximum Operating Pressure

4496 psi

Hydraulic Cycle Time - Total

10.1 s

Implement System - Maximum Pump Output at 2,200 rpm

95 gal/min

Service Refill Capacities

Hydraulic Tank

33 gal (US)

Cooling System

18.9 gal (US)

Crankcase

6.5 gal (US)

DEF Tank

4.4 gal (US)

Differential - Final Drives - Front

15.1 gal (US)

Differential - Final Drives - Rear

15.1 gal (US)

Fuel Tank

79.8 gal (US)

Transmission

14.3 gal (US)

Operating Specifications

Breakout Force

38984 lbf

Static Tipping Load - Full 37° Turn - No Tire Deflection

34873 lb

Static Tipping Load - Full 37° Turn - With Tire Deflection

32329 lb

Note (1)

For a machine configuration as defined under "Weight."

Note (2)

Full compliance to ISO 143971:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing.

Transmission

Forward - 1

4 mile/h

Forward - 2

8.1 mile/h

Forward - 3

14.6 mile/h

Forward - 4

24.5 mile/h

Reverse - 2

8.9 mile/h

Reverse - 3

16.1 mile/h

Reverse - 4

24.5 mile/h

Reverse - 1

4.4 mile/h

Note

Maximum travel speed in standard vehicle with empty bucket and standard L3 tires with 826 mm (32.5 in) roll radius.

Sound

With Cooling Fan Speed at Maximum Value - Exterior Sound Power Level (ISO 6395:2008)

109 dB(A)

With Cooling Fan Speed at Maximum Value - Exterior Sound Pressure Level (SAE J88:2013)

76 dB(A)*

With Cooling Fan Speed at Maximum Value - Operator Sound Pressure Level (ISO 6396:2008)

70 dB(A)

Note (1)

*Distance of 15 m (49.2 ft), moving forward in second gear ratio.

Note (2)

**For machines in European Union countries and in countries that adopt the EU Directives.

Note (3)

***European Union Directive 2000/14/EC as amended by 2005/88/EC.

With Cooling Fan Speed at 70% of Maximum Value - Exterior Sound Power Level (ISO 6395:2008)**

108 LWA***

With Cooling Fan Speed at 70% of Maximum Value - Operator Sound Pressure Level (ISO 6396:2008)**

69 dB(A)

Bucket Capacities

Bucket Range

3.20-7.40 m³ (4.19-9.68 yd³)

Engine - Tier 4 Final/Stage IV

Emissions

Tier 4/Stage IV
