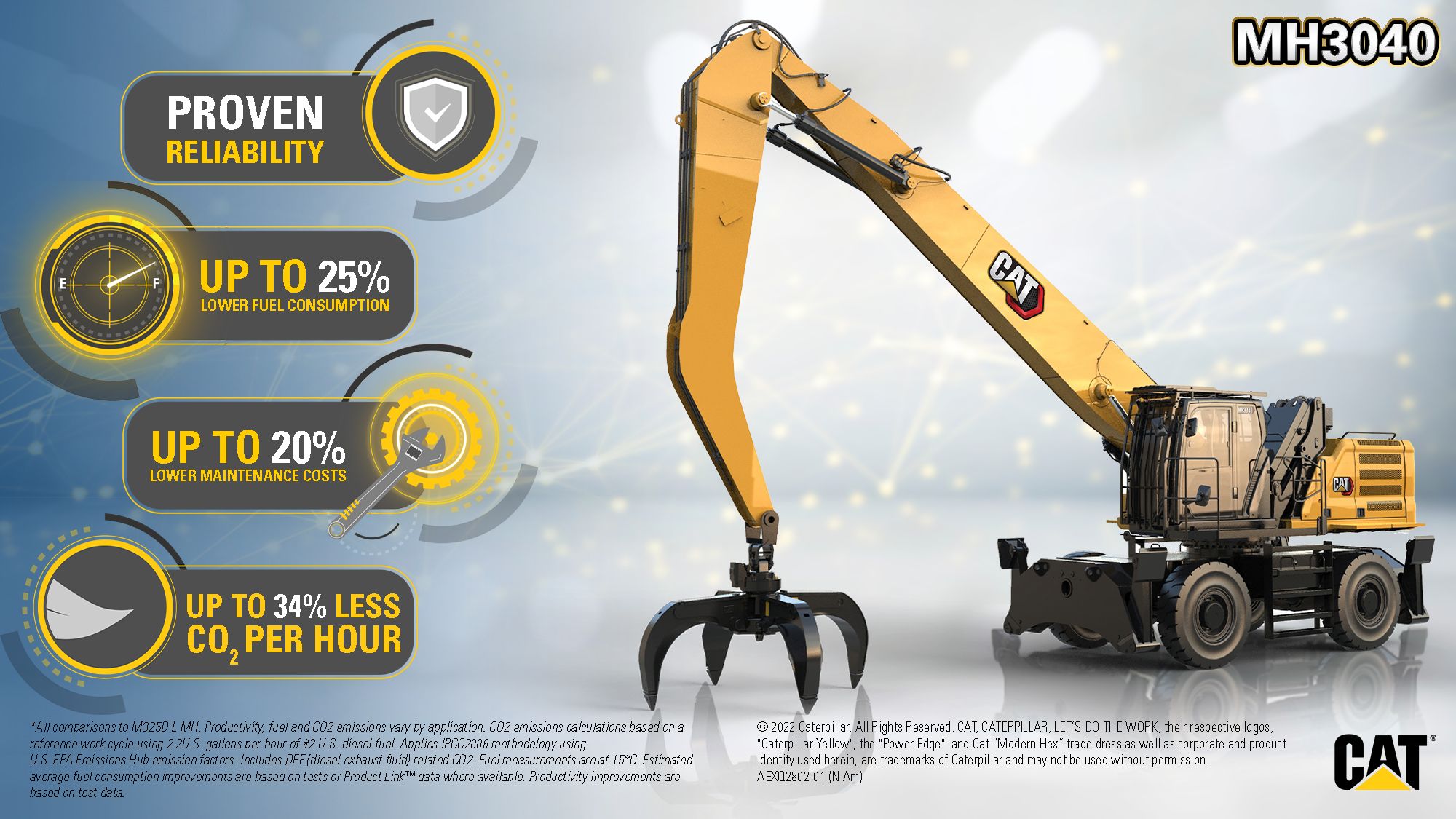

Exterior View
Product Specs
Engine
- Engine Model
- Cat C7.1
- Net Power - ISO 9249
- 202 hp
- Net Power - ISO 9249 (DIN)
- 205 hp (metric)
- Engine Power - ISO 14396:2002
- 204 hp
- Engine Power - ISO 14396 (DIN)
- 207 hp (metric)
- Bore
- 4 in
- Stroke
- 5 in
- Displacement
- 428 in³
- Biodiesel Capability
- Up to B20¹
- Emissions
- Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
- Note (1)
- Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 1,800 rpm. Advertised power is tested per the specified standard in effect at the time
- Note (2)
- ¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO
Machine Weights
- Maximum Operating Weight
- 86000 lb
- Minimum Operating Weight
- 81500 lb
Working Ranges
- Maximum Reach
- 50.8 ft
- Boom
- MH 9.3 m (30'6")
- Stick
- Industrial 7.1 m (23'3")
- Maximum Height
- 57.4 ft
- Maximum Dump Height
- 17.8 ft
- Maximum Depth
- 17.2 ft
- Boom Pin Height
- 40 ft
Transmission
- Maximum Travel Speed
- 11.2 mile/h
- Drawbar Pull
- 34621 ft·lbf
- Maximum Gradeability
- 43.8%
Hydraulic System
- Maximum Pressure - Implements
- 5076 psi
- Maximum Pressure - Swing
- 4061 psi
- Maximum Pressure - Travel
- 5076 psi
Swing Mechanism
- Swing Speed
- 6 r/min
- Maximum Swing Torque
- 60628 ft-lb
Service Refill Capacities
- Fuel Tank Capacity
- 125.2 gal (US)
- Cooling System
- 6.6 gal (US)
- Engine Oil
- 6.6 gal (US)
- Swing Drive
- 2.6 gal (US)
- Rear Axle - Housing (Differential)
- 5 gal (US)
- Front Steering Axle - Differential
- 6.3 gal (US)
- Final Drive
- 1.6 gal (US)
- Powershift Transmission
- 0.8 gal (US)
- Hydraulic System - Including Tank
- 86.9 gal (US)
- Hydraulic Tank
- 38.8 gal (US)
- Diesel Exhaust Fluid (DEF) Tank
- 10.8 gal (US)
Dimensions
- Boom
- MH 9.3 m (30'6")
- Stick
- Industrial 7.1 m (23'3")
- Shipping Length
- 42 ft
- Machine Length
- 20.7 ft
- Tail Swing Radius
- 10.3 ft
- Counterweight Clearance
- 5.7 ft
- Cab Height- Lowered
- 12 ft
- Cab Height-Lowered with OPG
- 12.4 ft
- Cab Height-Raised
- 20.5 ft
- Cab Height-Raised with OPG
- 21 ft
- Wheel Base
- 10.5 ft
- Shipping Width
- 9.8 ft
- Ground Clearance
- 0.9 ft
- Undercarriage Length
- 20.4 ft
Air Conditioning System
- Note (1)
- The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.2 kg (2.64 lb) of refrigerant which has a CO2 equivalent of 1.716 metric tonnes (1.892 tons).
Sustainability
- Recyclability
- 95%
Standard Equipment
-
- Note
-
- Standard and optional equipment may vary. Consult your Cat dealer for details.
-
- Cab
-
- Advanced sound suppressed TOPS certified cab with rubber mounts
- High-resolution 254 mm (10") LCD touch screen monitor
- Heated seat with air suspension (Deluxe cab)
- Heated and ventilated seat with air suspension (Premium cab)
-
- Cat Technology
-
- VisionLink®
- Cat Payload Monitoring
- Remote Flash
- Remote Troubleshoot
-
- Electrical System
-
- Maintenance-free battery
- LED chassis light, left-hand/right-hand boom lights, cab lights - 1800 lumens
- Centralized electrical disconnect switch
- Programmable time delay LED working lights after engine shutdown
- Surrounding lights
-
- Engine
-
- Three selectable modes: Power, Smart, Eco
- Cold start capability-18°C (0°F)
- 43°C (109°F) high-ambient cooling capacity with derate
- Double element air filter with integrated precleaner
- Electric fuel priming pump
- Two-stage fuel filtration system with water separator and indicator
- Reversible electric cooling fans
- Cold start, ether start
-
- Hydraulic System
-
- Electric main control valve
- Boom and stick regeneration circuits
- Automatic hydraulic oil warm up
- Tandem type electronic main pump
- Element type main hydraulic filter
- Heavy lift mode
- Fine swing control function
- Cab dampening with accumulator
- Cab riser snubbing
- 7-way pattern changer
- Hydraulic cab riser
-
- Safety And Security
-
- Caterpillar One Key Security System
- Door and cap lock
- Travel/swing lock
- Signaling/warning horn
- Travel alarm
- Right-hand handrail and hand hold
- Rearview camera
- Right-side-view camera
- Secondary engine shutoff switch
- Openable rear window as emergency exit
- 2D E-Fence (cab avoidance)
-
- Service And Maintenance
-
- Side entry to service platform
- Grouped location for engine oil and fuel filters
- Scheduled Oil Sampling (S·O·S℠) ports
- Second dipstick for engine oil
- Automatic lubrication system for implement and swing system
-
- Undercarriage And Structures
-
- All wheel drive
- Automatic brake/axle lock
- Creeper speed
- Electronic swing and travel lock
- Heavy-duty axles, advanced disc brake system, and travel motor with adjustable braking force
- Lockable, oscillating front axle with remote greasing point
- Two speed hydrostatic transmission
- 7700 kg (16,975 lb) counterweight
- Tie down points on base frame
Attachments
-
- Note
-
- Standard and optional equipment may vary. Consult your Cat dealer for details.
-
- Boom And Sticks
-
- 10.4 m (34'9") Material Handler boom
- 9.3 m (30'6") Material Handler boom
- 9.9 m (32' 6") Barge boom
- 6.8 m (22'4") Log Loader boom
- 7.5 m (24'9") Drop Nose stick
- 7.1 m (23'3") Drop Nose stick
-
- Cab
-
- 5.7 m (18'7") Drop Nose stick
- 4.1 m (13'3") Log Loader Over/Under stick
- Operator Protective Guards (OPG) with top window wiper
- Auxiliary relay
-
- Electrical System
-
- 20 kW generator, fully integrated into the CAB monitor
- Rotating beacon
-
- Engine
-
- Cold start, block heater
-
- Safety And Security
-
- Cold starting capability for -32°C (-25°F)
- Cab access platform, 600 mm (23'6")
- Cab access platform, narrow
- 360-degree view camera
- Inspection lighting
-
- Service And Maintenance
-
- Radiator doors with external fine mesh screen for dusty environment
-
- Undercarriage And Structures
-
- 16.00-25 single solid rubber tires
- 23.5-R25 tires
