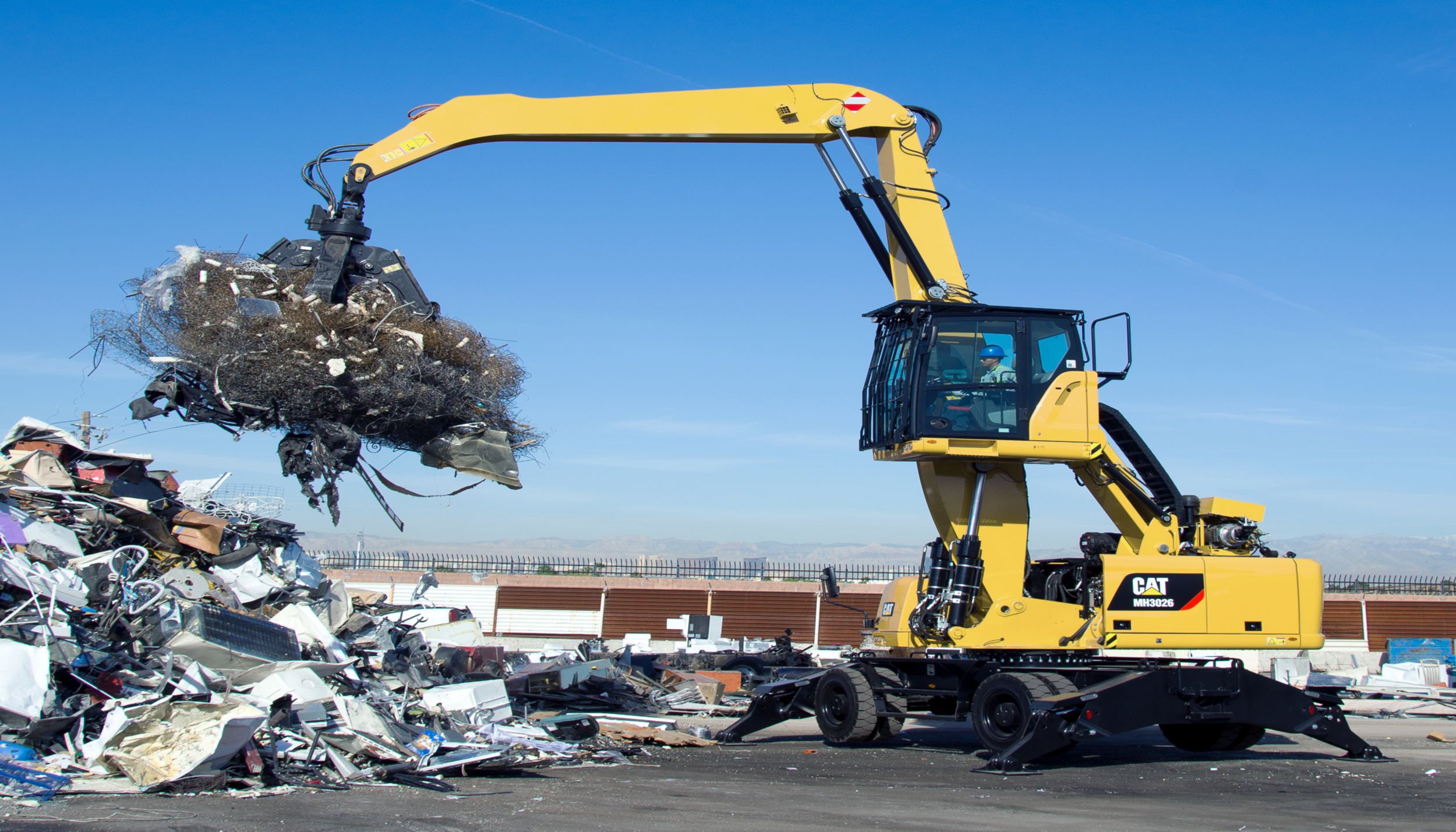

Product Specs
Engine
- Engine Model
- Cat C7.1
- Emissions
- Tier 4 Final/Stage IV
- Displacement
- 427.8 in³
- Maximum Gross - ISO 14396
- 129.4 kW (174 hp [176 hp/PS*])
- Bore
- 4.1 in
- Cylinders
- 6 in-line
- Maximum Net Power - SAE J1349/ISO 9249
- 126 kW (169 hp [171 hp/PS*])
- Maximum Torque - 1,400 rpm
- 612 ft·lbf
- Note
- *Metric values.
- Stroke
- 5.3 in
Weights
- Operating Weight
- 25 220-26 150 kg (55,601-57,651 lb)
- MH Push Blade
- 1643 lb
- Key Components - Drop Nose (5900 mm/19'4")
- 2459 lb
- With MH Boom (6800 mm/22'4") - MH 2.99 m/9'8" Undercarriage and 5900 mm (19'4") Drop Nose Stick
- 56813 lb
- With MH Boom (6800 mm/22'4") - MH 2.99 m/9'8" Undercarriage and Straight Stick
- 57651 lb
- Key Components - Drop Nose (4900 mm/16'1")
- 2106 lb
- Key Components - Drop Nose (5500 mm/18'1")
- 2370 lb
- Key Components - MH Blade
- 1643 lb
- Key Components - Straight (4800 mm/15'9")
- 3131 lb
- Note
- Operating weight is with solid tires, 5200 kg (11,465 lb) counterweight, MH undercarriage, fuel tank, operator and work tool, 1400 kg (3,086 lb). Weight varies depending on configuration.
- With MH Boom (6800 mm/22'4") - MH 2.75 m/9'0" Undercarriage and Straight Stick
- 55601 lb
Transmission
- Maximum Travel Speed
- 16 mile/h
- Maximum Travel Speed - 2nd Gear
- 16 mile/h
- Creeper Speed - 2nd Gear
- 7.5 mile/h
- Maximum Gradeability (25 000 kg/55,120 lb)
- 60%
Swing Mechanism
- Swing Speed
- 9 r/min
- Maximum Swing Torque
- 43516 ft·lbf
Service Refill Capabilities
- Hydraulic Tank Capacity
- 52.8 gal (US)
- Hydraulic System Capacity
- 93 gal (US)
- Cooling System
- 12.3 gal (US)
- Diesel Exhaust Fluid Tank
- 9.1 gal (US)
- Fuel Tank
- 111 gal (US)
Hydraulic System - Maximum Pressure
- Implement Circuit - Normal
- 5076 psi
- Implement Circuit - Heavy Lift
- 5366 psi
- Auxiliary Circuit - High Pressure
- 5076 psi
- Auxiliary Circuit - Medium Pressure
- 3046 psi
- Swing Mechanism
- 4496 psi
- Travel Circuit
- 5076 psi
Undercarriage
- Axle Clearance - All MH Undercarriages
- 12.8 in
- Oscillation Axle Angle
- ±5 degrees
Hydraulic System - Maximum Flow
- Implement/Travel Circuit
- 95 gal/min
- Swing Mechanism
- 31.1 gal/min
- Auxiliary Circuit - High Pressure
- 66 gal/min
- Auxiliary Circuit - Medium Pressure
- 13 gal/min
Maximum Dimensions - Approximate
- Maximum Shipping Height*
- 11.08 ft
- Note
- *5900 mm (19'4") stick needs to be detached for transportation.
- Maximum Shipping Width
- 9.83 ft
Working Ranges - Without Work Tool: MH Boom (6800 mm/22'4)
- Maximum Height
- 43.67 ft
- Maximum Reach
- 40.92 ft
- Maximum Depth
- 9.58 ft
Working Ranges - without Work Tool: MH Boom (6800 mm/22'4)
- Maximum Height
- 41.33 ft
- Maximum Reach
- 39.08 ft
- Maximum Depth
- 8.25 ft
Standard Equipment
-
- Electrical
-
- Alternator, 115A
- Heavy Duty maintenance free batteries
- Lighting: Boom and stick LED working light
- Lighting: One LED light on the counterweight for the rear camera, and one on the right for the sideview camera
- Lighting: Cab LED interior dome light
- Lighting: Roading lights two front, halogen
- Lighting: Roading lights two rear, LED
- Lighting: Working LED lights, cab mounted (two front and one rear), compatible with Falling Objects Guards
- Main shut-off switch
- Signal/warning horn
-
- Engine
-
- Cat C7.1 engine meets Stage IV emission standards
- Aftertreatment technologies including the Cat Clean Emission Module (Cat CEM) package
- Air filter
- 3000 m altitude capability without de-rate
- Automatic engine speed control (AESC), including One Touch Low Idle
- Engine Idle Shutdown (EIS)
- Automatic starting aid
- Fuel filter
- Fuel/water separator with water in fuel switch
- 48°C ambient cooling capability without de-rate
- Power mode selector
- Electric fuel priming pump
- Capability of running with biodiesel fuel (B20)
-
- Hydraulics
-
- Adjustable hydraulic sensitivity
- Cat XT-6 ES hoses
- Control circuits (standard and optional, depending on boom/stick/linkage choice): Medium pressure - Two-way, medium pressure circuit, for rotating or tilting of attachments)
- Heavy lift mode
- Load-sensing hydraulic system
- Oil cooler
- Quick disconnect couplings
- Separate swing pump
- Electric Pump Control (EPC)
- Boom Lowering Check Valve (BLCV), including overload warning device
- Stick Lowering Check Valve (SLCV)
-
- Operator Station
-
- Additional color monitor for cameras, split-screen display for both cameras' view
- Adjustable armrests
- Air conditioner, heater and defroster with automatic climate control
- Beverage cup/can holder
- Bolt-on top/front guards capability
- Bottle holder
- Bottom mounted, intermittent (four speeds), parallel wiping system, covering upper and lower windshield glass
- CD/MP3 radio (12V) including speakers and 12V converter
- Coat hook
- Cruise control system
- Floor mat, washable, with storage compartment
- Fully adjustable suspension seat
- Hydraulic cab riser
- Instrument panel and gauges, full graphic and color display: Information and warning messages in local language
- Instrument panel and gauges, full graphic and color display: Gauges for fuel and DEF levels, engine coolant and hydraulic oil temperature
- Instrument panel and gauges, full graphic and color display: Filters/fluids change interval, working hours
- Instrument panel and gauges, full graphic and color display: Indicators for headlights, turning signal, low fuel, engine dial setting
- Instrument panel and gauges, full graphic and color display: Clock with 10-day backup battery
- Interior LED lighting with door switch
- Joysticks, pilot operated with one proportional slider
- Laminated front windshield
- Left side console, tiltable, with lock out for all controls
- Cigarette lighter (24V)
- Literature holder in right console
- Mobile phone holder
- Parking brake
- Pin code type engine start prevention, integrated into the monitor
- Power supply, 12V-10A
- Rear window (tempered glass)/emergency exit, with hammer
- Retractable seat belt, integrated into the seat
- Seat belt indicator and alarm
- Skylgiht, laminated glass
- Sliding door windows
- Steering column, adjustable angle and height
- Step, integrated into the skirt
- Storage area suitable for a lunch box
- Sunshade for windshield and skylight
- Safety lever, integrated into the left console
- Sealed cab, with positive filtered, variable speed ventilation
-
- Undercarriage
-
- Automatic brake and axle lock
- Electronic swing and travel lock
- Creeper speed
- Four wheel drive
- Heavy-duty axles, advanced travel motor, adjustable braking force and disc brake system
- Oscillating front axle, lockable, with remote greasing point
- Steps, wide, left and right
- Tool boxes, left and right, in undercarriage
- Two-speed hydrostatic transmission
- One-piece drive shaft, with 1,000 hours greasing intervals
-
- Other Equipment
-
- Auto-lube system (implements and swing gear)
- Automatic swing brake
- Capability to add auxiliary hydraulic circuit
- Cooling package, fine mesh screen and engine air precleaner
- Cat Electronic Technician capability (ET)
- Counterweight, 5200 kg
- Door locks and cap locks with Cat one-key security system
- Mirrors, wide angle, frame and cab
- Product Link
- Cameras: Rear mounted wide angle camera, integrated into the counterweight
- Cameras: Right side wide angle camera, mounted on the cooling hood
- SOS? Quick Sampling valves for engine oil, hydraulic oil and coolant
- Engine emergency shutoff switch
- Spacer rings for tires
Attachments
-
- Auxiliary Controls And Lines
-
- Auxiliary boom and stick lines
- Control circuits (standard and optional, depending on boom/stick/linkage choice): Tool control/multi function - One/two-way high pressure for hammer application or opening and closing of an attachment
- Control circuits (standard and optional, depending on boom/stick/linkage choice): Tool control/multi function - Programmable flow and pressure for up to 10 work tools - selection via monitor
- Control circuits (standard and optional, depending on boom/stick/linkage choice): Quick coupler circuits and lines for hydraulic quick coupler (both Cat pin grabber and dedicated/CW quick couplers, controlled by a dedicated switch)
- SmartBoom
-
- Hydraulics
-
- Cat BIO HYDO Advanced HEES biodegradable hydraulic oil
-
- Front Linkage
-
- VA boom (5490 mm): Straight stick (2500, 2900 mm)
- One-Piece boom (5650 mm): Straight stick (2500, 2900 mm)
- Material Handling boom (6800 mm): Drop nose MH stick (4900, 5500 or 5900 mm)
- Material Handling boom (6800 mm): Straight MH stick (4800 mm)
-
- Electrical
-
- Adjustable travel alarm
- Rotating beacon
- Generator, 15 kW
-
- Operator Station
-
- Top/front guards
- Joystick steering
- Advanced joysticks with two proportional sliders
- High pressure auxiliary pedal
- Seat, adjustable back, with vertical and horizontal air-suspension and head rest: Automatic weight adjustment, mechanical lumbar support, passive climate system, seat cusion length/angle adjustment and heated seat (Comfort)
- Seat, adjustable back, with vertical and horizontal air-suspension and head rest: Automatic height and weight adjustment, active climate system, premium microfiber seat fabric, pneumatic lumbar support, seat cushion length and angle adjustment and adjustable dampening, heated and ventilated (Deluxe)
- Visor for rain protection
- Windshield: One-piece, impact resistant, laminated windshield and skylight (EN356 P5A, 10 mm)
- Windshield: 70/30 split, openable - two-parts split, fixed, high impact resistant, laminated windshield and skylight (EN356 P8B, 26 mm)
- Mirrors, electronically adjustable and heated, frame and cab
-
- Tires
-
- Dual pneumatic 11.00-20
- Dual solid rubber, 10.00-20
-
- Undercarriage
-
- MH undercarriage (2.75 m or 2.99 m wide) with four welded outriggers
- MH undercarriage (2.75 m or 2.99 m wide) with four welded outriggers and front mounted blade
- Standard undercarriage, with outriggers (front and/or rear), dozer blade (front or rear)
- Easy Cab Access Package, front
- Easy Cab Access, Package, rear
-
- Other Equipment
-
- Bucket linkages
- Cat Machine Security System
- Hydraulic quick coupler
- Maximum speed 20 km/h or 25 km/h*
- Refueling pump with dedicated tray for the hose
- Waste Handling Package, adds a reversing fan and vibrating grill to the cooling protection package
- Advanced Cab Filtration System
