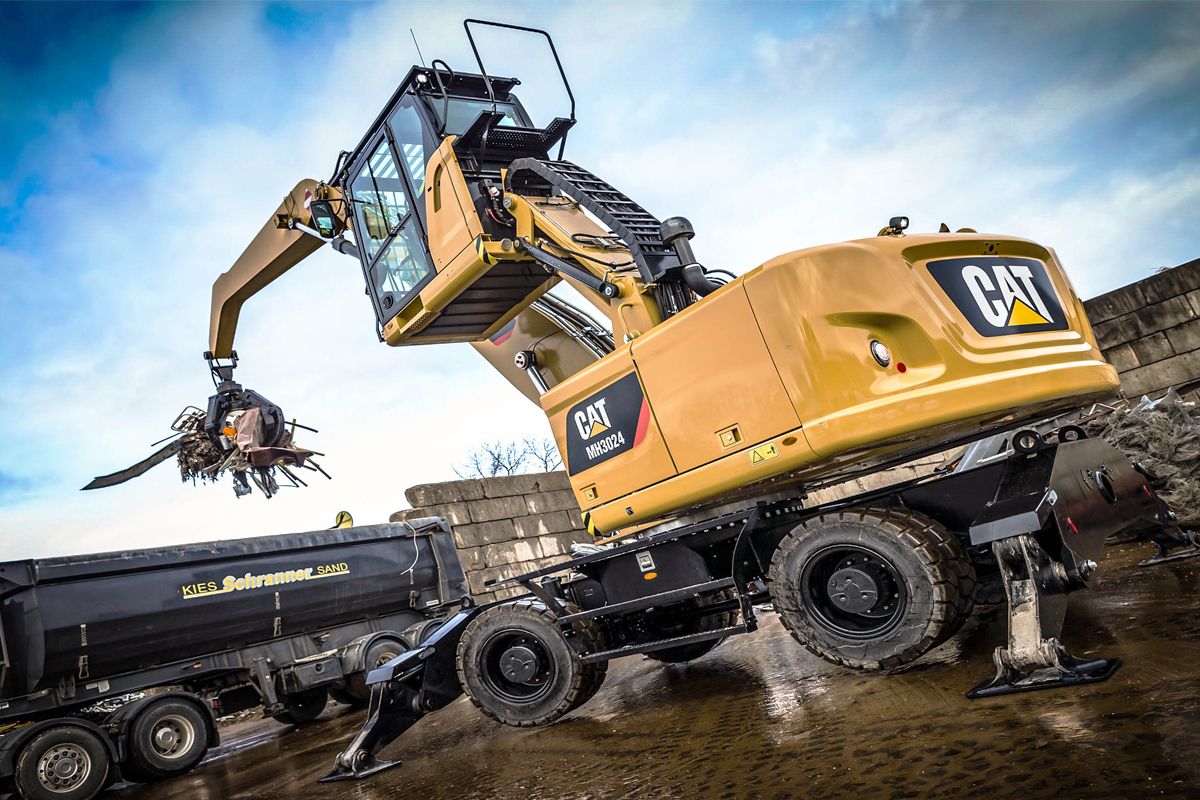

Exterior View
Product Specs
Engine
- Engine Model
- Cat C7.1
- Emissions
- Tier 4 Final/Stage IV
- Displacement
- 427.8 in³
- Maximum Gross - ISO 14396
- 129.4 kW (174 hp [176 hp/PS*])
- Bore
- 4.1 in
- Cylinders
- 6 in-line
- Maximum Net Power - SAE J1349/ISO 9249
- 126 kW (169 hp [171 hp/PS*])
- Maximum Torque - 1,400 rpm
- 612 ft·lbf
- Note
- *Metric values.
- Stroke
- 5.3 in
Weights
- Operating Weight
- 22 950-24 165 kg (50,596-53,242 lb)
- Key Components - Straight Stick 4200 mm/13'9"
- 2899 lb
- Key Components - Drop Nose Stick 4900 mm/16'1"
- 1951 lb
- With MH Boom (6400 mm/20'1") - MH 2.75 m/9'0" Undercarriage and Straight Stick
- 53055 lb
- With MH Boom (6400 mm/20'1") - MH 2.99 m/9'6" Undercarriage and Drop Nose Stick
- 52382 lb
- With MH Boom (6400 mm/20'1") - MH 2.99 m/9'6" Undercarriage and Straight Stick
- 53275 lb
- Key Components - MH Blade
- 1555 lb
- Note
- Operating weight is with solid tires, 4200 kg (9,260 lb) counterweight, MH 2.75 m (9'0") undercarriage, full fuel tank, operator and work tool (1400 kg/3,086 lb). Weight varies depending on configuration.
- With MH Boom (6400 mm/20'1") - MH 2.75 m/9'0" Undercarriage and Drop Nose Stick
- 52162 lb
- With One-Piece Boom - MH 2.75 m/9'0" Undercarriage and Industrial Stick
- 50597 lb
- With VA Boom - MH 2.75 m/9'0" Undercarriage and 2800 mm/9'2" Digging Stick
- 52481 lb
Transmission
- Maximum Travel Speed
- 16 mile/h
- Maximum Travel Speed - 2nd Gear
- 16 mile/h
- Creeper Speed - 2nd Gear
- 6.2 mile/h
- Maximum Gradeability (23 500 kg/51,809 lb)
- 65%
Swing Mechanism
- Swing Speed
- 8.5 r/min
- Maximum Swing Torque
- 39828 ft·lbf
Service Refill Capabilities
- Hydraulic Tank Capacity
- 40.4 gal (US)
- Hydraulic System Capacity
- 66.8 gal (US)
- Cooling System
- 12.3 gal (US)
- Diesel Exhaust Fluid Tank
- 9.1 gal (US)
- Fuel Tank
- 87 gal (US)
Hydraulic System - Maximum Pressure
- Auxiliary Circuit - High Pressure
- 5076 psi
- Auxiliary Circuit - Medium Pressure
- 3046 psi
- Swing Mechanism
- 4496 psi
- Implement Circuit - Normal/Heavy Lift
- 35 000/37 000 kPa (5,076/5,366 psi)
- Travel Circuit
- 5076 psi
Hydraulic System - Maximum Flow
- Implement/Travel Circuit
- 76 gal/min
- Swing Mechanism
- 28.5 gal/min
- Auxiliary Circuit - High Pressure
- 66 gal/min
- Auxiliary Circuit - Medium Pressure
- 13 gal/min
Maximum Dimensions - Approximate
- Maximum Shipping Height
- 11.92 ft
- Maximum Shipping Width
- 9.83 ft
Working Ranges - Without Work Tool: MH Boom (6.40 m/20'1)
- Maximum Height
- 37.75 ft
- Maximum Reach
- 33.92 ft
- Maximum Depth
- 4.83 ft
- Maximum Height
- 39 ft
- Maximum Reach
- 36.08 ft
- Maximum Depth
- 7.17 ft
Undercarriage
- Axle Clearance - All MH Undercarriages
- 12.8 in
- Oscillation Axle Angle
- ±5 degrees
Working Ranges - without Work Tool: One-Piece Boom; Stick Length (3300 mm/10'10)
- Maximum Depth
- 17.17 ft
- Maximum Height
- 24.25 ft
- Maximum Reach
- 27.75 ft
Working Ranges - without Work Tool: VA Boom; Stick Length (2800 mm/9'2)
- Maximum Depth
- 15.67 ft
- Maximum Height
- 28.58 ft
- Maximum Reach
- 26.92 ft
Standard Equipment
-
- Note
-
- Standard and optional equipment may vary. Consult your Cat dealer for details.
-
- Electrical
-
- Alternator, 115A
- Heavy Duty maintenance free batteries
- Lighting: Boom and stick LED working light
- Lighting: One LED light on the counterweight for the rear camera, and one on the right for the sideview camera
- Lighting: Cab LED interior dome light
- Lighting: Roading lights two front, halogen
- Lighting: Roading lights two rear, LED
- Lighting: Working LED lights, cab mounted (two front and one rear), compatible with Falling Objects Guards
- Main shut-off switch
- Signal/warning horn
-
- Engine
-
- Cat C7.1 engine meets Stage IV emission standards
- Aftertreatment technologies including the Cat Clean Emission Module (Cat CEM) package
- Air filter
- 3000 m altitude capability without de-rate
- Automatic engine speed control (AESC), including One Touch Low Idle
- Engine Idle Shutdown (EIS)
- Automatic starting aid
- Fuel filter
- Fuel/water separator with water in fuel switch
- 48°C ambient cooling capability without de-rate
- Power mode selector
- Electric fuel priming pump
- Capability of running with biodiesel fuel (B20)
-
- Hydraulics
-
- Adjustable hydraulic sensitivity
- Cat XT-6 ES hoses
- Control circuits (standard and optional, depending on boom/stick/linkage choice): Medium pressure - Two-way, medium pressure circuit, for rotating or tilting of attachments
- Heavy lift mode
- Load-sensing hydraulic system
- Oil cooler
- Quick disconnect couplings
- Separate swing pump
- Electric Pump Control (EPC)
- Boom Lowering Check Valve (BLCV), including overload warning device
- Stick Lowering Check Valve (SLCV)
-
- Operator Station
-
- Additional color monitor for cameras, split-screen display for both cameras' view
- Adjustable armrests
- Air conditioner, heater and defroster with automatic climate control
- Beverage cup/can holder
- Bolt-on top/front guards capability
- Bottle holder
- Bottom mounted, intermittent (four speeds), parallel wiping system, covering upper and lower windshield glass
- CD/MP3 radio (12V) including speakers and 12V converter
- Coat hook
- Cruise control system
- Floor mat, washable, with storage compartment
- Fully adjustable suspension seat
- Hydraulic cab riser
- Instrument panel and gauges, full graphic and color display: Information and warning messages in local language
- Instrument panel and gauges, full graphic and color display: Gauges for fuel and DEF levels, engine coolant and hydraulic oil temperature
- Instrument panel and gauges, full graphic and color display: Filters/fluids change interval, working hours
- Instrument panel and gauges, full graphic and color display: Indicators foe headlights, turning signal, low fuel, engine dial setting
- Instrument panel and gauges, full graphic and color display: Clock with 10-day backup battery
- Interior LED lighting with door switch
- Joysticks, pilot operated with one proportional slider
- Laminated front windshield
- Left side console, tiltable, with lock out for all controls
- Cigarette lighter (24V)
- Literature holder in right console
- Mobile phone holder
- Parking brake
- Pin code type engine start prevention, integrated into the monitor
- Power supply, 12V-10A
- Rear window (tempered glass)/emergency exit, with hammer
- Retractable seat belt, integrated into the seat
- Seat belt indicator and alarm
- Skylight, laminated glass
- Sliding door windows
- Steering column, adjustable angle and height
- Step, integrated into the skirt
- Storage area suitable for a lunch box
- Sunshade for windshield and skylight
- Safety lever, integrated into the left console
- Sealed cab, with positive filtered, variable speed ventilation
-
- Undercarriage
-
- Automatic brake and axle lock
- Electronic swing and travel lock
- Creeper speed
- Four wheel drive
- Heavy-duty axles, advanced travel motor, adjustable braking force and disc brake system
- Oscillating front axle, lockable, with remote greasing point
- Steps, wide, left and right
- Tool boxes, left and right, in undercarriage
- Two-speed hydrostatic transmission
- One-piece drive shaft, with 1,000 hours greasing intervals
-
- Other Equipment
-
- Auto-lube system (implements and swing gear)
- Automatic swing brake
- Capability to add auxiliary hydraulic circuit
- Cooling package, fine mesh screen and engine air precleaner
- Cat Electronic Technician capability (ET)
- Counterweight, 4200 kg
- Door locks and cap locks with Cat one-key security system
- Mirrors, wide angle, frame and cab
- Product Link
- Cameras: Rear mounted wide angle camera, integrated into the counterweight
- Cameras: Right side wide angle camera, mounted on the cooling hood.
- SOS Quick Sampling valves for engine oil, hydraulic oil and coolant
- Engine emergency shutoff switch
- Spacer rings for tires
Attachments
-
- Note
-
- Standard and optional equipment may vary. Consult your Cat dealer for details.
-
- Auxiliary Controls And Lines
-
- Auxiliary boom and stick lines
- Control circuits (standard and optional, depending on boom/stick/linkage choice): Tool control/multi function - One/two-way high pressure for hammer application or opening and closing of an attachment
- Control circuits (standard and optional, depending on boom/stick/linkage choice): Tool control/multi function - Programmable flow and pressure for up to 10 work tools - selection via monitor
- Control circuits (standard and optional, depending on boom/stick/linkage choice): Quick coupler circuits and lines for hydraulic quick coupler (both Cat pin grabber and dedicated/CW quick couplers, controlled by a dedicated switch)
- SmartBoom
-
- Hydraulics
-
- Cat BIO HYDO Advanced HEES biodegradable hydraulic oil
-
- Front Linkage
-
- VA boom (5260 mm): Industrial stick (3300 mm)
- VA boom (5260 mm): Straight stick (2500, 2800 mm)
- One-Piece boom (5350 mm): Industrial stick (3300 mm)
- One-Piece boom (5350 mm): Straight stick (2500, 2800 mm)
- Material Handling boom (6400 mm): Drop nose MH stick (4900 mm)
- Material Handling boom (6400 mm): Straight MH stick (4200 mm)
-
- Operator Station
-
- Top/front guards
- Joystick steering
- Advanced joysticks with two proportional sliders
- High pressure auxiliary pedal
- Seat, adjustable back, with vertical and horizontal air-suspension and head rest: Automatic weight adjustment, mechanical lumbar support, passive climate system, seat cushion length/angle adjustment and heated seat (Comfort)
- Seat, adjustable back, with vertical and horizontal air-suspension and head rest: Automatic height and weight adjustment, active climate system, premium microfiber seat fabric, pneumatic lumbar support, seat cushion length and angle adjustment and adjustable dampening, heated and ventilated (Deluxe)
- Visor for rain protection
- Windshield: One-piece, impact resistant, laminated windshield and skylight (EN356 P5A, 10 mm)
- Windshield: 70/30 split, openable - two-part split, fixed, high impact resistant, laminated windshield and skylight (EN356 P8B, 26 mm)
- Mirrors, electrically adjustable and heated, frame and cab
-
- Tires
-
- Dual pneumatic 11.00-20
- Dual solid rubber, 10.000-20
-
- Undercarriage
-
- MH undercarriage with four welded outriggers (2.75 m or 2.99 m wide)
- MH undercarriage with four welded outriggers and front mounted blade (2.75 m or 2.99 m wide)
- Standard undercarriage, with outriggers (front and/or rear)
- Easy Cab Access Package with ladder
-
- Other Equipment
-
- Bucket linkages
- Cat Machine Security System
- Hydraulic quick coupler
- Maximum speed 20 km/h or 25 km/h*
- Refueling pump with dedicated tray for the hose
- Waste Handling Package, adds a reversing fan and vibrating grill to the cooling protection package
- Advanced Cab Filtration System
