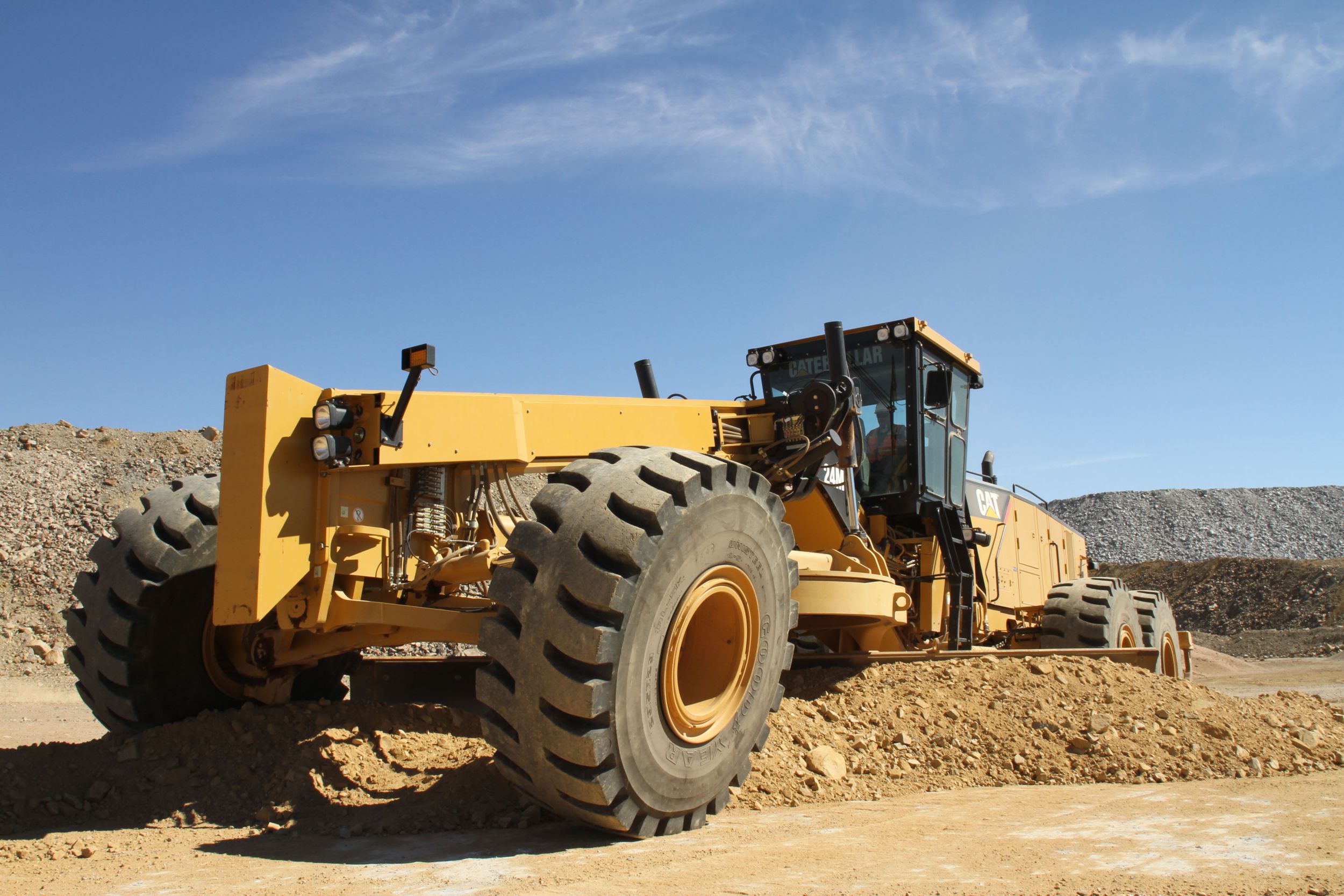

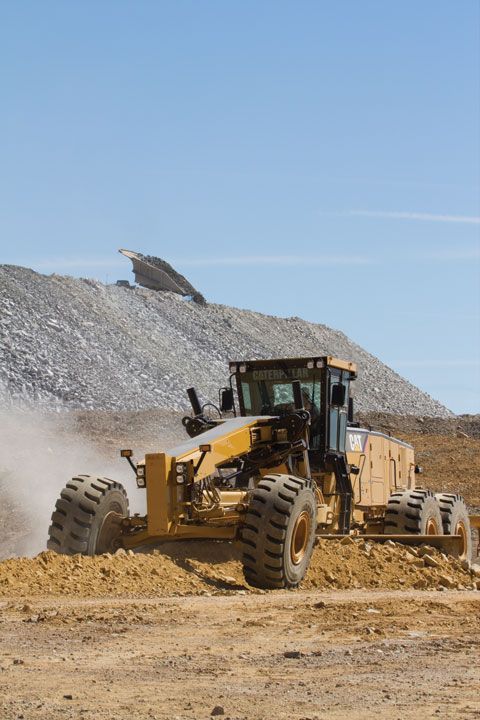

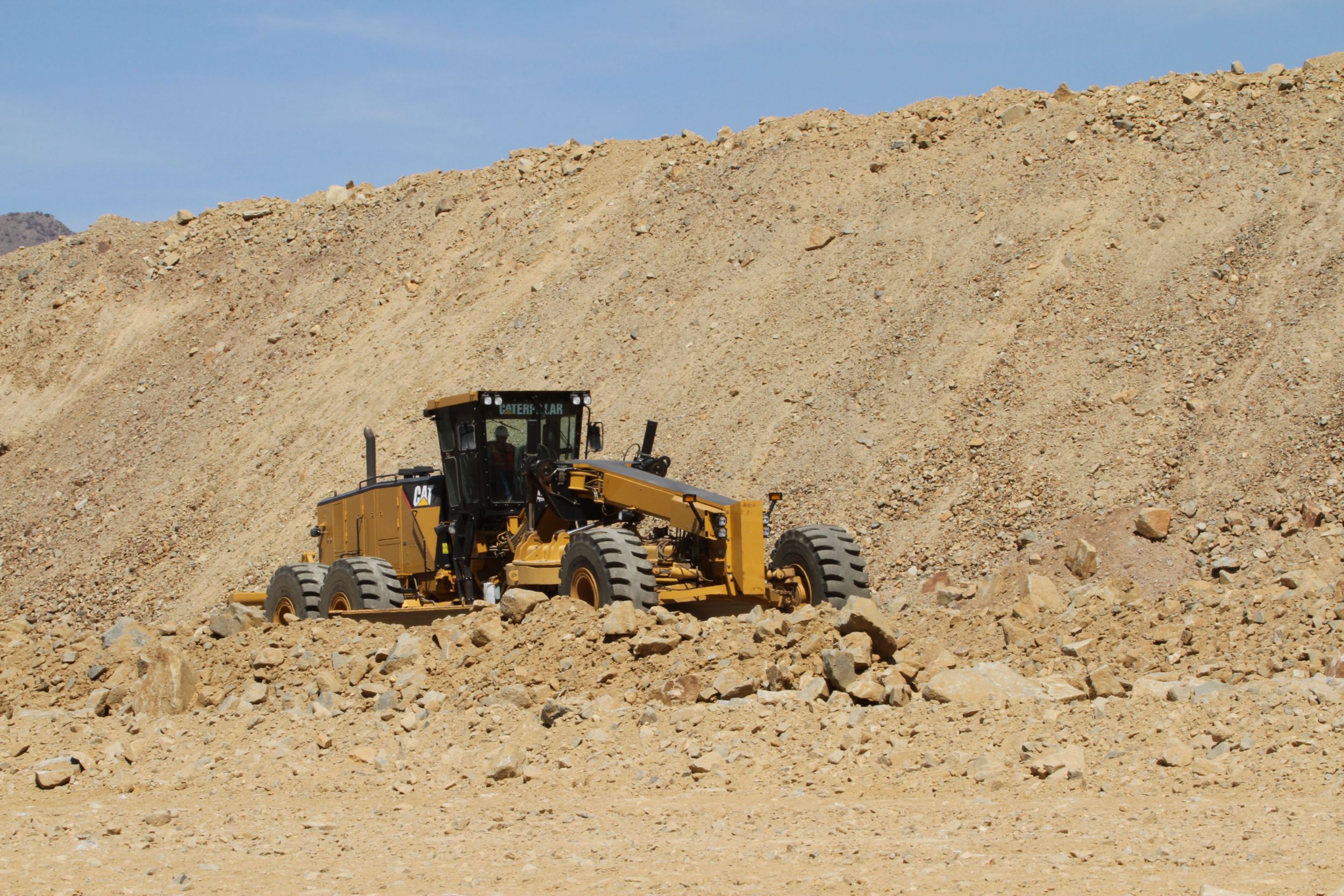

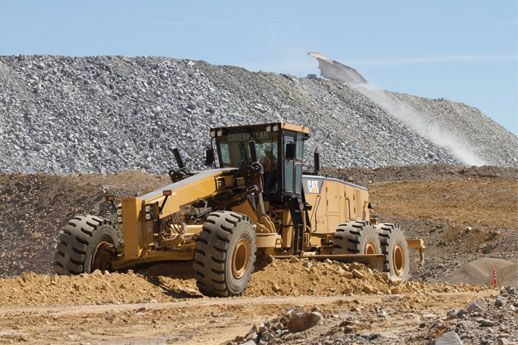

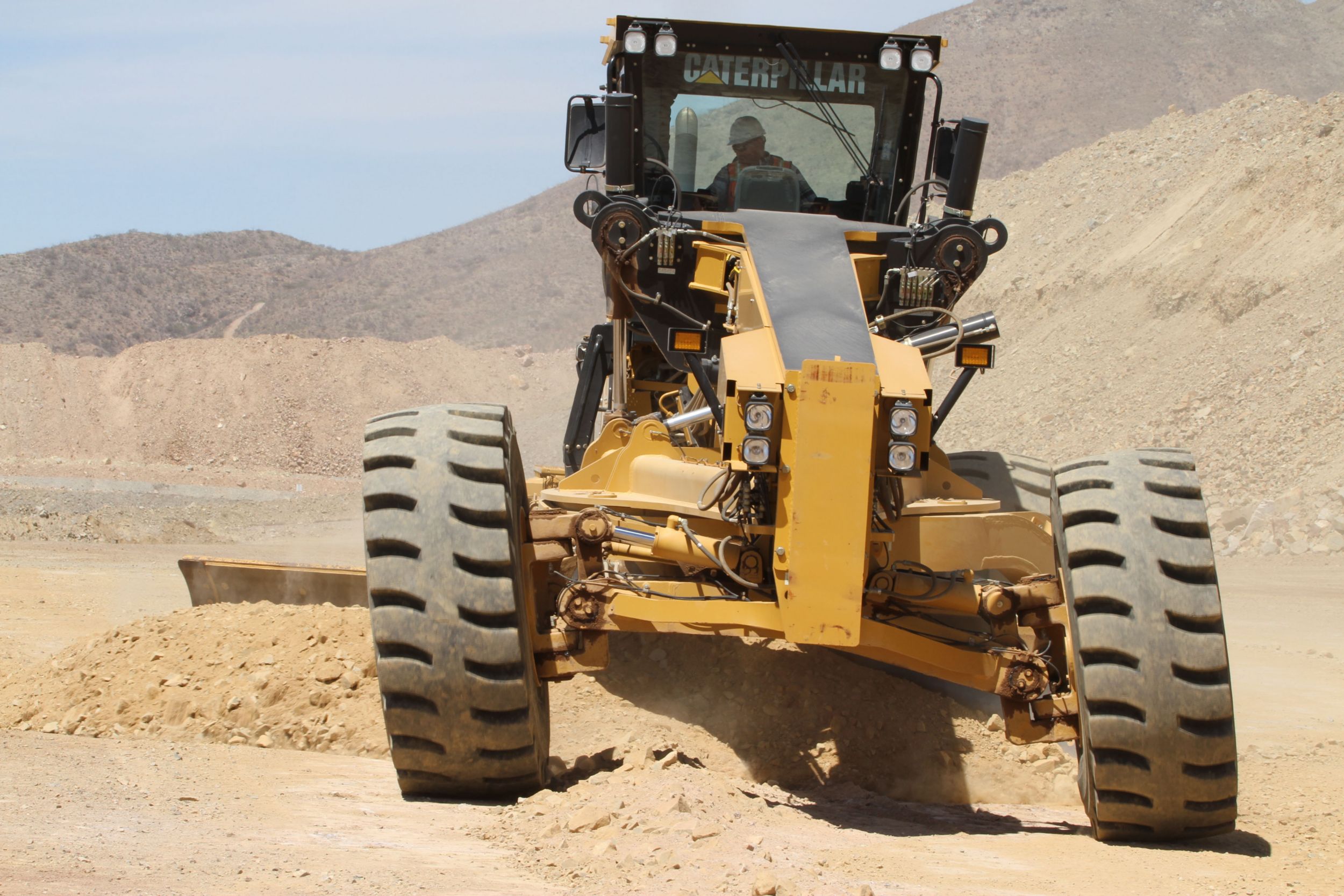

Exterior View
Product Specs
Engine
- Base Power (1st Gear) - Net
- 533 hp
- Engine Model
- Cat® C18 ACERT™
- Base Power (All Gears) - Net
- 533 hp
- Base Power (All Gears) - Net - Metric
- 540 hp
- Displacement
- 1104.5 in³
Weights
- Operating Weight - Typically Equipped
- 145151 lb
- Gross Vehicle Weight - Typically Equipped
- 145151 lb
- Gross Vehicle Weight - Maximum - Rear Axle
- 107001 lb
- Gross Vehicle Weight - Base - Front Axle
- 42177 lb
- Gross Vehicle Weight - Base - Rear Axle
- 96110 lb
- Gross Vehicle Weight - Maximum - Total
- 152857 lb
- Gross Vehicle Weight - Base - Total
- 138287 lb
- Gross Vehicle Weight - Maximum - Front Axle
- 45856 lb
- Gross Vehicle Weight - Typically Equipped - Front Axle
- 43100 lb
- Gross Vehicle Weight - Typically Equipped - Rear Axle
- 102051 lb
- Gross Vehicle Weight - Typically Equipped - Total
- 145151 lb
Moldboard
- Blade Width
- 24 ft
- Arc Radius
- 21.7 in
- Throat Clearance
- 6.4 in
- Cutting Edge Width
- 13 in
- Cutting Edge Thickness
- 1.1 in
- End Bit - Width
- 8 in
- End Bit - Thickness
- 1 in
- Blade Pull - Base
- 86500 lb
- Blade Pull - Maximum
- 95940 lb
- Down Pressure - Base
- 69583 lb
- Down Pressure - Maximum
- 75654 lb
- Height
- 40 in
- Thickness
- 2 in
- Width
- 24 ft
Operating Specifications
- Top Speed - Forward
- 27 mile/h
- Top Speed - Reverse
- 25.8 mile/h
- Turning Radius - Outside Front Tires
- 40.68 ft
- Steering Range - Left/Right
- 47.5°
- Articulation Angle - Left/Right
- 25°
- Forward - 1F
- 2.3 mile/h
- Forward - 2F
- 3.6 mile/h
- Forward - 3F
- 6 mile/h
- Forward - 4F
- 9.4 mile/h
- Forward - 5F
- 17.4 mile/h
- Reverse - 1R
- 3.4 mile/h
- Reverse - 2R
- 9 mile/h
- Reverse - 3R
- 25.8 mile/h
- Forward - 6F
- 27 mile/h
Service Refill
- Fuel Capacity
- 350 gal (US)
- Cooling System
- 24 gal (US)
- Hydraulic System - Total
- 70 gal (US)
- Hydraulic System - Tank
- 36 gal (US)
- Transmission Oil
- 23 gal (US)
- Circle Drive Housing - Each
- 2 gal (US)
- Differential - Final Drives
- 49 gal (US)
- Engine Oil
- 16 gal (US)
- Tandem Housing - Each
- 85 gal (US)
- Front Wheel Spindle Bearing Housing
- 1 gal (US)
Power Train
- Forward/Reverse Gears
- 6 Forward/3 Reverse
- Transmission
- Automatic, electronic power shift
- Brakes - Service
- Oil-actuated, oil-disc
- Brakes - Service - Surface Area
- 15733 in²
- Brakes - Parking
- Spring applied, hydraulically released
- Brakes - Secondary
- Oil-actuated, oil-disc
Hydraulic System
- Circuit Type
- Electro-hydraulic load sensing, closed center
- Pump Type
- Variable piston
- Pump Output
- 145 gal/min
- Maximum System Pressure
- 3500 psi
- Standby Pressure
- 450 psi
Frame
- Drawbar - Width
- 8.9 in
- Circle - Diameter
- 103.6 in
- Circle - Blade Beam Thickness
- 6.3 in
- Drawbar - Height
- 8.5 in
- Height - Front Axle Center
- 33.8 in
- Drawbar - Thickness
- 0.6 in
- Front-Top/Bottom Plate - Width
- 20.2 in
- Front-Top/Bottom Plate - Thickness
- 2 in
- Front-Side Plates - Width
- 16.3 in
- Front-Side Plates - Thickness
- 1 in
- Front Axle - Height to Center
- 32.2 in
- Front Axle - Wheel Lean - Left/Right
- 18°
- Front Axle - Total Oscillation per Side
- 32°
Blade Range
- Circle Centershift - Right
- 210.2 in
- Circle Centershift - Left
- 209.9 in
- Moldboard Sideshift - Right
- 193 in
- Moldboard Sideshift - Left
- 178.3 in
- Maximum Blade Position Angle
- 35°
- Blade Tip Range - Forward
- 40°
- Blade Tip Range - Backward
- 0°
- Maximum Lift Above Ground
- 25 in
- Maximum Depth of Cut
- 25.9 in
- Maximum Shoulder Reach Outside of Tires - Right
- 127.1 in
- Maximum Shoulder Reach Outside of Tires - Left
- 126.9 in
Engine - U.S. EPA Tier 4 Interim Certified
- Base Power (All Gears) - Net
- 533 hp
- Base Power (All Gears) - Net - Metric
- 540 hp
- Bore
- 5.7 in
- Derating Altitude
- 9655 ft
- Displacement
- 1104.5 in³
- Engine Model
- Cat® C18 ACERT™
- Maximum Torque - Net
- 2001 lb/ft
- Number of Cylinders
- 6
- Standard - Ambient Capability
- 122 °F
- Standard - Fan Speed - Maximum
- 1325 r/min
- Stroke
- 7.2 in
- Speed at Rated Power
- 1800 r/min
- Standard - Fan Speed - Minimum
- 60 r/min
Standards
- Brakes
- ISO 3450
- ROPS/FOPS
- ISO 3471/ISO 3449
- Sound
- ISO 6394/ISO 6395
- Steering
- ISO 5010
Engine - Tier 2
- Base Power (All Gears) - Net
- 533 hp
- Base Power (All Gears) - Net - Metric
- 540 hp
- Bore
- 5.7 in
- Derating Altitude
- 10000 ft
- Displacement
- 1104.5 in³
- Engine Model
- Cat C18 ACERT
- Maximum Torque - Net
- 2001 lb/ft
- Number of Cylinders
- 6
- Speed at Rated Power
- 1800 r/min
- Standard - Ambient Capability
- 122 °F
- Standard - Fan Speed - Minimum
- 60 r/min
- Stroke
- 7.2 in
- Torque Rise - Net
- 30 %
- Standard - Fan Speed - Maximum
- 1325 r/min
Ripper
- Ripping Depth - Maximum
- 17.9 in
- Ripper Shank Holders
- 7
- Shank Holder Spacing - Minimum
- 23.4 in
- Shank Holder Spacing - Maximum
- 23.8 in
- Penetration Force
- 29985 lb
- Pry-Out Force
- 41052 lb
Tandems
- Height
- 41 in
- Width
- 13.9 in
- Sidewall Thickness - Inner
- 1 in
- Sidewall Thickness - Outer
- 1.2 in
- Drive Chain Pitch
- 3 in
- Wheel Axle Spacing
- 90 in
- Tandem Oscillation - Front Up
- 20°
- Tandem Oscillation - Front Down
- 20°
Standard Equipment
-
- Power Train
-
- Air cleaner, dual stage dry type radial seal with service indicator and automatic dust ejector
- Air-to-air after cooler (ATAAC)
- Brakes, oil disc, four-wheel
- Demand fan, hydraulic
- Differential, lock/unlock, Automatic/Manual
- Drain, engine oil, high speed
- Electronic over speed protection
- Engine, C18 with ACERT Technology, diesel, with automatic engine derate and idle control, and compression brake: - C18 ACERT (Tier 3) REQUIRED FOR: United States, Canada, Guam, Samoa, Croatia, Turkey, European Union, Israel, Japan, South Korea, Azores. Note: For U.S. and Canadian dealers only, engine is EPA/ARB Flexibility Engine. Note: For all other regions, engine meets non-current U.S. EPA Tier 3 or EU Stage IIIA emission standards. - C18 ACERT (Tier 2) Provides improved performance in regions using fuel with a high boiling point; improved altitude capability, fuel economy, and resistance to piston deposits. NOT FOR USE BY: United States, Canada, Guam, Samoa, Croatia, Turkey, European Union, Israel, Japan, South Korea, Azores. Note: Engine meets non-current U.S. EPA Tier 2 or EU Stage II emission standards.
- Ether starting aid
- Parking brake, multi-disc, sealed and oil cooled
- Sediment drain, fuel tank
- Transmission, 6 speed forward and 3 speed reverse, power shift, autoshift
-
- Electrical
-
- Alarm, back-up
- Alternator, 150 ampere, sealed, filtered air intake
- Batteries, maintenance free, 1,500 CCA
- Electrical hydraulic valves, base 8
- Electrical system, 24 volt
- Grade Control Ready (cab harness, software, electrical hydraulic valves, bosses and brackets)
- Lights, reversing, stop, tail, turn
- Starter, receptacle, plug-in
-
- Operator Environment
-
- Air conditioner and heater
- Articulation, automatic return to center
- Defroster fan, rear window
- Display, digital speed and gear
- Gauges (analog) inside the cab (fuel, articulation, engine coolant temp, engine RPM and system voltage)
- Messenger operator information system
- Mirror, inside rearview, wide angle
- Power port, 12V
- Radio ready (entertainment)
- ROPS cab, sound suppressed less than 75 dB(A) ISO 6394 100% fan speed
- Seat, cloth, air suspension
- Throttle control, electronic
- Windows: laminated glass - fixed front with intermittent wiper, sides (2), rear with wiper/washer
-
- Technology Products
-
- Product Link Ready
-
- Safety And Security
-
- Clutch, circle drive slip
- Doors, 8 engine compartment, (four left-hand, four right-hand) locking
- Ground level engine shutdown
- Horn, electric
- Lockout, hydraulic implement for roading and servicing
- Paint, glare reducing, top of front frame and top of rear enclosure
- Seat belt, retractable 76 mm (3 in)
- Secondary steering
- Tandem walkway/guards
-
- Tires, Rims, And Wheels
-
- 25 × 29 multi-piece rims
-
- Ground Engaging Tools
-
- Cutting edges, 330 mm × 28 mm (13 in × 11⁄8 in), curved DH-2 steel, 25 mm (1 in), mounting bolts, 19 mm (0.75 in), includes endbits
- Moldboard, 7315 mm × 1067 mm × 50 mm (24 ft × 42 in × 2 in)
- Ripper, rear, 7 shank capacity, 3 shanks/tips provided
-
- Fluids
-
- Extended Life Coolant to -50° C (-58° F)
- Fluid check, ground level
-
- Other Standard Equipment
-
- Accumulators, blade lift
- Autolube, Lincoln Centro-Matic
- Drawbar, 8 shoe with replaceable wear strips
- Electrical hydraulic valves, base 8
- Fuel tank, 1325 L (350 gal) Fast Fill
- Integrated Cat Grade Control Cross Slope
- Ground level fueling
- Push plate-counterweight
- S·O·SSM ports, engine, hydraulic, transmission, coolant, fuel
Attachments
-
- Ground Engaging Tools
-
- Cutting edge, 330 mm × 28 mm (13 in × 1.12 in) straight cutting edge
- Cutting edge, 330 mm × 45 mm (13 in × 1.77 in) straight cutting edge
- Cutting edge, 406 mm × 28 mm (16 in × 1.12 in) straight cutting edge
- Cutting edge, 406 mm × 45 mm (16 in × 1.77 in) straight cutting edge
- Tooth, ripper, straight shank, one tooth
-
- Hydraulics
-
- Control, blade, variable float
-
- Operator Access
-
- Dual access platform package, basic
- Dual access platform package, plus
- Cab basic
- Cab plus
-
- Technology Products
-
- Product Link
- Installation, AccuGrade Ready
-
- Other Attachments
-
- Fenders, rear
- Rim, spare 29.5-29
- Cold weather package
-
- Lighting Packages
-
- Lighting package, basic (halogen)
- Lighting package, plus (HID)
- Lighting package, plus (LED)
- Lights, work, heel 5×5
- Lights, work, heel HID
- Lights, work, heel LED
- Light, LED warning strobe
-
- Operator Environment
-
- Radio, 12V, AM/FM weather band
- Radio, satellite, Sirius
- Radio ready, satellite
- Camera, rear vision
- Mirrors, outside mounted
- Mirrors, outside heated 24V
-
- Guards
-
- Guard package
- Guard, sound
- Sound suppression, engine enclosure
