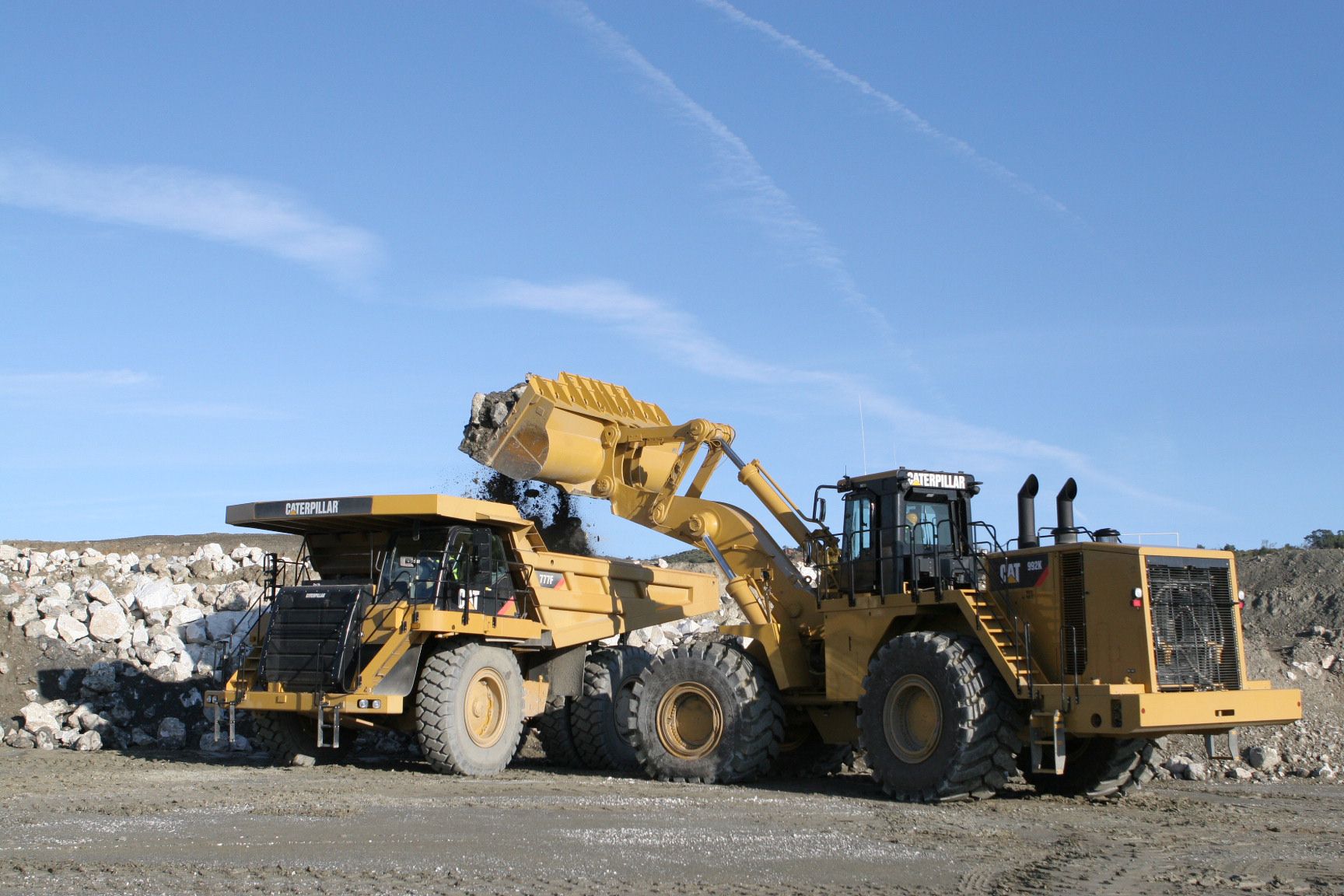

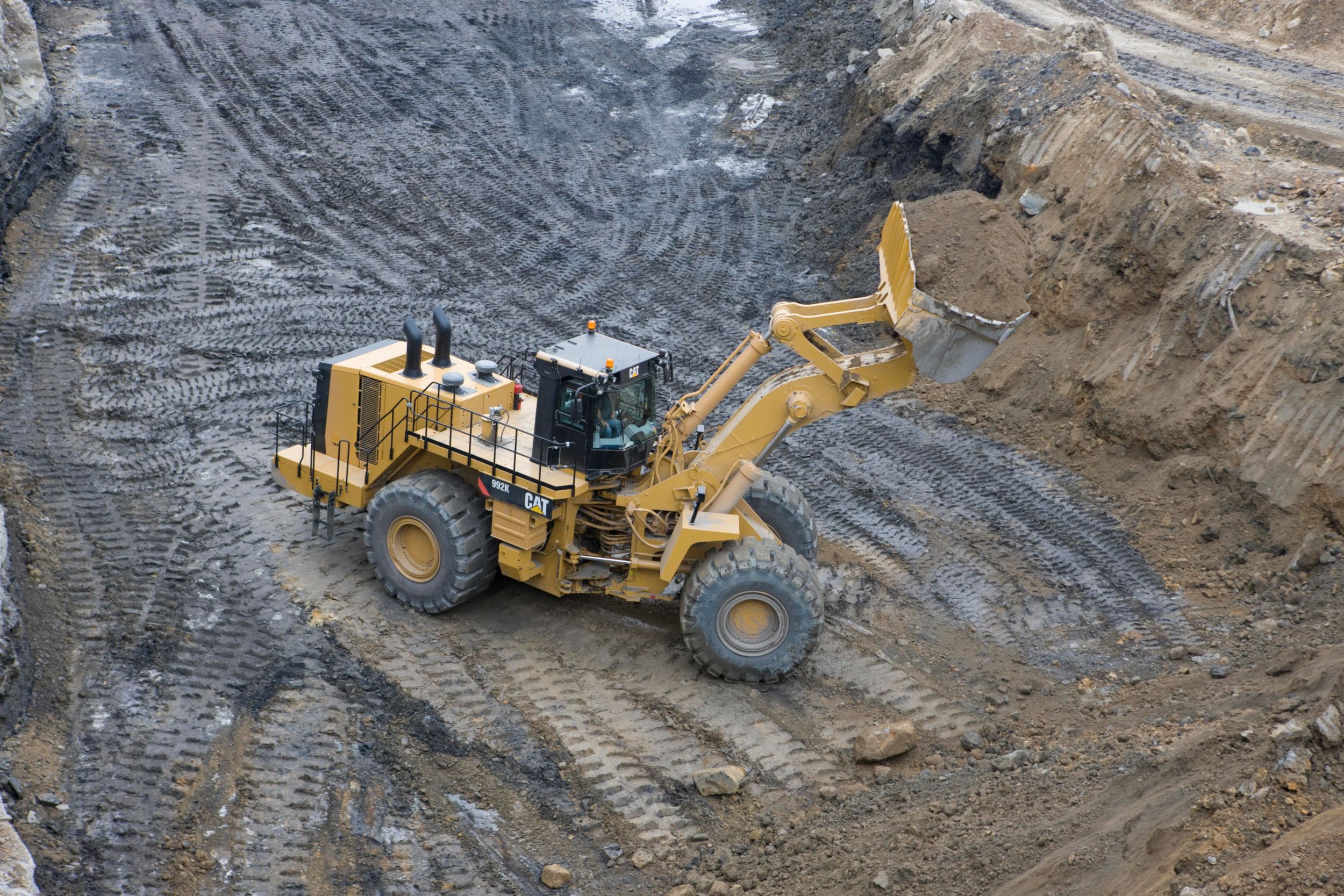

Exterior View
Product Specs
Engine
- Net Power
- 814 hp
- Engine Model
- Cat® C32 ACERT™
- Bore
- 5.7 in
- Stroke
- 6.4 in
- Displacement
- 1963.5 in³
- Emissions (U.S. EPA Tier 4 Final): Net Power - SAE J1349
- 814 hp
- Emissions (U.S. EPA Tier 4 Final): Rated Speed
- 1750 r/min
- Emissions (U.S. EPA Tier 4 Final): Gross Power - ISO 14396
- 884 hp
- Torque Rise
- 30%
- Emissions (U.S. EPA Tier 4 Final): Gross Power - SAE J1995
- 900 hp
- Emissions (U.S. EPA Tier 4 Final): Net Power - SAE J1995
- 814 hp
- Emissions (U.S. EPA Tier 4 Final): Peak Torque at 1,200 rpm - SAE J1995
- 3514 lb/ft
- Emissions (Tier 2 Equivalent): Gross Power - SAE J1995
- 907 hp
- Emissions (Tier 2 Equivalent): Net Power - SAE J1349
- 814 hp
- Emissions (Tier 2 Equivalent): Gross Power - ISO 14396
- 884 hp
- Emissions (Tier 2 Equivalent): Rated Speed
- 1750 r/min
- Emissions (Tier 2 Equivalent): Net Power - SAE J1995
- 814 hp
- Emissions (Tier 2 Equivalent): Peak Torque at 1,200 rpm - SAE J1995
- 3537 lb/ft
- Note (Tier 4 Final) (1)
- These ratings apply at 1,750 rpm when tested under the specified standard conditions.
- Note (Tier 4 Final) (2)
- Rating for net power advertised is based on power available when the engine is equipped with alternator, air cleaner, muffler, and on-demand hydraulic fan drive at maximum fan speed.
- Note (Tier 2 Equivalent) (1)
- These ratings apply at 1,750 rpm when tested under the specified standard conditions.
- Note (Tier 2 Equivalent) (2)
- Rating for net power advertised is based on power available when the engine is equipped with alternator, air cleaner, muffler, and on-demand hydraulic fan drive at maximum fan speed.
Operating Specifications
- Operating Weight
- 220089 lb
- Bucket Capacity Range
- 10.7-12.3 m3 (14-16 yd3)
- Rated Payload - High Lift (Moderate to High Digging Resistance)
- 21 t
- Rated Payload - Standard Lift (Moderate to High Digging Resistance)
- 24 t
- Operating Weight - High Lift
- 221847 lb
- Operating Weight - Standard
- 220089 lb
Buckets
- Bucket Capacities
- 10.7-12.3 m3 (14-16 yd3)
Transmission
- Transmission Type
- Cat Planetary Power Shift
- Forward - 1
- 4.3 mile/h
- Forward - 2
- 7.4 mile/h
- Forward - 3
- 12.6 mile/h
- Reverse - 1
- 4.7 mile/h
- Reverse - 2
- 8.1 mile/h
- Reverse - 3
- 13.8 mile/h
- Direct Drive - Forward 2
- 8 mile/h
- Direct Drive - Reverse 1
- 4.9 mile/h
- Direct Drive - Reverse 2
- 8.8 mile/h
- Direct Drive - Forward 1
- Disabled
- Direct Drive - Forward 3
- 14.2 mile/h
- Direct Drive - Reverse 3
- 15.4 mile/h
Axles
- Front
- Fixed
- Rear
- Oscillating
- Oscillation Angle
- 10° ±, 8° ± with Stops
Hydraulic Cycle Times
- Total Hydraulic Cycle Time
- 19.3 s
- Dump
- 1.8 s
- Raise
- 9.4 s
- Rack Back
- 4.4 s
- Lower Float Down
- 3.7 s
Service Refill Capacities
- Fuel Tank
- 413 gal (US)
- Transmission
- 45 gal (US)
- Differential - Final Drives - Front
- 95 gal (US)
- Differential - Final Drives - Rear
- 91 gal (US)
- Engine Crankcase
- 32 gal (US)
- Cooling Systems
- 77 gal (US)
- Hydraulic System - Implement
- 86 gal (US)
- Hydraulic System - Steering
- 42 gal (US)
- AC Refrigerant
- 6 lb
- AC Oil
- 0.071 gal (US)
Hydraulic System - Lift/Tilt
- Lift Cylinder - Bore
- 11 in
- Lift Cylinder - Stroke
- 45.2 in
- Maximum Flow at 1,850 rpm
- 254 gal/min
- Tilt Cylinder - Bore
- 10.5 in
- Lift/Tilt System - Circuit
- Positive Flow Control
- Lift/Tilt System - Pump
- Variable Displacement Piston
- Relief Valve Setting - Lift/Tilt
- 4500 psi
- Tilt Cylinder - Stroke
- 80.9 in
Sound Performance
- Hearing Protection
- Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.
- Machine Sound Power Level - Standard Machine Configuration
- The machine sound power level is 116 dB(A), measured according to the test procedures and conditions specified in ISO 6395:2008 for the standard machine configuration. The measurement was conducted at 70 percent of the maximum engine cooling fan speed.
- Operator Sound Pressure Level
- The operator sound pressure level is 70 dB(A), measured according to the test procedures and conditions specified in ISO 6396:2008 for the standard machine configuration. The measurement was conducted at 70 percent of the maximum engine cooling fan speed.
- Machine Sound Power Level - Sound Suppressed Machine Configuration
- The machine sound power level is 113 dB(A), measured according to the test procedures and conditions specified in ISO 6395:2008 for the sound suppressed machine configuration. The measurement was conducted at 70 percent of the maximum engine cooling fan s
Hydraulic System - Steering
- Maximum Flow at 1,350 rpm
- 95 gal/min
- Steering Cut Off Pressure
- 4500 psi
- Steering System - Circuit
- Pilot, Load Sensing
- Steering System - Pump
- Piston, Variable Displacement
- Total Steering Angle
- 86°
- Steering Cycle Times - Low Idle
- 6.4 s
- Steering Cycle Times - High Idle
- 4.4 s
Dimensions - High Lift - Approximate
- Clearance at 45° Dump (Tooth Tip)
- 15.01 ft
- Rack Back Angle - Maximum Lift
- 65 degrees
- Tread Width
- 10.83 ft
- Ground to Top of ROPS
- 18.63 ft
- Ground to Top of Exhaust Stacks
- 17.22 ft
- Ground to Top of Hood
- 13.26 ft
- Ground to Bumper Clearance
- 3.86 ft
- Rear Axle - Centerline to Bumper
- 13.76 ft
- Wheel Base
- 19.32 ft
- Maximum Overall Length
- 52.81 ft
- Ground to Lower Hitch Clearance
- 2.24 ft
- Ground to Center of Axles
- 4.44 ft
- Rack Back Angle - Ground Level
- 42.8 degrees
- Rack Back Angle - Carry
- 52.5 degrees
- B-Pin Height - Maximum Lift
- 24.58 ft
- Maximum Overall Height - Bucket Raised
- 33.08 ft
- Dump Angle at Maximum Lift
- 50 degrees
- Reach - Maximum Lift
- 6.86 ft
Dimensions - Standard Lift - Approximate
- Clearance at 50° Dump (Tooth Tip)
- 14.7 ft
- Rack Back Angle - Maximum Lift
- 65 degrees
- Tread Width
- 10.83 ft
- Ground to Top of ROPS
- 18.63 ft
- Ground to Top of Exhaust Stacks
- 17.22 ft
- Ground to Top of Hood
- 13.26 ft
- Ground to Bumper Clearance
- 3.86 ft
- Rear Axle - Centerline to Bumper
- 13.76 ft
- Wheel Base
- 19.32 ft
- Maximum Overall Length
- 52 ft
- Ground to Lower Hitch Clearance
- 2.24 ft
- Ground to Center of Axles
- 4.44 ft
- Rack Back Angle - Ground Level
- 43.4 degrees
- Rack Back Angle - Carry
- 52.7 degrees
- B-Pin Height - Maximum Lift
- 22.73 ft
- Maximum Overall Height - Bucket Raised
- 30.5 ft
- Dump Angle at Maximum Lift
- 50 degrees
- Reach - Maximum Lift
- 6.95 ft
Brakes
- Brakes
- Meet ISO 3450:2011
Standard Equipment
-
- Note
-
- Standard and optional equipment may vary. Consult your Cat dealer for details.
-
- Power Train
-
- Air-to-Air After Cooler (ATAAC)
- Axle oil coolers (front and rear)
- Brakes, full hydraulic, enclosed, wet multiple disc service brakes and dry parking/secondary brake
- Case drain filters
- Demand fan
- Driveline, electro-hydraulic parking brake
- Electric fuel priming pump
- Engine Cat C32 ACERT
- Ground level engine shutdown
- Ground level fast fill fuel
- Ground level transmission lockout
- Ground level starter lockout
- Precleaner, engine air intake
- Radiator, Aluminum Modular (AMR)
- Starting aid, ether, automatic
- Throttle lock
- Transmission, 533 mm (21 in) planetary powershift with 3F/3R with electronic control
-
- Electrical
-
- Alarm, back-up
- Alternator, 150-amp
- Batteries, low maintenance
- Converter, 10-amp, 24V to 12V
- Deutsch and amp seal terminal connectors
- Ground level electrical disconnect
- Ground level starting receptacle for emergency start
- Light, warning strobe
- Lights, front and rear, access stairway, turn signals/hazard lights
- Starter, electric (heavy duty)
- Starting and charging system, 24V, ECM diagnostic connector
-
- Operator Environment
-
- Air conditioner and heater with automatic temperature control
- Cab, sound suppressed, pressurized, rollover protective structure (ROPS/FOPS), radio ready for (entertainment) includes antenna, speakers, and a 12V converter (24-volt, 10-amp) for use with laptop/cell phone use
- Camera, rear vision
- Cigar lighter
- Coat hook
- Electro-hydraulic tilt and lift controls
- Horn, electric
- Implement and steering lockouts
- Light, dome (cab)
- Lunchbox and beverage holders
- Mirrors, rearview (externally mounted)
- Seat, Cat Comfort with air suspension
- Seat belt, 2-point, 76 mm (3 in), minder
- Steering and transmission lock lever
- STIC control system
- Tie-offs on ROPS
- Tinted glass
- Trainer seat with 76 mm (3 in) wide lap belt
- Transmission gear indicator
- VIMS (Vital Info Management System): – 3G with graphical information display – Cycle timer – External data port – Integral Cat Production Measurement (Cat PM)
- Wet-arm wipers/washer (front, rear, and corners), intermittent front wipers
-
- Safety And Security
-
- Fire suppression ready
-
- Other Standard Equipment
-
- Automatic lubrication system
- Bumper service center
- Couplings, Cat O-ring face seals
- Doors, service access (locking)
- Economy mode
- Emergency platform egress
- Fenders, steel (front and rear)
- Fuel, fast fill
- Grouped hydraulic pressure ports
- Guards, power train and crankcase
- Hitch, drawbar with pin
- Hoses, Cat XT™ and XT-ES
- Hydraulic oil cooler
- Impeller clutch
- Implement and steering ecology drains
- Mufflers, under hood
- Oil sampling valves
- Piston pump case drain filters
- Service center with ground level electrical and fluids service center
- Sight gauges: – Steering oil level – Implement oil level – Transmission oil level – Coolant level
- Stairway, left and right rear access
- Starter lockout, bumper
- Steering, load sensing
- Tie-offs on ROPS
- Toe kicks
- Transmission lockout, bumper
- Vandalism protection caplocks
- Venturi stacks (2)
Attachments
-
- Note
-
- Standard and optional equipment may vary. Consult your Cat dealer for details.
-
- Operator Environment
-
- AM/FM/CD/MP3 radio
- AM/FM/CD/MP3 radio with Bluetooth and satellite ready
- Sun screen
-
- Starting Aids
-
- Engine coolant 120V heater
- Engine coolant 240V heater
-
- Machine Control And Guidance
-
- Cat Terrain ready
-
- Miscellaneous Attachments
-
- Arctic antifreeze for protection to –50° C (–58° F)
- Diagnostic lines
- Roading fenders
- Wheel chocks
