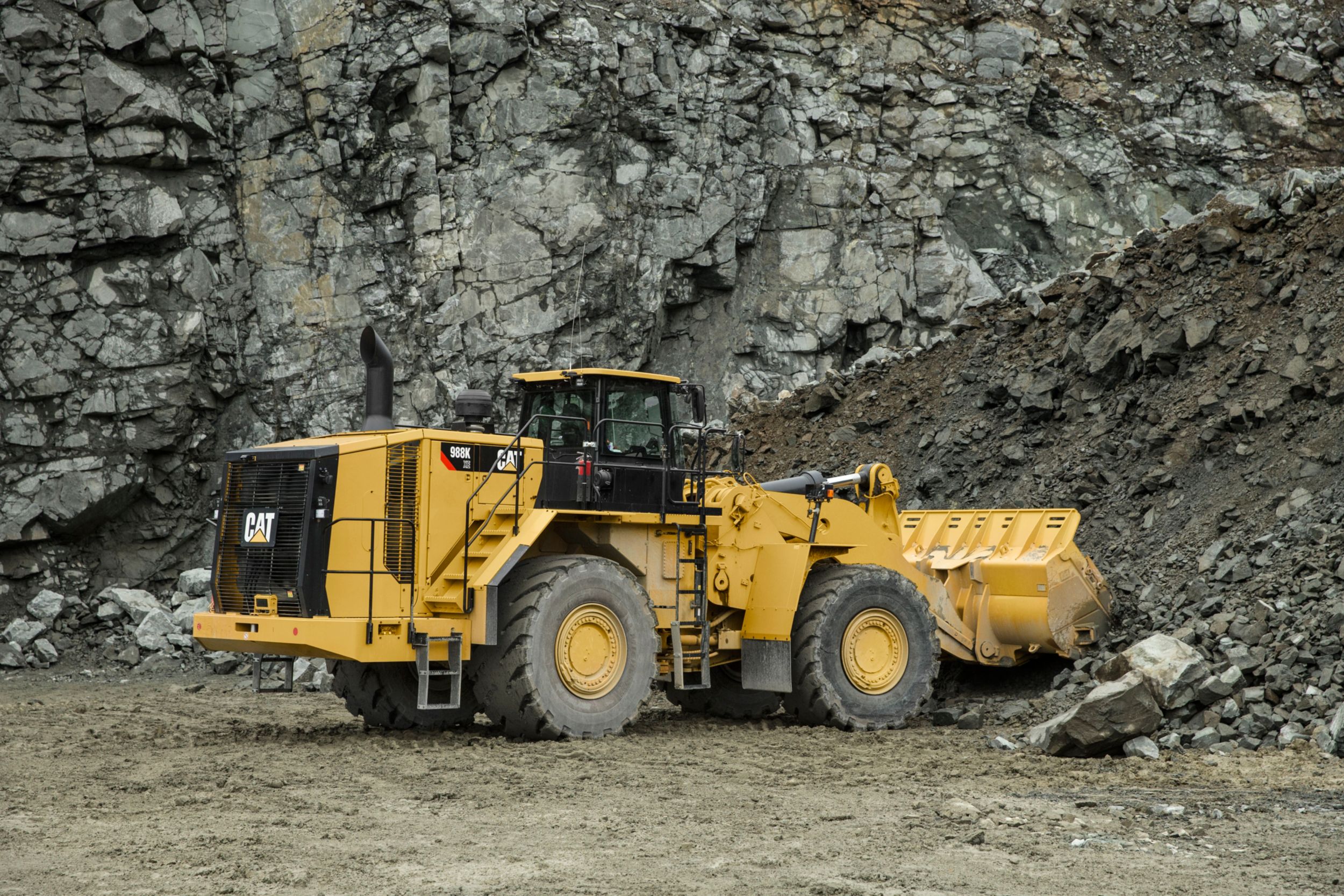

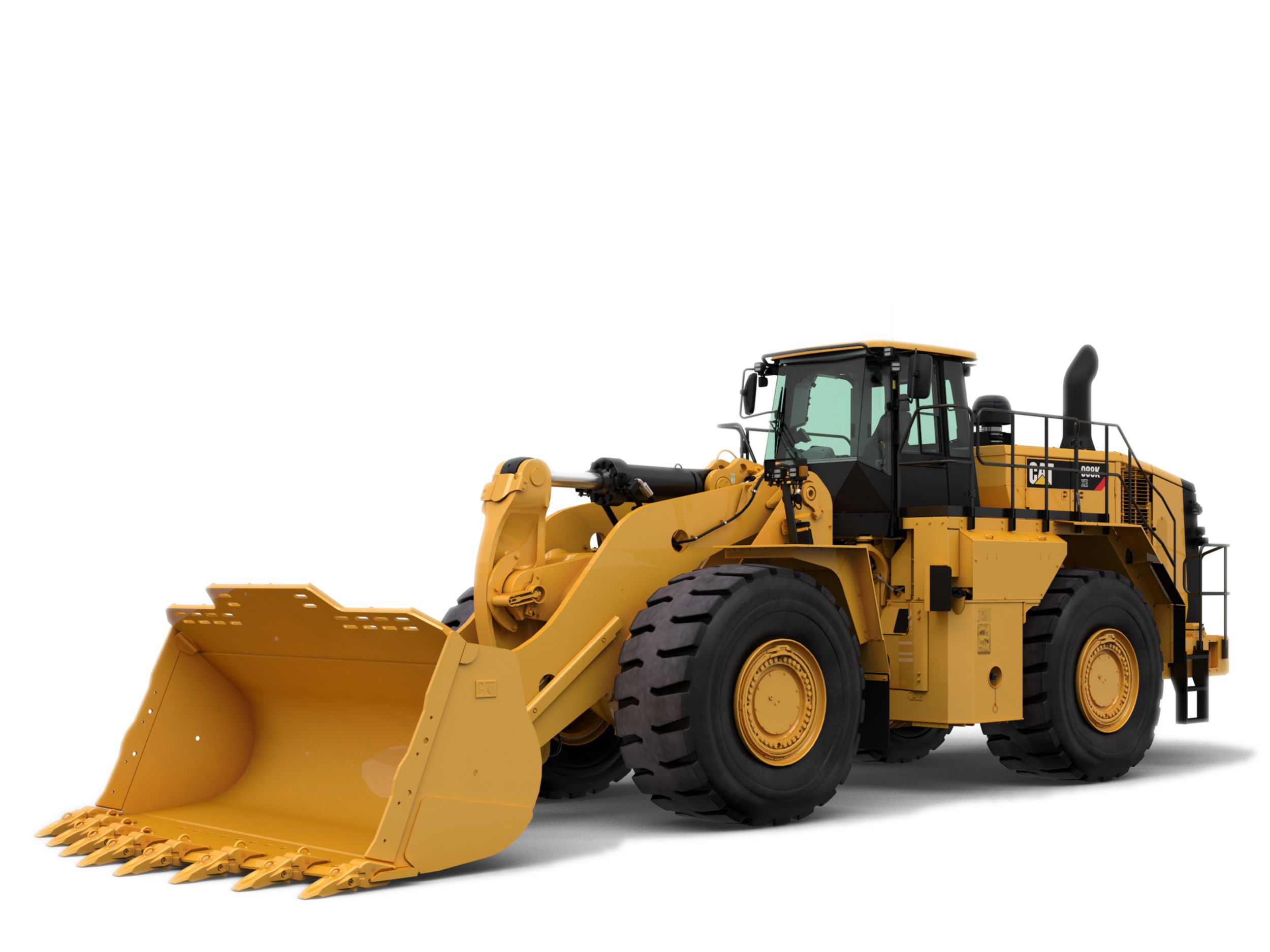

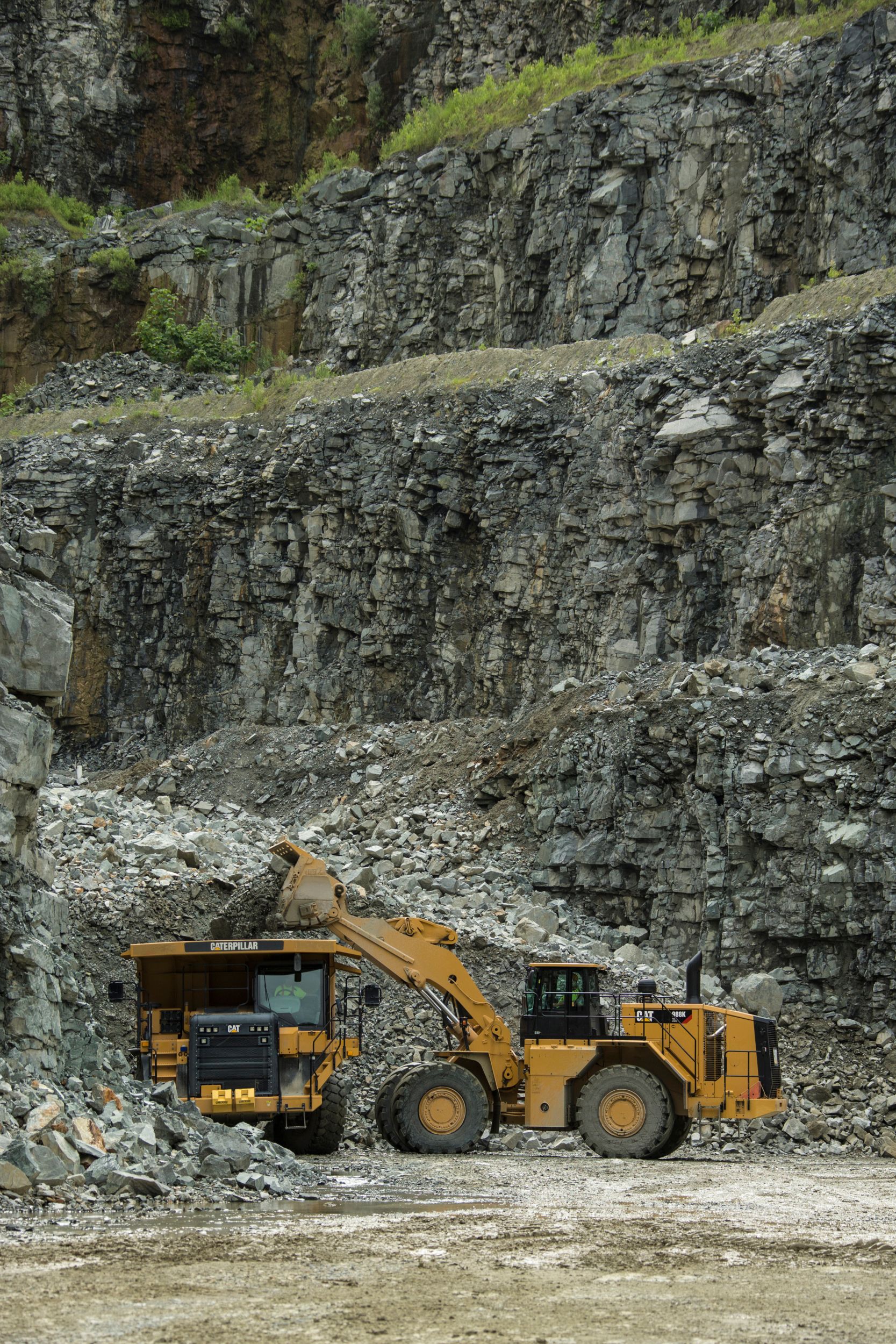

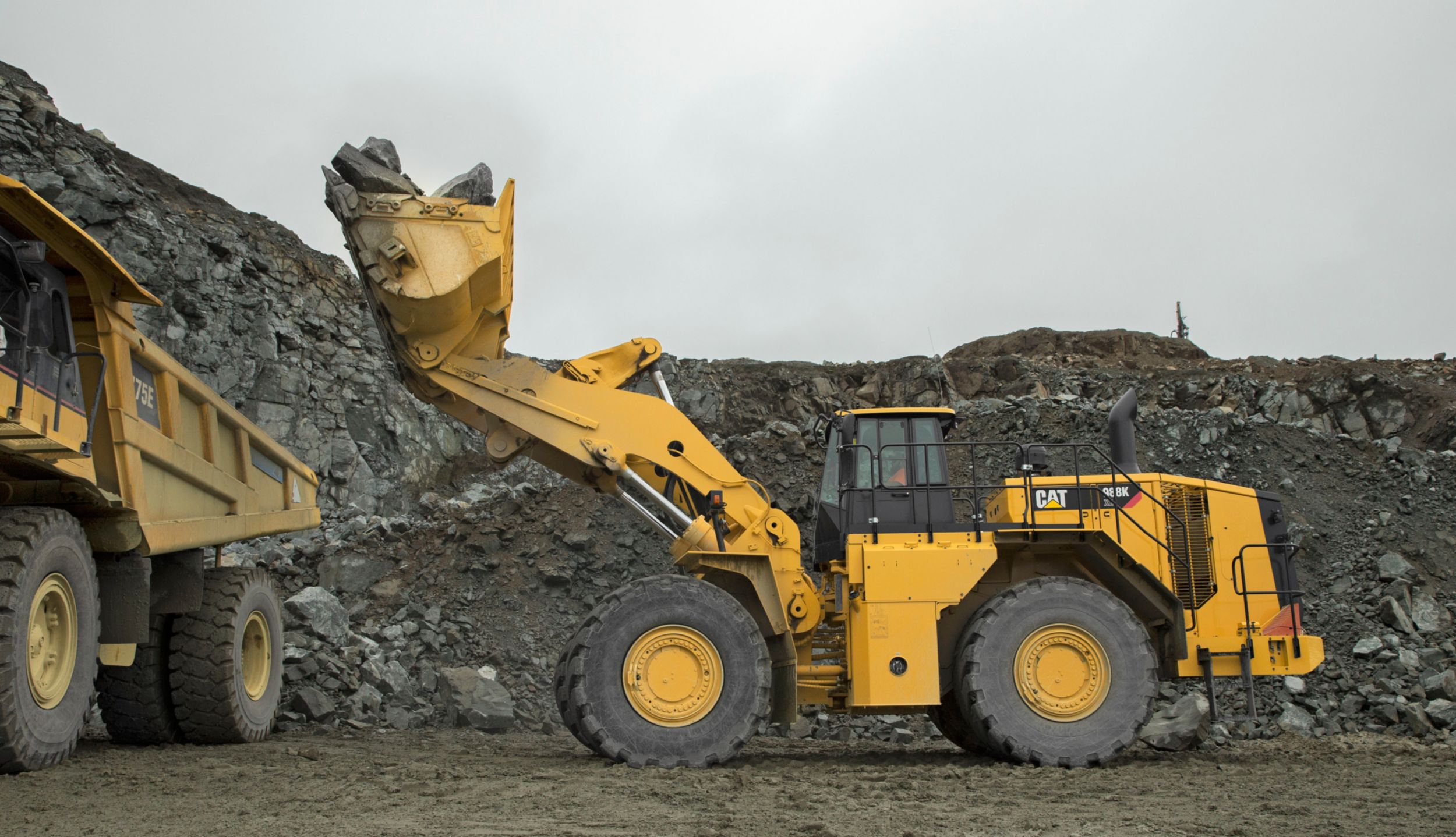

988K XE Wheel Loader

Engine

Net Power

541 hp

Engine Model

Cat® C18 ™

Bore

5.7 in

Stroke

7.2 in

Displacement

1105 in³

Rated Speed

1,700 rpm

Emissions

U.S. EPA Tier 4 Final/EU Stage V

Gross Power - ISO 14396

580 hp

Net Power - SAE J1349:2011

541 hp

Peak Torque @ (speed) - SAE J1995

2104 ft·lbf

Torque Rise

58%

Peak Power Speed

1,500 rpm

Peak Power Speed - 1,500 rpm - Gross - ISO 14396

580 hp

Peak Power Speed - 1,500 rpm - Gross - SAE J1995

588 hp

Peak Power Speed - 1,500 rpm - Net Power - SAE J1349

541 hp

Operating Specifications

Operating Weight

116362 lb

Rated Payload - Standard (Quarry Face)

12.5 ton (US)

Rated Payload - Loose Material (Standard)

16 ton (US)

Bucket Capacity Range

4.7-13 m3 (6.2-17 yd3)

Operating Weight - High Lift

119618 lb

Operating Weight - Standard

116362 lb

Buckets

Bucket Capacities

4.7-13 m3 (6.2-17 yd3)

Transmission

Transmission Type

Cat switched reluctance electric drive

Forward 1 (virtual)

4.3 mile/h

Forward 2 (virtual)

7 mile/h

Forward 3 (virtual)

13.8 mile/h

Forward 4 (virtual)

20 mile/h

Reverse 1 (virtual)

4.3 mile/h

Reverse 2 (virtual)

7 mile/h

Reverse 3 (virtual)

17.5 mile/h

Axles

Front

Fixed

Rear

Trunnion

Oscillation Angle

13°

Service Refill Capacities

Fuel Tank

147 gal (US)

Transmission

16 gal (US)

Cooling System - Jacket Water

30 gal (US)

Cooling Systems - Power Train

8 gal (US)

Diesel Exhaust Fluid Tank

8.7 gal (US)

Differential - Final Drives - Front

49 gal (US)

Differential - Final Drives - Rear

49 gal (US)

Engine Crankcase

16 gal (US)

Hydraulic System - Implement/Steering

126 gal (US)

Note

All non-road Tier 4 Final/Stage IV diesel engines are required to use: – The machine has the flexibility to run on either ultra-low-sulfur diesel fuel (ULSD with 15 ppm of sulfur or less) or up to B20 biodiesel when feedstock meeting ASTM D7467 specificat

Hydraulic System - Lift/Tilt

Lift Cylinder - Bore

8.7 in

Lift Cylinder - Stroke

41.3 in

Lift/Tilt System - Circuit

EH-Positive Flow Control, Flow Sharing

Lift/Tilt System - Pump

Variable displacement piston

Relief Valve Setting - Lift/Tilt

4757 psi

Tilt Cylinder - Bore

8.7 in

Tilt Cylinder - Stroke

27 in

Maximum Flow at 1,400-1,600 rpm

153 gal/min

Hydraulic System - Steering

Steering Cut Off Pressure

4351 psi

Steering Cycle Times - High Idle

3.4 s

Steering Cycle Times - Low Idle

5.6 s

Steering System - Circuit

Pilot, load sensing

Steering System - Pump

Piston, variable displacement

Total Steering Angle

86°

Maximum Flow at 1,400-1,600 rpm

71.3 gal/min

Steering

ISO 5010:2007

Hydraulic Cycle Times

Dump

2.2 s

Lower Float Down

3.5 s

Rack Back

4.5 s

Raise

8 s

Total Hydraulic Cycle Time

18.2 s

Dimensions (Approximate) - High Lift

Wheel Base

14.9 ft

Ground to Top of ROPS

13.7 ft

Ground to Top of Exhaust Stacks

14.8 ft

Ground to Top of Hood

10.9 ft

Ground to Bumper Clearance

3.1 ft

Rear Axle - Centerline to Bumper

10.5 ft

Front Axle Centerline to Bucket Tip

15.9 ft

Maximum Overall Length

41.3 ft

Ground to Lower Hitch Clearance

1.9 ft

Ground to Center of Axles

3.2 ft

Clearance at Maximum Lift

12.7 ft

B-Pin Height - Maximum Lift

19.3 ft

Maximum Overall Height - Bucket Raised

25.8 ft

Reach - Maximum Lift

7 ft

Note

Specs are calculated with 6.9 m3 (9.0 yd3) rock bucket and Michelin XLDD2 with 978 mm (3.2 ft) centerline of rear axle height.

Air Conditioning System

Air Conditioning

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.8 kg of refrigerant which has a CO2 equivalent of 2.574 metric tonnes.

Operator's Cab

ROPS/FOPS

ROPS/FOPS meet ISO 3471:2008 and ISO 3449:2005 Level II standards

Sound Performance - Tier 4 Final/Stage IV

Operator Sound Level (ISO 6396)

72 dB(A)

Machine Sound Level (ISO 6395)

109 dB(A)

Note (1)

The operator sound pressure level was measured according to the test procedures and conditions specified in ISO 6396:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed.

Note (2)

Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.

Note (3)

The machine sound power level was measured according to the test procedures and conditions specified in ISO 6395:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed.

Dimensions (Approximate) - Standard Lift

Ground to Top of ROPS

13.7 ft

Ground to Top of Exhaust Stacks

14.8 ft

Ground to Top of Hood

10.9 ft

Ground to Bumper Clearance

3.1 ft

Rear Axle - Centerline to Bumper

10.5 ft

Front Axle Centerline to Bucket Tip

14.7 ft

Wheel Base

14.9 ft

Maximum Overall Length

40 ft

Ground to Lower Hitch Clearance

1.9 ft

Ground to Center of Axles

3.2 ft

Clearance at Maximum Lift

11.3 ft

B-Pin Height - Maximum Lift

18 ft

Maximum Overall Height - Bucket Raised

24.5 ft

Reach - Maximum Lift

6.8 ft

Note

Specs are calculated with 6.9 m3 (9.0 yd3) rock bucket and Michelin XLDD2 with 978 mm (3.2 ft) centerline of rear axle height.

Brakes

Brakes

ISO 3450:2011
