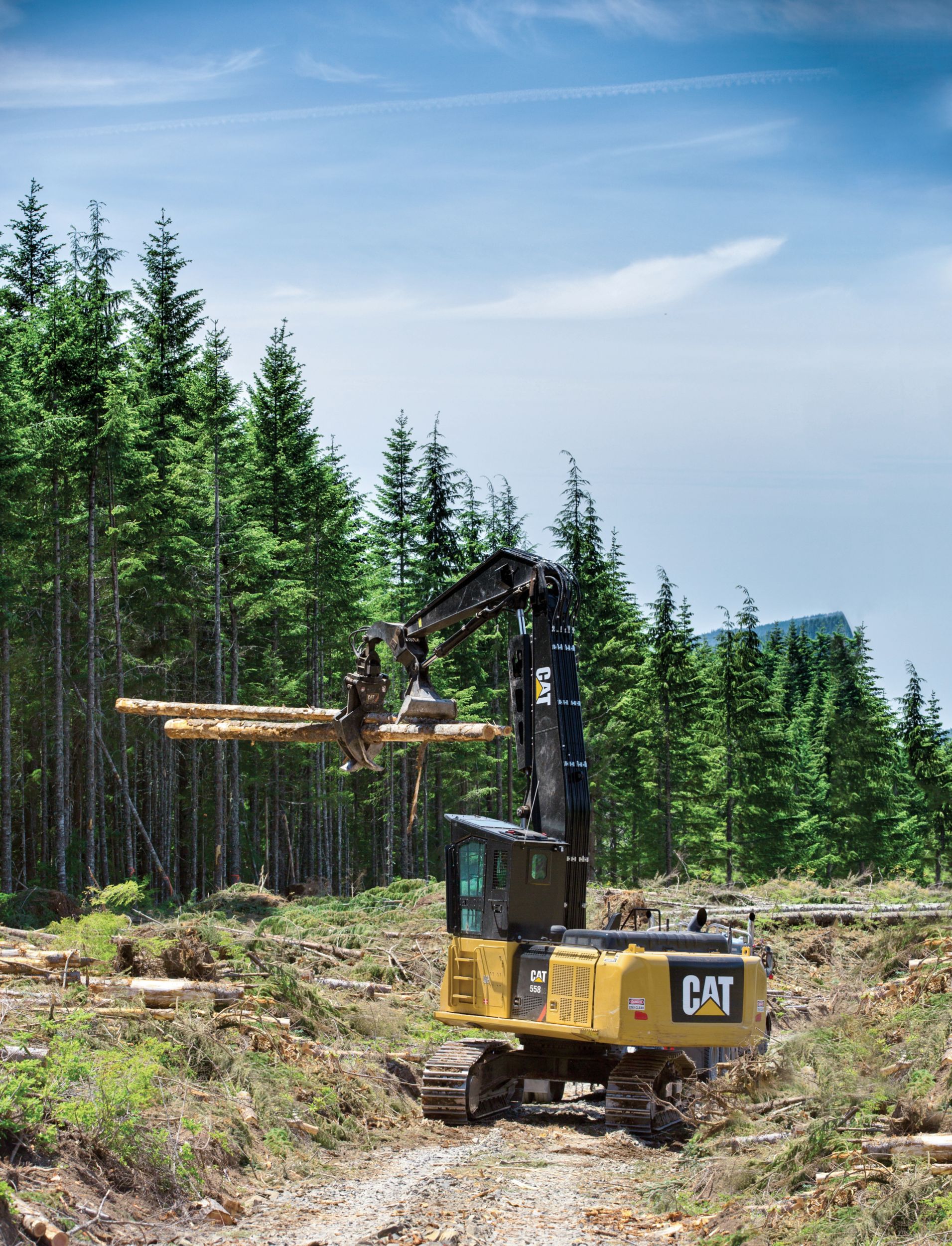

Exterior View
Product Specs
Engine
- Engine Model
- Cat C7.1
- Net Flywheel Power
- 239 hp
- Gross Power
- 239 hp
- Displacement
- 428 r/min
- Engine Speed - Operation
- 1750 r/min
- Engine Speed - Travel
- 1800 r/min
- Gross Power at 2,200 rpm
- 239 hp
- Number of Cylinders
- 6
Service Refill Capacities
- Cooling System
- 7.9 gal (US)
- Swing Drive
- 2.9 gal (US)
- Hydraulic Tank
- 46.2 gal (US)
- Fuel Tank - CWT
- 261.4 gal (US)
- Hydraulic System - Total
- 81.9 gal (US)
- DEF Tank
- 12.2 gal (US)
- Engine Crankcase
- 6.3 gal (US)
- Final Drive - Each
- 2.9 gal (US)
Operating Specifications
- Maximum Speed - Rabbit
- 2.3 mile/h
- Maximum Speed - Turtle
- 1.5 mile/h
- Maximum Drawbar Pull
- 72164 lbf
- Maximum Swing Speed
- 7.5 r/min
- Swing Torque
- 86295 ft·lbf
Hydraulic System
- Main Pumps - Maximum Flow - Per Pump
- 63.4 gal/min
- Main Pumps - Maximum Flow - Both Pumps
- 126.8 gal/min
- Maximum System Pressure - Implements
- 5076 psi
- Maximum System Pressure - Travel
- 5076 psi
- Maximum System Pressure - Swing
- 4641 psi
- Maximum System Pressure - Heavy Lift Mode
- 5511 psi
- Auxiliary Pump - Bnt/Power Clam: Maximum Flow
- 37.2 gal/min
- Auxiliary Pump - Bnt/Power Clam: Maximum Pressure
- 1499 psi
- Auxiliary Pump - Bnt/Power Clam: Pump Drive Gear Ratio
- 1.28:1
- Auxiliary Pump - U/U and O/U - Maximum Flow
- 14 gal/min
- Auxiliary Pump - U/U and O/U - Maximum Pressure
- 1499 psi
Undercarriage
- Undercarriage Pitch
- 8.5 in
- Ground Clearance
- 29.5 in
- Track Gauge
- 115 in
- Track Length
- 199.7 in
Dimensions - Log Loader - Boom Stretched Out
- Height of Tilted Side Entry Cab
- 137.7 in
- Boom Height
- 115 in
- Distance Between Idler and Sprocket Centerline
- 158.2 in
- Ground Clearance
- 29.5 in
- Overall Height
- 194.2 in
- Overall Length (U/U)
- 628.6 in
- Tail Swing Radius
- 143.8 in
- Track Gauge
- 115 in
- Track Length
- 199.7 in
- Width - With 700 mm (28 in) Shoes
- 142.6 in
Weights
- Estimated Operating Weight without Attachment - Log Loader (O/U)
- 93004 lb
- Estimated Operating Weight without Attachment - Log Loader (U/U)
- 93176 lb
