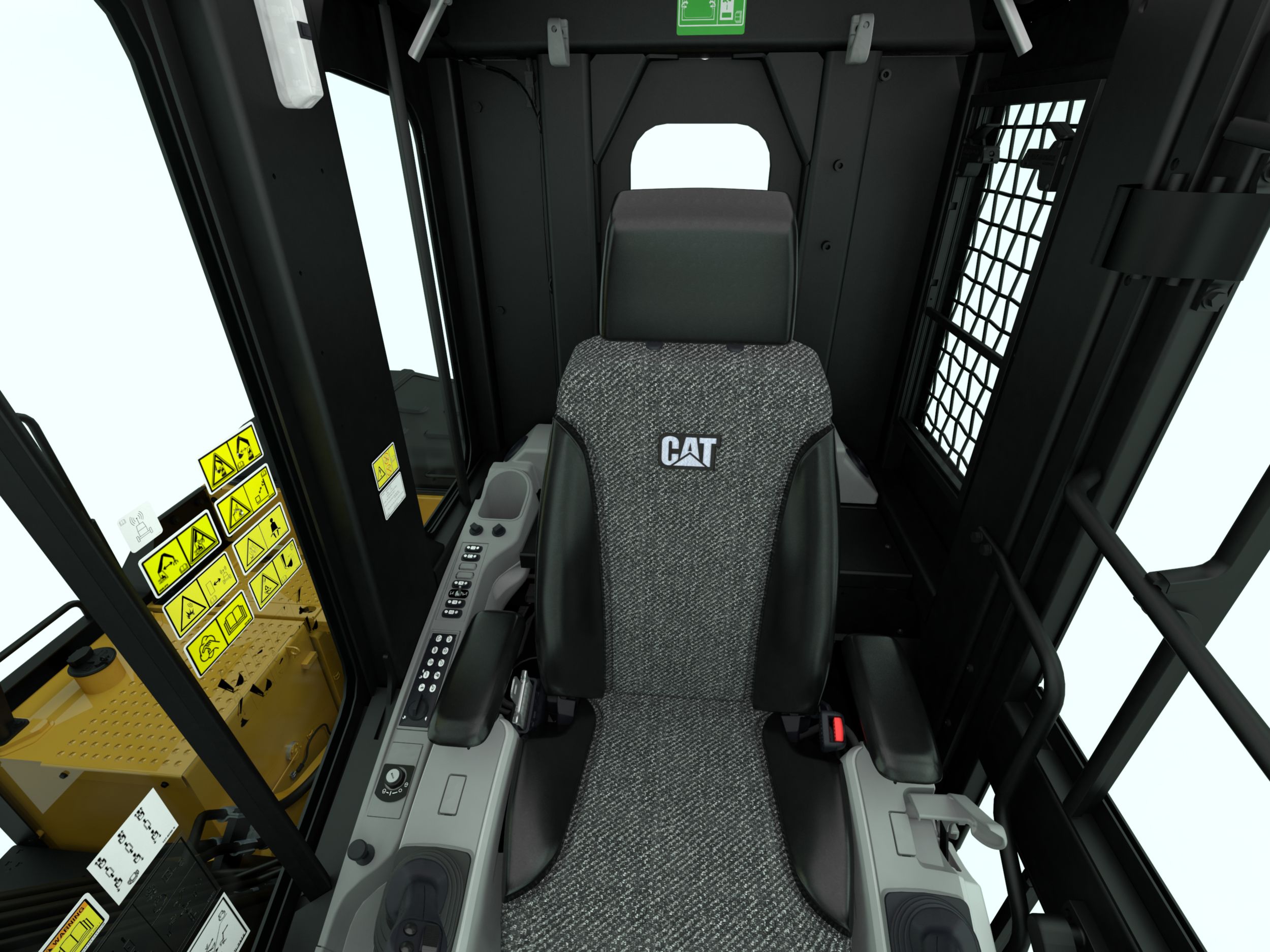

Product Specs
Weights
- Operating Weight: Log Loader - Over/Under
- 69401 lb
- Note (1)
- Heel only, no grapple installed, 770 mm (28") track shoes
- Operating Weight: Log Loader - Under/Under
- 69574 lb
- Note (2)
- Heel only, no grapple installed, 770 mm (28") track shoes
Engine
- Engine Power - ISO 9249
- 164 hp
- Engine Model
- Cat C7.1
- Engine Power - ISO 14396
- 166 hp
- Bore
- 4.1 in
- Stroke
- 5.3 in
- Displacement
- 427.8 in鲁
- Number of Cylinders
- 6
- Emissions
- Tier 4 Final / EU Stage IV
Working Ranges and Forces: Log Loader - Over/Under
- Max Reach at Grapple Mount on Heel at Ground Level - O/U
- 461 in
- Note (1)
- GLL 52 Grapple installed
- Max Level Log Height - O/U
- 324 in
- Reach at Max Height - O/U
- 206 in
- Max Load - O/U
- 28947 lb
Hydraulic System
- Main System - Maximum Flow at Operation
- 2 pumps X 212 L/min (56 gpm) each = 424 L/min (112 gpm) Total
- Maximum Pressure - Equipment
- 5076 psi
- Maximum System Pressure - Heavy Lift Mode
- 5511 psi
- Maximum Pressure - Travel
- 5076 psi
- Maximum Pressure - Swing
- 4496 psi
- Auxiliary System Maximum Flow: Log Loader - Heel/Grapple
- 45 L/min (12 gpm)
- Auxiliary System Maximum Pressure: Log Loader - Heel/Grapple
- 1499 psi
- Auxiliary System Maximum Flow: Log Loader - Power Clam
- Rotate: 121 L/min (32 gpm)
- Auxiliary System Maximum Pressure: Log Loader - Power Clam
- 1499 psi
Swing Mechanism
- Swing Torque - Log Loader
- 54000 ft路lbf
- Swing Speed - Log Loaders
- 11 r/min
- Swing Torque - General Forestry
- 54000 ft路lbf
- Swing Speed - General Forestry
- 11 r/min
Track
- Number of Track Rollers - Each Side
- 8
- Number of Carrier Rollers - Each Side
- 2

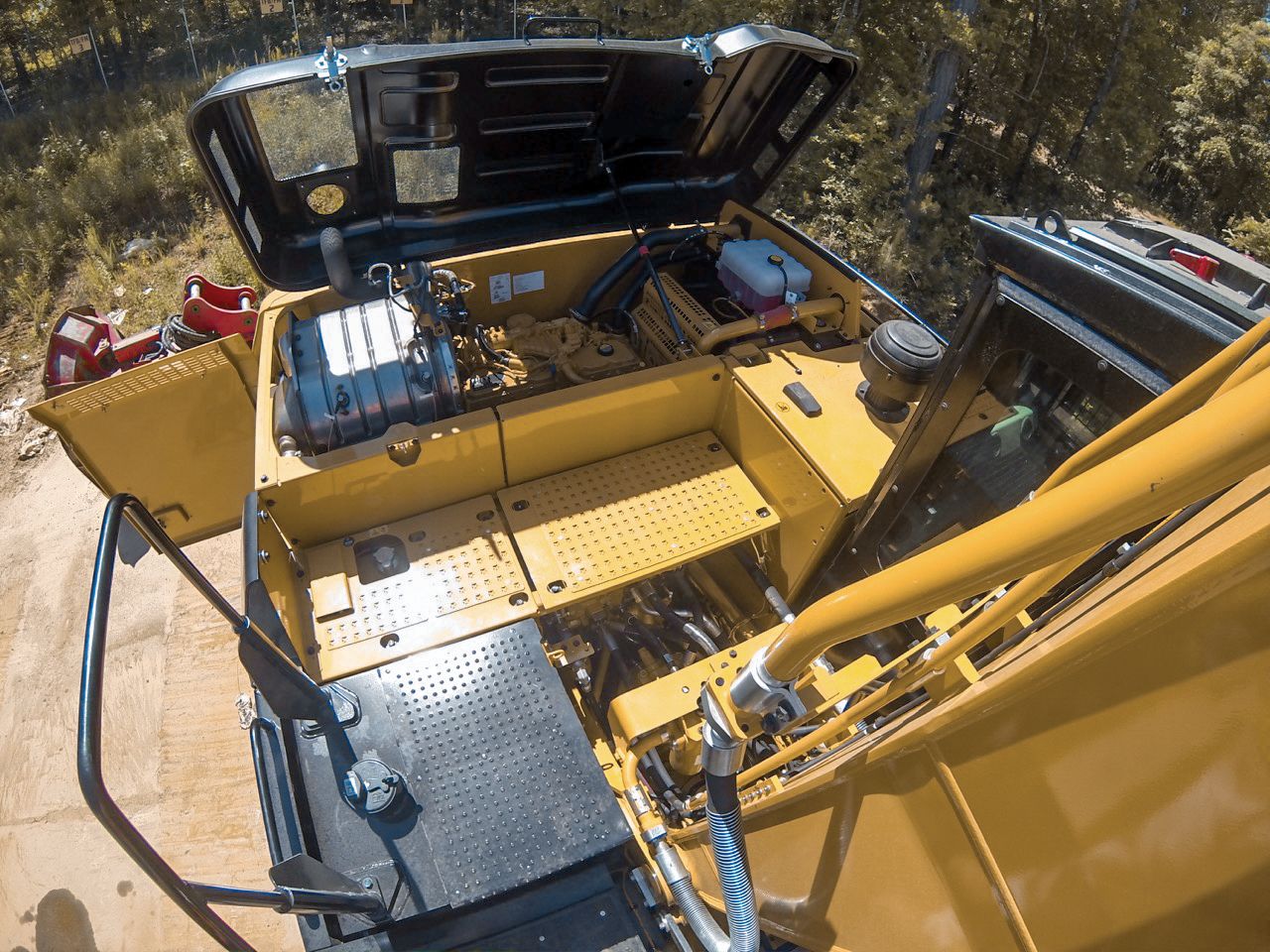

Service Refill Capacities
- Fuel Tank
- 108.3 gal (US)
- Cooling System
- 7.9 gal (US)
- Engine Oil
- 6.6 gal (US)
- Swing Drive
- 2.1 gal (US)
- Final Drive - Each
- 2.1 gal (US)
- Hydraulic System - Including Tank
- 42 gal (US)
- Hydraulic Tank
- 37.8 gal (US)
- DEF Tank
- 7.4 gal (US)
Operating Specifications
- Maximum Drawbar Pull
- 61148 lb
- Maximum Speed - Rabbit
- 2.7 mile/h
- Maximum Speed - Turtle
- 1.6 mile/h
Dimensions
- Log Loader Boom
- Log Loader Boom and Stick
- Shipping Height - Tilted Cab
- 179.4 in
- Length: Log Loader - Boom Stretched Out
- 530.9 in
- Length: Log Loader - Boom and Stick Retracted
- 379.6 in
- Note (1)
- Dimensions measured with Under/Under Heel, 1.2 m (48 in) cab riser
- General Forestry Boom
- 5.68 m (118.6 in)
- General Forestry - Drop Nose Stick
- 3.71 m (146 in)
- General Forestry Stick - Bucket Thumb-Ready
- 2.92 m (115 in)
- General Forestry - Bucket
- 1.4 m3 (1.8 yd3)
- Shipping Height - Fixed Riser
- 3901 mm
- Length: General Forestry - Boom Stretched Out
- 480 in
- Length: General Forestry - Boom and Stick Retracted
- 373.7 in
- Note (2)
- Dimensionss measured with Goose Neck Front, .48 m (18 in) cab riser
- Transport Width
- 137.4 in
- Note (3)
- 700 mm (28 in) Double Grouser track shoes
- Ground Clearance
- 26 in
- Tail Swing Radius
- 109.8 in
- Track Length
- 180.2 in
- Track Gauge
- 109.8 in
- Track Length to Center of Rollers
- 146.7 in
- Undercarriage Pitch
- 8 in
Working Ranges and Forces: Log Loader - Under/Under
- Max Reach at Grapple Mount on Heel at Ground Level - U/U
- 432 in
- Note (1)
- Cat GLL 52 Grapple installed
- Max Level Log Height - U/U
- 319 in
- Reach at Max Height - U/U
- 125 in
- Max Load - U/U
- 30793 lb

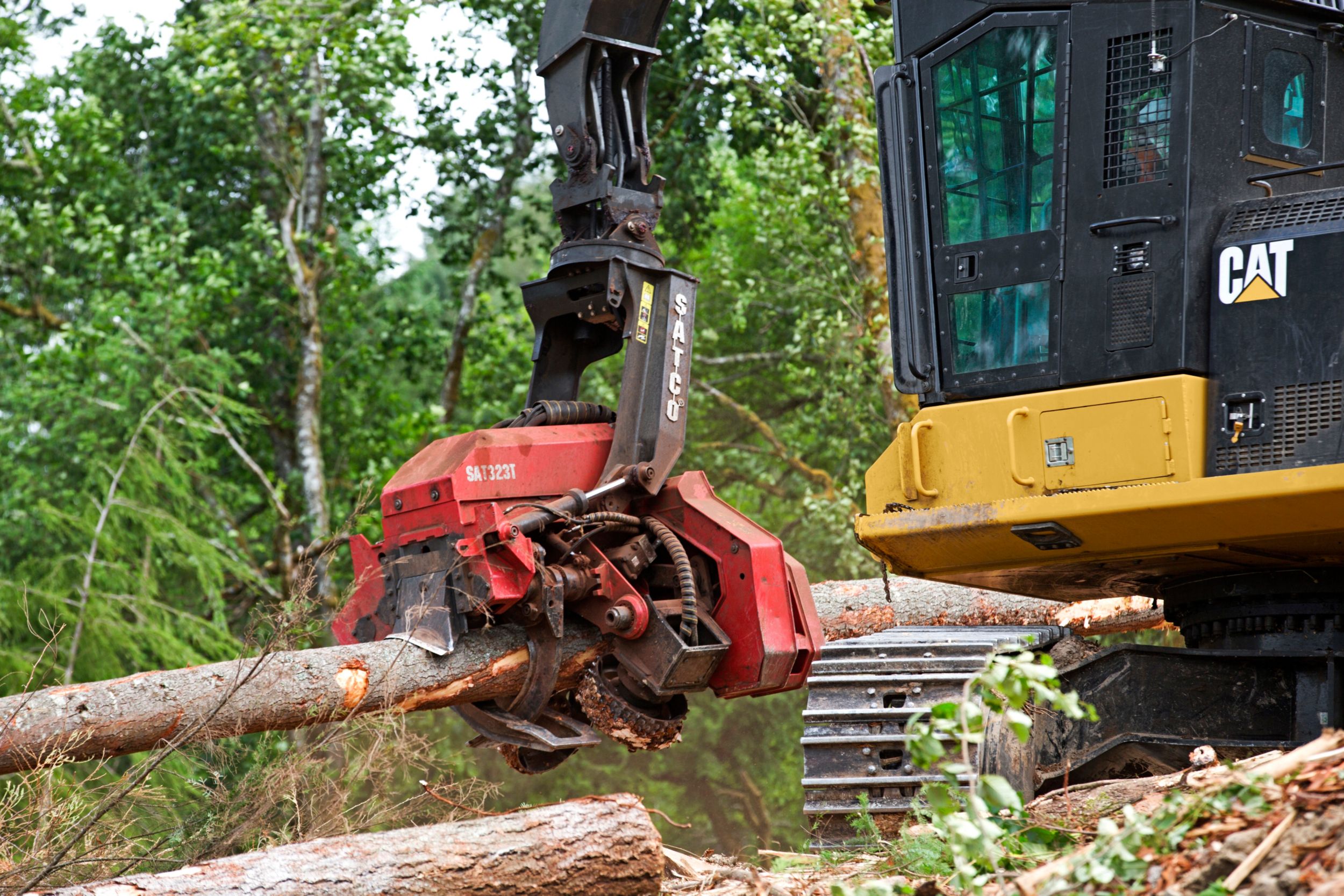

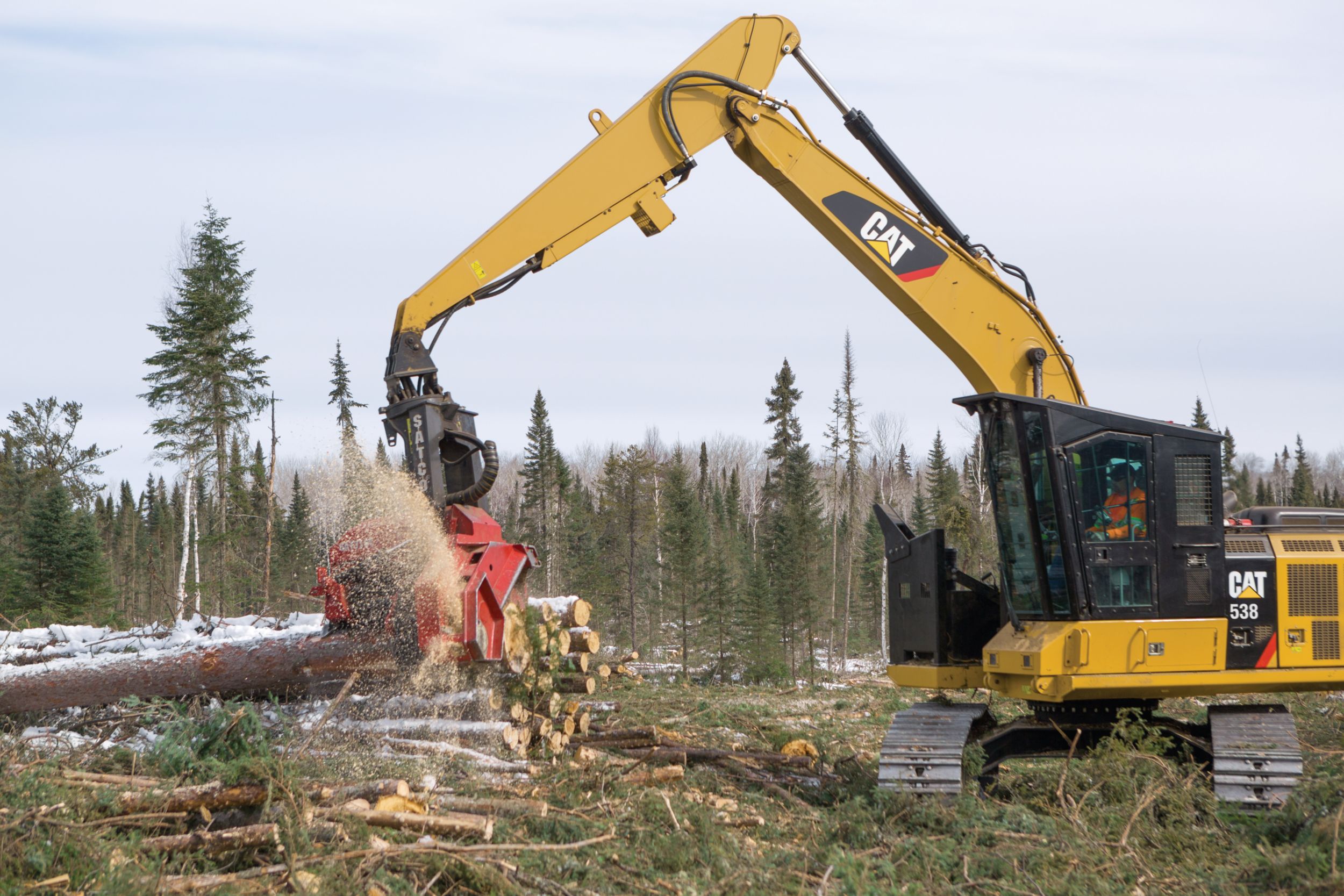

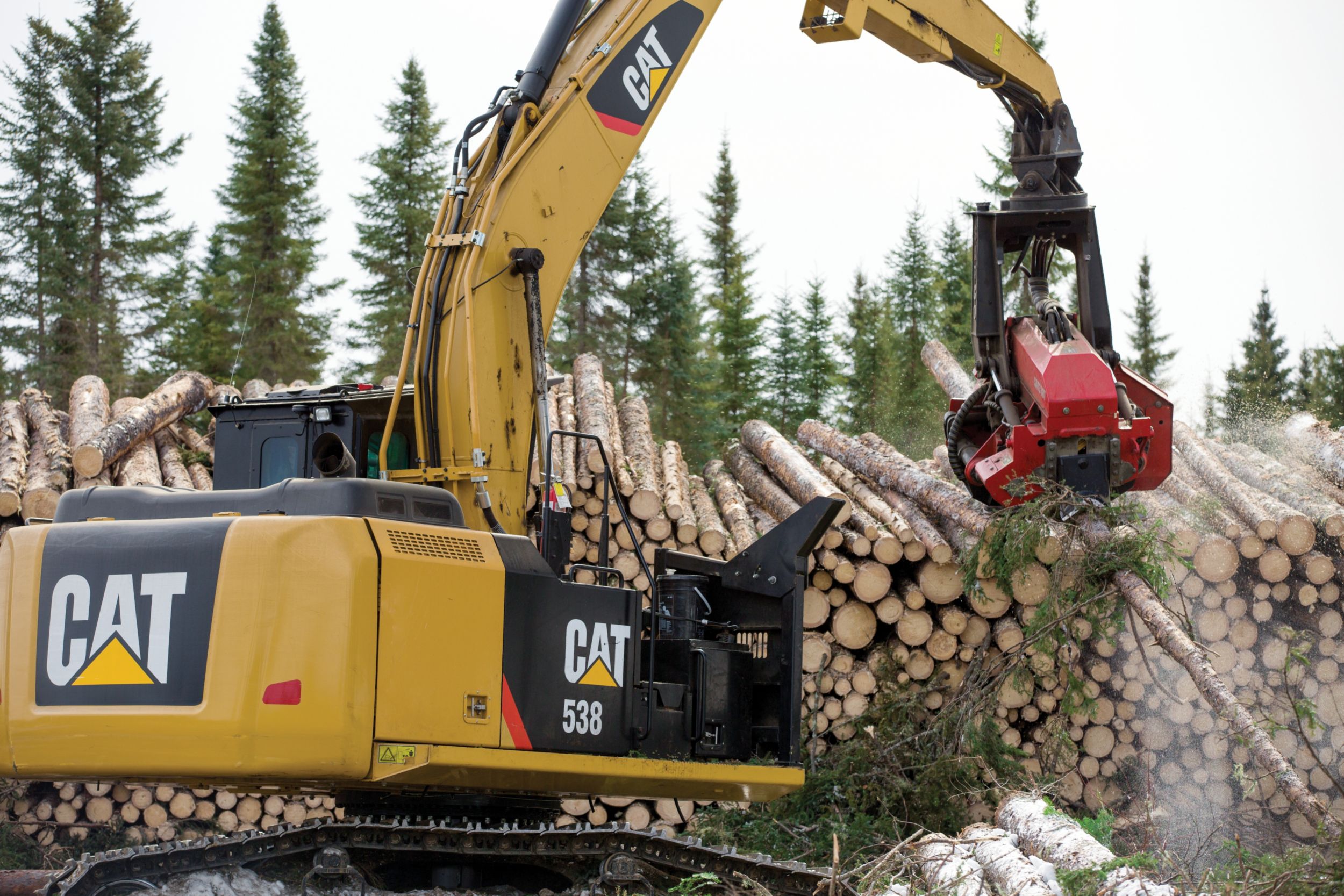

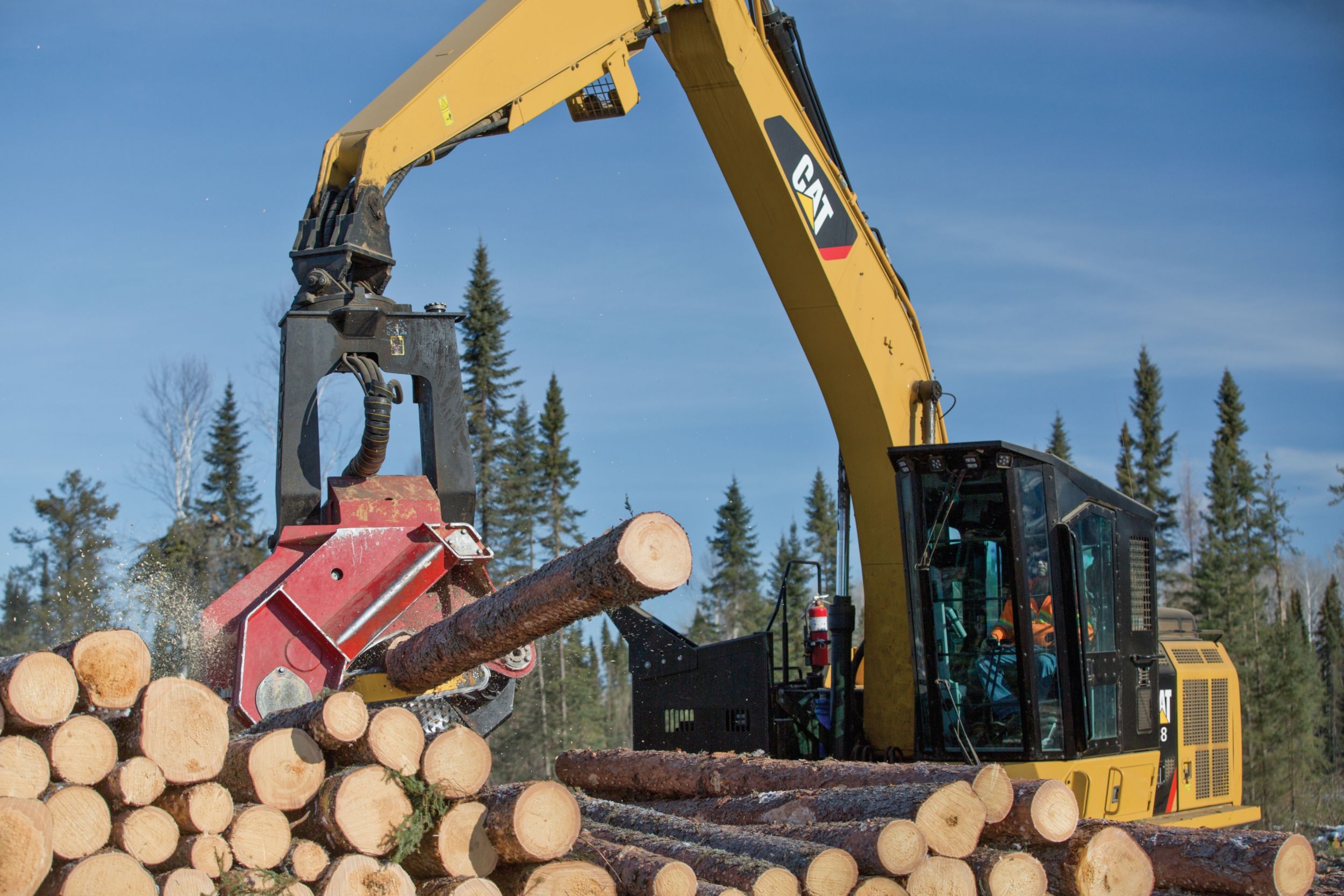

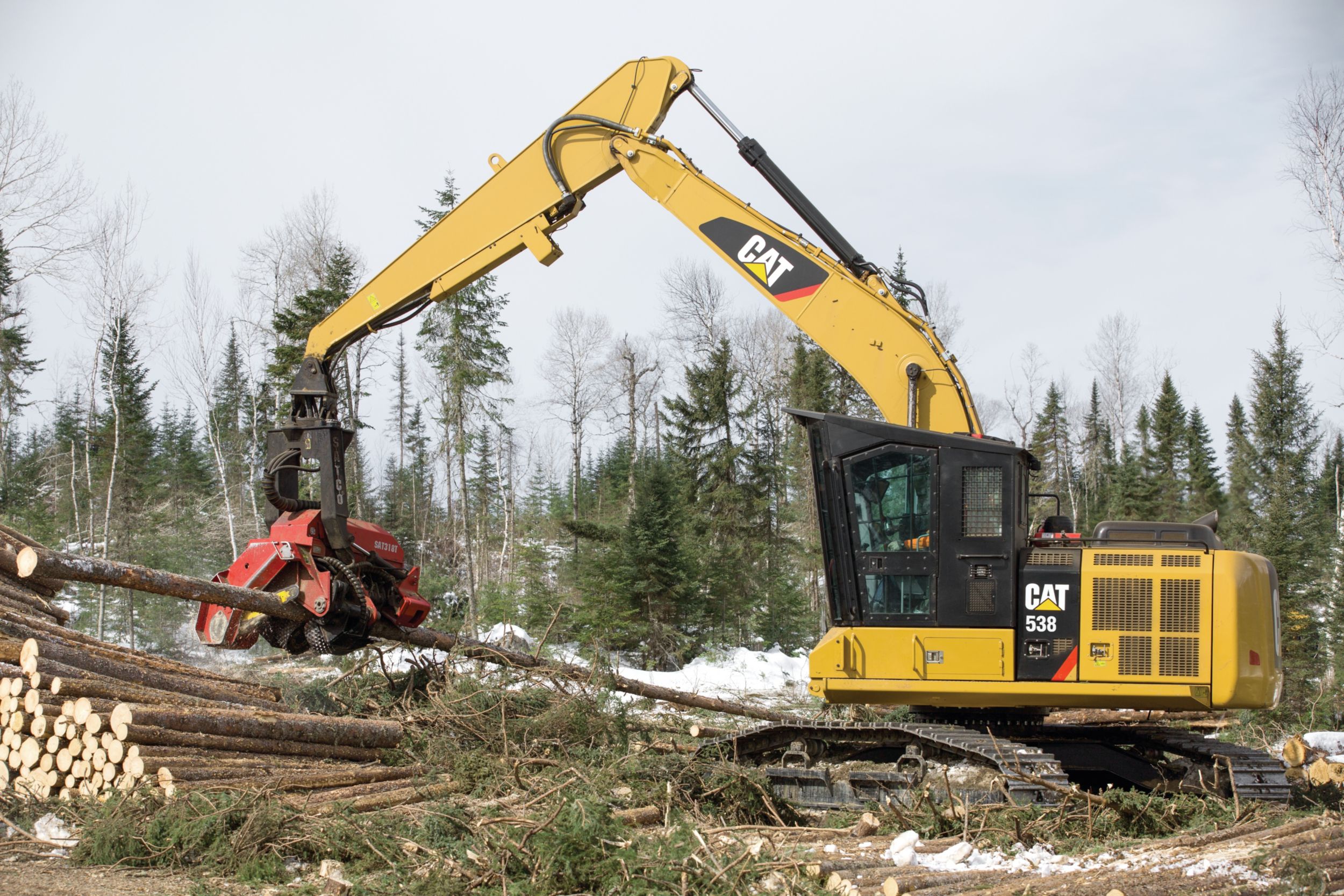

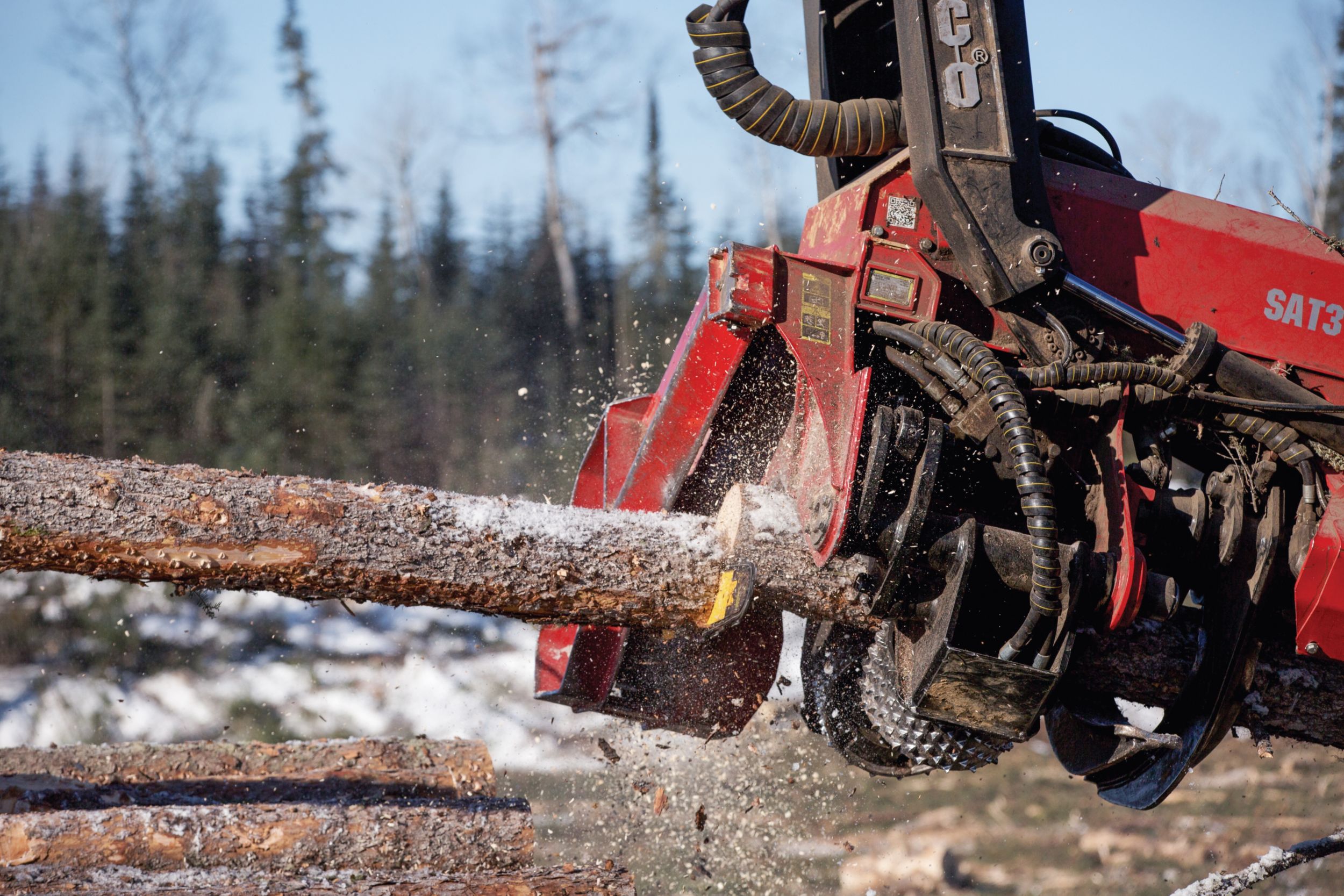

Working Ranges and Forces: General Forestry - Processor
- Note (1)
- Weights measured at stick nose (no processor installed) in maximum reach position
- Max Reach at Stick Nose at Ground Level
- 355 in
- Max Weight at Stick Nose in Max Reach Position
- 8465 kg
Working Ranges and Forces: General Forestry - Road Builder
- Bucket Type
- 1.4 m3 (1.8 yd3) General Duty bucket
- Boom
- 5.68 m (18 ft 7 in) Reach
- Stick
- 2.92 m (9 ft 7") Reach
