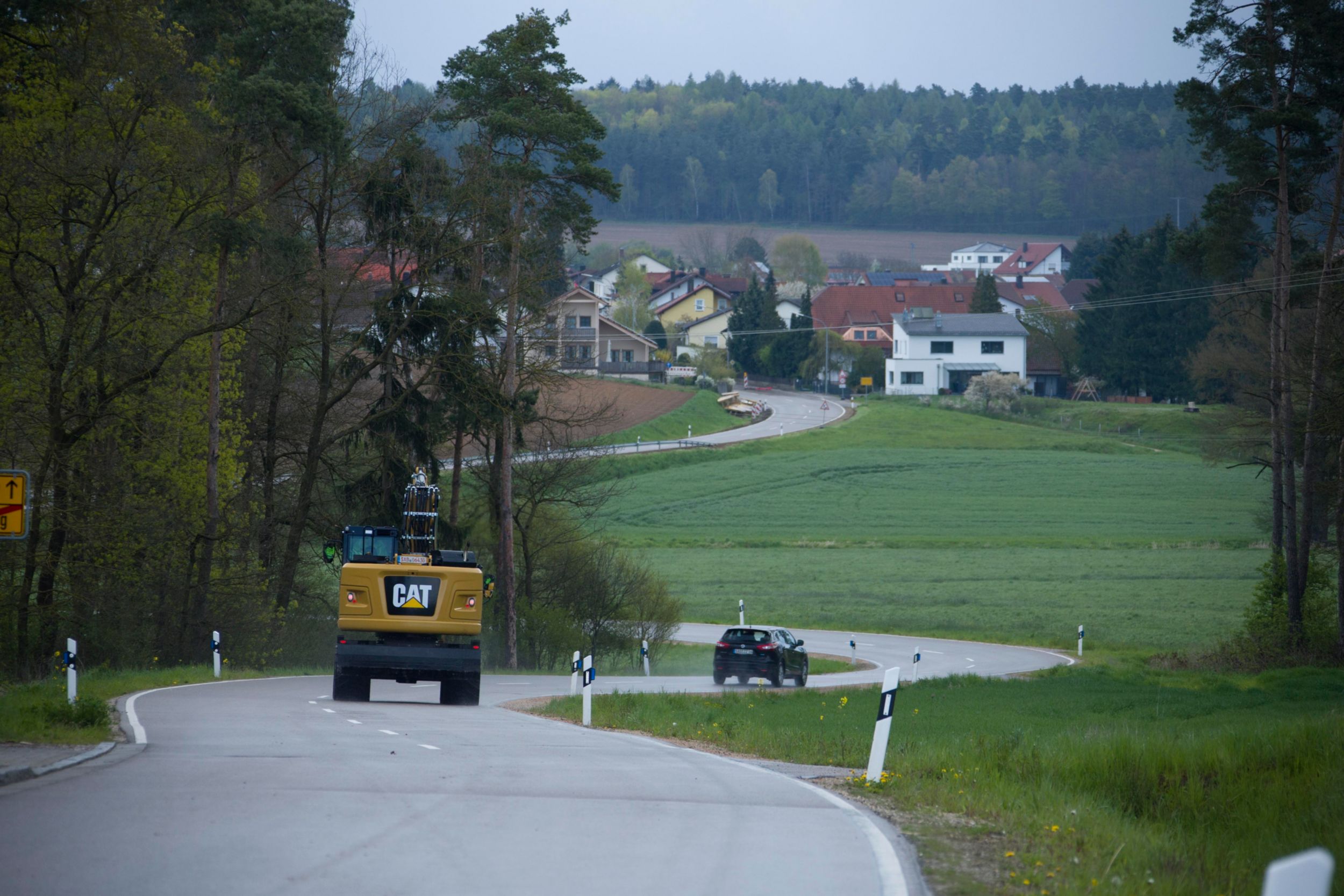

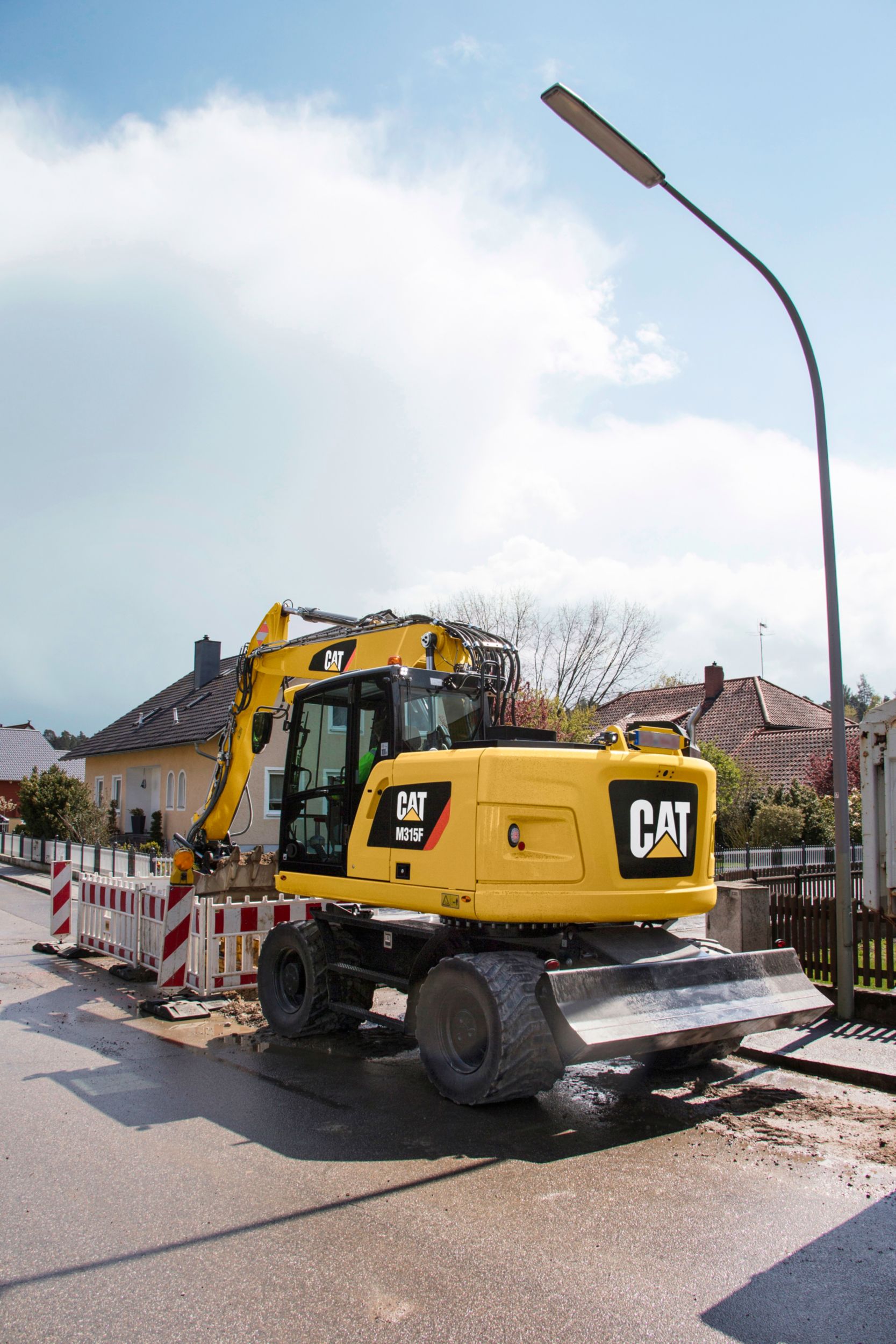

Exterior View
Product Specs
Engine
- Engine Model
- Cat C4.4 with Twin Turbo
- Net Power
- 150 hp
- Bore
- 4.1 in
- Stroke
- 5 in
- Displacement
- 268.5 in³
- Maximum Torque - 1,400 rpm
- 523 ft·lbf
- Emissions
- Meets Tier 4 Final/Stage IV emission standards.
- Engine Power - Maximum Gross - ISO 14396
- 117 kW (157 hp [159 hp]*)
- Engine Power - Maximum Net - ISO 9249/SAE J1349
- 112 kW (150 hp [152 hp]*)
- Note
- *Metric values.
- Number of Cylinders - In Line
- 4
- Ratings
- 1800 r/min
Drive
- Maximum Travel Speed
- 19 mile/h
Swing Mechanism
- Swing Speed
- 8.1 r/min
- Maximum Swing Torque
- 27289 ft·lbf
Transmission
- Drawbar Pull
- 23380 lbf
- Maximum Forward/Reverse - 2nd Gear
- 19 mile/h
- Maximum Gradeability (16 500 kg/36,380 lb)
- 78%
Weights
- Counterweight
- 8267 lb
- Operating Weight*
- 15 790 to 16 770 kg (34,811 to 36,972 lb)
- VA Boom - Front Radial Dozer, Rear Outriggers
- 36972 lb
- VA Boom - Rear Radial Dozer Only
- 34811 lb
- Note
- *Includes medium stick, counterweight, full fuel tank, operator, dual pneumatic tires. Weight varies depending on configuration.
Undercarriage
- Ground Clearance
- 14.6 in
Hydraulic System
- Maximum Flow - Implement/Travel Circuit
- 58 gal/min
- Maximum Flow - Swing Mechanism
- 18.5 gal/min
- Maximum Flow - Auxiliary Circuit - High Pressure
- 58 gal/min
- Maximum Flow - Auxiliary Circuit - Medium Pressure
- 12.7 gal/min
- Maximum Pressure - Implement Circuit - Normal and Travel Circuit
- 5076 psi
- Swing Mechanism
- 4786 psi
- System
- 64.7 gal (US)
- Maximum Pressure - Implement Circuit - Heavy Lift
- 5439 psi
- Maximum Pressure - Auxiliary Circuit - High Pressure
- 5076 psi
- Maximum Pressure - Auxiliary Circuit - Medium Pressure
- 2683 psi
Working Ranges
- Note
- Range values are calculated with GD bucket 1100 mm (43"), 0.68 m3 (0.89 yd3) with tips J250 and quick coupler with a tip radius of 1437 mm (56.6").
- VA Boom - 2300 mm (7'7") Stick Length: Digging Depth
- 17.92 ft
- VA Boom - 2300 mm (7'7") Stick Length: Digging Height
- 32.5 ft
- VA Boom - 2300 mm (7'7") Stick Length: Dump Height
- 23.08 ft
- VA Boom - 2300 mm (7'7") Stick Length: Reach at Ground Level
- 28.58 ft
- VA Boom - 2450 mm (8'0") Stick Length: Digging Depth
- 18.25 ft
- VA Boom - 2450 mm (8'0") Stick Length: Digging Height
- 32.08 ft
- VA Boom - 2450 mm (8'0") Stick Length: Dump Height
- 22.75 ft
- VA Boom - 2450 mm (8'0") Stick Length: Reach at Ground Level
- 28.67 ft
Service Refill Capacities
- Diesel Exhaust Fluid Tank
- 5 gal (US)
- Fuel Tank - Total Capacity
- 77.9 gal (US)
Swing Radius and Key Dimensions - Maximum Footprint with Outriggers Down
- Maximum Shipping Length - With Long Stick
- 26.75 ft
- Maximum Width - With Parallel Blade
- 8.33 ft
- Tail Swing Radius
- 5.75 ft
