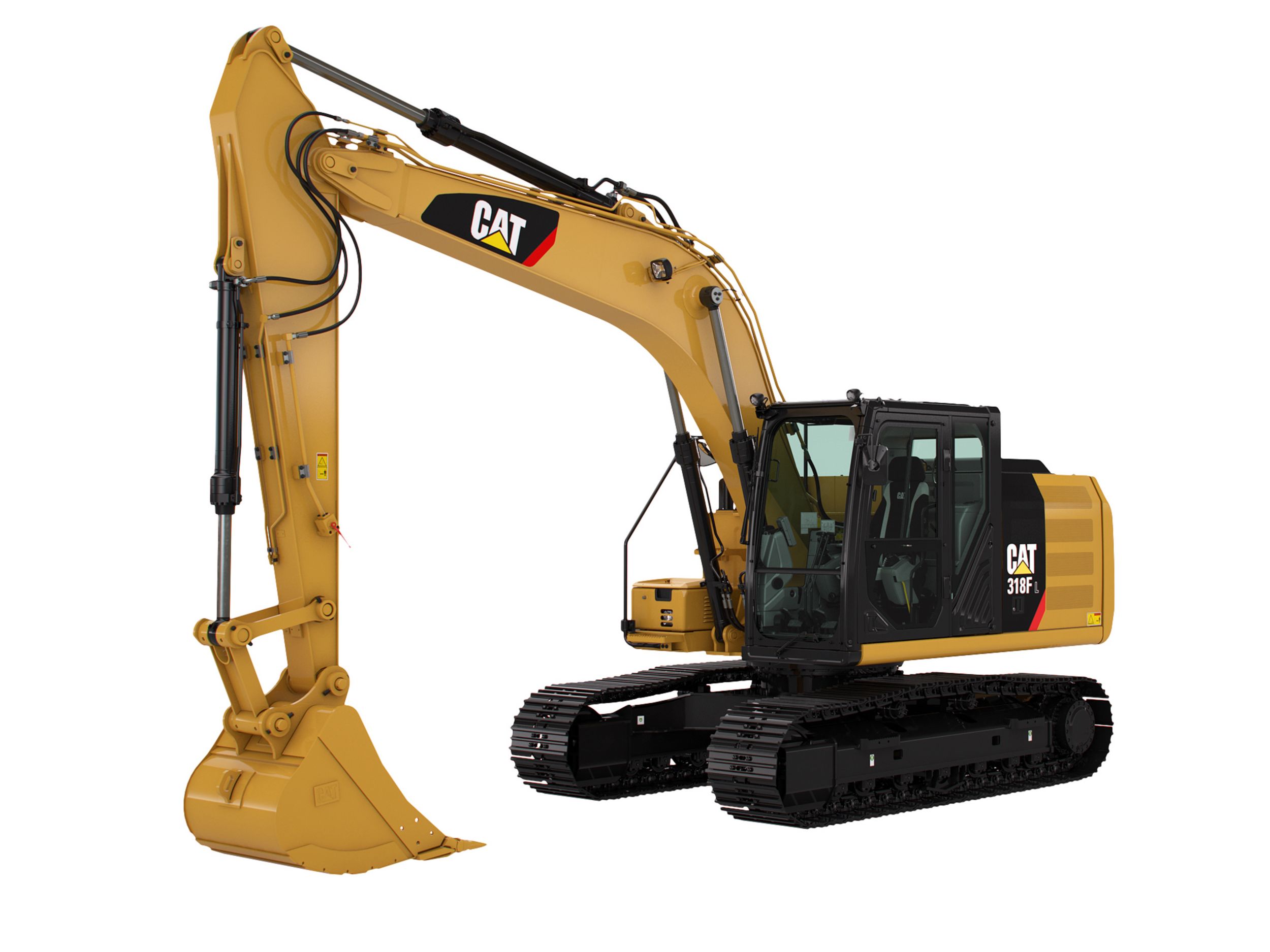

318F L Hydraulic Excavator

Engine

Engine Model

Cat C4.4 ACERT

Engine Model

Cat C4.4 ACERT

Flywheel Power

117 km

Flywheel Power

117 hp

Bore

4.13 in

Bore

4.13 in

Stroke

5 in

Stroke

5.00 in

Displacement

269 in³

Displacement

269 in3

Gross Power - SAE J1995

91 kW (122 hp/124 PS)

Gross Power – SAE J1995

91 kW (122 hp/124 PS)

Net Power - SAE J1349/ISO 9249

88 kW (117 hp/119 PS)

Net Power - ISO 14396

91 kW (122 hp/124 PS)

Net Power – ISO 14396

91 kW (122 hp/124 PS)

Weights

Operating Weight

42340 lb

Operating Weight

42340 lb

Drive

Maximum Drawbar Pull

46513 lbf

Maximum Drawbar Pull

46513 lbf

Maximum Travel Speed

2.4 mile/h

Maximum Travel Speed

2.4 mph

Service Refill Capacities

Cooling System

6.34 gal (US)

Cooling System

6.34 gal

Final Drive - Each

2.11 gal (US)

Final Drive (each)

2.11 gal

Hydraulic System - Including Tank

31.96 gal (US)

Hydraulic System (including tank)

31.96 gal

Hydraulic Tank

28 gal (US)

Hydraulic Tank

28.00 gal

Engine Oil - With Filter

3.57 gal (US)

Fuel Tank Capacity

76.61 gal (US)

Swing Drive

2.11 gal (US)

Engine Oil (with filter)

3.57 gal

Fuel Tank Capacity

76.61 gal

Swing Drive

2.11 gal

DEF Tank Capacity

11.62 gal (US)

DEF Tank Capacity

11.62 gal

Machine Weight

Maximum Operating Weight

42340 lb

Minimum Operating Weight

41010 lb

Hydraulic System

Main System - Maximum Flow - Total

79 gal/min

Maximum Pressure - Equipment

5076 psi

Maximum Pressure - Swing

3336 psi

Maximum Pressure - Travel

5076 psi

Pilot System - Maximum Flow

1593 in³/min

Pilot System - Maximum Pressure

598 psi

Maximum Pressure – Travel

5076 psi

Maximum Pressure – Swing

3336 psi

Pilot System – Maximum Pressure

598 psi

Main System – Maximum Flow (Total)

79 gal/min

Maximum Pressure – Equipment

5076 psi

Pilot System – Maximum Flow

1593 in3/min

Machine Weights

Minimum Operating Weight

41010 lb

Maximum Operating Weight

42340 lb

Sound Performance

ISO 6395 - Exterior Sound Power Level

102 dB(A)

ISO 6396 - Operator Sound Pressure Level

71 dB(A)

ISO 6396 – Operator Sound Pressure Level

71 dB(A)

ISO 6395 – Exterior Sound Power Level

102 dB(A)

Bucket & Stick Forces* - Reach Boom - 5.1 m (16'9"); R2.6 m (8'6") Stick; General Duty Bucket

Bucket Digging Force - ISO

27700 lbf

Bucket Digging Force - SAE

24400 lbf

Note

*With a 0.91 m3 (1.19 yd3), 1050 mm (41") GD bucket.

Stick Digging Force - ISO

19300 lbf

Stick Digging Force - SAE

16700 lbf

Swing

Swing Torque

37394 lb/ft

Swing Speed

8.9 r/min

Dimensions* - Reach Boom - 5.1 m (16'9"); R2.6 m (8'6") Stick

Cab Height

9.5 ft

Cab Height - With Top Guard

10.17 ft

Counterweight Clearance

3.33 ft

Ground Clearance

1.42 ft

Length - Center of Rollers

10.75 ft

Note

*With a 0.91 m3 (1.19 yd3), 1050 mm (41") GD bucket.

Shipping Height

10.17 ft

Shipping Length

28.17 ft

Tail Swing Radius

8.17 ft

Track Gauge

6.5 ft

Track Length

13.33 ft

Transport Width - 700 mm (28 in) Shoes

8.83 ft

Working Ranges* - Reach Boom - 5.1 m (16'9"); R2.6 m (8'6") Stick

Maximum Cutting Height

29.33 ft

Maximum Depth Cut for 2440 mm (8'0") Level Bottom

19.25 ft

Maximum Digging Depth

20 ft

Maximum Loading Height

20.58 ft

Maximum Reach - Ground Level

28.83 ft

Maximum Vertical Wall Digging Depth

16.17 ft

Minimum Loading Height

7.58 ft

Note

*With a 0.91 m3 (1.19 yd3), 1050 mm (41") GD bucket.

Dimensions*: Reach Boom – 5.1 m (16'9"); R2.6 m (8'6") Stick

Shipping Height

10.17 ft

Shipping Length

28.17 ft

Tail Swing Radius

8.17 ft

Length to Center of Rollers

10.75 ft

Track Length

13.33 ft

Ground Clearance

1.42 ft

Track Gauge

6.50 ft

Transport Width – 700 mm (28") Shoes

8.83 ft

Cab Height

9.50 ft

Cab Height with Top Guard

10.17 ft

Counterweight Clearance

3.33 ft

Note

*With a 0.91 m3 (1.19 yd3), 1050 mm (41") GD bucket.

Working Ranges*: Reach Boom – 5.1 m (16'9"); R2.6 m (8'6") Stick

Maximum Digging Depth

20.00 ft

Maximum Reach at Ground Level

28.83 ft

Maximum Cutting Height

29.33 ft

Maximum Loading Height

20.58 ft

Minimum Loading Height

7.58 ft

Maximum Depth Cut for 2440 mm (8'0") Level Bottom

19.25 ft

Maximum Vertical Wall Digging Depth

16.17 ft

Note

*With a 0.91 m3 (1.19 yd3), 1050 mm (41") GD bucket.

Bucket & Stick Forces*: Reach Boom – 5.1 m (16'9"); R2.6 m (8'6") Stick; General Duty Bucket

Bucket Digging Force (SAE)

24400 lbf

Bucket Digging Force (ISO)

27700 lbf

Stick Digging Force (SAE)

16700 lbf

Stick Digging Force (ISO)

19300 lbf

Note

*With a 0.91 m3 (1.19 yd3), 1050 mm (41") GD bucket.
