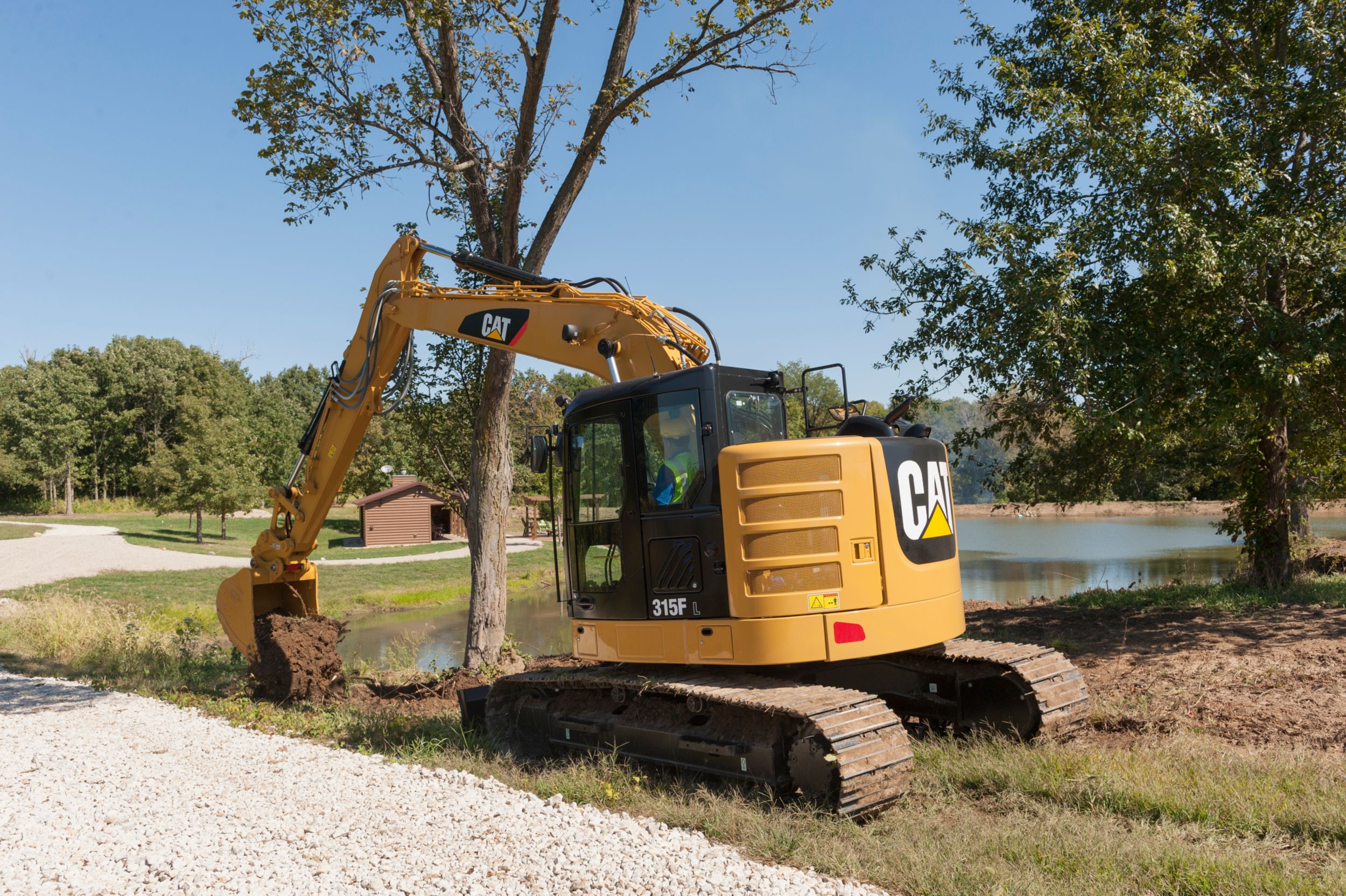

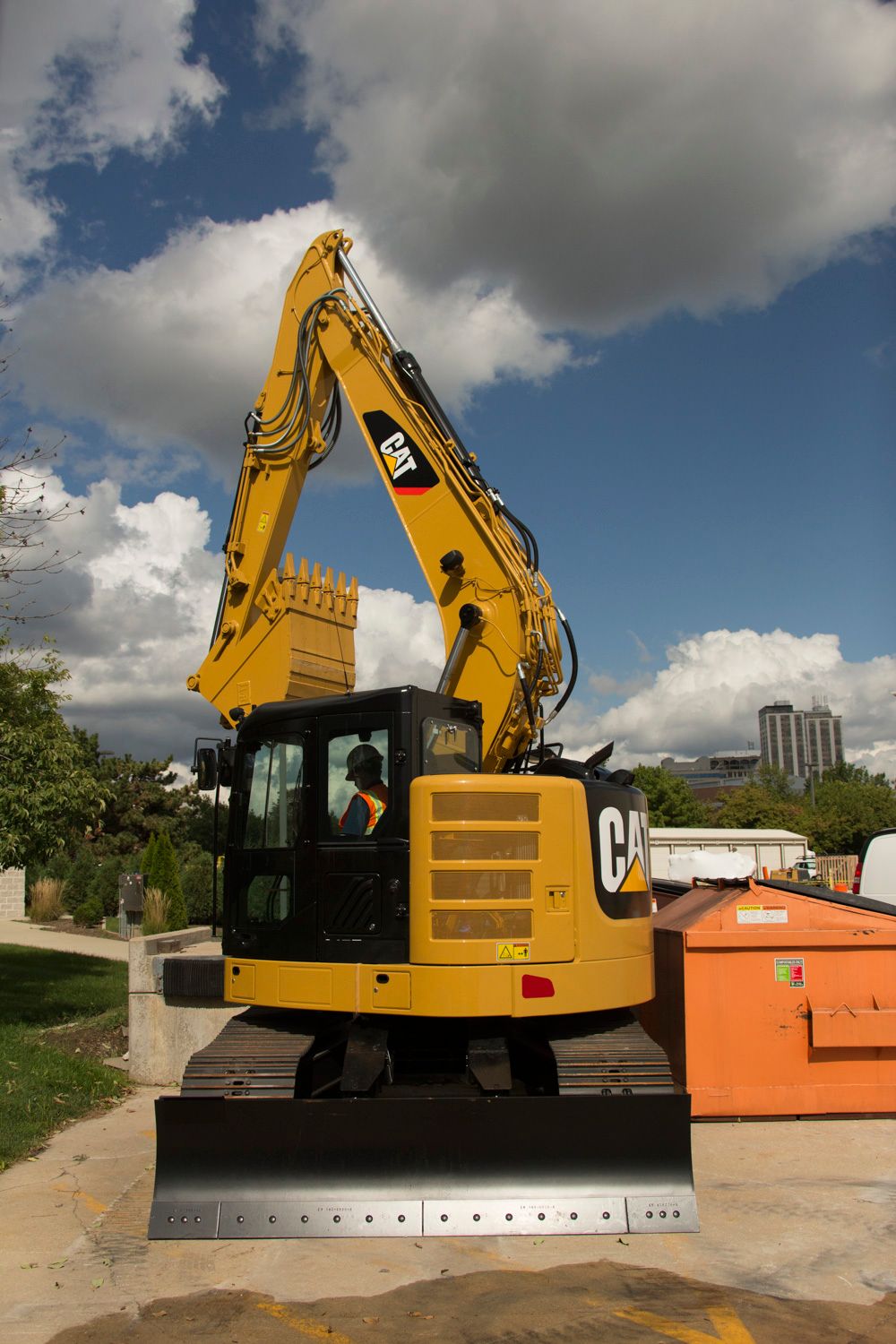

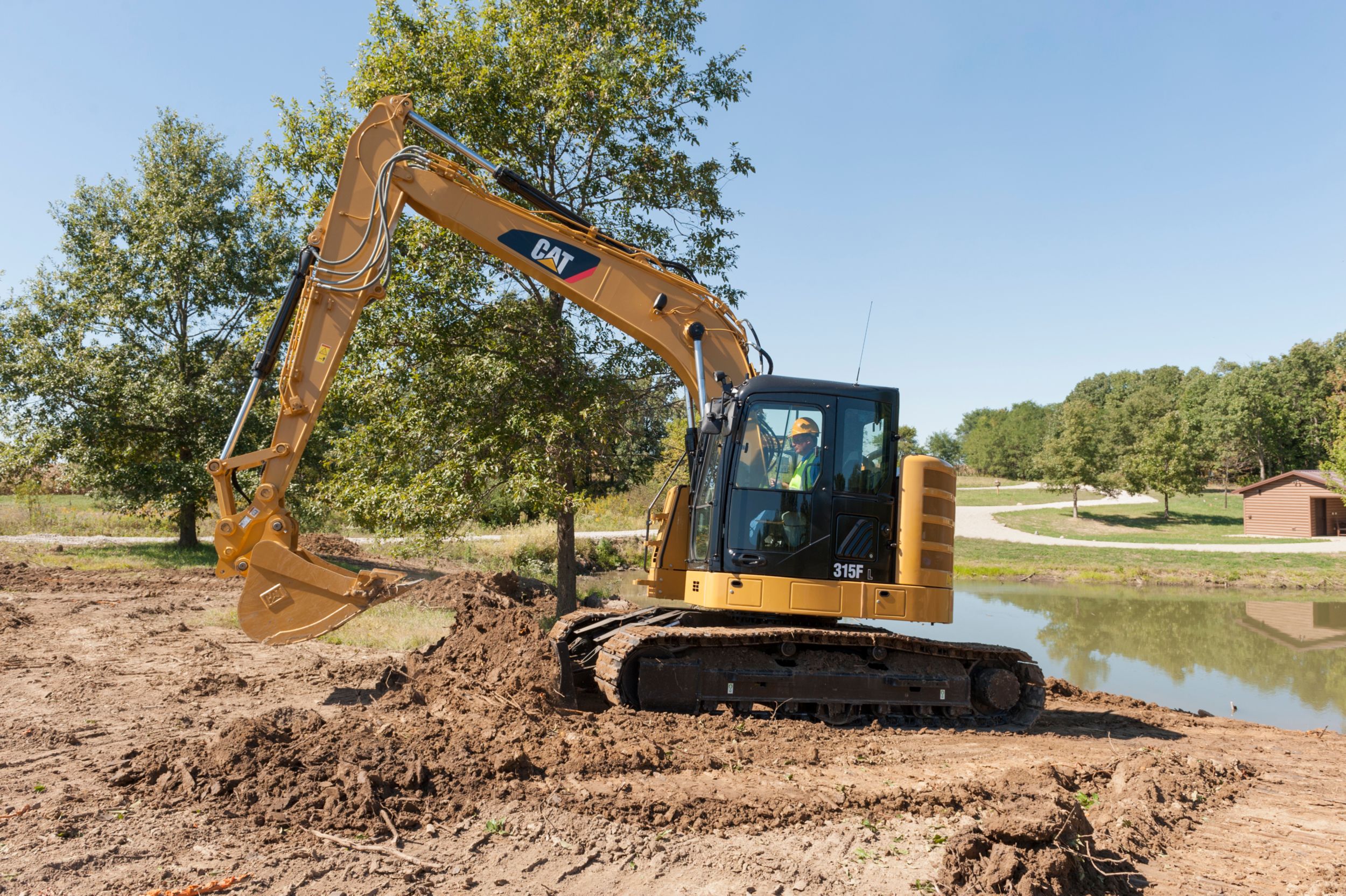

Exterior View
Product Specs
Engine
- Net Power - ISO 9249
- 97 hp
- Engine Model
- C4.4
- Engine Power - ISO 14396:2002
- 100 hp
- Bore
- 4.1 in
- Stroke
- 5 in
- Displacement
- 270 in³
Weights
- Operating Weight
- 37794 lb
Working Ranges & Forces
- Maximum Digging Depth
- 19.5 ft
- Boom
- Reach 4.65 m (15'3")
- Stick
- R3.0 m (9'10")
- Bucket
- GD 0.53 m³ (0.69 yd³)
- Maximum Reach at Ground Level
- 28.5 ft
- Maximum Cutting Height
- 31.67 ft
- Maximum Loading Height
- 23.58 ft
- Minimum Loading Height
- 6.75 ft
- Maximum Depth Cut for 2440 mm (8 ft) Level Bottom
- 18.92 ft
- Maximum Vertical Wall Digging Depth
- 17.33 ft
- Bucket Digging Force - ISO
- 21420 lbf
- Stick Digging Force - ISO
- 13130 lbf
Hydraulic System
- Main System - Maximum Flow
- 256 l/min (67 gal/min)
- Maximum Pressure - Equipment
- 4420 psi
- Maximum Pressure - Swing
- 3340 psi
- Maximum Pressure - Travel
- 5080 psi
Swing Mechanism
- Swing Speed
- 11 r/min
- Maximum Swing Torque
- 22790 ft·lbf
Service Refill Capacities
- Fuel Tank Capacity
- 47 gal (US)
- Cooling System
- 7.4 gal (US)
- Engine Oil
- 3.6 gal (US)
- Swing Drive
- 0.6 gal (US)
- Final Drive - Each
- 0.8 gal (US)
- Hydraulic System - Including Tank
- 42.3 gal (US)
- Hydraulic Tank
- 22.2 gal (US)
- DEF Tank
- 5 gal (US)
Dimensions
- Boom
- Reach 4.65 m (15'3")
- Stick
- R3.0 m (9'10")
- Bucket
- GD 0.53 m³ (0.69 yd³)
- Shipping Height - Top of Cab
- 9.83 ft
- Shipping Length
- 24.4 ft
- Shipping Length - with Blade
- 26.25 ft
- Tail Swing Radius
- 5 ft
- Counterweight Clearance
- 2.83 ft
- Ground Clearance
- 1.42 ft
- Track Length
- 12.33 ft
- Length to Center of Rollers
- 10 ft
- Track Gauge
- 6.5 ft
- Transport Width
- 8.8 ft
Standard Equipment
-
- Note
-
- Standard and optional equipment may vary. Consult your Cat dealer for details.
-
- Cab
-
- ROPS, standard sound suppression
- Adjustable seat, armrest, and console
- Color LCD display
- Auto climate control
- AM/FM Radio
- Travel control pedals with removable hand levers
-
- Cat Connect Technology
-
- Cat Product Link
-
- Electrical System
-
- 12V, 5A power supply
- Time delay function for boom and cab light
-
- Engine
-
- C4.4 Tier 4 Final, EU Stage IV diesel engine
- Biodiesel capable up to B20
- 2,300 m (7,500 ft.) altitude capability
- Electric priming pump
- Auto engine speed control
- Side-by-side cooling system
- -18°C (0°F) cold start capability
- Block heater capability
-
- Hydraulic System
-
- Boom and stick regeneration circuit
- Auto swing brake
- High-performance hydraulic return filter
-
- Safety And Security
-
- One key security system
- Door and cap locks
- Lockable external tool/storage box
- Signaling/warning horn
- Travel alarm
- Secondary engine shutoff switch
- Emergency boom down
- Openable skylight as emergency exit
- Rearview camera
- Mirrors, rearview (frame - right)
-
- Undercarriage And Structures
-
- 3.56 mt (7,850 lbs) counterweight
- Towing eye for diagonal lashing on base frame
- Grease lubricated track (GLT) with resin seal
- Center track guiding guard
Attachments
-
- Note
-
- Standard and optional equipment may vary. Consult your Cat dealer for details.
-
- Boom And Sticks
-
- 4.65m (15'3") reach boom
- Variable angle boom
- Power offset Boom for 2.13m (7') stick
- R3.0 m (9'10") stick
- R2.8 m (9'2") stick
- R2.5 m (8'2") stick
- 2.13m (7') stick
- R2.1 m (6'11") stick
-
- Cat Connect Technology
-
- Cat Grade Control - Depth and Slope
-
- Electrical System
-
- Right-side boom light
- Premium surround lighting package
-
- Engine
-
- -25°C (-13°F) cold start capability
- Engine idle shutdown function
-
- Hydraulic System
-
- Fine swing control
- Auxiliary hydraulics
- Quick coupler line
- Boom lowering control device
- Stick lowering check device
- Two-way control pattern changer
- Medium-pressure line
- High-pressure line
-
- Safety And Security
-
- Bolt-on FOGS
-
- Undercarriage And Structures
-
- 500 mm (20 in) triple grouser shoes
- 600 mm (24 in) triple grouser shoes
- 700 mm (28 in) triple grouser shoes
- Rubber pad for 500 mm (20in) triple grouser shoes
- 2500 mm (8'2") blade with replaceable cutting edge with lever control
- 2600 mm (8'6") blade with replaceable cutting edge with lever control
- 2700 mm (8'10") blade with replaceable cutting edge with lever control
