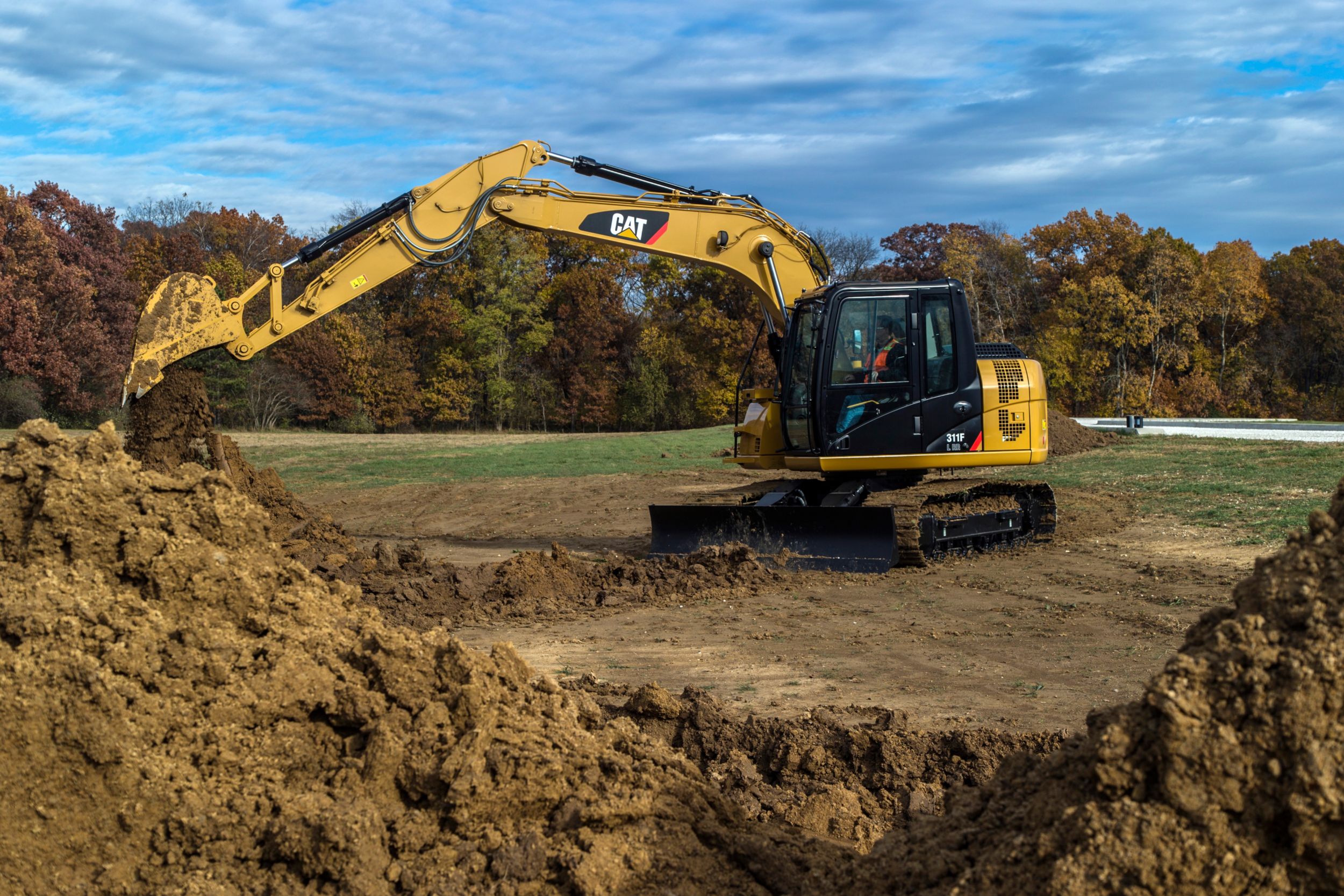

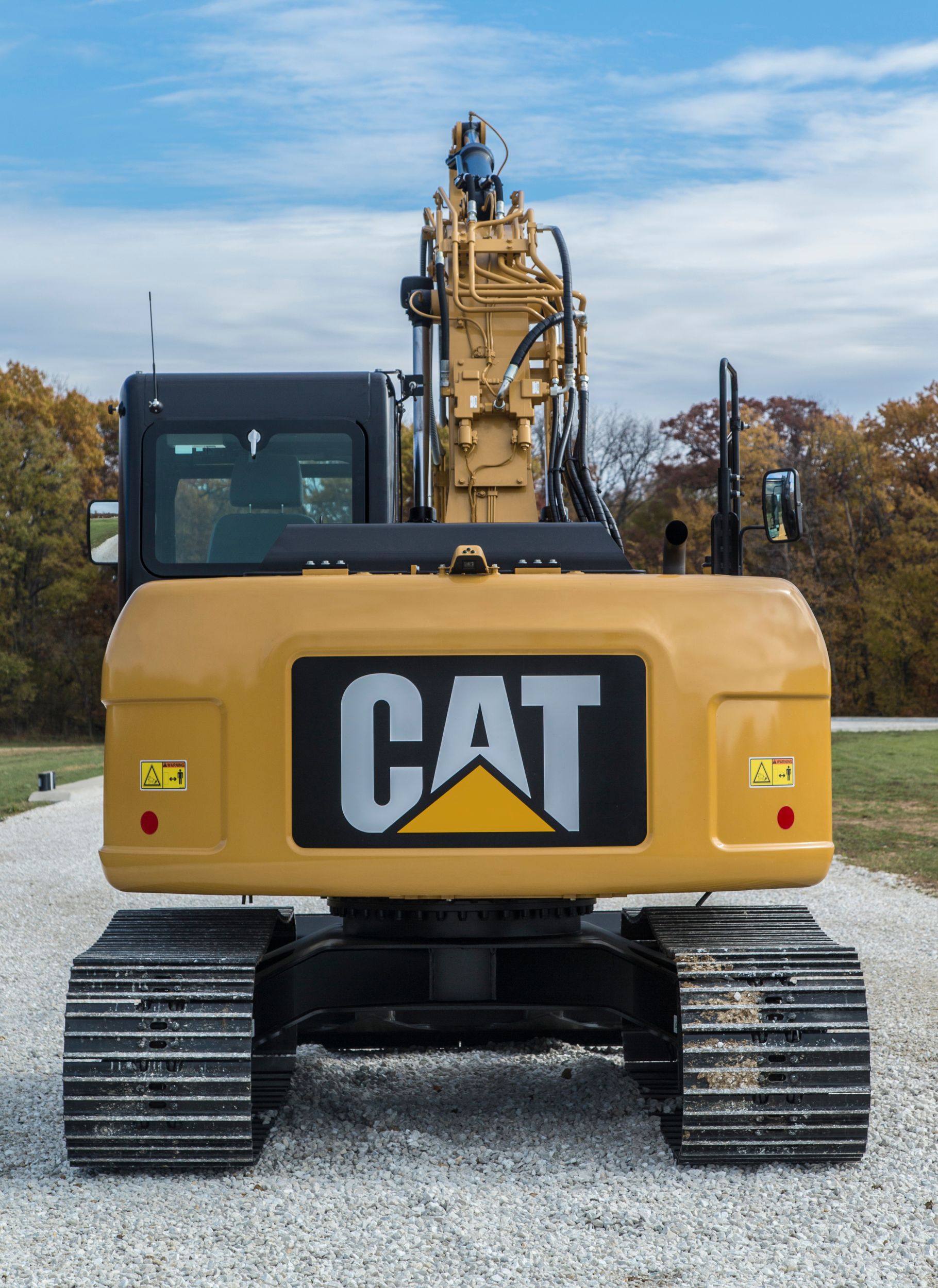

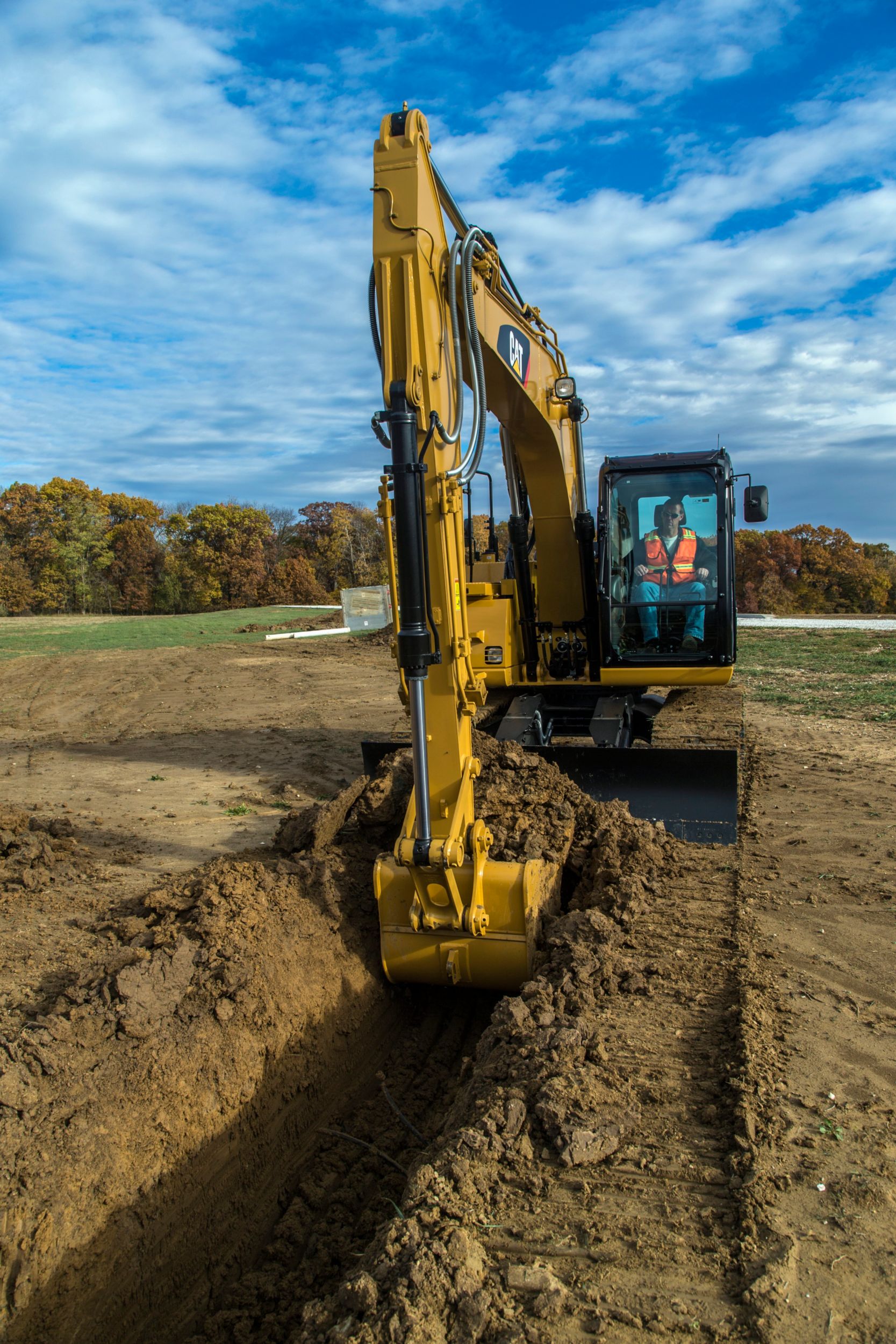

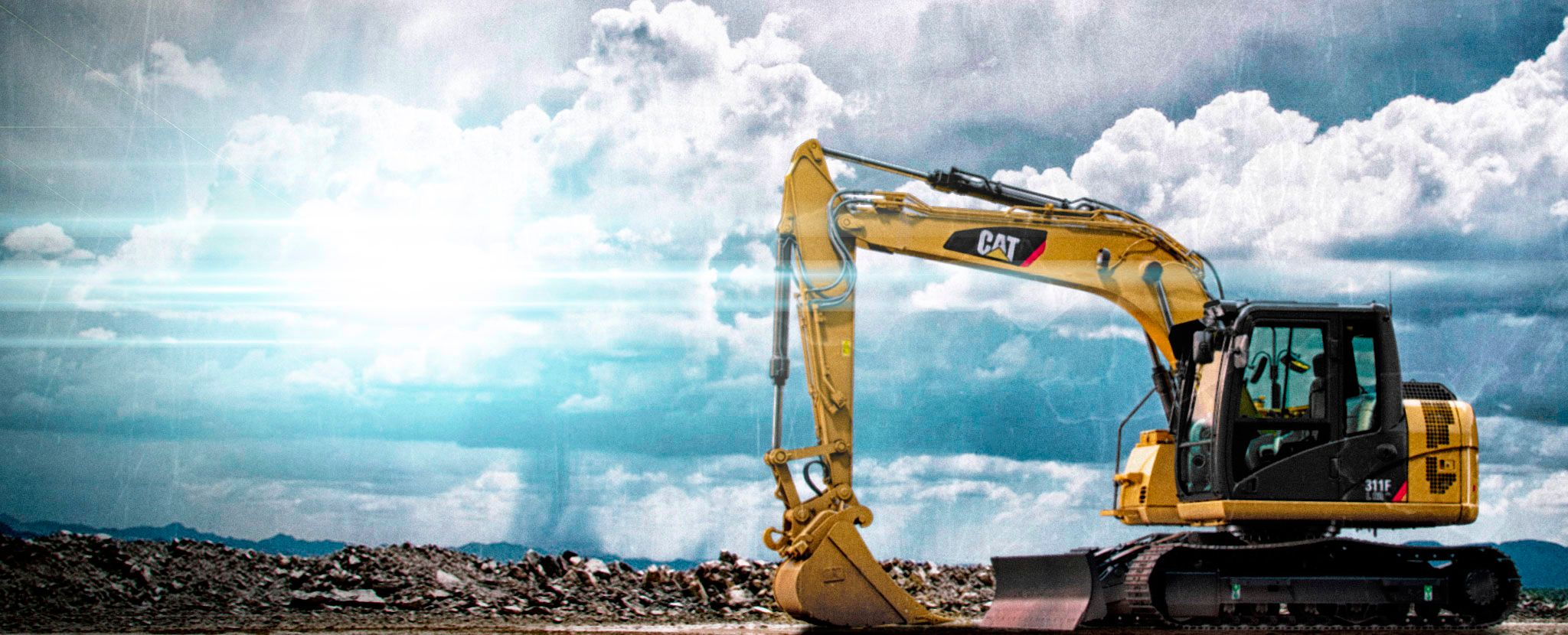

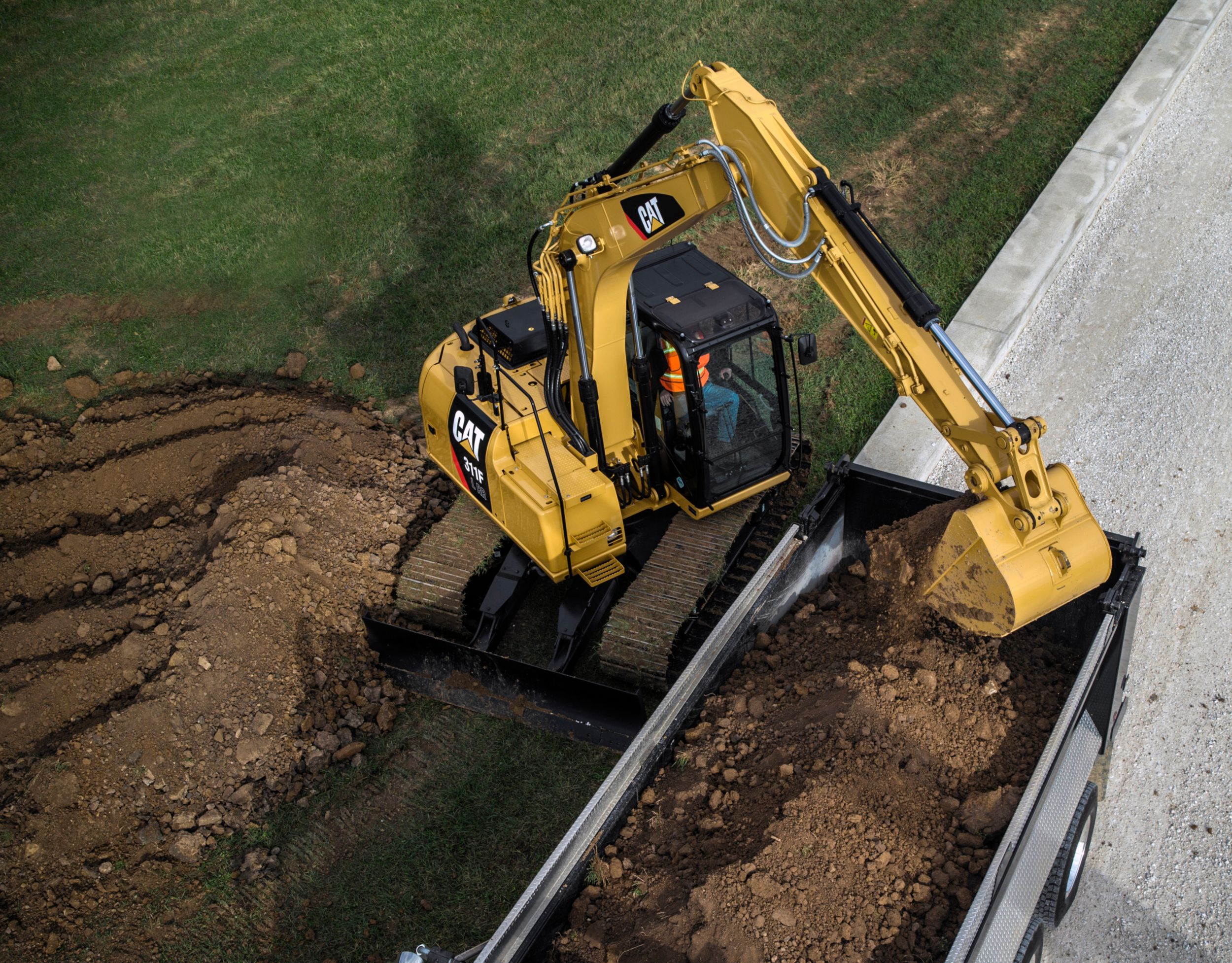

Exterior View
Product Specs
Engine
- Net Power - ISO 9249
- 71 hp
- Engine Model
- C3.4B
- Engine Power - ISO 14396:2002
- 74 hp
- Bore
- 3.9 in
- Stroke
- 4.33 in
- Displacement
- 207 in³
Weights
- Operating Weight
- 28660 lb
Working Ranges
- Maximum Digging Depth
- 18.33 ft
- Boom
- 4.3 m (14'1" ft)
- Stick
- R2.8 m (9'2")
- Bucket
- GD 0.53 m3 (0.69 yd3)
- Maximum Reach at Ground Level
- 26.58 ft
- Maximum Cutting Height
- 26.67 ft
- Maximum Loading Height
- 18.92 ft
- Minimum Loading Height
- 4.33 ft
- Maximum Vertical Wall Digging Depth
- 16 ft
- Bucket Digging Force (ISO)
- 20007 lbf
- Stick Digging Force (ISO)
- 11690 lbf
Hydraulic System
- Main System - Maximum Flow
- 125 × 2 L/min (33 × 2 gal/min)
- Maximum Pressure - Equipment
- 4424 psi
- Maximum Pressure - Swing
- 3336 psi
- Maximum Pressure - Travel
- 5076 psi
Swing Mechanism
- Swing Speed
- 10 r/min
- Maximum Swing Torque
- 22791 ft·lbf
Service Refill Capacities
- Fuel Tank Capacity
- 55.48 gal (US)
- Cooling System
- 2.4 gal (US)
- Engine Oil
- 2.1 gal (US)
- Swing Drive
- 0.63 gal (US)
- Final Drive - Each
- 0.79 gal (US)
- Hydraulic System - Including Tank
- 42.3 gal (US)
- Hydraulic Tank
- 25.1 gal (US)
Dimensions
- Boom
- 4.3 m (14'1" ft)
- Stick
- R2.8 m (9'2")
- Bucket
- GD 0.53 m3 (0.69 yd3)
- Shipping Height - Top of Cab
- 9.08 ft
- Handrail Height
- 9.25 ft
- Shipping Length
- 22.67 ft
- Shipping Length - with Blade
- 24.67 ft
- Tail Swing Radius
- 5.75 ft
- Counterweight Clearance
- 3 ft
- Ground Clearance
- 1.42 ft
- Track Length
- 11.42 ft
- Length to Center of Rollers
- 9.08 ft
- Track Gauge
- 6.5 ft
- Transport Width
- 8.75 ft
