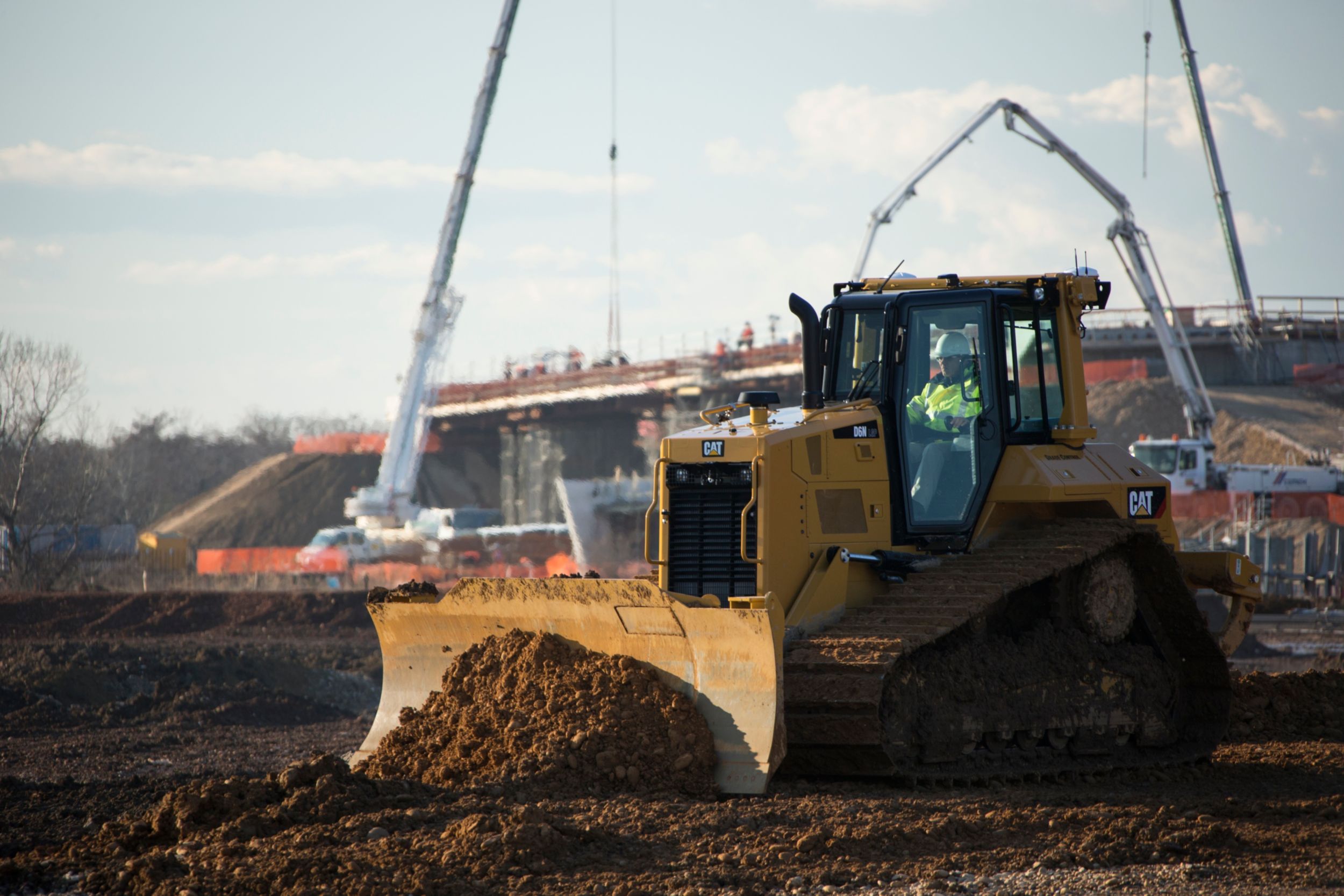

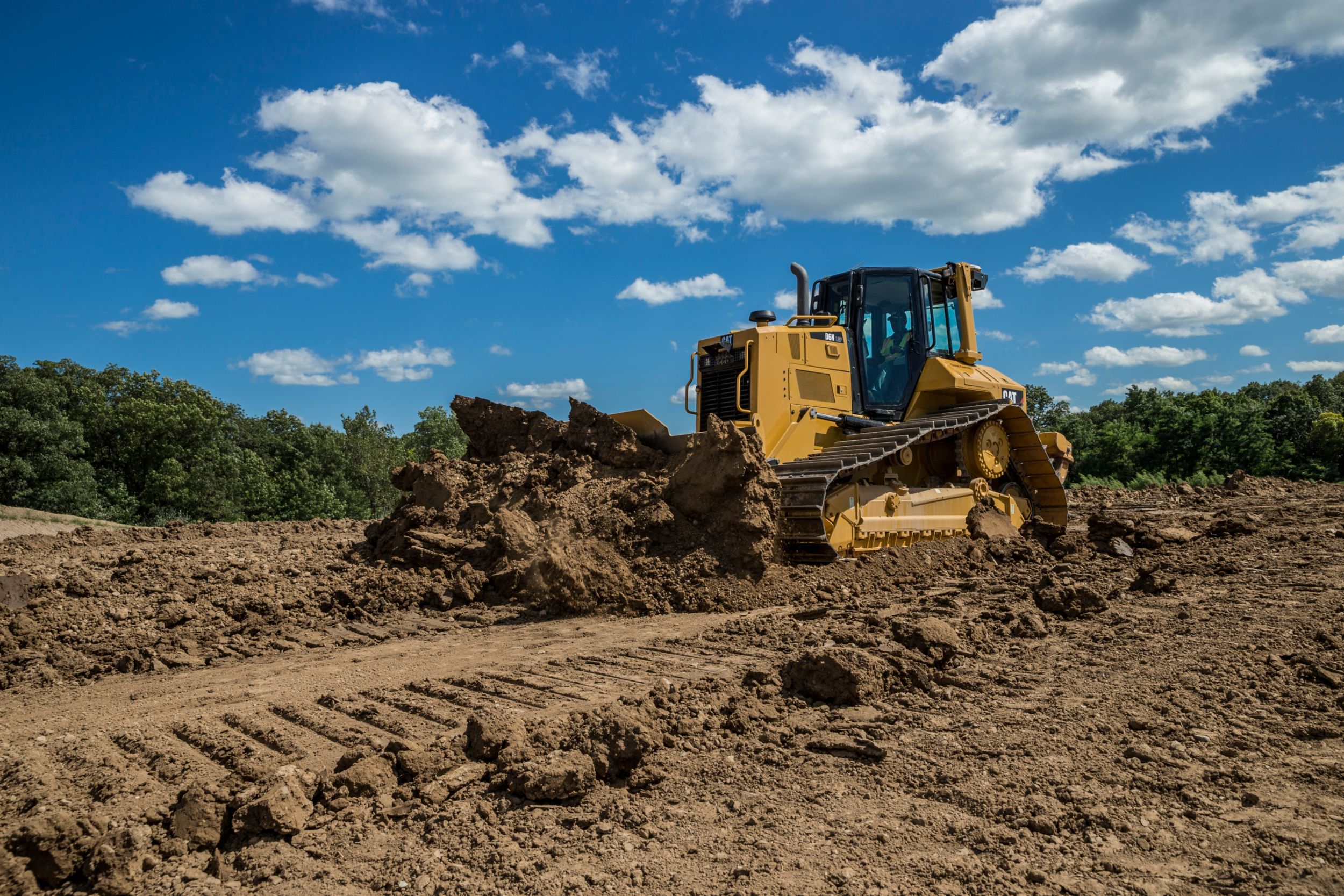

D6N Track-Type Tractor

Request a Quote
Download a Product Brochure

Product Specs

Engine

Engine Model
Cat C7.1
Flywheel Power
166 hp
Bore
4.1 in
Stroke
5.3 in
Displacement
433 in³
Emissions
U.S. EPA Tier 4 Final/EU Stage IV/Korea Tier 4 Final
Note (1)
Net power advertised is the power available at the engine flywheel when the engine is equipped with the air cleaner, muffler, alternator, cooling fan at maximum speed.
Note (2)
No derating required up to 3000 m (9,840 ft) altitude, beyond 3000 m (9,840 ft) automatic derating occurs.
Note (3)
All non-road Tier 4 Interim and Final, Stage IIIB and IV, and Korea Tier 4 Final diesel engines are required to use only Ultra Low Sulfur Diesel (ULSD) fuels containing 15 ppm EPA/10 ppm EU (mg/kg) sulfur or less. Biodiesel blends up to B20 (20% blend by
Note (4)
Diesel Exhaust Fluid (DEF) used in Cat Selective Catalytic Reduction (SCR) systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241.
Engine Power - Maximum - At 2,200 rpm - ISO 14396
178 hp
Net Power - 1,800 rpm - ISO 9249/SAE J1349 (DIN)
168 hp
Engine Power - Maximum - At 2,200 rpm - ISO 14396 (DIN)
180 hp
Net Power - 1,800 rpm - ISO 9249/SAE J1349
166 hp
Engine Power - Maximum - At 2,200 rpm - SAE J1995
182 hp

Weights

Operating Weight
36943 lb
Operating Weight - LGP Waste Handler
44749 lb
Shipping Weight - XL Waste Handler
40029 lb
Operating Weight - XL Waste Handler
40818 lb
Shipping Weight - LGP Waste Handler
43642 lb
Shipping Weight - XL Fine Grading
37373 lb
Operating Weight - XL Fine Grading
38162 lb
Note (1)
Operating Weight: Includes EROPS, A/C, lights, VPAT dozer, transmission, drawbar, engine enclosure, 3-valve hydraulics, 100% fuel, and Cat Comfort Series Air Suspension Seat and operator.
Note (2)
Shipping Weight: Includes EROPS, A/C, lights, VPAT dozer, transmission, drawbar, engine enclosure, 3-valve hydraulics, 5% fuel, and Cat Comfort Series Air Suspension Seat.
LGP VPAT - Landfill
3166 lb
XL SU - Blade
5732 lb
XL VPAT Landfill
2912 lb
Shipping Weight - LGP
39339 lb
Multi-Shank Ripper - With 3 Shanks
2959 lb
XL VPAT Foldable
2762 lb
Operating Weight - XL
36943 lb
LGP VPAT - Foldable
3287 lb
Shipping Weight - XL
36153 lb
LGP VPAT - Blade
2720 lb
XL VPAT Blade
2341 lb
Operating Weight - LGP
40446 lb

Transmission

1.0 Forward
2.1 mile/h
1.5 Forward
2.7 mile/h
2.0 Forward
3.6 mile/h
2.5 Forward
4.7 mile/h
3.0 Forward
6.1 mile/h
1.0 Reverse
2.5 mile/h
1.5 Reverse
3.4 mile/h
2.0 Reverse
4.4 mile/h
2.5 Reverse
5.9 mile/h
3.0 Reverse
7.6 mile/h
Maximum Drawbar Pull - 3.0 Forward
25403 lbf
Maximum Drawbar Pull - 1.0 Forward
71939 lbf
0.7 Reverse (EU)
1.9 mile/h
2.7 Reverse
6.5 mile/h
0.5 Reverse (EU)
1.8 mile/h
Maximum Drawbar Pull - 2.0 Forward
44512 lbf
1.0 Reverse (EU)
2.2 mile/h
0.7 Reverse
2.1 mile/h
1.7 Reverse
3.7 mile/h
0.7 Forward
1.7 mile/h
0.5 Reverse
1.9 mile/h
0.5 Forward
1.6 mile/h
1.0 Forward (EU)
1.9 mile/h
0.5 Forward (EU)
1.5 mile/h
2.7 Forward
5.2 mile/h
1.7 Forward
3 mile/h
0.7 Forward (EU)
1.6 mile/h

Service Refill Capacities

Fuel Tank
73.2 gal (US)
Cooling System
10.6 gal (US)
Engine Crankcase
4.5 gal (US)
Powertrain
42.3 gal (US)
Final Drive - Each
1.8 gal (US)
Hydraulic Tank
7.8 gal (US)

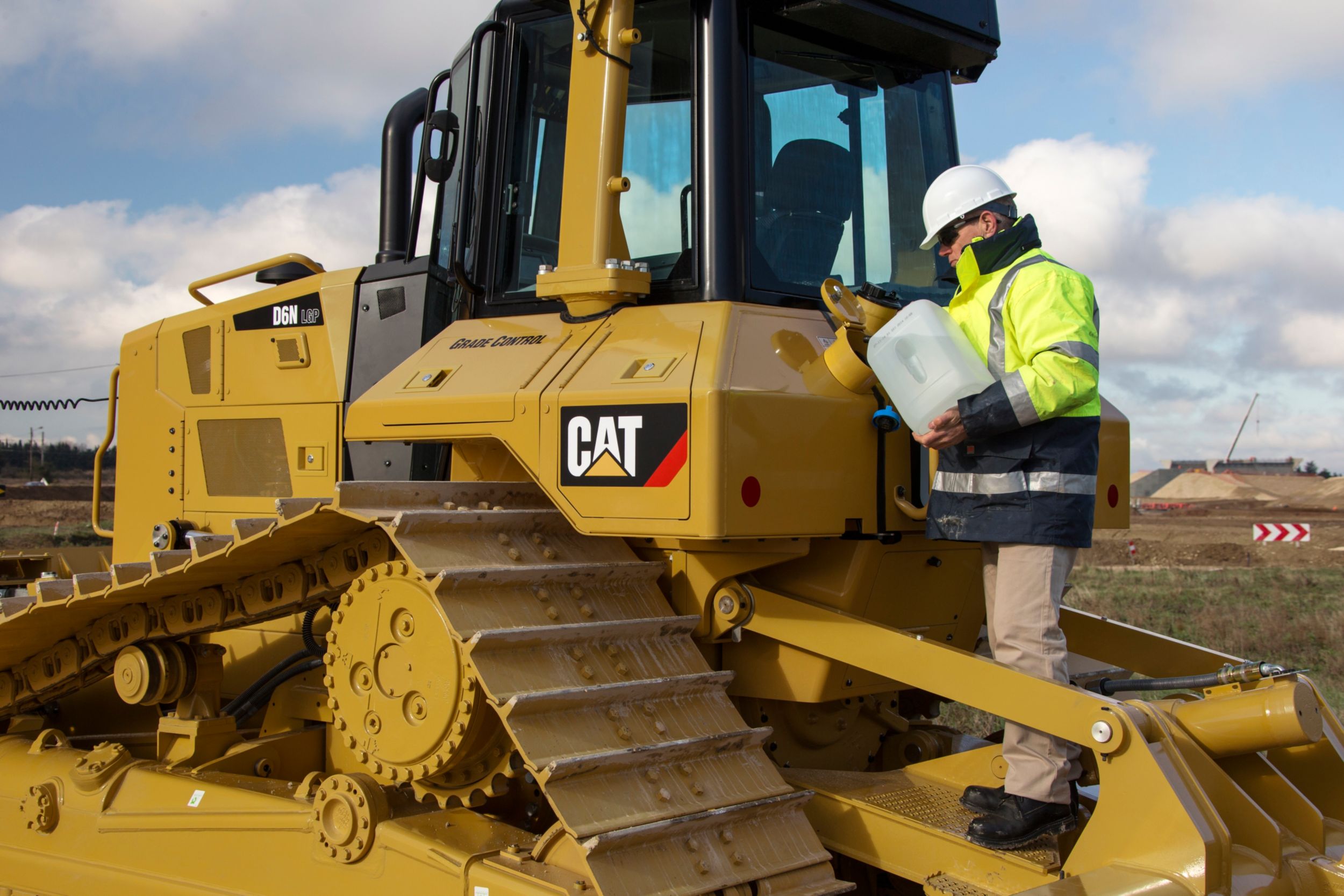

DEF Tank
5 gal (US)
Roller Frames XL/LGP - Each
20/17.5 L (4.3/4.6 gal)

Ripper

Maximum Penetration Force - LGP
9667 lbf
Shank Section
73 mm × 176 mm (2.9 in × 6.9 in)
Maximum Clearance Raised - Shank Tip
24.5 in
Weight - With Three Shanks
3444 lb
Maximum Penetration - XL
20.2 in
Maximum Pry-out Force - LGP
38217 lbf
Maximum Penetration Force - XL
11600 lbf
Shank Gauge
6.6 ft
Maximum Penetration - LGP
15.6 in
Pocket Spacing
3.3 ft
Maximum Pry-out Force - XL
47480 lbf
Each Additional Shank
172 lb
Type
Fixed Parallelogram
Number of Pockets
3
Overall Beam Width
86.7 in
Beam Cross Section
216 mm × 254 mm (8.5 in × 10.0 in)

Winch

Maximum Bare Drum - Line Speed
141 ft/min
Maximum Full Drum - Line Speed
217 ft/min
Rope Diameter - Recommended
0.875 in
Maximum Full Drum - Line Pull*
44410 lb
Maximum Bare Drum - Line Pull*
69200 lb
Drum Capacity - 22 mm (0.88 in)
288.75 ft
Overall Width
38.4 in
Winch Case - Width
38.4 in
Cable Ferrule Size - O.D. × Length
54 mm × 67 mm (2.13 in × 2.63 in)
Control
Electric
Winch Drive
Mechanical
Winch Model
PA55
Note (1)
*Weight: Includes pump, operator controls, oil, mounting brackets and spacers.
Note (2)
Slow and standard speed winches are available.
Weight*
2814 lb
Oil Capacity
19.55 gal (US)
Winch and Bracket Length
45.1 in
Drum Diameter
10 in
Drum Width
12.4 in
Flange Diameter
19.8 in

Sustainability - Sound and Vibration Levels

Sound Levels - Maximum Sound Power Level - 2000/14/EC
110 dB(A)
Sound Levels - Dynamic Operator Sound Pressure Level (LpA) - ISO 6396:2008
76 dB(A)
Sound Levels - Average Exterior Sound Pressure Level - SAE J88:2006
85.5 dB(A)
Note
*Values are for an experienced operator in a dozing application, consult the Operating and Maintenance Manual for details.
Vibration Levels - Maximum Hand/Arm* - ISO 5349:2001
2.5 m/s2 (8.2 ft/s2)
Vibration Levels - Maximum Whole Body* - ISO/TR25398:2006
0.5 m/s2 (1.6 ft/s2)
Vibration Levels - Seat Transmissibility Factor - ISO 7096:2000 - Spectral Class EM6
Less Than 0.7

Hydraulic Controls - Pressures

Maximum Steering Operating Pressure
6556 psi
Maximum Implement Operating Pressure
3640 psi

Undercarriage

Track on Ground - XL - Fine Grading
122.4 in
Ground Contact Area* - XL - Fine Grading
6479 in²
Ground Pressure* - XL - Fine Grading
5.8 psi
Note (1)
*ISO 16754
Grouser Height - XL - Fine Grading
2.6 in
Track Gauge - XL - Fine Grading
74.4 in
Shoe Width - XL - Fine Grading
24 in
Note (2)
All dimensions with SystemOne undercarriage.
Shoes/Side - XL
40
Shoes/Side - LGP
46
Track Rollers/Side - XL
7
Track Rollers/Side - LGP
8
Shoe Width - LGP
33.1 in
Track on Ground - LGP
122.4 in
Ground Pressure - XL*
6.7 psi
Ground Contact Area* - XL
5518 in²
Track Gauge - LGP
85 in
Ground Contact Area* - LGP
8928 in²
Track on Ground - XL
102.6 in
Track Gauge - XL
74.4 in
Ground Pressure - LGP*
4.5 psi
Grouser Height - LGP
2.2 in
Grouser Height - XL
2.6 in
Shoe Width - XL
24 in
Shoes/Side - XL - Fine Grading
46
Track Rollers/Side - XL - Fine Grading
8

Hydraulic Controls - Pump

Pump Output - Steering
36.2 gal/min
Angle Cylinder Flow - VPAT
33.5 gal/min
Lift Cylinder Flow
33.5 gal/min
Tilt Cylinder Flow
23.8 gal/min
Pump Output - Implement
33.5 gal/min
Ripper Cylinder Flow
33.5 gal/min

Standards

FOPS
FOPS (Falling Object Protective Structure) meets ISO 3449-2005 Level II.
ROPS
ROPS (Rollover Protective Structure) offered by Caterpillar for the machine meets ROPS criteria ISO 3471:2008.
Brakes
Brakes meet the standard ISO 10265:2008.

Air Conditioning System

Air Conditioning
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.6 kg of refrigerant which has a CO2 equivalent of 2.288 metric tonnes.

Blades

Width - LGP VPAT - Foldable
13.42 ft
Width - XL VPAT
10.75 ft
Capacity - LGP VPAT - Foldable
5.1 yd³
Capacity - LGP VPAT
5.1 yd³
Width - LGP VPAT
13.42 ft
Capacity - XL VPAT
4.3 yd³
Width - XL SU
10.33 ft
Capacity - XL SU
5.6 yd³

Sound and Vibration - Cab

Sound Level Information (1)
The operator Equivalent Sound Pressure Level (Leq) is 81.5 dB(A) when “ANSI/SAE J1166 FEB2008” is used to measure the value for an enclosed cab. The measurement was conducted at 100% of the maximum engine cooling fan speed. This is a work cycle sound expo
Sound Level Information (2)
Hearing protection may be needed when the machine is operated with an open operator station for extended periods or in a noisy environment. Hearing protection may be needed when the machine is operated with a cab that is not properly maintained, or when t
Sound Level Information (3)
The average exterior sound pressure level is 85.5 dB(A) when the “SAE J88 FEB2006 – Constant Speed Moving Test” procedure is used to measure the value for the standard machine. The measurement was conducted under the following conditions: distance of 15 m
Sound Level Information for Machines in European Union Countries and in Countries that Adopt the “EU Directives.” The information below applies to only the machine configurations that have the “CE” mark on the Product Identification Plate. (1)
The declared dynamic operator sound pressure level is 76 dB(A) when “ISO 6396:2008” is used to measure the value for an enclosed cab. The measurement was conducted at 70% of the maximum engine cooling fan speed. The sound level may vary at different engin
Sound Level Information for Machines in European Union Countries and in Countries that Adopt the “EU Directives.” The information below applies to only the machine configurations that have the “CE” mark on the Product Identification Plate. (2)
If equipped, the certification label – 110 dB(A) – is used to verify the environmental sound certification of the machine to the requirements of the European Union. The value that is listed on the label indicates the guaranteed exterior sound power level

Standard Equipment

  • Power Train
    • C7.1 Cat Diesel Engine
    • Tier 4 Final/Stage IV/Korea Tier 4 Final Certified Engine with Aftertreatment (DPF and SCR)
    • Diesel Exhaust Fluid
    • Single Poly-Vee Belt with Auto Belt Tensioner
    • Glowplug Starting Aid
    • 3000 Meter Altitude Operation Capability without De-Rating
    • Engine Driven, Viscous Clutch Fan (variable controlled fan speed)
    • Aluminum Bar Plate Cooling Systems (radiator, power train, aftercooler, differential steering)
    • Air Cleaner, Integrated Precleaner with Dust Ejector
    • Electrical Lift/Priming Pump
    • 3 Speed Planetary, Powershift Transmission with Lock-Up Clutch Torque Converter
    • Enhanced Auto Shift (EAS)
    • Infinite Ground Speed Adjustment (GSA)
    • Shift Management: – Automatic Directional and Downshift – Controlled Throttle, Load Compensated
    • Programmable/Selectable Bi-Directional Shifting
    • Differential Steering
    • Engine Idle Shutdown
    • Auto Engine Speed Control
    • Extended Life Coolant
  • Undercarriage
    • Heavy Duty Undercarriage
    • Center Tread Idler
    • Lifetime Lubricated Track Rollers (7 XL and 8 LGP) and Idlers
    • Carrier Rollers
    • Tracks 40 Section – 610 mm (24 in)
    • Extreme Service for XL
    • Tracks 46 Section – 840 mm (33 in)
    • Moderate Service for LGP
    • Hydraulic Track Adjusters
    • Center Track Guiding Guard (LGP only)
  • Hydraulics
    • Three Valve-Hydraulics for VPAT Dozer
    • Load Sensing Hydraulics
  • Electrical
    • Horn
    • Back-up Alarm
    • 12V Converter, 10A
    • Diagnostic Connector
    • 950 CCA Class 31 Batteries
    • Integrated Lights (four front, two rear)
    • 105 AMP HD Brushless Alternator 24 Volt
    • 24V Electric Starter
    • Ground Level Service Center with Remote Electrical Disconnect, Hour Meter and Remote Light Switch
  • Operator Environment
    • ROPS/FOPS Cab
    • Integrated A/C with Automatic Temperature Control
    • Seat, Air Suspension, Cloth for Cab
    • Seat Belt, Retractable – 76 mm (3 in)
    • Adjustable Armrests
    • Foot Rests for Slope Work
    • Color Graphic 7 in (178 mm) Display
    • Power Train Control Module (Throttle Dial, Electronic, Enhanced Auto Shift [EAS] Control and Shift Management Dial)
    • Electronic Engine Air Cleaner Service Indicator
    • Electronic Water-In-Fuel Sensor Service Indicator
    • Electro-Hydraulic Implement and Differential Steering Controls
    • One 12V Power Ports
    • Intermittent Wiper
    • 12V Radio Ready (Plug and Play)
    • Storage Compartment
    • Cup Holder
    • Coat Hook
    • Rearview Mirror
    • Glove Box
  • Technology Products
    • Cat GRADE with Slope Assist
    • Cat Slope Indicate
    • Cat Stable Blade
    • Product Link
  • Other Standard Equipment
    • Shovel Fastener
    • CD ROM Parts Book
    • C-Frame, Cylinders (VPAT) and Lines
    • Extended Service Intervals (500 hours engine, 1,000 hours power train)
    • Guards, Hinged Bottom
    • Ecology Drains (engine oil, engine coolant, power train case, hydraulic)
    • Adjustable Pitch Link (VPAT)
    • Engine Enclosures, Perforated
    • Scheduled Oil Sampling Ports
    • Centralized Remote Mounted Pressure Taps
    • Front Pull Device
    • Hinged Radiator Louvered Grill
    • Lockable Engine Enclosures

Attachments

  • Power Train
    • Precleaner, Turbine with Screen
  • Undercarriage
    • XL – SystemOne
    • XL – Heavy Duty
    • XL – Heavy Duty with Double Flange
    • XL – SystemOne Fine Grading
    • XL – Heavy Duty Fine Grading
    • LGP – SystemOne
    • LGP – Heavy Duty
    • LGP – Heavy Duty with Double Flange
    • LGP – Super LGP
    • XL – Heavy Duty – Waste
    • LGP – Heavy Duty – Waste
  • Tracks
    • Track Pairs, XL, SystemOne (40 sections): – 610 mm (24 in), Extreme Service – 560 mm (22 in), Extreme Service – 610 mm (24 in), Moderate Service (46 sections)
    • Track Pairs, XL, Heavy Duty (40 sections): – 600 mm (24 in), Extreme Service – 600 mm (24 in), Moderate Service (46 sections) – 600 mm (24 in) Extreme Service, Center Hole
    • Track Pairs, LGP, SystemOne (46 sections): – 840 mm (33 in), Moderate Service – 840 mm (33 in), Extreme Service – 860 mm (34 in), Extreme Service
    • Track Pairs, LGP, Heavy Duty (46 sections): – 600 mm (24 in), Extreme Service – 840 mm (33 in), Extreme Service – 840 mm (33 in), Extreme Service, Center Hole – 860 mm (34 in), Extreme Service
    • Track Pairs, Super LGP, Heavy Duty (52 sections): – 1067 mm (42 in), HD Self Cleaning – 1067 mm (42 in), HD Double Grouser
  • Track Guiding Guards
    • XL, SystemOne: – Guard Guiding, Center – Guard Guiding, Front and Rear – Guard Guiding, Full
    • XL, Heavy Duty: – Guard Guiding, Center – Guard Guiding, Extreme Service, Full
    • LGP, SystemOne: – Guard Guiding, Center – Guard Guiding, Front and Rear – Guard Guiding, Full
    • LGP, Heavy Duty: – Guard Guiding, Center – Guard Guiding, Extreme Service, Full
  • Rear Control Packages
    • Ripper Ready Package
    • Winch Ready Package
    • Dual Control Package (SU, VPAT, Super LGP)
  • Fan And Cooling
    • Radiator, Trash Resistant
    • Direct Drive Fan, Reversible
    • Direct Drive Fan with Hydraulically Reversible Blades
  • Weather Packages And Batteries
    • Battery, Standard, Package
    • Battery, Heavy Duty, Package
    • Cold Weather, 120V, Package
  • Technology Products
    • Cat AccuGrade
    • Cat Grade with 3D
    • ARO Installation
    • No ARO Installation
    • Product Link: – Product Link, Satellite PLE 631 – Product Link, Cellular PLE 641 – No Product Link
  • Fuel Systems
    • Fuel Tank, Standard
    • Fuel Tank, Fast Fill and Refill Ready
  • Guards
    • Guard Packages: – Guard, VPAT, Standard, Package – Guard, VPAT, Heavy Duty, Package – Guard, SU, Heavy Duty, Package – Guard, Rear, Standard – Guard, Rear, Heavy Duty – No Guard
  • Rear Attachments
    • Ripper, Teeth Straight, Package
    • Ripper, Teeth Curved, Package
    • PA55 Winch, Standard Speed Package
    • PA55 Winch, Slow Speed, Package
    • Drawbar
    • Rear Box with Striker Bar
    • No Rear Attachment
  • Rear Hydraulics
    • PTO Filter, No Winch
    • PTO Filter, Winch
  • Bulldozer Packages
    • Bulldozer, VPAT XL, STD Package
    • Bulldozer, VPAT LGP, STD Package
    • Bulldozer, VPAT XL, HD Package
    • Bulldozer, VPAT, LGP, HD Package
    • Bulldozer, VPAT XL, GRADE with 3D
    • Bulldozer, VPAT, LGP, GRADE with 3D
    • Bulldozer, SU XL Package
    • Bulldozer Super LGP
  • Blades
    • Blade, ARO XL, VPAT
    • Blade, ARO LGP, VPAT
    • Blade, ARO XL Foldable, VPAT
    • Blade, ARO LGP Foldable, VPAT
    • Blade, Landfill (XL or LGP)
    • Blade, Super LGP
    • Blade, SU XL
    • No Blade
  • Lights
    • Lights
    • Forestry Lights
    • GRADE with 3D Lights
  • Operator Environment
    • Cab Packages: – Standard with Air Suspension Seat – Cab Comfort Package with Air Suspension/Heated/Ventilated Seat – Cab Comfort Package – Heavy Duty
    • Camera Arrangement
    • Radio, AM/FM/AUX/USB/Bluetooth™
  • Hydraulic Oil
    • Hydraulic Oil, Biodegradable
  • Starters, Batteries, And Alternators
    • Electrical Insulated Breather
    • Beacon, Rotating
  • Guards – Cab Protection
    • Cab, Protection Package
    • Screen, Rear
    • Screen, Grill Front
    • Grid, Sandblast
    • Guard, Rear, Drawbar and Winch Ready
  • Fluids
    • Antifreeze, (–37° C/–34.6° F)
  • Other Attachments
    • Winch Options: – Fairlead, 3 Rollers – Fairlead, 4 Rollers
  • Maintenance And Related Attachments
    • Shovel Holder
    • Refilling Fuel Pump
    • Oil Change System, High Speed
  • Special Arrangements
    • Forestry Package (XL or LGP)
    • Waste Handler (XL or LGP)

Pin It on Pinterest

Share This
