D6K2 Track-Type Tractor

Request a Quote
Download a Product Brochure

Product Specs

Engine

Engine Model
Cat C4.4
Power - Net
130 hp
Emissions
U.S. EPA Tier 4 Final/EU Stage IV/Japan 2014 (Tier 4 Final)/Korea Tier 4
Net Power (Rated) - ISO 9249
130 hp
Net Power (Rated) - ISO 9249 (DIN)
132 hp
Note (1)
All non road Tier 4 Interim and Final, Stage IIIB and IV, Japan 2014 (Tier 4 Final) and Korea Tier 4 diesel engines are required to use only Ultra Low Sulfur Diesel (ULSD) fuels containing 15 ppm EPA/10 ppm EU (mg/kg) sulfur or less. Biodiesel blends up t
Note (2)
Diesel Exhaust Fluid (DEF) used in Cat Selective Catalytic Reduction (SCR) systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241.
Note (3)
Engine ratings at 2,200 rpm

Weights

Operating Weight
29258 lb
Operating Weight - XL
29258 lb
Operating Weight - LGP
30664 lb

Service Refill Capacities

Fuel Tank
69 gal (US)
DEF Tank
5 gal (US)

Undercarriage

Ground Pressure (ISO 16754) - XL
5.9 psi
Ground Pressure (ISO 16754) - LGP
4.5 psi

Blades

Blade Type
VPAT, VPAT Foldable*
Blade Capacity - XL, VPAT
4.26 yd³
Blade Capacity - LGP, VPAT
4.98 yd³
Blade Width - Over End Bits - XL, VPAT
10.5 ft
Blade Width - Over End Bits - LGP, VPAT
12 ft
Note
*VPAT foldable blades have the same capacity and width as the XL/LGP VPAT blades.

Air Conditioning System

Air Conditioning
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.3 kg of refrigerant which has a CO2 equivalent of 1.859 metric tonnes.

Standard Equipment

  • Power Train
    • Cat C4.4 diesel engine turbocharged
    • Tier 4 Final/Stage IV/Japan 2014 (Tier 4 Final)/Korea Tier 4 Certified Engine with Aftertreatment
    • Aftercooler, Air to Air (ATAAC)
    • Glowplug starting aid
    • 3000 meter altitude operation capability without derating
    • Hydraulically driven, variable speed fan
    • Aluminum bar plate cooling system (radiator, power train, aftercooler)
    • Air cleaner with integrated precleaner, dust ejector and under hood air intake
    • Dual path, electronic control, closed-loop hydrostatic transmission
    • Electric fuel priming pump
    • Fuel/water separator
    • Automatic Traction Control
    • Programmable/selectable bi‑directional speed control
    • Engine Idle Shutdown
    • Auto Engine Speed Control
  • Technology Products
    • Cat GRADE with Slope Assist
    • Cat Stable Blade
    • Cat Slope Indicate
    • Product Link ready cellular or satellite (Product Link licensing not available in all areas. Please consult your Cat dealer for details.)
  • Undercarriage
    • SystemOne or Heavy Duty undercarriage
    • Center tread, sprocketed idler with SystemOne, standard idler with HD
    • Lifetime lubricated track rollers (8) and idlers
    • Carrier rollers (2)
    • Hydraulic track adjusters
    • Guards, front/rear guiding
    • Replaceable sprocket rim segments
  • Hydraulics
    • Three valve hydraulics
    • Load sensing hydraulics
  • Electrical
    • Horn
    • Back-up alarm
    • 12V converter, 10A
    • Diagnostic connector
    • Batteries, heavy duty, maintenance free, 900 CCA
    • Integrated lights (4 front, 2 rear)
    • 100 Amp alternator (24 volt)
    • 24V electric starter
  • Operator Environment
    • ROPS/FOPS Cab
    • Integrated A/C with automatic temperature control
    • Seat, air suspended, cloth for cab
    • Seat belt, retractable 76 mm (3 in)
    • Foot pads, dash
    • Color graphic 178 mm (7 in)
    • Travel speed limiter, electronic
    • Engine RPM and gear display
    • Hour meter, electronic
    • Engine air cleaner service indicator, electronic
    • Water-in-fuel indicator, electronic
    • Throttle switch, rotary
    • Eco mode
    • Controls, seat mounted, fore/aft adjustment
    • Armrests, adjustable
    • Mirror, rearview, inside
    • Single pedal combining deceleration and braking functions
    • Independent forward/reverse speed settings
    • Power port, 12 volt
    • Coat hook
    • Storage compartment
    • Cup holder
    • Floor mat, rubber, heavy duty
    • Intermittent wiper
    • 12V radio ready (plug and play)
  • Fluids
    • Antifreeze coolant (–37° C/–34.6° F)
    • Extended life coolant
  • Other Standard Equipment
    • C-frame, variable pitch link, hydraulic cylinders and lines
    • Engine enclosures
    • Hinged radiator louvered grill
    • Swing-out radiator fan
    • Front pull device
    • Rigid drawbar
    • Vandalism protection
    • Ecology drains (engine, power train and implement oil, engine coolant)
    • Scheduled Oil Sampling (S∙O∙S) ports (engine, power train and implement oil)
    • Heavy duty crankcase guard
  • Instructions
    • Warning decals, ANSI, are included for machines in the U.S.A. only.

Attachments

  • Power Train
    • Fan, demand, reversing
  • Undercarriage
    • XL, SystemOne
    • XL, Heavy Duty
    • LGP, SystemOne
    • LGP, Heavy Duty
  • Tracks (40 Sections)
    • Track Pairs, XL, SystemOne: – Track, 510 mm (20 in), Moderate Service, XL – Track, 510 mm (20 in), Extreme Service, XL – Track, 560 mm (22 in), Moderate Service, XL – Track, 560 mm (22 in), Extreme Service, XL
    • Track Pairs, XL, Heavy Duty: – Track, 510 mm (20 in), Extreme Service, XL – Track, 560 mm (22 in), Extreme Service, XL
    • Track Pairs, LGP, SystemOne: – Track, 760 mm (30 in), Moderate Service, LGP – Track, 760 mm (30 in), Extreme Service, LGP
    • Track Pairs, LGP, Heavy Duty: – Track, 760 mm (30 in), Extreme Service, LGP – Track, 760 mm (30 in), Self-Cleaning, LGP
  • Track Guiding Guards
    • Guard, track guiding, center
    • Guard, track guiding, front/rear
    • Guard, track guiding, full length
  • Operator Environment
    • Cab, Comfort Package
    • Cab, Comfort Package, Heavy Duty
    • Suspension seat, heated and ventilated with heated joystick handles
    • Visibility kit, single rear vision camera
    • Radio, AM/FM/AUX/USB/Bluetooth
  • Hydraulics
    • Hydraulic oil, bio
  • Guards And Protection
    • Cab, protection package
    • Screen, rear
    • Protection package, standard
    • Protection package, front
    • Protection package, heavy duty
  • Blades
    • Blade, 3196 mm (126 in) ARO XL
    • Blade, 3196 mm (126 in) Foldable ARO XL
    • Blade, 3684 mm (145 in) ARO LGP
    • Blade, 3684 mm (145 in) Foldable ARO LGP
    • Mechanical blade pitch
    • Blade power pitch
  • Rear Attachments
    • Drawbar
    • Ripper, straight teeth
    • Ripper, curved teeth
    • Counterweight, rear
    • Counterweight, additional slabs
  • Rear Attachment Control
    • Ripper control
    • Winch control
    • Ripper and winch control
    • Ripper and Power Pitch control
    • Ripper, Winch and Power Pitch control
  • Technology Products
    • AccuGrade Ready
    • Cat GRADE with 3D
    • Product Link Cellular
    • Product Link Satellite
    • Product Link Cellular and Satellite
  • Fuel Systems
    • Fuel tank, fast fuel and refill ready
  • Weather Packages And Starters
    • Cold Weather Package, 120V
    • Cold Weather Package, 240V
    • Electrical insulated breather
    • Starter standard
    • Starter high speed, low temperature
  • Fluids
    • Antifreeze, –50° C (–58° F)
  • Electrical
    • Beacon, rotating
  • Field Installed Attachments
    • Winch and fairleads: – PA50 winch, variable speed – Fairlead, three rollers – Kit, conversion, 4th roller – Winch step
  • Maintenance And Related Attachments

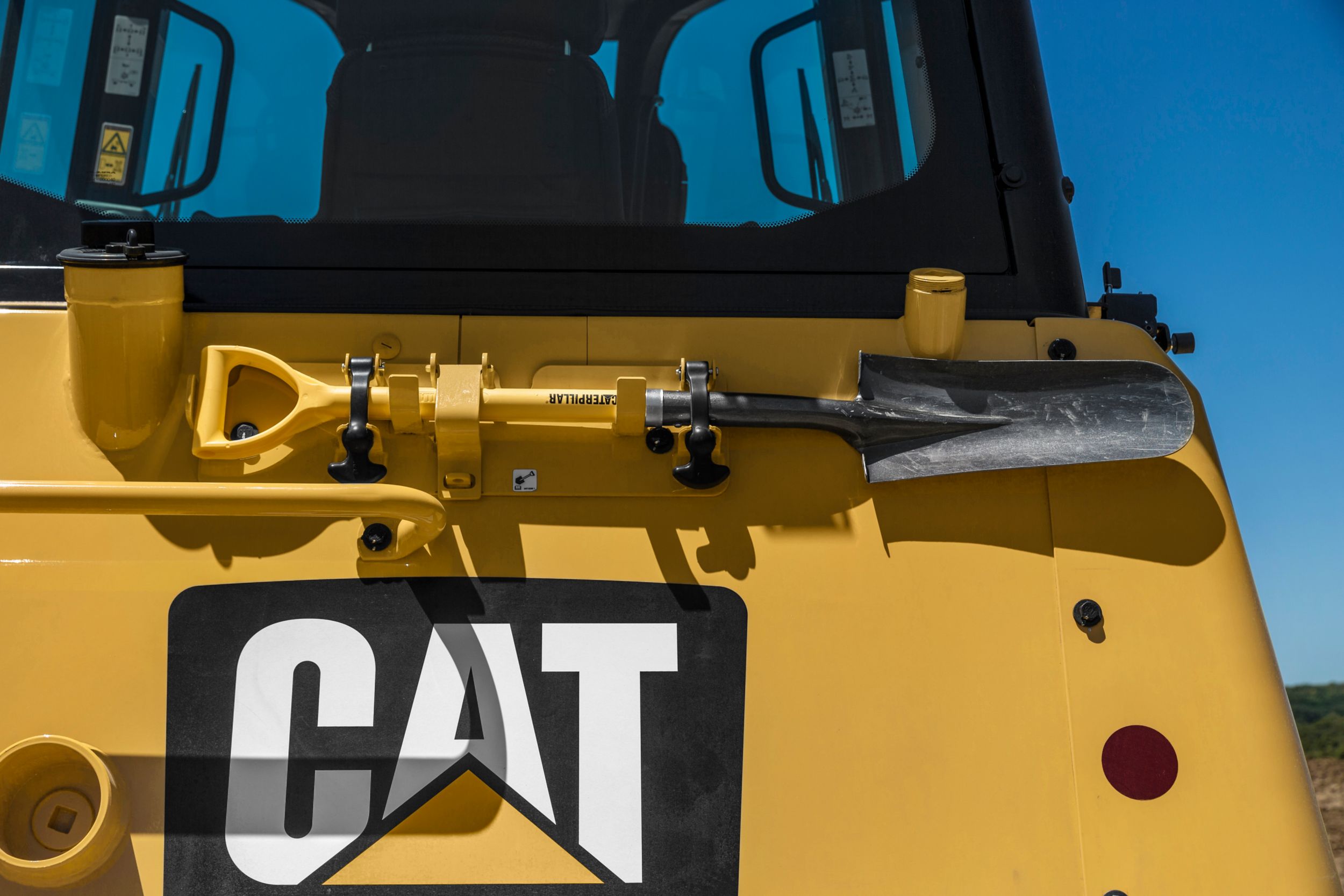

    • Shovel holder
    • Fuel pump, refilling
    • Oil change system, high speed
