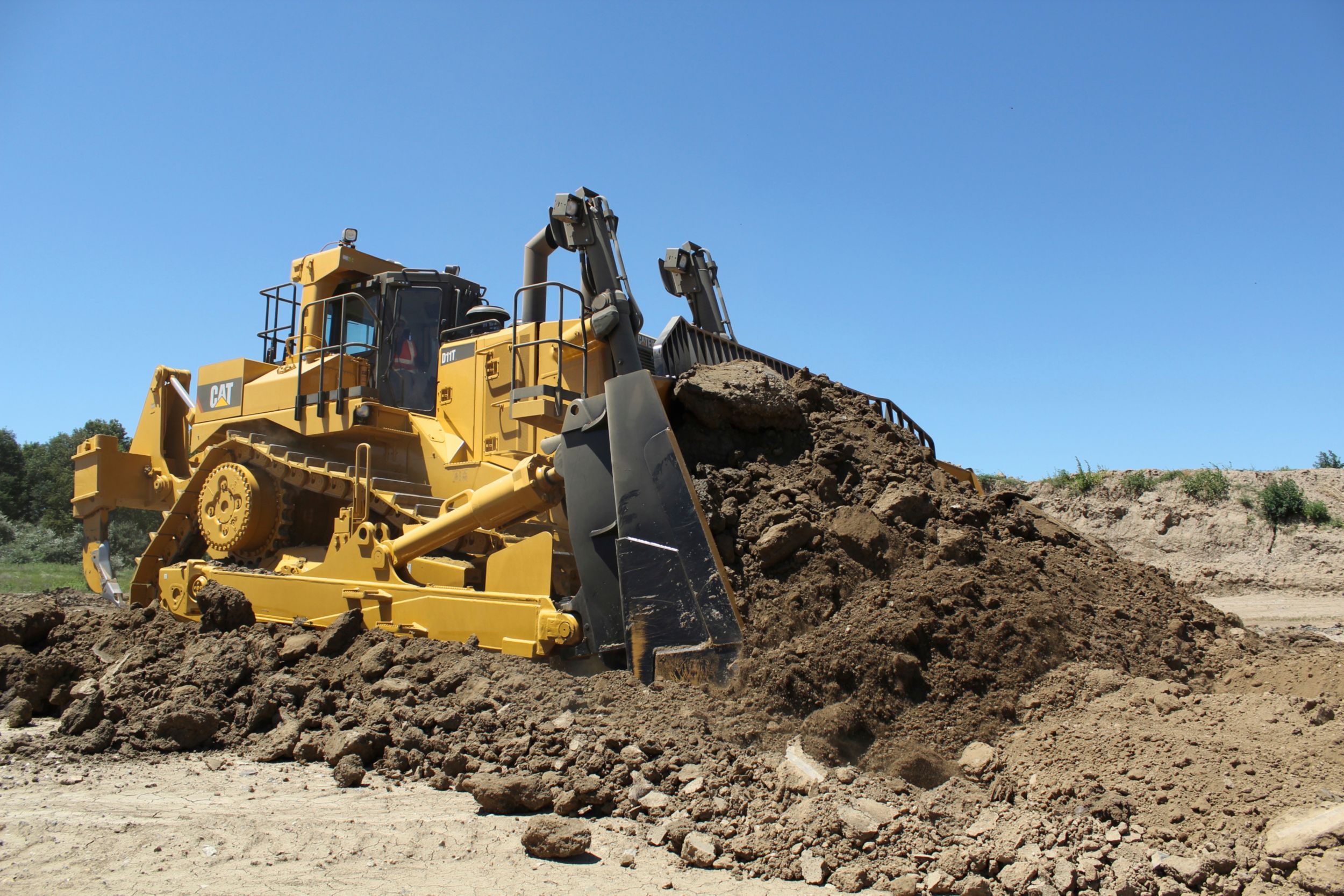

Exterior View
Product Specs
Engine
- Engine Model
- Cat® C32
- Flywheel Power
- 850 hp
- Bore
- 5.7 in
- Stroke
- 6.4 in
- Displacement
- 1959 in³
- Emissions
- U.S. EPA Tier 4 Final
- Engine Power - Gross SAE J1995*
- 913 hp
- Engine Power - Net SAE J1349/ISO 9249
- 850 hp
- Net SAE J1349/ISO 9249
- 850 hp
- Note (1)
- * Excludes all fan losses.
- Note (2)
- Engine ratings apply at 1,800 rpm.
- Note (3)
- Net power advertised is the power available at the flywheel when the engine is equipped with air cleaner, muffler, alternator, fan, and engine emissions controls as required.
- Note (4)
- No derating required up to 3658 m (12,000 ft) altitude. High altitude attachment available for greater than 3658 m (12,000 ft).
- Engine Power - ISO 14396
- 908 hp
Weights
- Operating Weight
- 229800 lb
- Shipping Weight
- 82640 lb
- Operating Weight - CD
- 248500 lb
- Shipping Weight - CD
- 83340 lb
- Note (1)
- D11T Operating Weight: Includes blade tilt cylinders, coolant, lubricants, full fuel tank, ROPS, FOPS cab, 11U ABR bulldozer, single-shank ripper with pin-puller, fast fuel, 710 mm (28 in) ES shoes, and operator.
- Note (2)
- D11T Shipping Weight: Base machine chassis with cab and pivot shaft. Doesn't include ROPS, ripper, blade, track, or roller frames.
- Note (3)
- D11T CD Operating Weight: Includes lubricant, coolant, full fuel tank, 915 mm (36 in) extreme service shoes, 11 Carrydozer, single-shank ripper, and operator.
- Note (4)
- D11T CD Shipping Weight: Base machine chassis with cab and pivot shaft. Doesn't include ROPS, ripper, blade, track, or roller frames.
Undercarriage
- Shoe Type
- Extreme Service
- Width - Shoe
- 28 in
- Shoes/Side
- 41
- Grouser Height
- 4 in
- Pitch
- 12.5 in
- Track Gauge
- 114 in
- Length - Track on Ground
- 175 in
- Ground Contact Area
- 9781 in²
- Track Rollers/Side
- 8
- Number of Carrier Rollers
- 1 per side (optional)
- Width - Shoe - CD
- 36 in
- Ground Contact Area - CD
- 12605 in²
- Ground Clearance*
- 30.6 in
- Note (1)
- * Includes grouser height for total dimensions on hard surface.
- Note (2)
- Sleeve Bearing Track with Positive Pin Retention.
Transmission
- 1 Forward
- 2.4 mile/h
- 2 Forward
- 4.2 mile/h
- 3 Forward
- 7.3 mile/h
- 1 Reverse
- 2.9 mile/h
- 2 Reverse
- 5.1 mile/h
- 3 Reverse
- 8.7 mile/h
- Type
- Planetary powershift
- Transmission Clutch Diameter
- 21 in
Service Refill Capacities
- Fuel Tank
- 425 gal (US)
- Cooling System
- 71.1 gal (US)
- Engine Crankcase*
- 27.2 gal (US)
- Power Train
- 90.9 gal (US)
- Final Drive - Each
- 12.4 gal (US)
- Roller Frames - Each
- 24.8 gal (US)
- Pivot Shaft Compartment
- 18.8 gal (US)
- Implement Hydraulic System - Tank Only
- 58.9 gal (US)
- Fuel Tank - Platform Ready
- 470 gal (US)
- Fuel Tank - High Capacity
- 505 gal (US)
- Note
- * With oil filters.
Dimensions (Approximate) - D11T
- Length - With Multi-Shank Ripper
- 331.8 in
- Overall Length - SU-Blade/SS Ripper
- 414.4 in
- Note (1)
- *Includes grouser height for total dimensions on hard surfaces.
- Note (2)
- D11T shown equipped with 710 mm (28 in) shoes.
- Ground Clearance*
- 31.4 in
- Track Gauge
- 114 in
- Width - Without Trunnions - Standard Shoe
- 148.9 in
- Width - Over Trunnions
- 172.4 in
- Height - FOPS Cab*
- 173.4 in
- Height - Top of Stack*
- 179.1 in
- Height - ROPS/Canopy*
- 185.9 in
- Drawbar Height (Center of Clevis)*
- 37.1 in
- Length - Track on Ground
- 175 in
- Overall Length - Basic Tractor
- 242.5 in
- Length - Basic Tractor - With Drawbar
- 242.5 in
- Length - With SU-Blade
- 337.8 in
- Length - With U-Blade
- 340.2 in
- Length - With Single-Shank Ripper
- 319.2 in
Dimensions (Approximate) - D11T CD
- Ground Clearance*
- 31.4 in
- Track Gauge
- 114 in
- Width - Without Trunnions - Standard Shoe
- 149.8 in
- Width - Over Trunnions
- 172.4 in
- Height - FOPS Cab*
- 173.4 in
- Height - Top of Stack*
- 179.1 in
- Height - ROPS/Canopy*
- 185.9 in
- Drawbar Height (Center of Clevis)*
- 37.1 in
- Length - Track on Ground
- 175 in
- Overall Length - Basic Tractor
- 242.5 in
- Length - Basic Tractor - With Drawbar
- 242.5 in
- Length - With SU-Blade**
- 345.1 in
- Length - With Single-Shank Ripper
- 319.2 in
- Length - With Multi-Shank Ripper
- 331.8 in
- Overall Length - SU-Blade/SS Ripper**
- 421.7 in
- Note (1)
- *Includes grouser height for total dimensions on hard surfaces.
- Note (2)
- **CD Blade on D11T CD.
- Note (3)
- D11T shown equipped with 710 mm (28 in) shoes.
Hydraulic Controls
- D11T CD - Carrydozer Relief Valve Setting
- 3500 psi
- D11T - Bulldozer Relief Valve Setting
- 3300 psi
- D11T - Combined Pump Output - Implement
- 164 gal/min
- D11T - Pump Type
- Gear-type pump
- D11T - Ripper (Lift) Relief Valve Setting
- 3300 psi
- D11T - Ripper (Pitch) Relief Valve Setting
- 3300 psi
- D11T - Tilt Cylinder Relief Valve Setting
- 3525 psi
- D11T - Tilt Pump Flow
- 41 gal/min
- D11T CD - Pump Output - Implement
- 177 gal/min
- D11T CD - Pump Type
- Gear-type pump
- D11T CD - Ripper (Lift) Relief Valve Setting
- 3500 psi
- D11T CD - Ripper (Pitch) Relief Valve Setting
- 3500 psi
- D11T CD - Tilt Cylinder Flow
- 66 gal/min
- D11T CD - Tilt Cylinder Relief Valve Setting
- 3600 psi
- Note (1)
- Pump output measured at 1,800 engine rpm and 6895 kPa (1,000 psi).
- Note (2)
- Electro-hydraulic pilot valves assist operations of ripper and dozer controls.
- Note (3)
- Complete system consists of pump, tank with filter, oil cooler, valves, lines, and control levers.
Steering and Brakes
- Hydraulically Applied Multiple-disc Steering Clutch
- 17.3 in
- Spring Applied Multiple-disc Brake
- 24.1 in
Standards
- FOPS
- Falling Objects Protective Structure (FOPS) meets the following criteria: ISO 3449:2005 LEVEL II.
- ROPS
- Rollover Protective Structure (ROPS) meets the following criteria: SAE J1040 MAY94, ISO 3471:1994.
- Sound (1)
- The operator Equivalent Sound Pressure Level (Leq) is 79 dB(A) when ISO 6396:2008 is used to measure the value for an enclosed cab. This is a dynamic cycle sound exposure level. The cab was properly installed and maintained. The test was conducted with th
- Sound (2)
- The exterior sound pressure level for the standard machine measured at a distance of 15 m (49.2 ft) according to the test procedures specified in SAE J88 APR95, mid-gear-moving operation, is 87 dB(A).
Track Roller Frame
- Oscillation
- 13.8 in
Standard Equipment
-
- Electrical
-
- Alternator, 150 amp
- Back up alarm
- Batteries, 12-volt (4), 200 amp-hour
- Converters, 12-volt, 10 amp and 20 amp
- Diagnostic connector
- Horn, forward warning
- Lights, engine compartment
- Lighting system, five (5) HID/seven (7) Halogen
- Starting receptacle
-

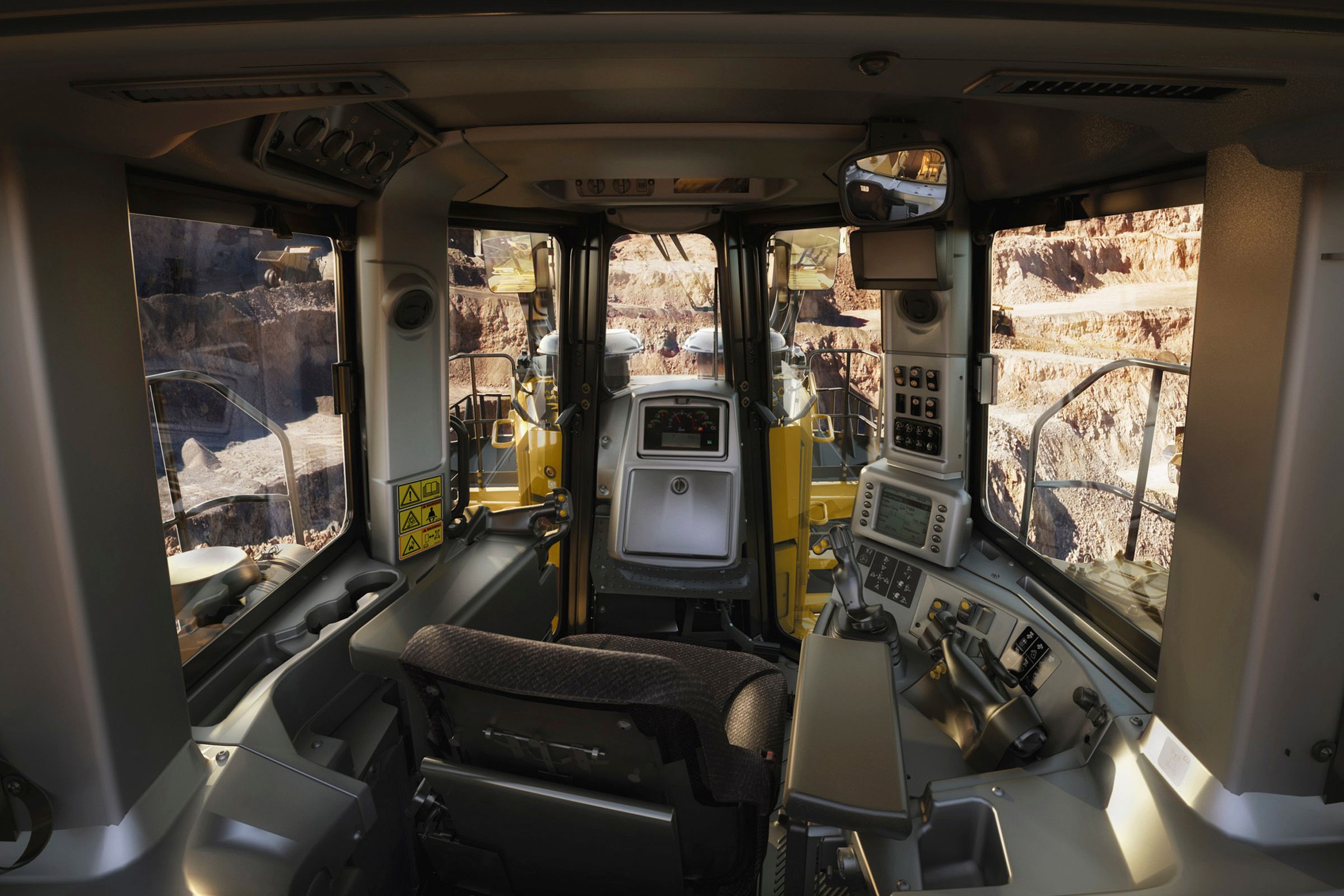

- Operator Environment
-
- Advisor-electronic monitoring system
- Air conditioner and heater
- Armrest, adjustable
- Cab, FOPS
- Deactivation switch, hydraulic controls
- Decelerator, pedal
- Finger Tip Control (FTC) steering
- Governor switch, electronic
- Hydraulic system: – Electronically controlled for bulldozer and ripper control
- Mirror, rearview
- Radio ready, entertainment
- ROPS rollbar
- Seat belt, retractable 76 mm (3 in)
- Seat, cloth, air suspension
- Wipers, intermittent, low and high speeds
-
- Power Train
-
- Cat C32
- Aftercoolers, air-to-air
- Air filters, dual with precleaner
- Aluminum bar plate cooling system: – Serial number prefix: AMA and MDG
- Controlled throttle shifting
- Coolant, extended life
- Shift management
- Engine Idle Shutdown Timer
- Engine precleaner
- Ether starting aid, automatic
- Four planet, double-reduction planetary final drives
- Fuel priming pump, electric
- High speed oil changing system
- Hydraulic demand fan
- Copper Grommetted Tube Radiator - Serial number prefix JEL and JNS
- Mufflers, dual
- Parking brake, electronic
- Prescreener
- Separator, water/fuel
- Thermal shields
- Torque divider
- Transmission, powershift: – (3F/3R speeds)
-
- Technology
-
- Auto blade assist
- Enhanced auto shift
- Product Link (satellite)
- VIMS 3G
-
- Undercarriage
-
- Equalizer bar end pin grease fittings, remote
- Rollers and idlers, lifetime lubricated
- Sprocket rim segments, replaceable
- Suspension-type undercarriage, eight-roller tubular track roller frame
- Three bolt idler and roller caps
- Track adjusters, hydraulic
- Track guides
- Two-piece master links
-
- Safety And Security
-
- Anchorage points

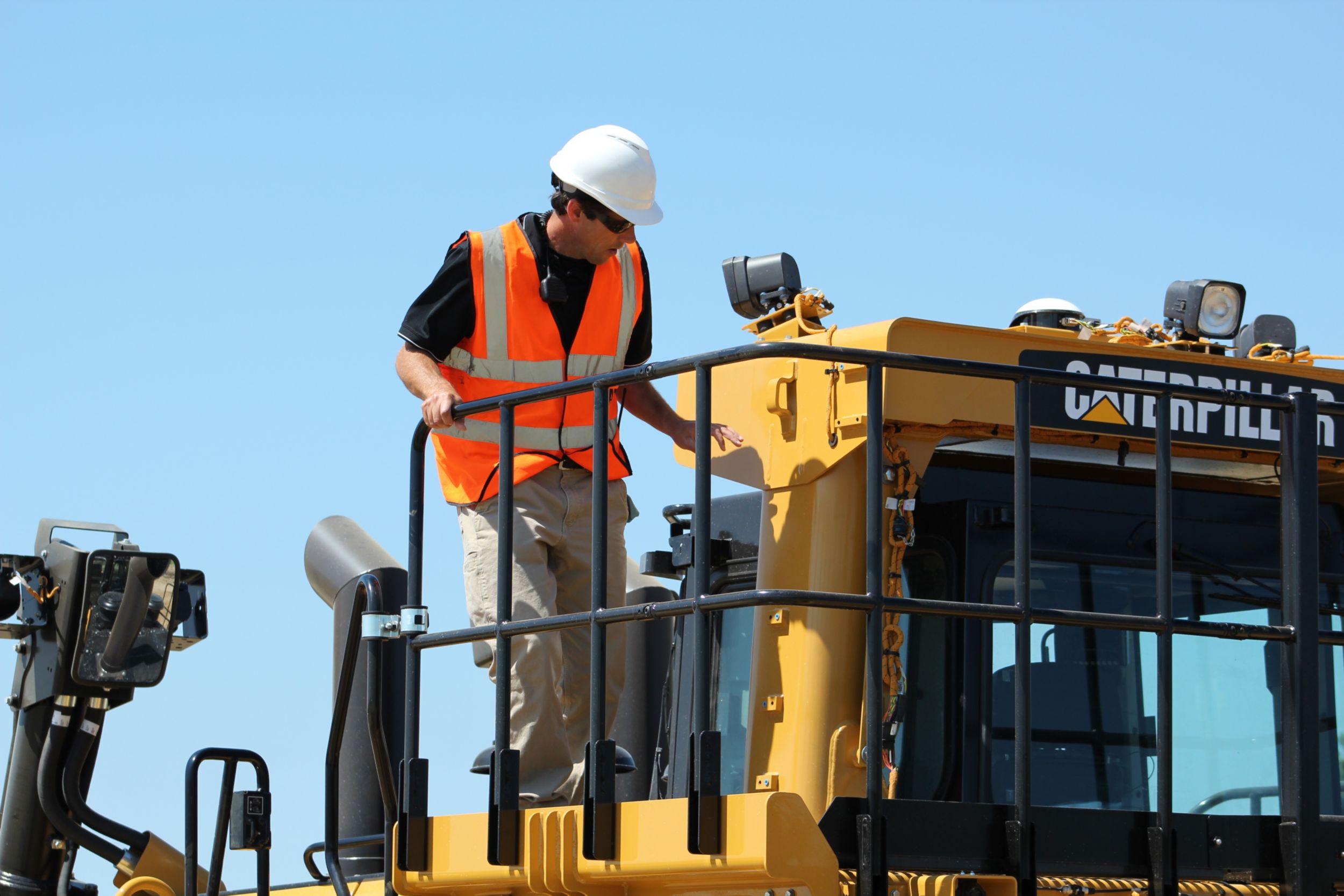

- Fender guard rails
- Heavy duty steps and handles
- Operator not present monitoring system
- Slope and side-slope monitor
-
- Other Standard Equipment
-
- Bottom guards
- CD ROM parts book
- Dual-tilt blade control
- Ecology drains
- Engine enclosure
- Fluid sampling ports
- Grade control ready
- Ground level service center
- Ripper Hydraulics
- Vandalism, protection (8 caplocks)
Attachments
-
- Guards
-
- Bottom guards, sealed
- Bottom guards, partial
- Guard, undercarriage idlers
- Screens, grill door
-
- Operator Station
-
- Air conditioner: – Fender – ROPS
- Cab glass: – 276 kPa (40 psi) – Dual pane impact resistant
- Heated and ventilated seat
- Operator arrangement: – 5th percentile arrangement – Quick opening
- Powered precleaner
- Visibility arrangements (camera and mirrors): – Single camera – Dual camera – Mirrors
- Window shades
-
- Power Train
-
- Engine coolant, arctic
- Engine precleaner, turbine
- Engine prelube
- Fan arrangements: – Hydraulic screens – Reversing (Not available on D11T Carrydozer.) – Reversing with screens (Not available on D11T Carrydozer.)
- Final drives: – Clamshell guard
- High altitude arrangement (Not available on D11T Carrydozer.)
- Copper Grommetted Tube Radiator - Serial number prefix AMA and MDG
- Remote power train and engine high speed oil change system located at the ground level service center
-
- Undercarriage
-
- Carrier rollers
- Carrier rollers – cold weather
- Tracks, PPR, sealed and lubricated: – 710 mm (28 in) Extreme Service (Not available on D11T Carrydozer.) – 710 mm (28 in) Extreme Service abrasion resistant material (Not available on D11T Carrydozer.) – 710 mm (28 in) Extreme Service trapezoidal hole (Not available on D11T Carrydozer.) – 810 mm (32 in) Extreme Service – 810 mm (32 in) Extreme Service abrasion resistant material – 810 mm (32 in) Extreme Service trapezoidal hole – 810 mm (32 in) Extreme Service tall links – 810 mm (32 in) Extreme Service tall links abrasion resistant material – 810 mm (32 in) Extreme Service trapezoidal hole tall links – 915 mm (36 in) Extreme Service clipped – 915 mm (36 in) Extreme Service clipped abrasion resistant material – 915 mm (36 in) Extreme Service clipped trapezoidal hole – 915 mm (36 in) Extreme Service clipped tall links
- Undercarriage arrangements: – Abrasion – Cold abrasion – Cold weather – Sound
-
- Bulldozer Attachments
-
- 11CD Abrasion resistant blade
- 11CD No wear plate
- 11SU Abrasion resistant blade (Not available on D11T Carrydozer.)
- 11SU Abrasion resistant blade, black (Not available on D11T Carrydozer.)
- 11SU No wear plate (Not available on D11T Carrydozer.)
- 11U Abrasion resistant blade (Not available on D11T Carrydozer.)
- 11U Abrasion resistant blade, black (Not available on D11T Carrydozer.)
- 11U No wear plate (Not available on D11T Carrydozer.)
-
- Rear Attachments
-
- Counterweight, rear
- CapSure hammerless installation and positive retention system: – Single shank – Multi shank – Single shank deep
- Drawbar, rear (Not available on D11T Carrydozer.)

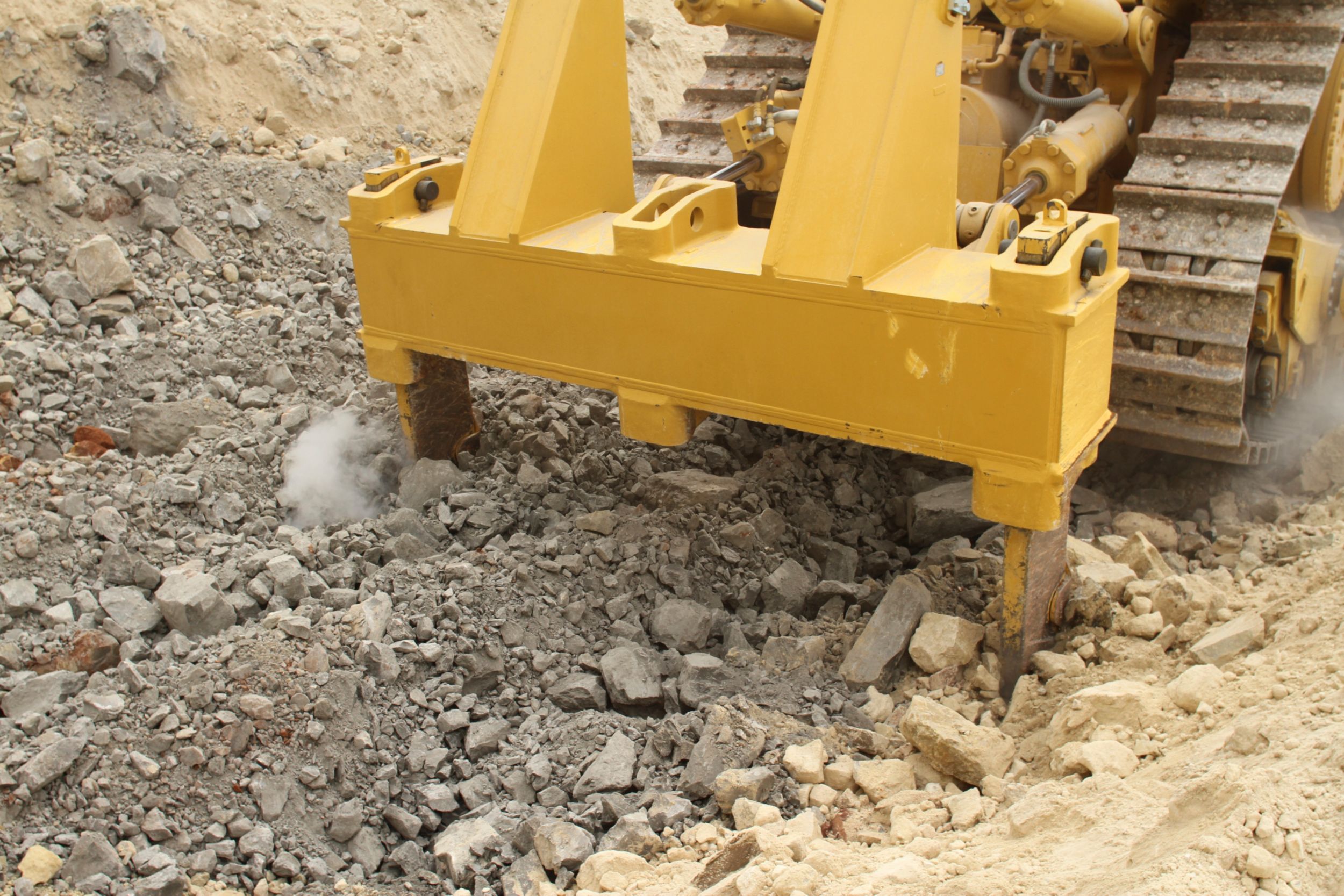

- Multi shank ripper: – Carrydozer – Leach Pad (Not available on D11T Carrydozer.) – Standard (Not available on D11T Carrydozer.)
- Ripper lube
- Single shank ripper: – Carrydozer/heavy – Push block (Not available on D11T Carrydozer.) – Standard (Not available on D11T Carrydozer.)
-
- Technology
-
- Command for Dozing (Installed by dealer.)
- Machine control, performance: – AutoCarry – Automatic ripper control
- Terrain for Grading: – With blade control
-
- Safety And Security
-
- Access arrangement (ladder and platform)
- Fuel tank: – Platform ready – Extra capacity
- Lights: – LED – LED, high intensity – Warning, strobe

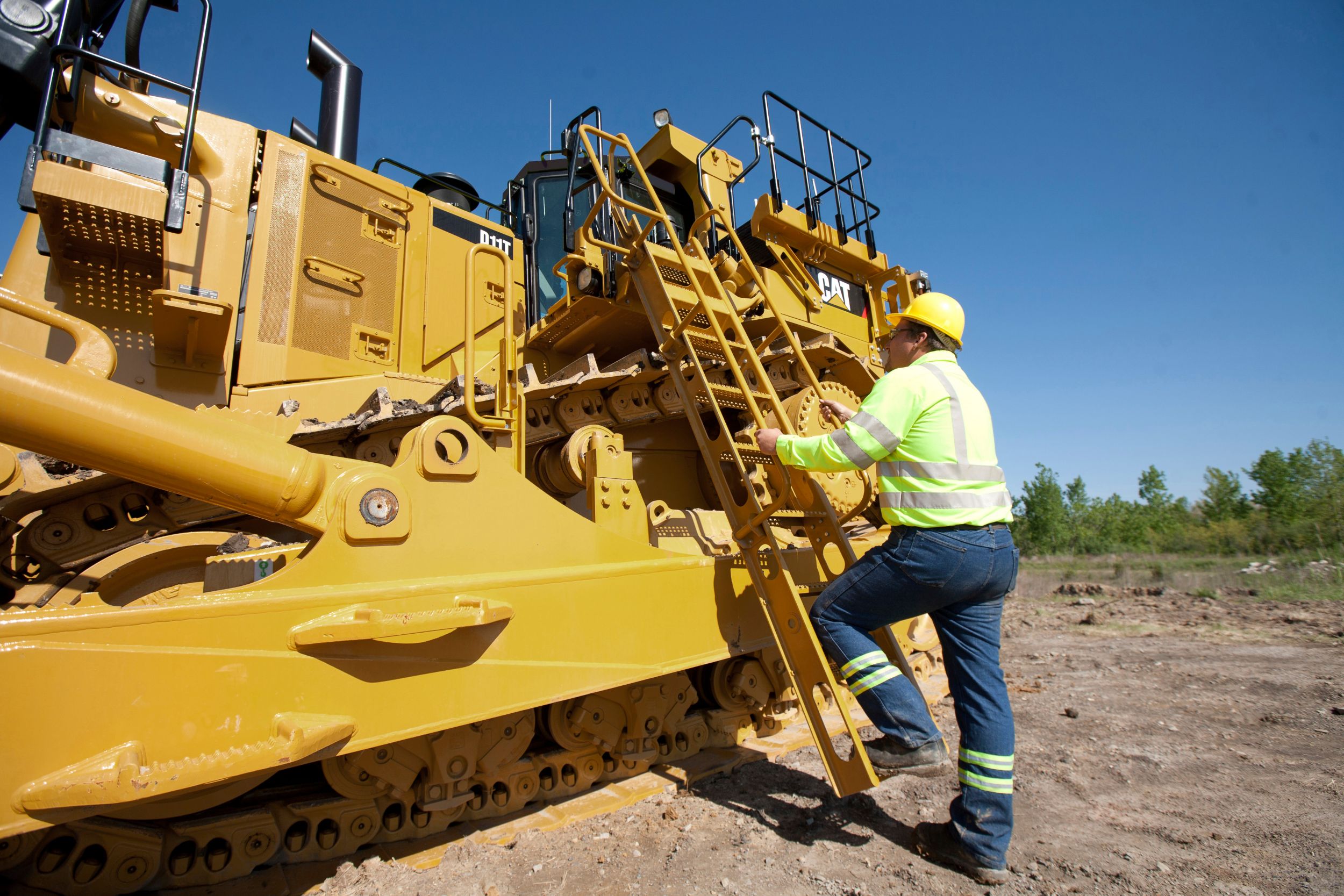

- Powered access ladder
- Rear access platform
-
- Other Attachments
-
- Automatic lubrication system
- Grease points, grouped
- Heater, engine coolant
- Heater, fuel
- Hydraulic lines, AutoCarry
- Hydraulic lines, screens
- Hydraulic lines, screens and AutoCarry
