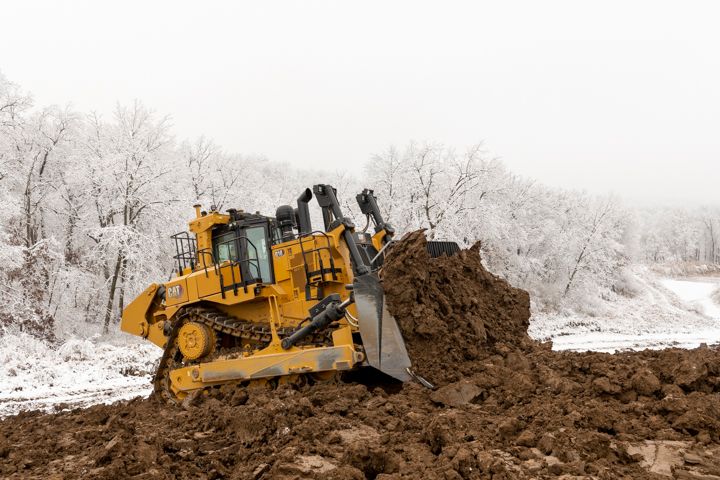

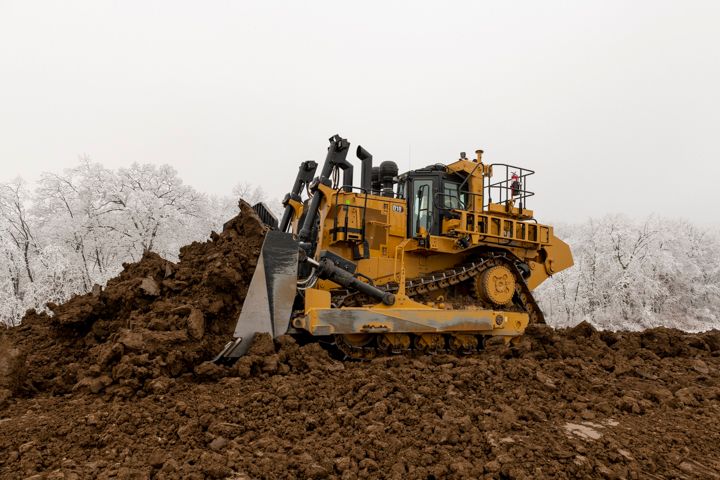

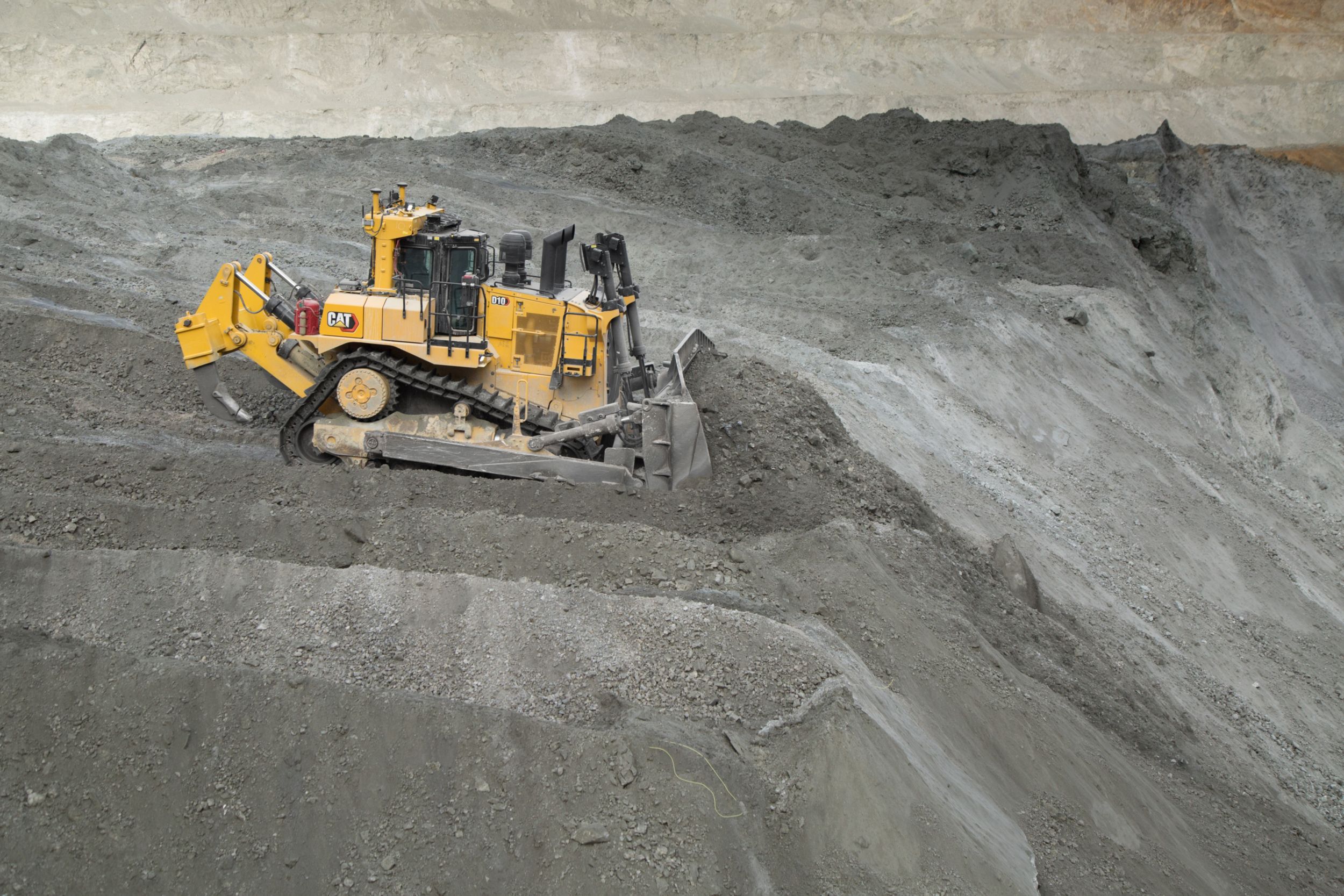

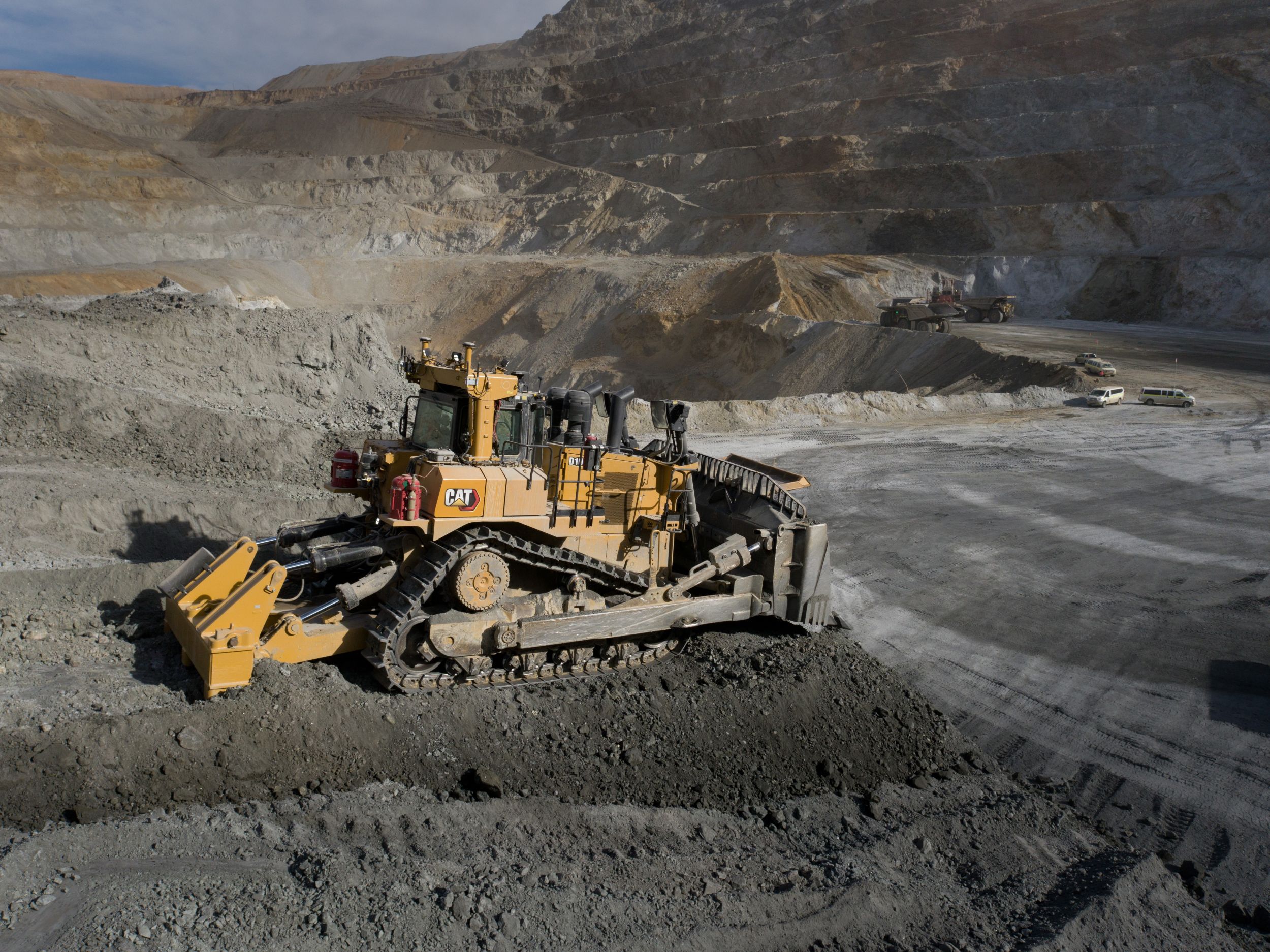

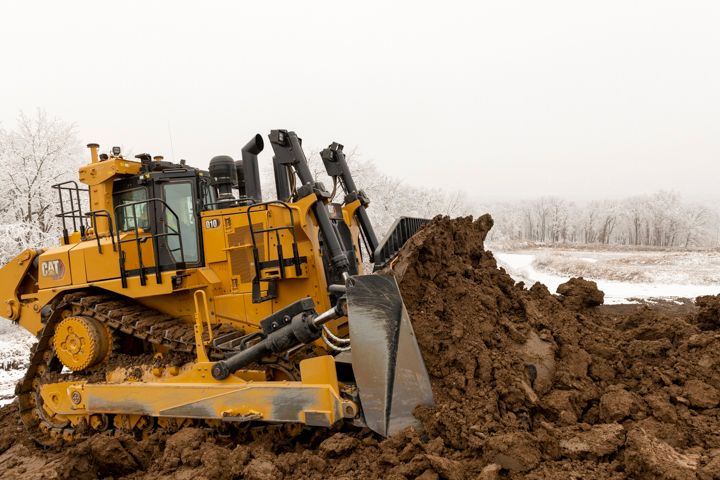

D10 Dozer

Request a Quote
Download a Product Brochure

Product Specs

Engine - U.S. EPA Tier 4 Final/EU Stage V

Engine Model
Cat® C27
Engine Power - Net SAE J1349/ISO 9249** - Forward
602 hp
Engine Power - Gross SAE J1995* - Forward
631 hp
Engine Power - Gross SAE J1995* - Reverse
766 hp
Engine Power - ISO 14396* - Forward
620 hp
Engine Power - ISO 14396* - Reverse
754 hp
Engine Power - Net SAE J1349/ISO 9249** - Reverse
722 hp
Displacement
1648 in³
Stroke
6 in
Bore
5.4 in
Emissions
U.S. EPA Tier 4 Final/EU Stage V
Note (1)
*Excludes all fan losses.
Note (2)
All Engine ratings apply at 1,800 rpm.
Note (3)
Tier 2 equivalent rating (in FWD gears) begins altitude de-rate at 4480 m (14,700 ft).
Note (4)
Tier 4/EU Stage 5 equivalent rating (in FWD gears) begins altitude de-rate at 4420 m (14,500 ft).
Note (5)
**Net power advertised is the power available at the flywheel when the engine is equipped with air cleaner, muffler, alternator, fan, and engine emissions controls as required at 25° C ambient temperature.

Weights

Operating Weight
154888 lb
Shipping Weight
111739 lb
Note (1)
D10 Operating Weight includes coolant, lubricants, full fuel tank, ROPS, FOPS cab, SU ABR bulldozer, dual tilt, single-shank ripper with pin-puller, fast fuel, 610 mm (24 in) ES shoes, and operator.
Note (2)
D10 Shipping Weight includes coolant, lubricants, 10% fuel, FOPS cab, fast fuel, and 610 mm (24 in) ES shoes.

Undercarriage

Shoe Type
Extreme Service (ES)
Width - Shoe
24 in
Shoes/Side
44
Grouser Height
3.7 in
Pitch
10.2 in
Ground Clearance
28.5 in
Track Gauge
100.4 in
Length - Track on Ground
152.8 in
Ground Contact Area
7347 in²
Track Rollers/Side
8
Number of Carrier Rollers
1 per side (optional)

Standards

ROPS
Rollover Protective Structure (ROPS) meets the following criteria: ISO 3471:2008.
FOPS
Falling Object Protective Structure (FOPS) meets the following criteria: ISO 3449:2005 LEVEL II.
Sound
Operator Sound Pressure Level (ISO 6396:2008): 78 db(A)
Note
The measurement was conducted at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds. The measurement was conducted with the cab doors and the cab windows closed. The cab was properly installed and
Sound (1)
Exterior Sound Pressure Level (ISO 6395:2008): 116 db(A)
Note (1)
The measurement was conducted at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.
Note (2)
The sound levels listed above include both measurement uncertainty and uncertainty due to production variation.
Note (3)
The available sound suppression package can reduce the dynamic exterior sound power level of the machine by up to 4 db(A) and the dynamic operator sound pressure level by up to 2 db(A).

Steering and Brakes

Steering Type
Hydraulically Applied Multiple-Disc Steering Clutch
Brake Type
Spring Applied Multiple- Disc Brake
Brake Diameter
15.4 in
Brake Count
10

Hydraulic Controls

Pump Type
Variable displacement piston
Pump Output - Implement
112 gal/min
Note (1)
Implement Pump output measured are 2,010 engine rpm and 7000 kPa (1,015 psi).
Fan Pump
21.7 gal/min
Note (2)
Fan Pump output measured at 2,010 engine rpm and 26 000 kPa (3,771 psi).
Tilt Cylinder Flow - Rod End Flow
112 gal/min
Tilt Cylinder Flow - Head End Flow
63.4 gal/min
Lift Cylinder Relief Valve Setting
4061.1 psi
Tilt Cylinder Relief Valve Setting
3872.5 psi
Ripper - Lift - Relief Valve Setting
4061.1 psi
Ripper - Pitch - Relief Valve Setting
4061.1 psi
Tank Capacity
32.2 gal (US)
Cylinder Sizing - Blade Lift - Bore
5.5 in
Cylinder Sizing - Blade Tilt - Bore
8.3 in
Cylinder Sizing - Ripper Shank Lift - Bore
8.3 in
Cylinder Sizing - Ripper Shank Angle - Bore
7.1 in
Cylinder Sizing - Blade Lift - Stroke
65.1 in
Cylinder Sizing - Blade Tilt - Stroke
9.5 in
Cylinder Sizing - Ripper Shank Lift - Stroke
21.1 in
Cylinder Sizing - Ripper Shank Angle - Stroke
26 in
Note (3)
Electro-hydraulic pilot valves assist operations of ripper and dozer controls.

Air Conditioning System

Air Conditioning
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.8 kg of refrigerant which has a CO2 equivalent of 2.600 metric tonnes.

Transmission

1.0 Forward
2.5 mile/h
1.5 Forward
3.4 mile/h
2.0 Forward
4.5 mile/h
2.5 Forward
6 mile/h
3.0 Forward
7.8 mile/h
1.0 Reverse
3.2 mile/h
1.5 Reverse
4.2 mile/h
2.0 Reverse
5.6 mile/h
2.5 Reverse
7.5 mile/h
3.0 Reverse
9.8 mile/h
Transmission Clutch Diameter
17 in
Type
Planetary powershift

Blades

10SU ABR - Capacity (SAE J1265)
24.2 yd³
10SU ABR - Width (over end bits)
194.5 in
10SU ABR - Height
83.5 in
10SU ABR - Digging Depth - Blade Pitch: Full Racked Back (Carry)
19.98 in
10SU ABR - Digging Depth - Blade Pitch: Nominal
25.23 in
10SU ABR - Digging Depth - Blade Pitch: Full Pitched Forward (Spread)
30.08 in³
10SU ABR - Ground Clearance - Blade Pitch: Full Racked Back (Carry)
66.14 in
10SU ABR - Ground Clearance - Blade Pitch: Full Pitched Forward (Spread)
53.86 in
10SU ABR - Ground Clearance - Maximum Tilt LH
56.3 in
10SU ABR - Ground Clearance - Maximum Tilt RH
56.3 in
10U ABR - Capacity (SAE J1265)
28.7 yd³
10U ABR - Width (over end bits)
207.1 in
10U ABR - Height
83.5 in
10U ABR - Digging Depth - Blade Pitch: Full Racked Back (Carry)
19.98 in
10U ABR - Digging Depth - Blade Pitch: Nominal
60 in
10U ABR - Digging Depth - Blade Pitch: Full Pitched Forward (Spread)
30.1 in
10U ABR - Ground Clearance - Blade Pitch: Full Racked Back (Carry)
66.1 in
10U ABR - Ground Clearance - Blade Pitch: Full Pitched Forward (Spread)
53.9 in
10U ABR - Ground Clearance - Maximum Tilt LH
60.8 in
10U ABR - Ground Clearance - Maximum Tilt RH
60.8 in
10U ABR - Weights - Blade Weight*
23585 lb
10U ABR - Weights - Total Operating Weight** (with blade and SS ripper)
154888 lb
Note (1)
Maximum LH and RH tilt for 10SU ABR and 10U ABR blades: 17.31 degrees
Note (2)
*Does not include hydraulic controls but includes blade cylinders, pusharms.
Note (3)
**D10 Operating Weight includes coolant, lubricants, full fuel tank, ROPS, FOPS cab, SU ABR bulldozer, dual tilt, single-shank ripper with pin-puller, fast fuel, 610 mm (24 in) ES shoes, and operator.

Ripper - Single Shank

Maximum penetration force * (shank vertical)
49233 lbf
Maximum penetration depth (standard tip)
59.2 in
Maximum Clearance Raised - Under Tip, Pinned in Bottom Hole
36 in
Weight
14209 lb
Note
Weight includes one shank. Add 544 kg (1,199 lb) for each additional shank.

Ripper - Single Shank, Deep Ripping

Maximum penetration force * (shank vertical)
53055 lbf
Maximum penetration depth (standard tip)
78.3 in
Weight
14548 lb
Note
Weight includes one shank. Add 544 kg (1,199 lb) for each additional shank.

Engine - U.S. EPA Tier 2 Equivalent

Engine Model
Cat® C27
Engine Power - Net SAE J1349/ISO 9249** - Forward
603 hp
Engine Power - Net SAE J1349/ISO 9249** - Reverse
722 hp
Engine Power - Gross SAE J1995* - Forward
631 hp
Engine Power - Gross SAE J1995* - Reverse
766 hp
Engine Power - ISO 14396* - Forward
622 hp
Engine Power - ISO 14396* - Reverse
756 hp
Displacement
1648 in³
Bore
5.4 in
Stroke
6 in
Emissions
U.S. EPA Tier 2 Equivalent
Note (1)
*Excludes all fan losses.
Note (2)
All Engine ratings apply at 1,800 rpm.
Note (3)
Tier 2 equivalent rating (in FWD gears) begins altitude de-rate at 4480 m (14,700 ft).
Note (4)
Tier 4/EU Stage 5 equivalent rating (in FWD gears) begins altitude de-rate at 4420 m (14,500 ft).
Note (5)
**Net power advertised is the power available at the flywheel when the engine is equipped with air cleaner, muffler, alternator, fan, and engine emissions controls as required at 25° C ambient temperature.

Fuel Tank Capacities

Fuel Tank - Usable Volume
323.3 gal (US)
Fuel Tank - Total Volume
335.2 gal (US)

Dimensions (Approximate)

Ground Clearance*
28.5 in
Track Gauge
100.4 in
Width - Without Trunnions - 610 mm/24 in ES
130.4 in
Width - Over Trunnions
148 in
Height - FOPS Cab*
162.8 in
Height - Top of Stack*
171.5 in
Height - ROPS/Canopy*
173.5 in
Note (1)
*Includes grouser height for total dimensions on hard surfaces.
Length - Track on Ground
152.8 in
Overall Length - Basic Tractor
209.6 in
Length - With SU-Blade
292 in
Length - With U-Blade
305.1 in
Length - With Single-Shank Ripper
278.8 in
Length - With Multi-Shank Ripper
285.1 in
Overall Length - SU-Blade/SS Ripper
360.6 in

FLUID CAPACITIES

Cooling System Refill – Tier 4 Final Engine
46.2 gal (US)
Engine Crankcase Sump
27.2 gal (US)
Power Train - Total Volume
81.4 gal (US)
Power Train - Refill Volume
74.8 gal (US)
Final Drives (each)
12.2 gal (US)
Track Roller Frames (each)
16.9 gal (US)
Pivot Shaft Oil
9.5 gal (US)
Hydraulic System Tank
32.2 gal (US)

Standard Equipment

  • Operator Environment
    • Air Conditioner and Heater with Automatic Climate Control
    • Seat — Cloth with Air Suspension
    • Cab Glass — Single-Pane Tinted Safety
    • Rollover Protection System (ROPS)/Falling Object Protection (FOPS), Sound-Suppressed Cab
    • High-Definition Primary Touchscreen Display
    • Cab Access – Blade Push Arm Steps and Grab Handle
    • Visibility – Rearview Mirror
  • Technology
    • VIMS
    • Cat Product Link™ Elite (cellular)
    • Automated Blade Assist (ABA)
  • Power Train
    • Stator Clutch Torque Divider – Electronic Control
    • Powershift Transmission – Three-Speed Electronic Shift
    • High-Performance Single-Plane Cooling Package with Aluminum Radiator
    • Cat C27 Engine – U.S. EPA Tier 4 Final or Tier 2 Equivalent
  • Undercarriage
    • Lifetime-Lubricated Rollers and Idlers
    • Suspension-Type Undercarriage
    • Track Shoe (ES): 610/710/785 mm (24, 28, 31 inch) Width
  • Hydraulics
    • Electronically Controlled, Load-Sensing Dozer Lift and Tilt
    • Electronically Enabled Blade – Quick Drop
    • Electronically Controlled, Load-Sensing Ripper Lift and Pitch
    • Dozer Blade – Dual Tilt, Guarded Lines
  • Electrical
    • 24V Electric Start
    • Batteries – 2× 200-Amp Hour, 12V
    • Battery Isolation - Single Pole
    • Lights – LED – 13 Positions
  • Service And Maintenance
    • Replaceable Bearings – Push Arm and Ripper
    • Radiator Guard – Swing-Out Access Doors
    • Ground-Level Fast Fuel Fill
    • Ground-Level Electrical Service Station
    • Diagnostic Connector
    • Bottom Guards - Hinged with Release Catch
    • Scheduled Oil Sampling (S·O·S) Fluid Sampling Ports
    • Ecology Fluid Drains – All Compartments

Attachments

  • Operator Environment
    • Cab Glass – Dual-Pane Laminated Impact Safety
    • Visibility – Five Cameras: 360-Degree View and Ripper Camera
    • Cab Glass – High-Pressure Safety (40 psi/275 kPa)
    • MineStar™ Terrain Display
    • Seat – Heated, Cooled, Adjustable Lumbar and Bolsters
    • Visibility – Dual Camera: Backup and Ripper
  • Technology
    • Autocarry™
    • Auto Ripper Control
    • Cat Product Link Elite Dual Mode (cellular + satellite)
    • Cat Grade with 3D Blade Control
    • MineStar Terrain Ready
    • MineStar Terrain with Blade Control
    • MineStar Command Remote Control Ready
  • Power Train
    • Hydraulic Cooling Fan – Automatic Reversing
  • Undercarriage
    • Abrasion Rollers and Idlers
    • Cold Weather Rollers and Idlers
    • Carrier Roller
    • Track Links – Heavy Duty XL – Duralink
    • Track Shoe – Anti-Packing Round Hole
    • Sound-Suppression Undercarriage
    • Track Shoes : 610/710/786 mm (24/28/31 in) Width (various configurations)
  • Hydraulics
    • Ripper Pin Puller
  • Electrical
    • Lights – LED – Premium Package
    • Battery Isolation – Dual Pole
  • Service And Maintenance
    • Ripper Lubrication – Grouped – Ground-Level Fill
    • Ground-Level – Fluid Fill and Drain Engine, Power Train, Hydraulic and Coolant
    • Sound Reduction Sealed Bottom Guards
    • Ripper Lubrication – Autolube with Ground-Level Fill
  • Rear Attachments
    • Counterweight – Rear, 3 Weighted Plates
    • No Rear Attachment for customers who already have a rear attachment
    • Ripper – Single Shank with Pin Puller and Retrieval Hitch
    • Ripper – Single Shank with Pin Puller
    • Ripper – Multi Shank (three shank)
    • Counterweight – Rear, 4 Weighted Plates
    • Ripper – Multi Shank Deep with Pin Puller
  • Blades
    • Semi-Universal (18.5 m3/24.2 yd3)
    • Universal (22 m3/28.7 yd3)
  • Other
    • Fire Suppression Ready
    • Fire Suppression Installed
  • Worktools Blades
    • Cushion Dozer Blade
    • Coal Universal (52 m3/68 yd3)
    • Black Blade Paint
    • Abrasion Liners and Guards
    • Woodchip Universal (72.6 m3/95 yd3)
    • Reclaimation Universal (24.5 m3/32 yd3)
    • Coal Universal (46.1 m3/60.3 yd3)

Pin It on Pinterest

Share This
