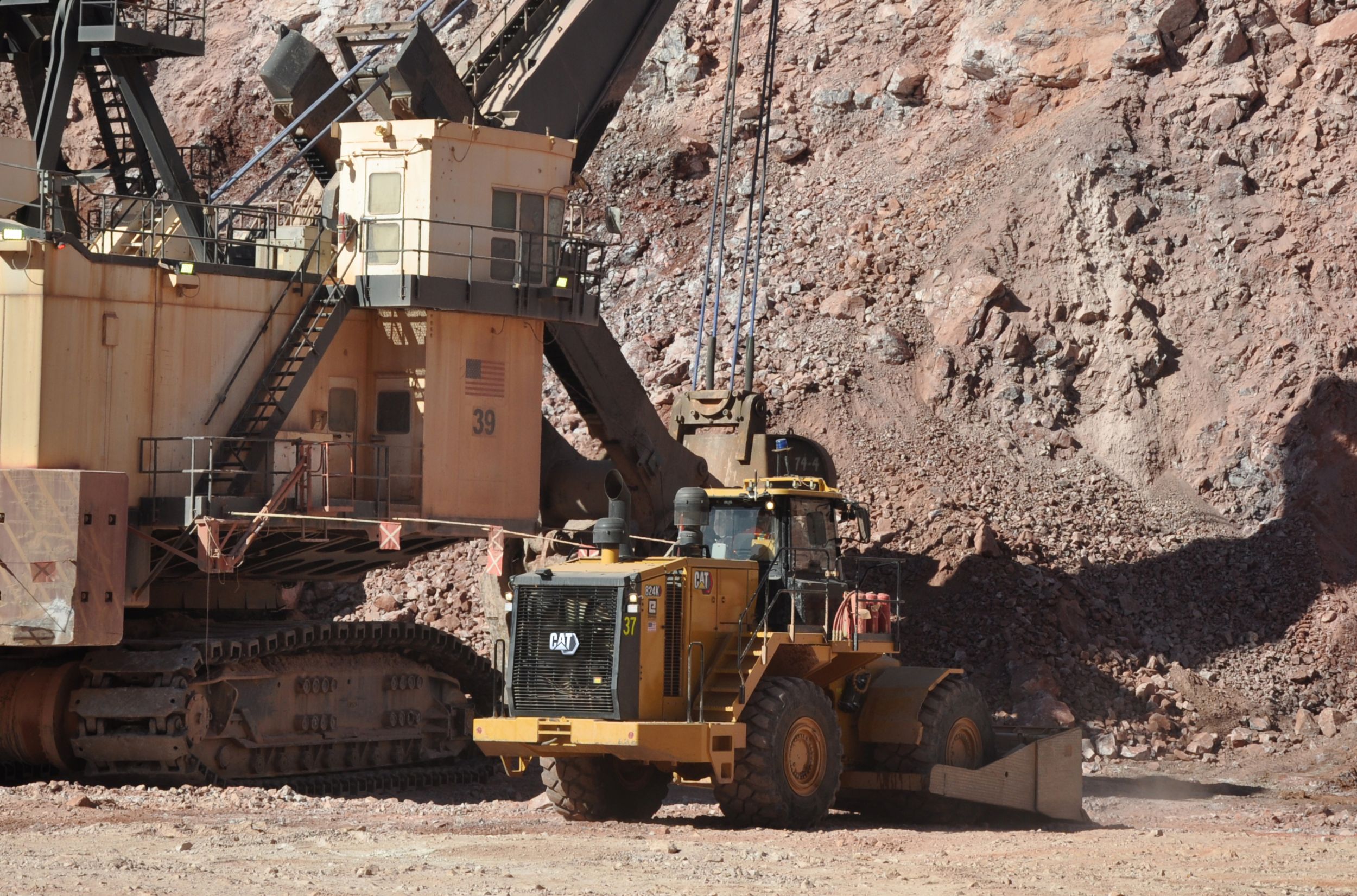

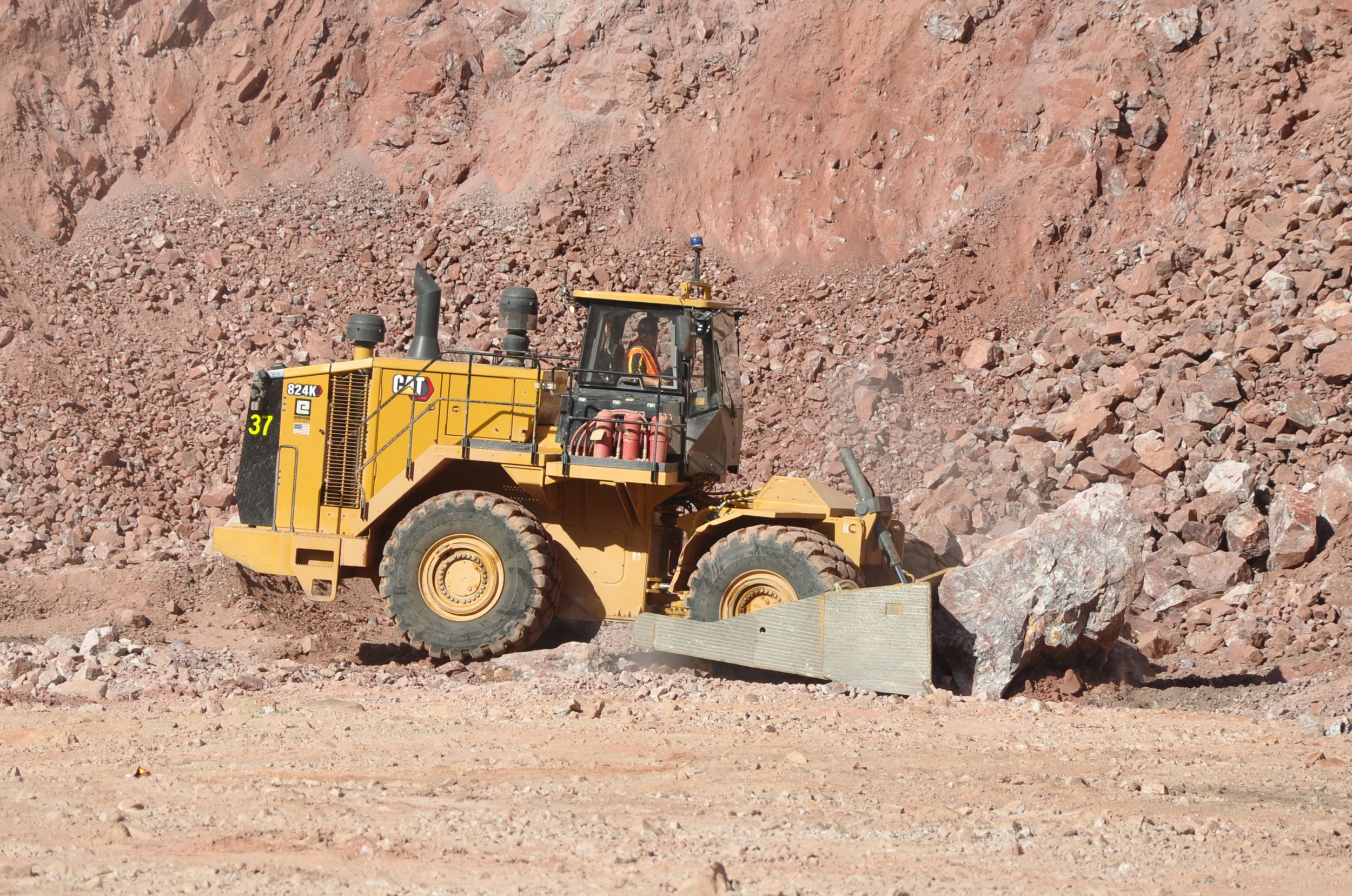

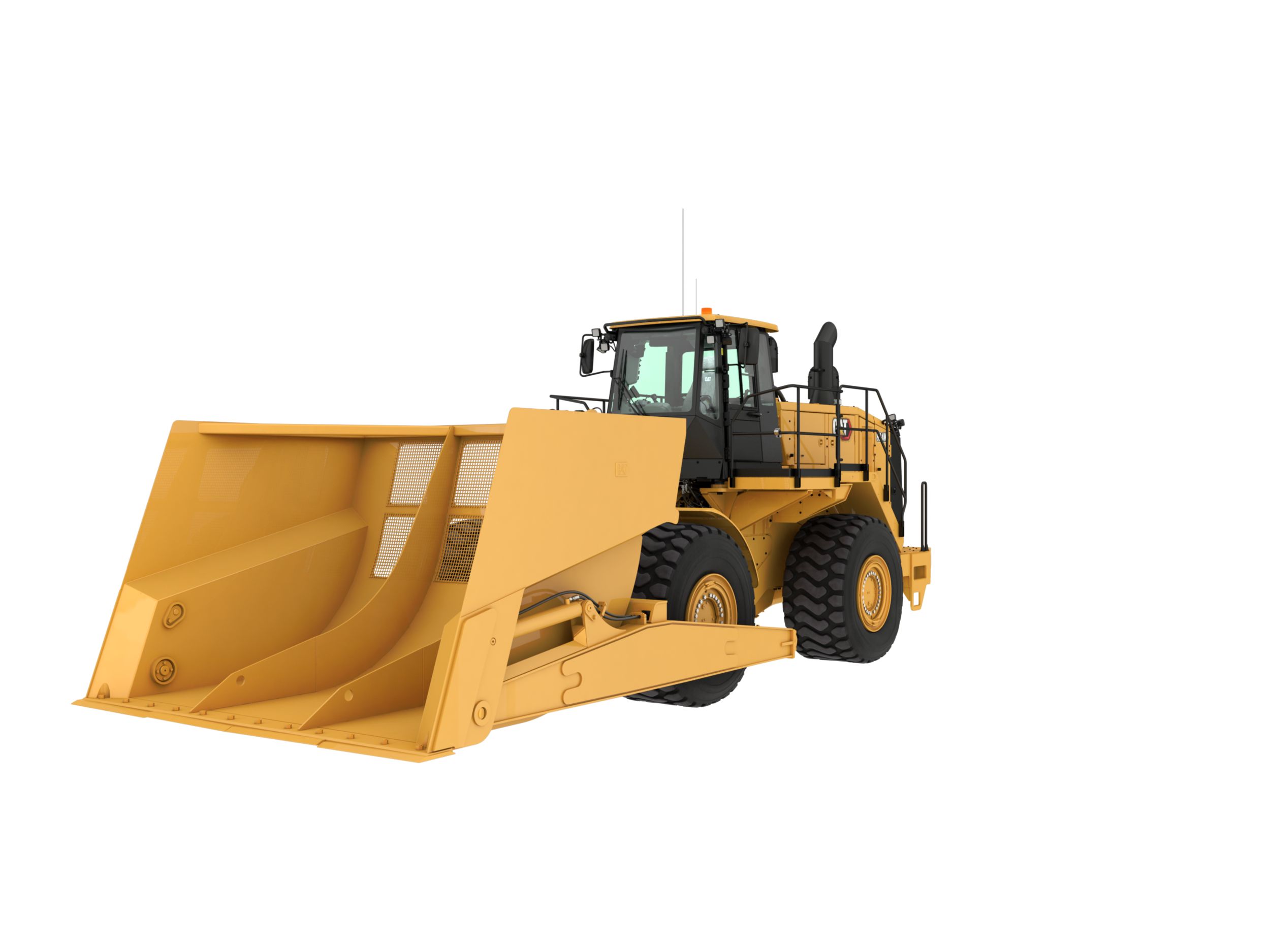

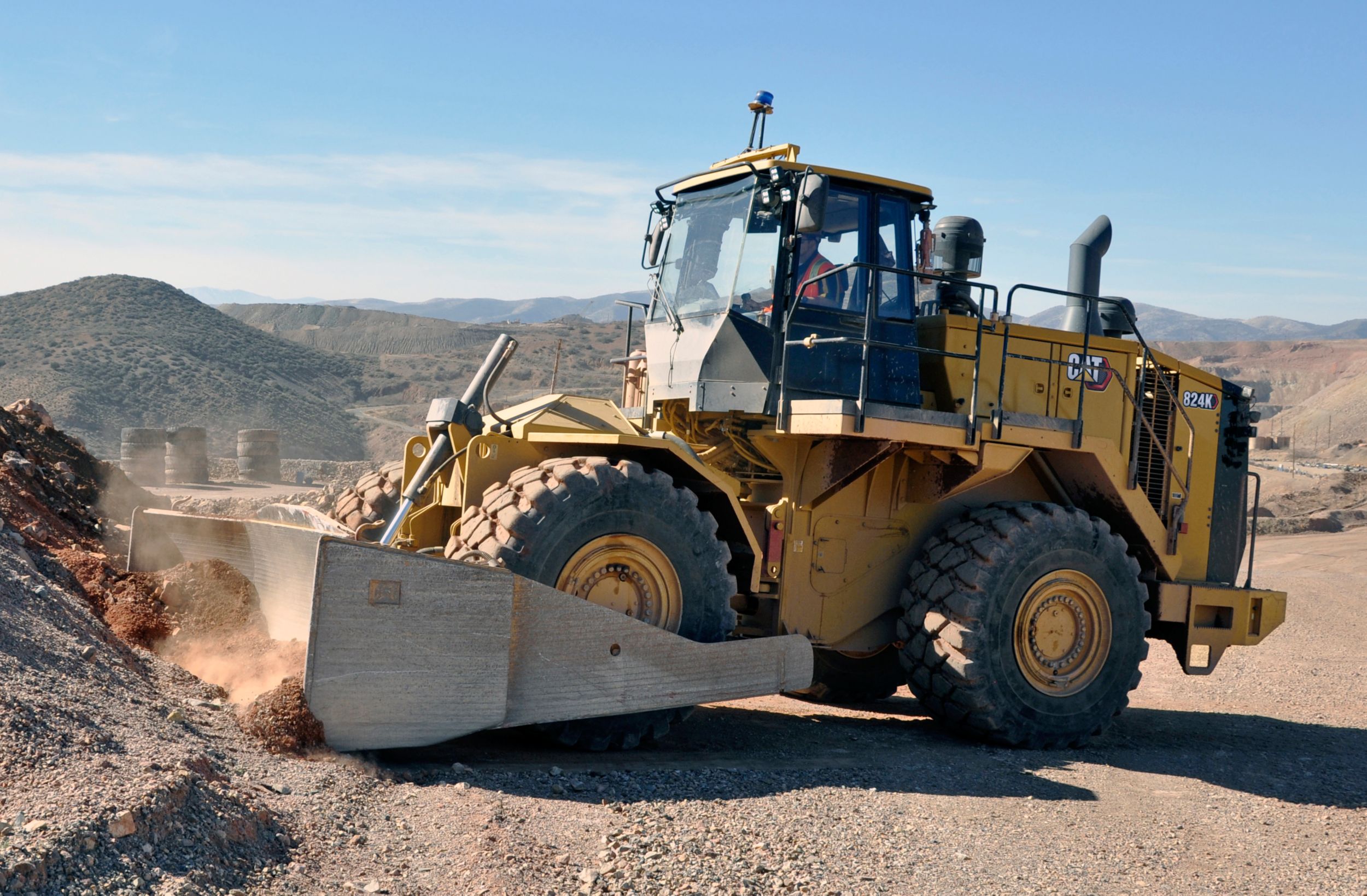

Exterior View
Product Specs
Engine
- Engine Model
- Cat® C15
- Net Power - ISO 9249
- 405 hp
- Stroke
- 6.7 in
- Bore
- 5.4 in
- Displacement
- 927.6 in³
- Emissions
- Meets U.S. EPA Tier 4 Final/EU Stage IV emission standards or meets U.S. EPA Tier 3/EU Stage IIIA equivalent emission standards
- Gross Power
- 435 hp
Transmission
- Transmission Type
- Planetengetriebe – Lastschaltgetriebe – ECPC (Electronic Clutch Pressure Control, Elektronische Kupplungsdrucksteuerung)
Axles
- Front
- Planetary – Fixed
- Oscillation Angle
- ±11°
- Rear
- Planetary – Oscillating
Service Refill Capacities
- Cooling System
- 30.6 gal (US)
- Differential - Final Drives - Front
- 26.4 gal (US)
- Differential - Final Drives - Rear
- 29.1 gal (US)
- Fuel Tank
- 206.6 gal (US)
- Transmission
- 17.4 gal (US)
Operating Specifications
- Operating Weight
- 74966 lb
Dimensions (Approximate)
- Centerline of Front Axle to Hitch
- 6.1 ft
- Centerline of Rear Axle to Edge of Bumper
- 9.3 ft
- Ground Clearance
- 1.4 ft
- Height - Top of Cab
- 13.5 ft
- Height - Top of Exhaust Stack
- 14.2 ft
- Height - Top of Hood
- 10.5 ft
- Wheel Base
- 12.1 ft
Hydraulic System
- Cylinder, Double Acting - Tilt and Tip, Bore and Stroke
- 140 mm × 230 mm (5.5 in × 9.1 in)
- Cylinders, Double Acting - Lift, Bore and Stroke
- 120 mm × 1070 mm (4.7 in × 42.1 in)
Hydraulic System - Steering
- Steering System - Circuit
- Double Acting – End Mounted
- Steering System - Pump
- Piston – Variable Displacement
Standard Equipment
-
- Note
-
- Standard and optional equipment may vary. Consult your Cat dealer for details.
-
- Power Train
-
- Air to air aftercooler
- Auto shift
- Brakes, full hydraulic, enclosed, wet multiple disc service brakes
- Cat clean emission module (Tier 4 Final/Stage IV equivalent)
- Electro-hydraulic parking brake
- Electronic Clutch Pressure Control (ECPC)
- Engine, Cat C15: – U.S. EPA Tier 4 Final/EU Stage IV equivalent – U.S. EPA Tier 3/EU Stage IIIA equivalent
- Fuel priming pump (electric)
- Fuel to air cooler
- Ground level engine shutoff
- Hydraulically driven demand fan
- Integrated braking system
- Muffler (under hood) (Tier 3/Stage IIIA equivalent)
- Radiator, Aluminum Modular (AMR)
- Separated cooling system
- Single Clutch Speed Shifting (SCSS)
- Starting aid (ether) automatic
- Throttle lock
- Torque converter with Lock Up Clutch (LUC)
- Transmission, planetary, with 4F/4R speed range control
-
- Electrical
-
- Alarm, back-up
- Alternator, 150 amp
- Batteries, maintenance-free (4 – 1,000 CCA)
- Electrical system, 24V
- Ground level lockable master disconnect switch
- Light, warning switched (LED strobe)
- Lighting, access stairway
- Lighting system, halogen (front and rear)
- Lights, directional (rear)
- Starter, electric (heavy duty)
- Starting receptacle for emergency start
-
- Operator Environment
-
- 12V power port for mobile phone or laptop connection
- Air conditioner
- Cab, sound-suppressed pressurized
- Cab door, sliding window (LH)
- Cab Integrated Object Detection System (CIODS) ready
- Coat and hard hat hooks
- Electro-hydraulic tilt and lift controls
- Finger tip shifting controls
- Flip-up armrest
- Heater and defroster
- Horn, electric
- Implement hydraulic lockout
- Instrumentation, gauges: – DEF fluid level (Tier 4 Final/Stage IV) – Engine coolant temperature – Fuel level – Hydraulic oil temperature – Speedometer/tachometer – Torque converter temperature
- Instrumentation, warning indicators: – Action alert system, three categories – Brake oil pressure – Electrical system, low voltage – Engine failure malfunction alert and action lamp – Parking brake status
- Laminated glass
- Light, (dome) cab
- Lunch box and beverage holders
- Internal four-post rollover protective structure (ROPS/FOPS)
- Mirror, internal (panoramic)
- Mirrors, heated ready
- Mirrors, rearview (externally mounted)
- Radio ready for entertainment: – Antenna – Speakers – Converter (12V, 10-15 amp)
- Seat, Cat Comfort (cloth) air suspension
- Seat belt with minder, retractable, 76 mm (3 in) wide
- STIC control system with lockout
- Sun visor, front
- Tinted glass
- Transmission gear (indicator)
- Vital Information Management System (VIMS): – Graphical information display – External data port – Customizable operator profiles
- Wet-arm wipers/washers (front and rear): – Intermittent wipers (front and rear)
-
- Guards
-
- Guard, driveshaft
- Guards, crankcase and power train
-
- Fluids
-
- Antifreeze, premixed 50% concentration extended life (–34° C/–29° F)
-
- Other Standard Equipment
-
- Doors, service access (locking)
- Ecology drains for engine, radiator, transmission, hydraulic tank
- Emergency platform egress
- Engine, crankcase, 500 hour interval with CJ-4 oil
- Engine idle management features: – Auto idle kickdown – Delayed engine shutdown – Engine idle shutdown
- Fire suppression ready
- Fold down exhaust stack for shipping
- Fuel tank, 782 L (207 gal)
- Hitch, drawbar with pin
- Hoses, Cat XT
- Hydraulic, engine, and transmission oil coolers
- Oil change system, high speed
- Oil sampling valves
- Product Link
- Secondary steering
- Stairway, left and right rear access
- Steering, load sensing
- Toe kicks
- Total hydraulic filtration system
- Vandalism protection caplocks
- Venturi stack
Attachments
-
- Note
-
- Standard and optional equipment may vary. Consult your Cat dealer for details.
-
- Operator Environment
-
- Camera, rear vision
- Radio, AM/FM/AUX/USB/BLUETOOTH
- Radio, CB (ready)
-
- Starting Aids
-
- Heater, engine coolant, 120V
- Heater, engine coolant, 240V
-
- Blades
-
- Blade, Straight
- Blade, Straight with Push Plate
- Blade, Semi-U
- Blade, U
- Blade, Extended Wear U
- Blade, Coal U
-
- Fluids
-
- Antifreeze, –50° C (–58° F)
-
- Other Attachments
-
- Counterweight, Front
- Tire Pressure Monitoring System
-
- Miscellaneous
-
- Film (ANSI) (Tier 4 Final/Stage IV equivalent)
- EU certification (Tier 4 Final/Stage IV equivalent)
- Plate – year of manufacture (Tier 3/Stage IIIA equivalent)
