Product Specs
Weights
- Operating Weight
- 23525 lb
- Operating Weight - At Rear Drum with ROPS/FOPS
- 11398 lb
- Operating Weight - At Front Drum with ROPS/FOPS
- 11552 lb
- Operating Weight - With Cab
- 23525 lb
- Operating Weight - With ROPS/FOPS
- 22950 lb
- Maximum Weight at Front Drum
- 11706 lb
- Maximum Weight at Rear Drum
- 11817 lb
Operating Specifications
- Standard Compaction Width
- 67 in
- Curb Clearance
- 37 in
- Turning Radius - Inside Drum Edge
- 14.3 ft
- Ground Clearance
- 10 in
- Maximum Compaction Width
- 73 in
- Static Linear Load
- 176 lb/in
- Travel Speed - Maximum
- 7.5 mile/h
Engine
- Gross Power
- 133.2 hp
- Bore
- 4.12 in
- Stroke
- 5 in
- Engine Model
- Cat® C4.4 with ACERT Technology
Service Refill Capacities
- Fuel Tank Capacity
- 55 gal (US)

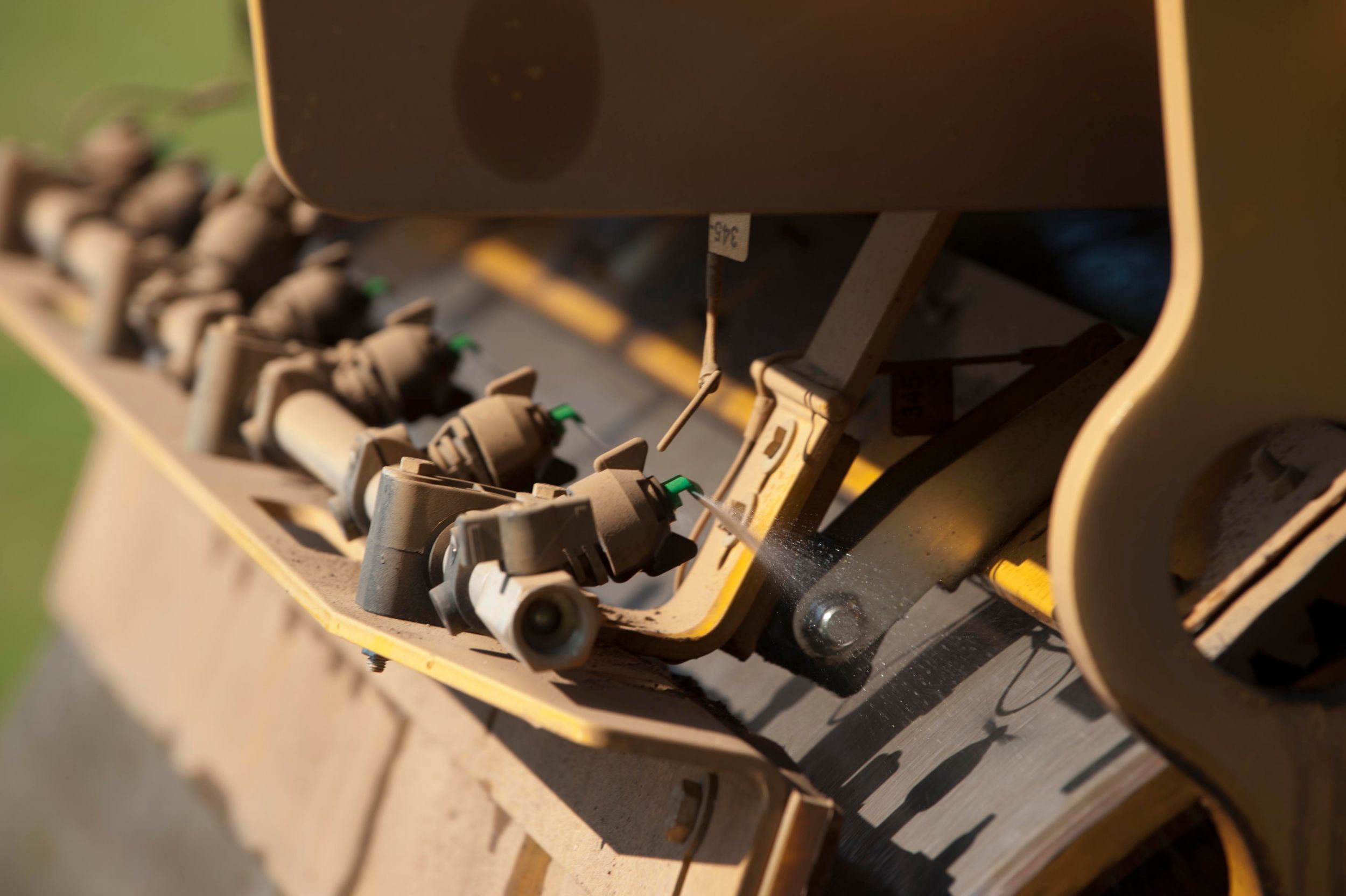

- Water Spray Tank Capacity
- 221 gal (US)
Vibratory System
- Drum Width
- 67 in
- Drum Diameter
- 47 in
- Frequency
- 3200 V/m
- Vibration Selection
- Independent per drum, front only, rear only, both
- Eccentric Weight Drive
- Hydraulic direct, auto reversing
- Centrifugal Force per Drum - Maximum
- 19491 lb
- Centrifugal Force per Drum - Minimum
- 16973 lb
- Nominal Amplitude - High
- 0.024 in
- Nominal Amplitude - Low
- 0.013 in
Dimensions
- Overall Length
- 177 in
- Wheel Base
- 130 in
- Height - With ROPS/FOPS
- 117 in
- Compaction Width
- 67 in
- Overall Width
- 74 in
- Drum Diameter
- 47 in
- Drum Width
- 67 in
Attachments
- Cat® Compaction Control
- Edge Cutter
- ROPS/FOPS Cab
- Offset Hitch
- Water Distribution Mats
- Cocoa Mats
- Water Spray Freeze Protection Kit
- High Intensity Discharge Lights
- Warning Beacon
- External Mirrors
- Bio-Degradeable Oil
- Product Link
- Drum Edge Lighting Package
- High Ambient Cooling System
- Air Suspension Seat w/heat
