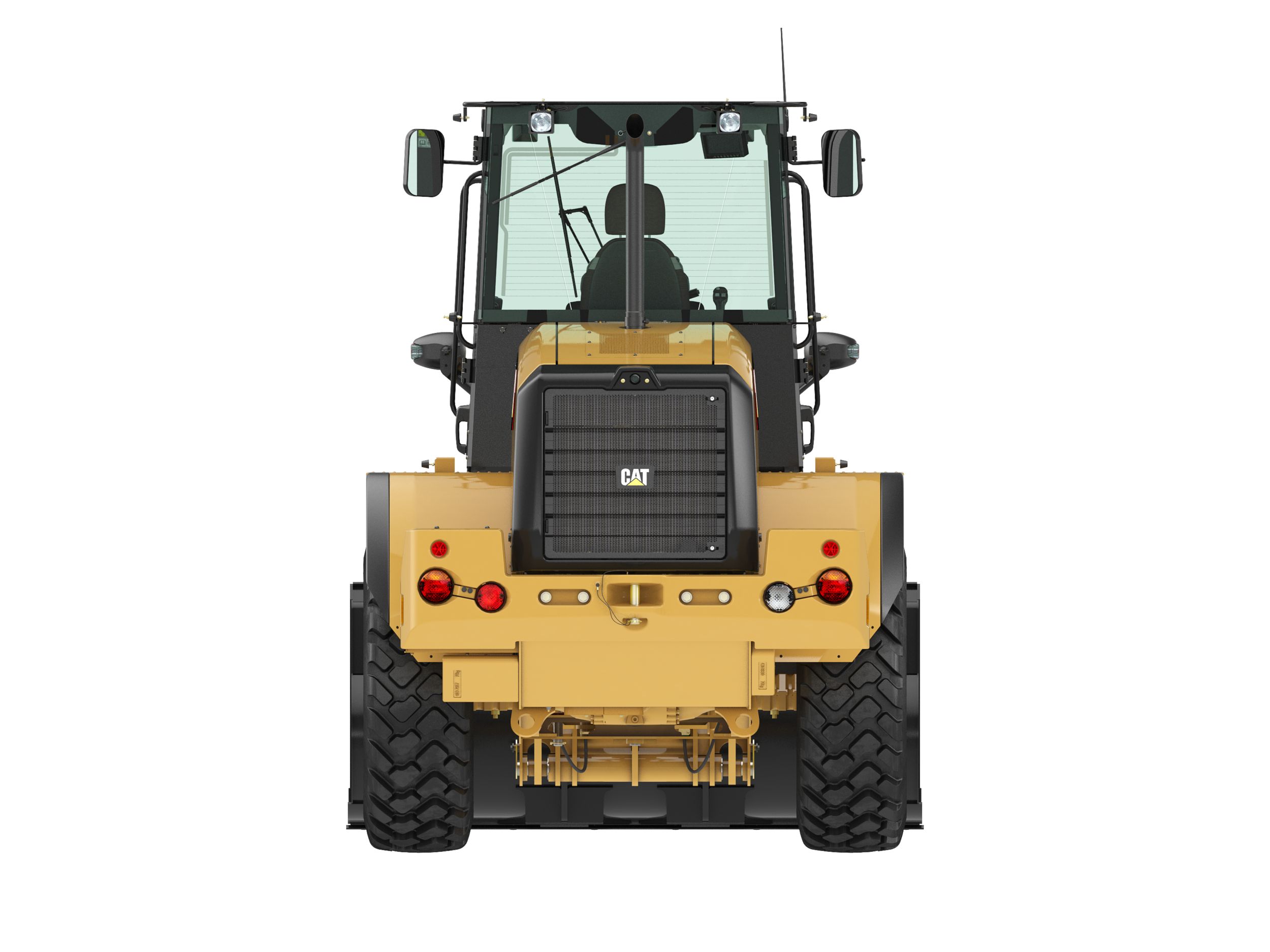

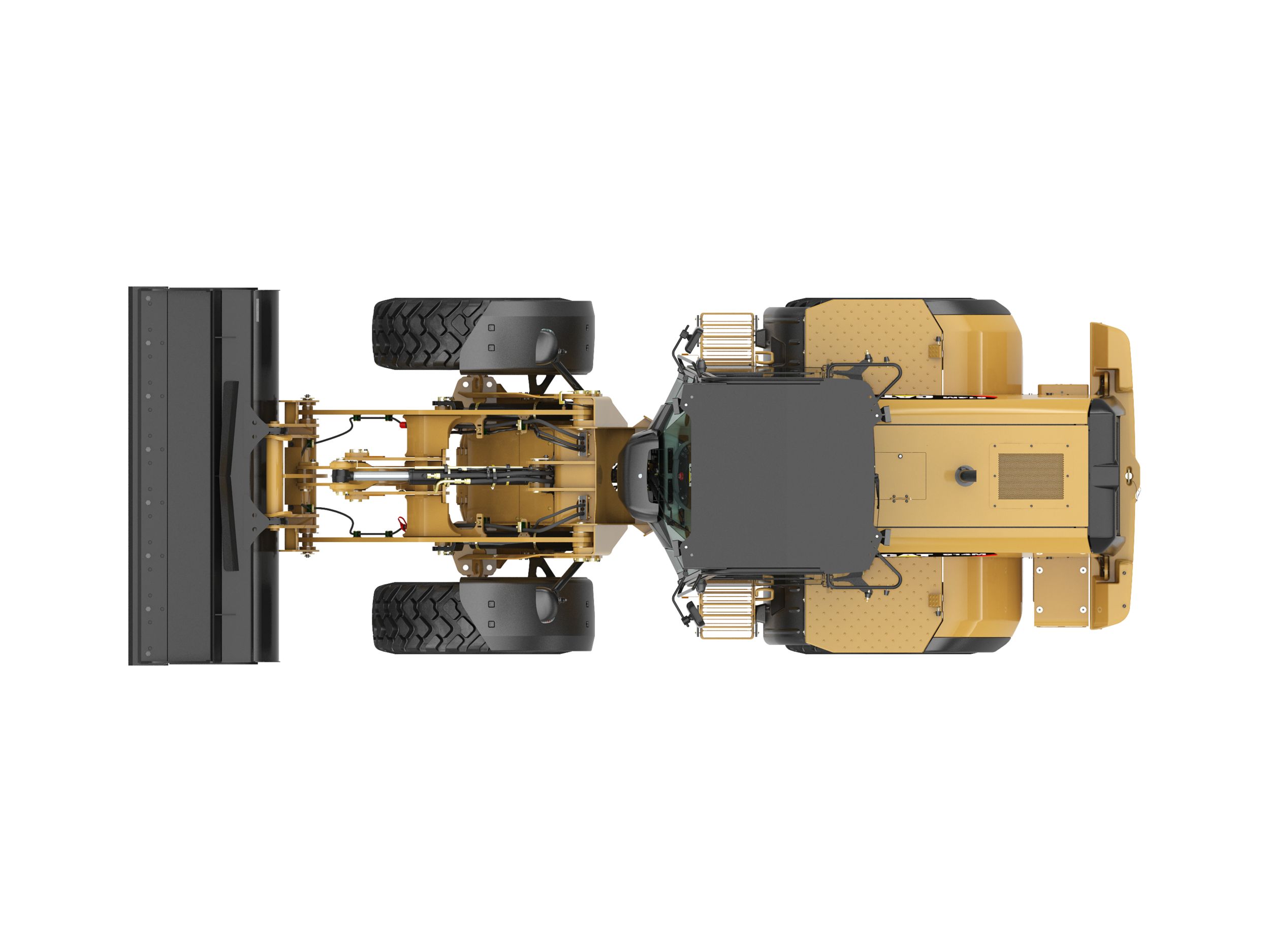

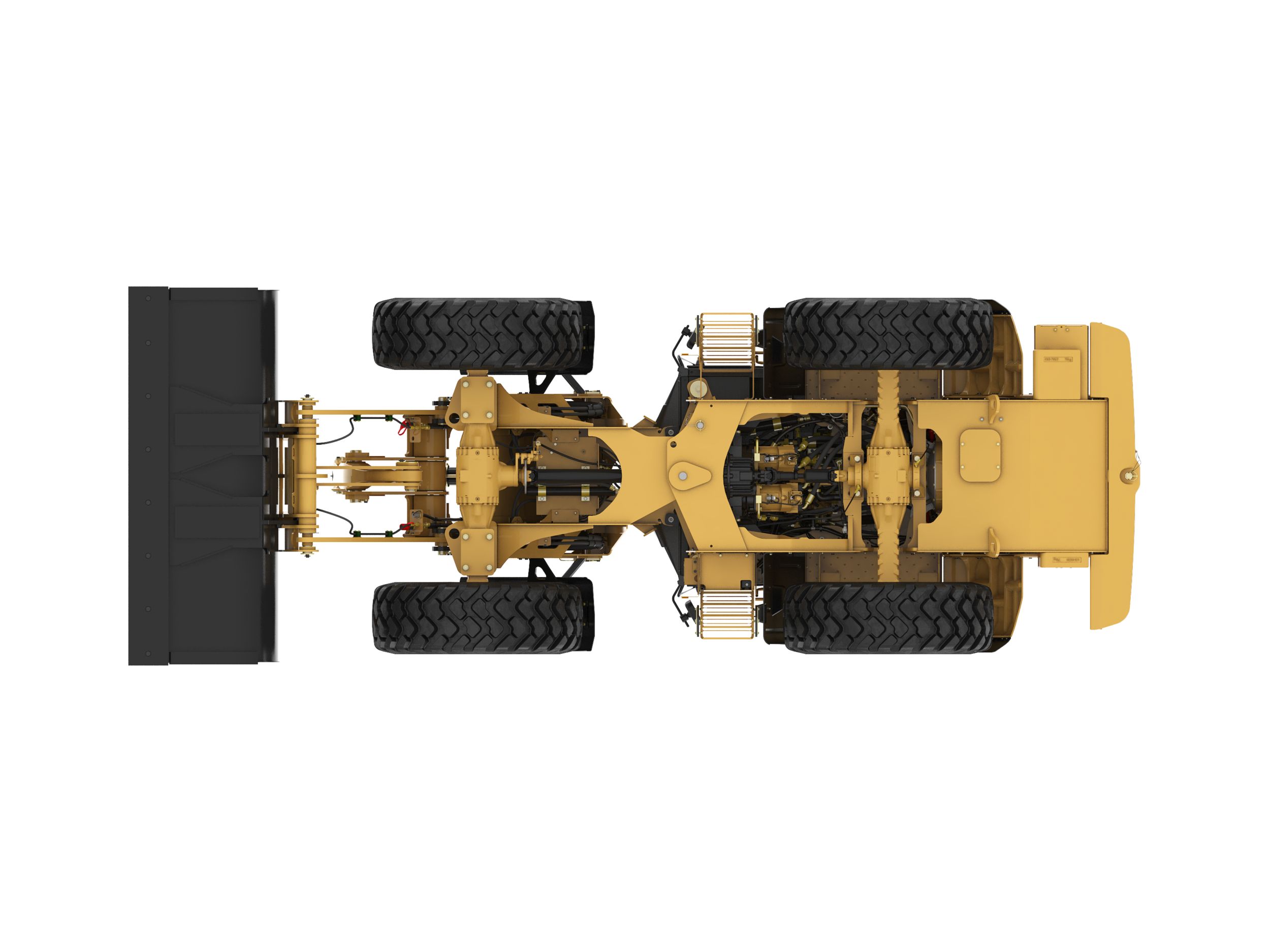

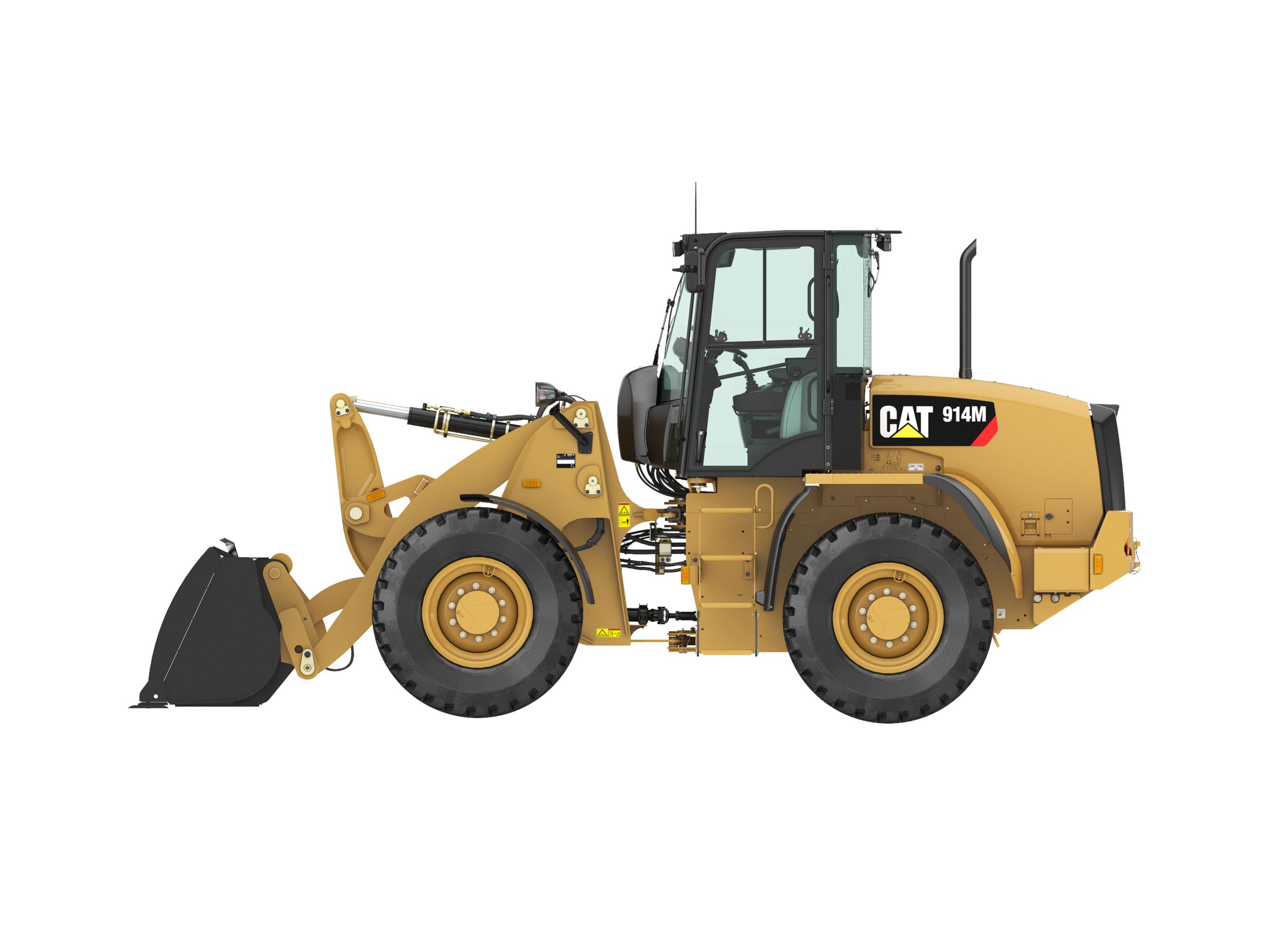

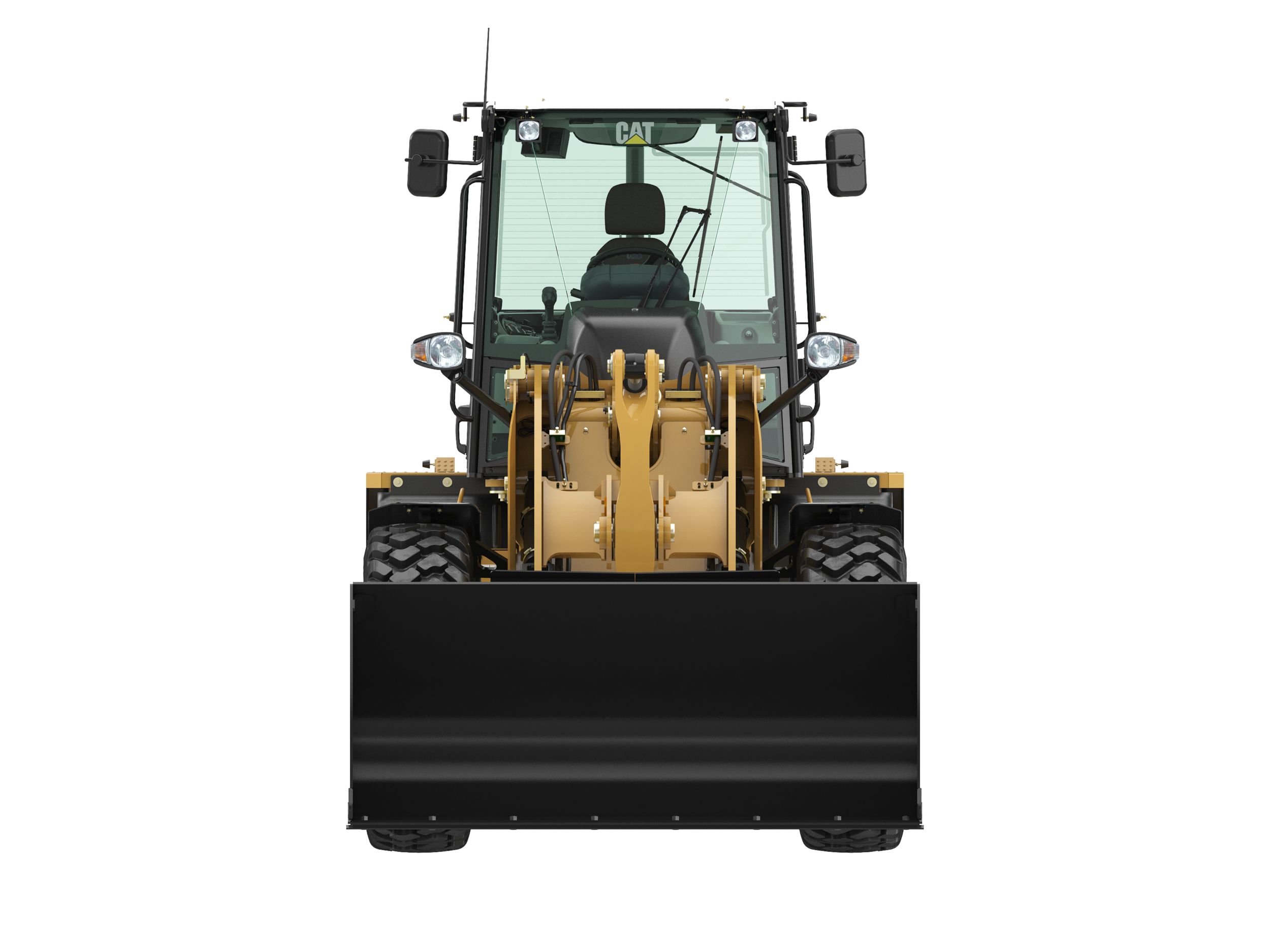

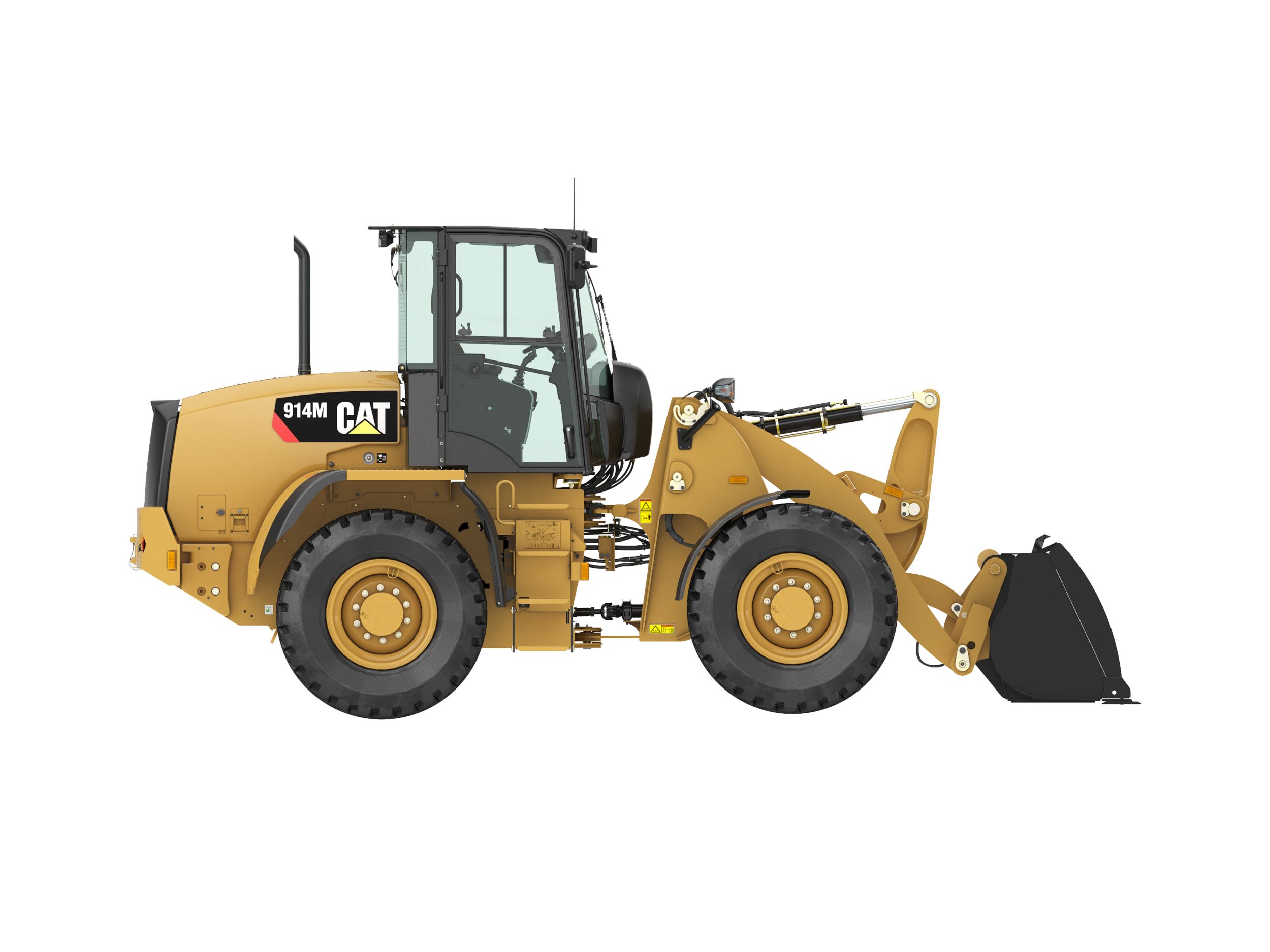

914M Compact Wheel Loader

Request a Quote

Download a Product Brochure

Product Specs

Maximum Gross Power: 100 hp
Net Power: 97 hp
Maximum Gross Power - SAE J1995: 102 hp
Rated Net Power - SAE J1349: 96 hp
Engine Model: Cat C4.4 ACERTï¿½
Rated Net Power - ISO 9249 (DIN): 98 hp
Maximum Gross Power - ISO 14396 (DIN): 101 hp
Maximum Gross Torque - SAE J1995: 336 ft·lbf
Maximum Gross Power - Maximum Engine Speed: 2350 r/min
Rated Net Power - Rated Engine Speed: 2200 r/min
Rated Net Power - ISO 9249: 97 hp
Bore: 4.13 in
Displacement: 268 in³
Emissions: Engine meets U.S. EPA Tier 4 Final/EU Stage IV emission standards.
Maximum Gross Torque - ISO 14396: 332 ft·lbf
Note: Net power advertised is the power available at the flywheel plus front drive implement pump when the engine is equipped with fan, air cleaner, muffler and alternator.
Stroke: 5 in
Maximum Gross Power - ISO 14396: 100 hp

ROPS: ISO 3471:2008
FOPS: ISO 3449:2005 Level II
Note (1): Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
Note (2): The declared dynamic operator sound pressure levels per ISO 6396:2008*, when properly installed and maintained, is 77 dB(A).
Note (3): The labelled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC is 103 dB(A).
Note (4): *The measurements were conducted with the cab doors and windows closed.

Cooling System: 5.7 gal (US)
Fuel Tank: 40.7 gal (US)
Engine Crankcase: 2.3 gal (US)
Hydraulic System - Including Tank: 25.9 gal (US)
Hydraulic Tank: 14.5 gal (US)
Transmission: 0.9 gal (US)
Axles - Front Center Differential: 2 gal (US)
Axles - Rear Center Differential: 2 gal (US)
Diesel Exhaust Fluid (DEF) Tank: 5 gal (US)
Note: DEF used in Cat SCR systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241-1.

Hydraulic Cycle Time - Dump, at Maximum Reach: 1.4 s
Maximum Flow - Implement Pump - 3rd Function, Maximum Flow, High: 32 gal/min
Maximum Flow - Implement Pump - 4th Function, Maximum Flow: 24 gal/min
Relief Pressure - Tilt Cylinder: 4931 psi
Relief Pressure - Tilt Cylinder - 3rd Function Maximum Working Pressure: 3046 psi
Relief Pressure - Tilt Cylinder - 4th Function Maximum Working Pressure: 3046 psi
Maximum Flow - Implement Pump: 39 gal/min
Hydraulic Cycle Time - Raise, Ground Level to Maximum Lift: 5.2 s
Maximum Flow - Implement Pump - 3rd Function, Maximum Flow, Standard: 24 gal/min
Maximum Working Pressure - Implement Pump: 4061 psi
Hydraulic Cycle Time - Rackback: 2.2 s
Hydraulic Cycle Time - Float Down, Maximum Lift to Ground Level: 3.7 s
Hydraulic Cycle Time - Total Cycle Time: 12.5 s

Steering Articulation Angle - Each Direction: 40 °
Maximum Flow - Steering Pump: 22 gal/min
Steering Cycle Times - Full Left to Full Right - At 2,350 rpm: 90 rpm Steering Wheel Speed: 2.8 s
Number of Steering Wheel Turns - Full Left to Full Right or Full Right to Full Left: 3.75 turns
Maximum Working Pressure - Steering Pump: 3263 psi

Note (1): Other tire choices are available. Contact your Cat dealer for details.
Note (2): In certain applications, the loader's productive capabilities may exceed the tire's tonnes-km/h (ton-mph) capabilities.
Note (3): Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model.
Standard Size: 17.5-25 12PR
Other Choices Include: 17.5-25 12PR L2; 17.5-R25 XHA * L3; 17.5-R25 * L2/L3 PC RM; 17.5-25 16PR L3, 3PC Rim; 17.5-25 GY L2/L3; 17.5-25 12PR L2, SNOW; Flexportï¿½

Forward and Reverse - Low Range, Speed Range 1*: 6.3 mile/h
Forward and Reverse - Low Range, Speed Range 2*: 12.5 mile/h
Forward and Reverse - High Range: 25 mile/h
Note: *Creeper Control allows speed control from a stand still up to 10 km/h (6.3 mph). The Creeper Control will only work in Range 1.
