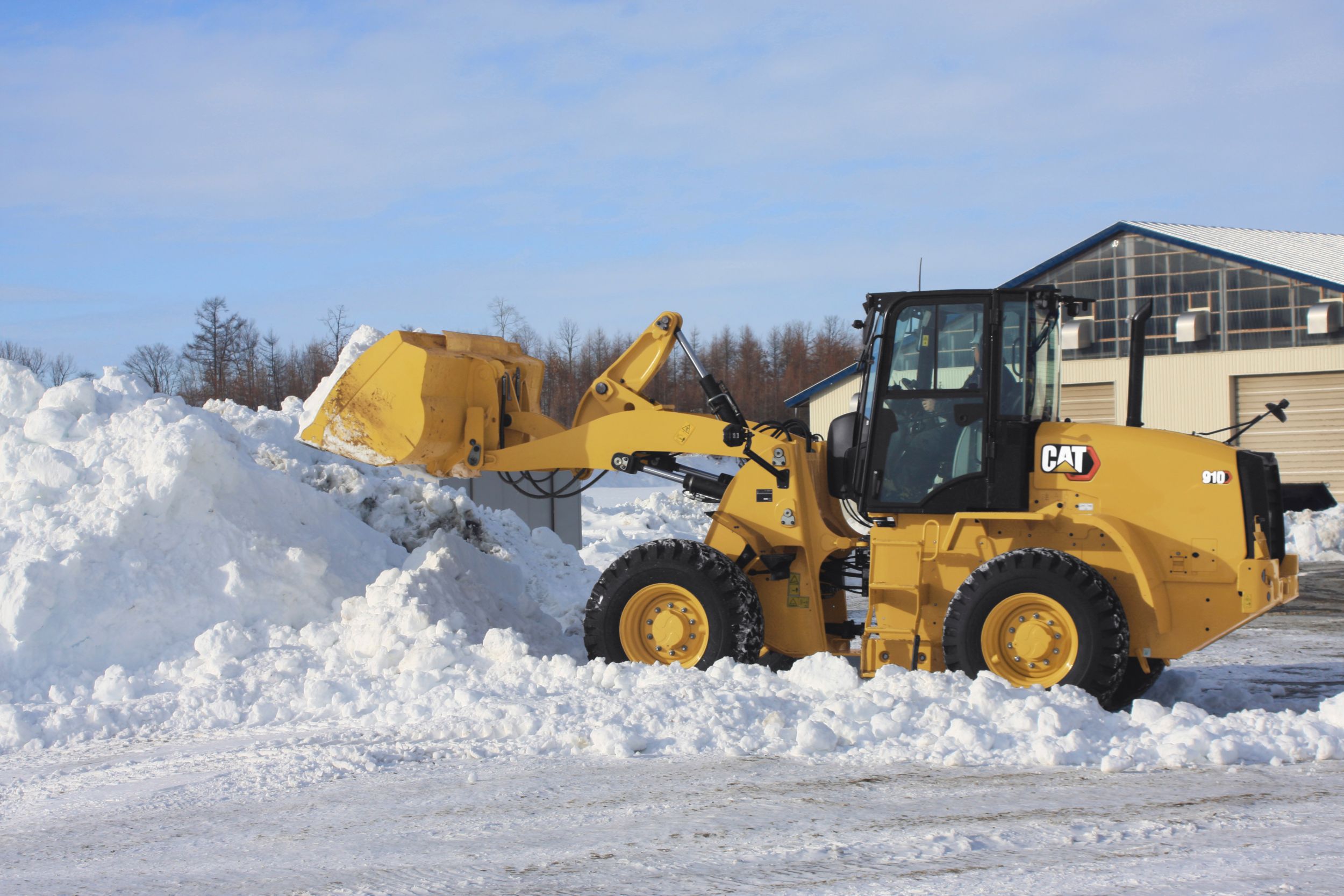

910 Compact Wheel Loader

Request a Quote

Download a Product Brochure

Product Specs

Maximum Gross Power: 110 hp
Maximum Gross Power - Rated Engine Speed: 1800 r/min
Rated Net Power - Rated Engine Speed: 2200 r/min
Maximum Gross Power - ISO 14396 (metric): 112 hp
Rated Net Power - SAE J1349: 99 hp
Rated Net Power - ISO 9249: 98 hp
Maximum Gross Torque - SAE J1995: 335 ft·lbf
Maximum Gross Torque - ISO 14396: 332 ft·lbf
Maximum Net Torque - SAE J1349: 329 ft·lbf
Maximum Net Torque - ISO 9249: 327 ft·lbf
Displacement: 220 in³
Bore: 3.85 in
Stroke: 4.72 in
Engine Model: Cat C3.6
Emissions: Engine meets Tier 4 Final/Stage V emission standards.
Note: Net power advertised is the power available at the flywheel plus front drive implement pump when the engine is equipped with fan, air cleaner, muffler and alternator.
Maximum Gross Power - ISO 14396: 110 hp

ROPS: ISO 3471:2008
FOPS: ISO 3449:2005
Note (2): The declared dynamic operator sound pressure levels per ISO 6396:2008*, when the cab is properly installed and maintained, is 77 dB(A).
Note (3): The labelled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC (as amended by 2005/88/EC) is 103 dB(A).
Note (1): Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
Note (4): *The measurements were conducted with the cab doors and windows closed.

Cooling System: 5.7 gal (US)
Fuel Tank: 43.6 gal (US)
Hydraulic System - Including Tank: 25.9 gal (US)
Engine Crankcase: 2.6 gal (US)
Hydraulic Tank: 14.5 gal (US)
Transmission: 0.8 gal (US)
Note: DEF used in Cat SCR systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241-1.
Axles - Front Center Differential: 2 gal (US)
Axles - Rear Center Differential: 2 gal (US)
Diesel Exhaust Fluid (DEF) Tank: 4.8 gal (US)

Maximum Working Pressure - Steering Pump: 2683 psi
Steering Articulation Angle - Each Direction: 40 °
Steering Cycle Times - Full Left to Full Right - At 2,350 rpm: 90 rpm Steering Wheel Speed: 3.2 s
Maximum Flow - Steering Pump: 17 gal/min
Number of Steering Wheel Turns - Full Left to Full Right or Full Right to Full Left: 3.75 turns

Hydraulic Cycle Time - Dump, at Maximum Reach: 1.4 s
Hydraulic Cycle Time - Total Cycle Time: 12.5 s
Maximum Working Pressure - Implement Pump: 3408 psi
Relief Pressure - Tilt Cylinder: 4931 psi
Hydraulic Cycle Time - Rackback: 2.2 s
Maximum Flow - Implement Pump: 32 gal/min
Relief Pressure - Tilt Cylinder - 3rd Function Maximum Working Pressure: 3046 psi
Hydraulic Cycle Time - Raise, Ground Level to Maximum Lift: 5.2 s
Relief Pressure - Tilt Cylinder - 4th Function Maximum Working Pressure: 3046 psi
Maximum Flow - Implement Pump - 4th Function, Maximum Flow: 24 gal/min
Maximum Flow - Implement Pump - 3rd Function, Maximum Flow: 24 gal/min
Hydraulic Cycle Time - Float Down, Maximum Lift to Ground Level: 3.7 s

Note: *Creeper Control allows speed control from a stand still up to 10 km/h (6.3 mph). The Creeper Control will only work in Range 1.
Forward and Reverse - Speed Range 3: 25 mile/h
Forward and Reverse - Speed Range 2*: 12.5 mile/h
Forward and Reverse - Speed Range 1*: 6.3 mile/h

Note (2): In certain applications, the loader’s productive capabilities may exceed the tire’s tonnes-km/h (ton-mph) capabilities.
Standard Size: 15.5 R25 L2 XTLA
Other Choices Include: 17.5 R25 L2 XTLA; 15.5 R25 L3 XHA2; 17.5 R25 L3 XHA2; 17.5-25 L2/L3 SGL; 17.5-25 L3 HRL D/L-3A; 17.5 R25 L2 Snow
Note (3): Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model.
Note (1): Other tire choices are available. Contact your Cat dealer for details.
