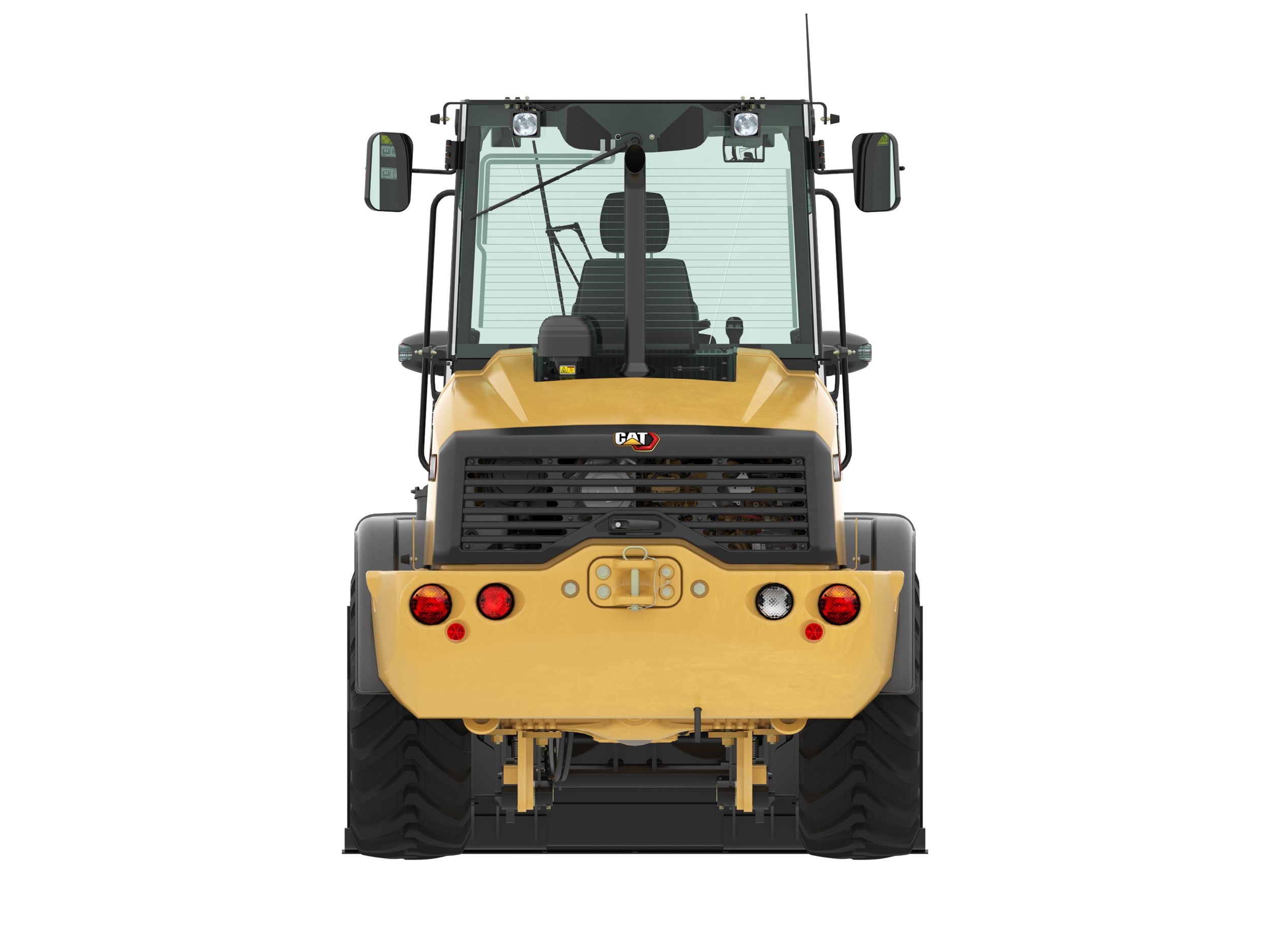

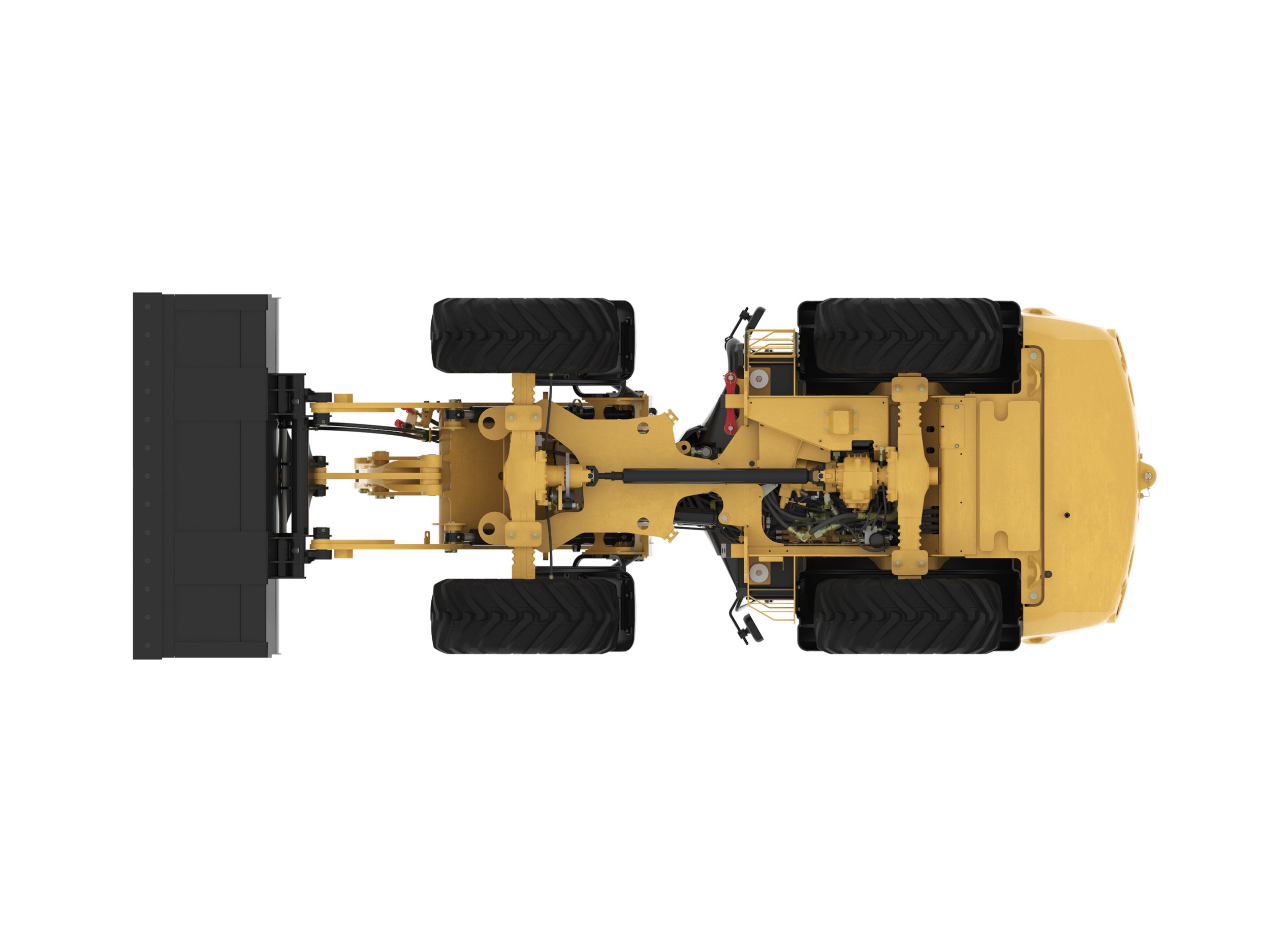

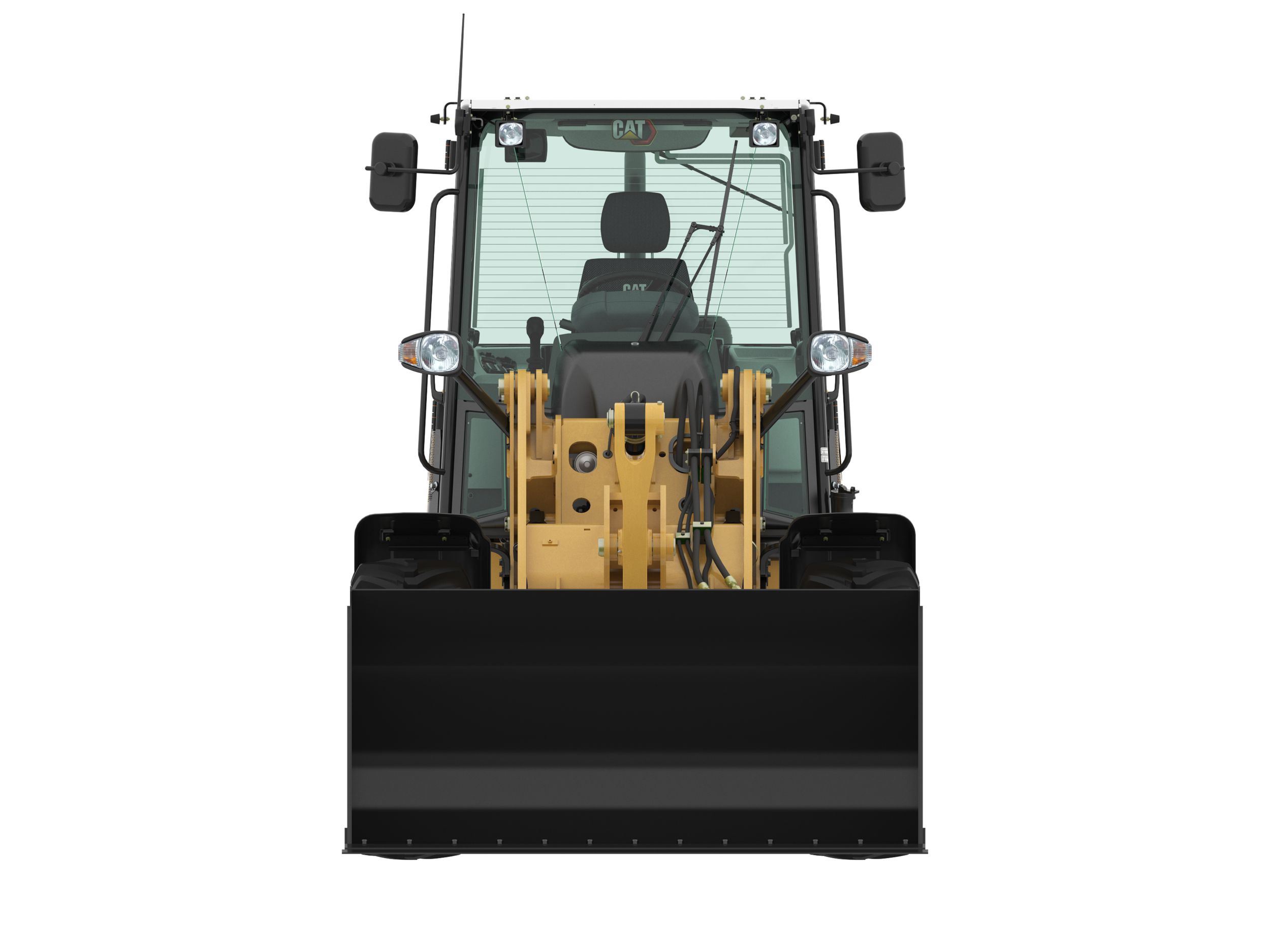

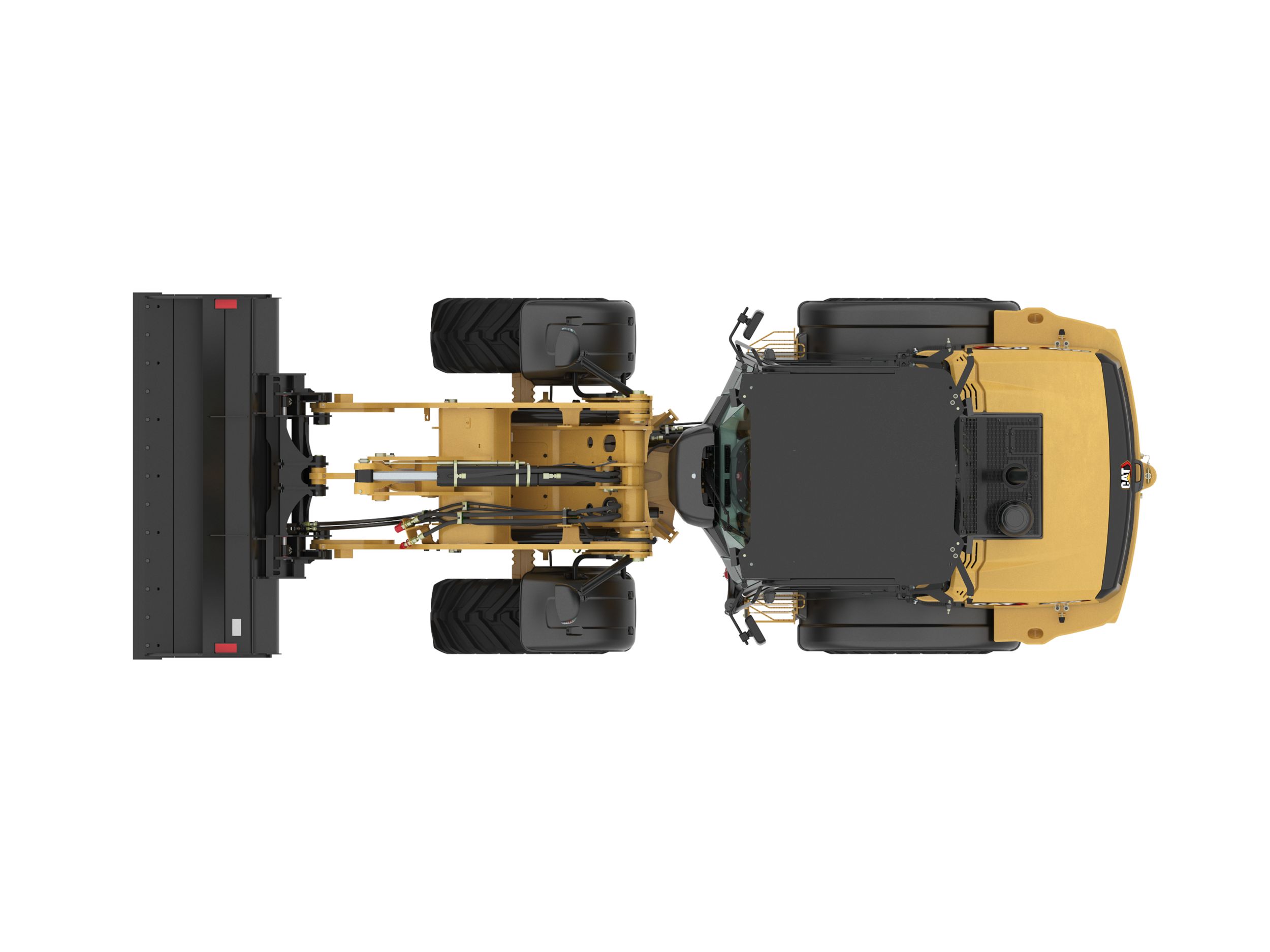

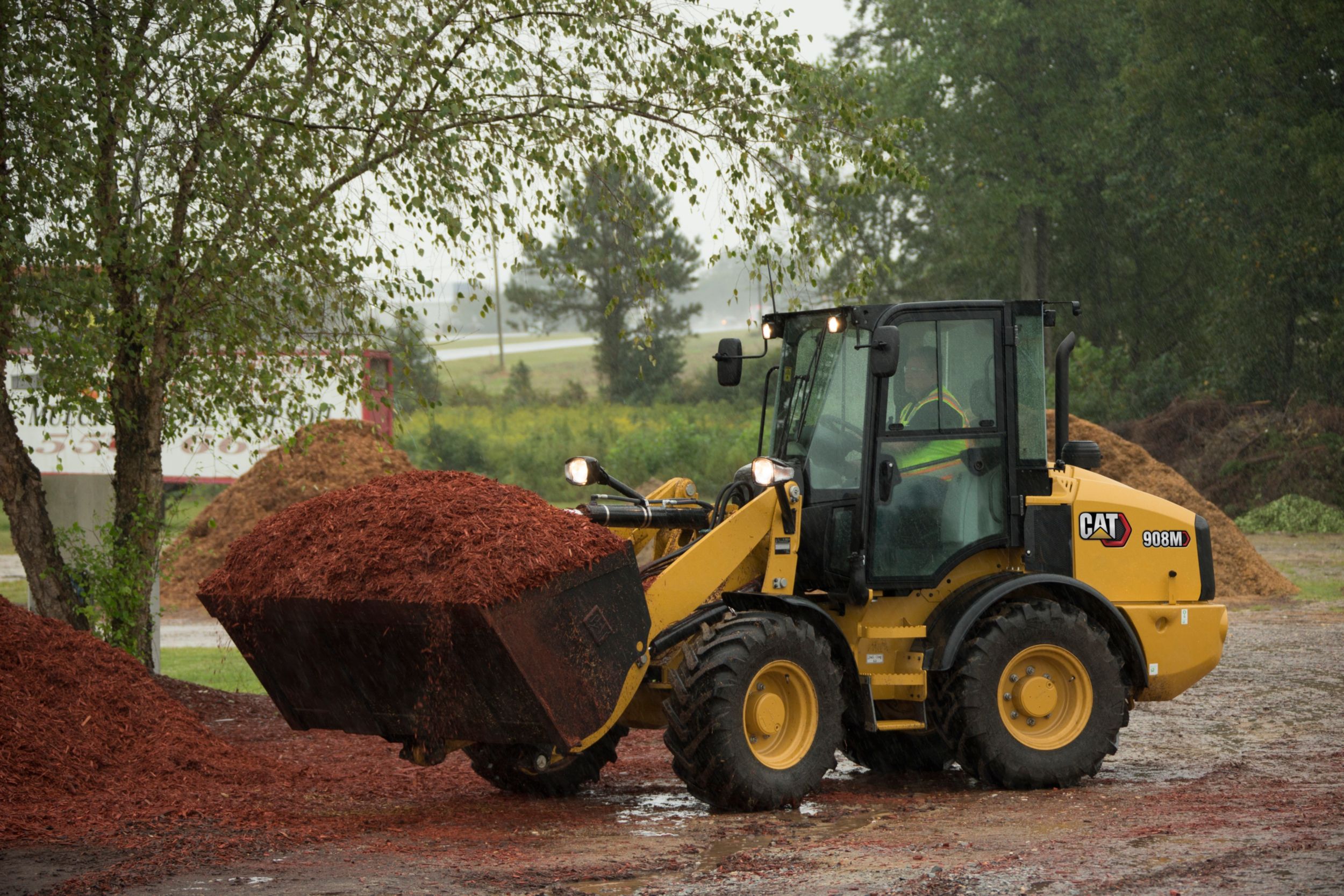

908M Compact Wheel Loader

Engine

Maximum Gross Power

73.2 hp

Engine Model

Cat® C3.3B DIT*

Maximum Gross Power - ISO 14396

73.2 hp

Maximum Gross Power - ISO 14396 (metric)

74.2 hp

Rated Net Power - 2,400 rpm - SAE J1349

71.9 hp

Rated Net Power - 2,400 rpm - ISO 9249

72.9 hp

Maximum Gross Torque - ISO 14396

192 ft·lbf

Maximum Net Torque - ISO 9249

191 ft·lbf

Bore

3.7 in

Displacement

201 in³

Stroke

4.7 in

Note (1)

Net power ratings are tested at the reference conditions for the specified standard.

Note (2)

Net power shown is the power available at the flywheel when the engine is equipped with alternator, air cleaner, diesel exhaust filter, and fan at minimum speed.

Note (3)

No derating required up to 3000 m (10,000 ft) altitude. Auto derate protects hydraulic and transmission systems.

Note (4)

Flywheel per the SAE reference conditions with the fan at maximum speed.

Note (5)

The Cat C3.3B DIT Tier 4 Final/Stage V uses an active regeneration system which requires no operator interaction under normal conditions.

Note (6)

Stage V engine available for Europe only.

Emissions

*The Cat C3.3B DIT engine meets EU Stage V/U.S. EPA Tier 4 Final emission standards.

Weights

Operating Weight

14032 lb

Note

Specifications shown are for a machine configured with general purpose buckets, bolt-on cutting edges, 75 kg (165 lb) operator, Dunlop 405/70 SPT9 tires, full fuel, comfort ROPS cab, standard flow hydraulics and skid-steer coupler. The 908M is configured

Buckets

Bucket Capacities

0.75-1.5 m3 (1.0-2.0 yd3)

Bucket Capacities - ISO Coupler

0.75-1.5 m³

Bucket Capacities - SSL Style Coupler

1.0-2.0 yd³

General Purpose

0.8 m³ (1 yd³), 0.9 m³ (1.2 yd³), 1.0 m³ (1.3 yd³), 1.1 m³ (1.4 yd³), 1.3 m³ (1.7 yd³)

Light Material

1.2 m³ (1.6 yd³), 1.5 m³ (2.0 yd³)

Multi-Purpose

0.75 m³ (1.0 yd³), 0.9 m³ (1.2 yd³), 1.05 m³ (1.37 yd³)

Grapple

0.9 m³ (1.2 yd³) heaped

Note

All capacities are applicable for each model. Bucket selection must be made with an understanding of the material density and application to ensure machine stability is maintained within the tipping loads stated per model and configuration.

Operating Specifications

Tipping Load - Straight - ISO 14397-1

9757 lb

Tipping Load - Full Turn - ISO 14397-1

7947 lb

Full Turn Tipping Load

8311 lb

Clearance - Full Lift and 45° Dump

8 ft

Reach - Full Lift and 45° Dump

3 ft

Steering Articulation Angle - Each Direction

39°

Rated Bucket Capacity

1.4 yd³

Dimensions with Bucket (Approximate) - Standard Lift - With ISO Coupler

Height - Ground to Cab**

8.67 ft

Height - Ground Clearance**

1.08 ft

Length - Wheel Base

7.08 ft

Length - Overall*

18.42 ft

Reach - Bucket at 45°*

2.5 ft

Dig Depth**

3.9 in

Clearance - Bucket at 45° *

8.58 ft

Clearance - Level Bucket**

10.5 ft

Height - Bucket Pin**

11.17 ft

Departure Angle

33°

Turning Radius - Over Bucket

14.83 ft

Turning Radius - Inside of Tires

6.75 ft

Width - Bucket

6.75 ft

Width - Tread Center

5.08 ft

Machine Width

6.5 ft

Articulation Angle

39°

Dump Angle at Full Lift

45°

Operating Weight

14323 lb

Note (1)

*Vary with bucket.

Note (2)

**Vary with tire.

Note (3)

Dimensions listed are for a machine configured with general purpose buckets, bolt-on cutting edges, 75 kg (165 lb) operator, no air conditioner and Dunlop 405/70 SPT9 tires.

Dimensions with Bucket (Approximate) - Standard Lift - With SSL Coupler

Height - Ground to Cab**

8.67 ft

Height - Ground Clearance**

1.08 ft

Length - Wheel Base

7.08 ft

Length - Overall*

18.92 ft

Reach - Bucket at 45°*

2.83 ft

Dig Depth**

4.2 in

Clearance - Bucket at 45° *

8.17 ft

Clearance - Level Bucket**

10.5 ft

Height - Bucket Pin**

11.17 ft

Departure Angle

33°

Turning Radius - Over Bucket

14.83 ft

Turning Radius - Inside of Tires

6.75 ft

Width - Bucket

6.75 ft

Width - Tread Center

5.08 ft

Machine Width

6.5 ft

Articulation Angle

39°

Dump Angle at Full Lift

45°

Operating Weight

14319 lb

Note (1)

*Vary with bucket.

Note (2)

**Vary with tire.

Note (3)

Dimensions listed are for a machine configured with general purpose buckets, bolt-on cutting edges, 75 kg (165 lb) operator, no air conditioner and Dunlop 405/70 SPT9 tires.

Loader Hydraulic System

Maximum Flow - Implement Pump

22 gal/min

Maximum Flow - Implement Pump - Auxiliary Function Standard Flow

22 gal/min

Maximum Flow - Implement Pump - Auxiliary Function High Flow

33 gal/min

Maximum Working Pressure - Implement Pump

3408 psi

Relief Pressure - Tilt Cylinder Head

4496 psi

Relief Pressure - Tilt Cylinder Rod

2756 psi

3rd Function Maximum Working Pressure

3408 psi

Boost Flow Maximum Pressure

3191 psi

Lift Cylinder, Double Acting - Bore Diameter

3.3 in

Lift Cylinder, Double Acting - Rod Diameter

2 in

Lift Cylinder, Double Acting - Stroke

27.5 in

Tilt Cylinder, Double Acting - Bore Diameter

3.9 in

Tilt Cylinder, Double Acting - Rod Diameter

2.2 in

Tilt Cylinder, Double Acting - Stroke

16.4 in

Hydraulic Cycle Time - 1,800 rpm - Raise, Ground Level to Maximum Lift

5.5 s

Hydraulic Cycle Time - 1,800 rpm - Dump, at Maximum Lift Height

1.5 s

Hydraulic Cycle Time - 1,800 rpm - Float Down, Maximum Lift to Ground Level

2.6 s

Hydraulic Cycle Time - 1,800 rpm - Total Cycle Time

9.6 s

Hydraulic Cycle Time - 1,000 rpm - Raise, Ground Level to Maximum Lift

9.6 s

Hydraulic Cycle Time - 1,000 rpm - Dump, at Maximum Lift Height

3 s

Hydraulic Cycle Time - 1,000 rpm - Float Down, Maximum Lift to Ground Level

2.6 s

Steering

Steering Articulation Angle - Each Direction

39°

Steering Cylinder, Double Acting - Bore Diameter

3.1 in

Steering Cylinder, Double Acting - Rod Diameter

1.4 in

Steering Cylinder, Double Acting - Stroke

11.8 in

Nominal Flow - Steering Pump

12 gal/min

Maximum Working Pressure - Steering Pump

3191 psi

Maximum Steering Torque - 0° (Straight Machine)

42506 ft·lbf

Maximum Steering Torque - 39° (Full Turn)

31398 ft·lbf

Steering AC Cycle Times - Full Left to Full Right - 2,620 rpm

3 s

Number of Steering Wheel Turns - Full Left to Full Right or Full Right to Full Left

<6 turns

Service Refill Capacities

Cooling System

4.4 gal (US)

Fuel Tank

20.6 gal (US)

Engine Oil

3 gal (US)

Hydraulic Tank

12.2 gal (US)

Hydraulic System - Including Tank

19 gal (US)

Transmission - Gear Box

2.9 gal (US)

Cab

ROPS

ROPS: ISO 3471:2008

FOPS

FOPS: ISO 3449:2005 Level II

Note (1)

Cat cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.

Note (2)

The declared dynamic operator Sound Pressure level per ISO 6396:2008*, when the cab is properly installed and maintained, is 75 dB(A). The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditi

Note (3)

*The measurements were conducted with the cab doors and windows closed.

Drive Train

Forward - Range 1

6 mile/h

Forward - Range 2

12 mile/h

Forward - High Range

22 mile/h

Reverse - High Range

22 mile/h

Reverse - Range 1

6 mile/h

Reverse - Range 2

12 mile/h

Tires

Note (2)

Other tire choices available, contact your Cat dealer for details.

Note (3)

In certain applications, the loader's productive capabilities may exceed the tires' tonnes-km/h (ton-mph) capabilities.

Note (4)

Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model.

Option (1)

360/80 R20 TRI2 Nokian

Option (2)

375/75 R20 XZSL Michelin

Option (3)

400/70 R20 XMCL Michelin

Option (4)

400/70 R20 Bibload Michelin

Option (5)

405/70 R20 SPT9 Dunlop

Option (6)

12.5-20 ATU Firestone
