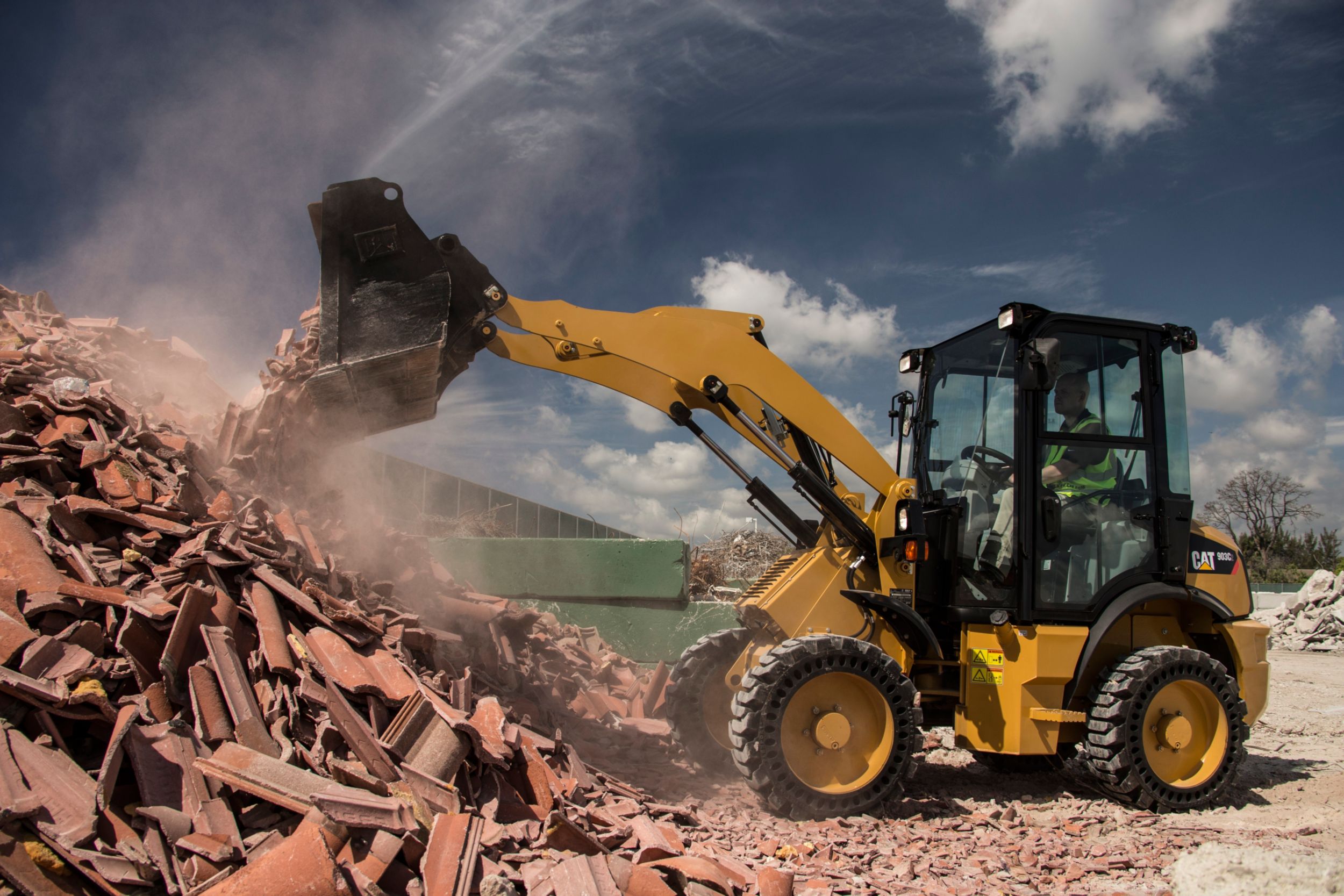

Product Specs
Engine
- Maximum Gross Power
- 42 hp
- Maximum Gross Power
- 42 HP
- Net Power
- 40 hp
- Net Power
- 40 HP
- Engine Model
- Cat C2.4*
- Net Power - 2,200 rpm - SAE J1349 R-ing
- 40 HP
- Net Power - 2,200 rpm - ISO 9249 R-ing
- 40 HP
- Net Power - 2,200 rpm - EEC 80/1269 R-ing
- 40 HP
- Bore
- 3.4 in
- Stroke
- 4.0 in
- Displacement
- 147 in2
- Note
- *Engine meets U.S. EPA Tier 4 Final emission standards.
- Engine Model
- Cat C2.4*
- Bore
- 3.4 in
- Displacement
- 147 in²
- Note
- *Engine meets U.S. EPA Tier 4 Final emission standards.
- Stroke
- 4 in
Weights
- Operating Weight
- 9060 lb
- Operating Weight
- 9060 lb
Buckets
- Bucket Capacities
- 0.6-1.0 m3 (0.8-1.3 yd3)
Cab
- ROPS
- ISO 3471:2008
- FOPS
- ISO 3449:2000 Level I
Hydraulic System
- Main Relief
- 2988 psi
- 3rd Auxiliary Flow
- 14 gal/min
- Hydraulic Cycle Time - Lift
- 4.8 s
- Hydraulic Cycle Time - Dump
- 0.8 s
- Hydraulic Cycle Time - Lower, Float
- 3.2 s
Service Refill Capacities
- Cooling System
- 3 gal
- Cooling System
- 3 gal (US)
- Fuel Tank
- 11.4 gal
- Fuel Tank
- 11.4 gal (US)
- Hydraulic System
- 6.3 gal
- Hydraulic System
- 6.3 gal (US)
- Engine Oil
- 2.4 gal
- Engine Oil
- 2.4 gal (US)
Transmission
- Travel Speed
- 10 mile/h
Dimensions (Approximate) – Standard
- Cab Height
- 8.2 ft
- Ground Clearance
- 1.3 ft
- Wheelbase
- 5.9 ft
- Overall Length with Bucket*
- 15.4 ft
- Reach at Maximum Dump Height*
- 2.9 ft
- Dig Depth
- 8 in
- Maximum Dump Height*
- 7.5 ft
- Load Over Height
- 9.2 ft
- Hinge Pin at Maximum Height
- 10.1 ft
- Departure Angle (degrees)
- 30°
- Overall Length with Forks
- 17.0 ft
- Reach at Level Ground
- 3.2 ft
- Maximum Reach
- 5.0 ft
- Fork Depth Above Ground
- 2 in
- Fork Height at Maximum Reach
- 4.6 ft
- Maximum Fork Height
- 9.8 ft
- Fork Reach at Maximum Height
- 2.5 ft
- Turning Radius Over Bucket*
- 12.9 ft
- Turning Radius Inside Tire**
- 5.4 ft
- Width Over Bucket*
- 5.8 ft
- Tire Gauge
- 4.3 ft
- Machine Width**
- 5.6 ft
- Articulation Angle
- 40°
- Steering Angle – Left/Right
- 80°
- Dump Angle at Maximum Height
- 40°
- Note
- *Vary with bucket size.
- Note
- **Vary with tire size.
Dimensions (Approximate) - Standard Lift
- Articulation Angle
- 40°
- Cab Height
- 8.2 ft
- Departure Angle - Degrees
- 30°
- Dig Depth
- 8 in
- Dump Angle at Maximum Height
- 40°
- Fork Depth Above Ground
- 2 in
- Fork Height at Maximum Reach
- 4.6 ft
- Fork Reach at Maximum Height
- 2.5 ft
- Ground Clearance
- 1.3 ft
- Hinge Pin at Maximum Height
- 10.1 ft
- Load Over Height
- 9.2 ft
- Machine Width**
- 5.6 ft
- Maximum Dump Height*
- 7.5 ft
- Maximum Fork Height
- 9.8 ft
- Maximum Reach
- 5 ft
- Note (1)
- *Vary with bucket size.
- Note (2)
- **Vary with tire size.
- Overall Length - With Bucket*
- 15.4 ft
- Overall Length - With Forks
- 17 ft
- Reach - Ground Level
- 3.2 ft
- Reach at Maximum Dump Height*
- 2.9 ft
- Steering Angle - Left/Right
- 80°
- Tire Gauge
- 4.3 ft
- Turning Radius - Inside Tire**
- 5.4 ft
- Turning Radius - Over Bucket*
- 12.9 ft
- Wheel Base
- 5.9 ft
- Width - Over Bucket*
- 5.8 ft
Operating Specifications – Standard Lift
- Tire Size
- 33 × 15.5-16.5, 12PR
- Breakout Force
- 5170 lbf
- Operating Weight
- 9060 lb
- Rated Operating Load @ Full Turn, Bucket
- 2150 lb
- Straight Tipping Load, Bucket
- 5070 lb
- Full Turn Static Tipping Load, Bucket
- 4300 lb
- Rackback, Transport Position
- 52°
- Rated Operating Load @ Full Turn, Forks (EN 474-3:2006, Firm and Level Ground, 500 mm (20 in) Load Center) (80% of FTSTL)
- 2610 lb
- Rated Operating Load @ Full Turn, Forks (EN 474-3:2006, Rough Terrain, 500 mm (20 in) Load Center) (60% of FTSTL)
- 1960 lb
- With Additional Counterweight – Operating Weight
- 9435 lb
- With Additional Counterweight – Rated Operating Load @ Full Turn, Bucket
- 2305 lb
- With Additional Counterweight – Straight Tipping Load, Bucket
- 5445 lb
- With Additional Counterweight – Full Turn Static Tipping Load, Bucket
- 4610 lb
- With Additional Counterweight – Rackback, Transport Position
- 52°
- With Additional Counterweight – Rated Operating Load @ Full Turn, Forks (EN 474-3:2006, Firm and Level Ground, 500 mm (20 in) Load Center) (80% of FTSTL)
- 2800 lb
- With Additional Counterweight – Rated Operating Load @ Full Turn, Forks (EN 474-3:2006, Rough Terrain, 500 mm (20 in) Load Center) (60% of FTSTL)
- 2105 lb
Operating Specifications - Standard Lift
- Rated Bucket Capacity
- 0.8 yd³
- With Additional Counterweight - Rackback - Transport Position
- 10 mile/h
- Breakout Force
- 5170 lbf
- Full Turn Static Tipping Load - Bucket
- 4300 lb
- Operating Weight
- 9060 lb
- Rack Back - Transport Position
- 52°
- Rated Operating Load at Full Turn - Bucket
- 2150 lb
- Rated Operating Load at Full Turn - Forks (EN 474-3:2006, Firm and Level Ground, 500 mm [20 in] Load Center) (60% of FTSTL)
- 1960 lb
- Rated Operating Load at Full Turn - Forks (EN 474-3:2006, Firm and Level Ground, 500 mm [20 in] Load Center) (80% of FTSTL)
- 2610 lb
- Straight Tipping Load - Bucket
- 5070 lb
- Tire Size
- 33 ° 15.5-16.5, 12PR
- With Additional Counterweight - Full Turn Static Tipping Load - Bucket
- 4610 lb
- With Additional Counterweight - Operating Weight
- 9435 lb
- With Additional Counterweight - Rackback - Transport Position
- 52°
- With Additional Counterweight - Rated Operating Load at Full Turn - Bucket
- 2305 lb
- With Additional Counterweight - Rated Operating Load at Full Turn - Forks (EN 474-3:2006, Firm and Level Ground, 500 mm (20 in) Load Center) (80% of FTSTL)
- 2800 lb
- With Additional Counterweight - Rated Operating Load at Full Turn - Forks (EN 474-3:2006, Rough Terrain, 500 mm (20 in) Load Center) (60% of FTSTL)
- 2105 lb
- With Additional Counterweight - Straight Tipping Load - Bucket
- 5445 lb
Maximum Material Densities - General Purpose
- Bucket Type
- General Purpose
- Bucket Width
- 70 in
- Dump Height
- 90 in
- Maximum Material Density
- 2545 lb/yd³
- Note
- Based on ISO 7546: 1983 and rated operating loads at full turn and standard linkage, without additional counterweight
- Rated Capacity
- 0.8 yd³
Maximum Material Densities – General Purpose
- Note
- Based on ISO 7546: 1983 and rated operating loads at full turn and standard linkage, without additional counterweight
- Bucket Type
- General Purpose
- Rated Capacity
- 0.8 yd3
- Dump Height
- 90 in
- Maximum Material Density
- 2545 lb/yd3
- Bucket Width
- 70 in
Maximum Material Densities - Light Material
- Bucket Type
- Light Material
- Bucket Width
- 74 in
- Dump Height
- 85 in
- Maximum Material Density
- 1480 lb/yd³
- Rated Capacity
- 1.3 yd³
- Note
- Based on ISO 7546: 1983 and rated operating loads at full turn and standard linkage, without additional counterweight
Maximum Material Densities – Light Material
- Bucket Type
- Light Material
- Rated Capacity
- 1.3 yd3
- Dump Height
- 85 in
- Maximum Material Density
- 1480 lb/yd3
- Bucket Width
- 74 in
Dimensions (Approximate) - High Lift
- Cab Height
- 8.2 ft
- Ground Clearance
- 1.3 ft
- Wheel Base
- 5.9 ft
- Overall Length - With Bucket*
- 15.9 ft
- Reach at Maximum Dump Height*
- 2.9 ft
- Dig Depth
- 8 in
- Maximum Dump Height*
- 8 ft
- Load Over Height
- 9.6 ft
- Hinge Pin at Maximum Height
- 10.6 ft
- Departure Angle - Degrees
- 30°
- Overall Length - With Forks
- 17.5 ft
- Reach - Ground Level
- 3.7 ft
- Maximum Reach
- 5.4 ft
- Fork Depth Above Ground
- 2 in
- Fork Height at Maximum Reach
- 4.6 ft
- Maximum Fork Height
- 10.3 ft
- Fork Reach at Maximum Height
- 2.5 ft
- Turning Radius - Over Bucket*
- 13.2 ft
- Turning Radius - Inside Tire**
- 5.4 ft
- Width - Over Bucket*
- 5.8 ft
- Tire Gauge
- 4.3 ft
- Machine Width**
- 5.6 ft
- Articulation Angle
- 40°
- Steering Angle - Left/Right
- 80°
- Dump Angle at Maximum Height
- 40°
- Note (1)
- *Vary with bucket size.
- Note (2)
- **Vary with tire size.
Operating Specifications - High Lift
- Tire Size
- 33 ° 15.5-16.5, 12PR
- Rated Bucket Capacity
- 0.8 yd³
- Breakout Force
- 5170 lbf
- Operating Weight
- 9105 lb
- Rated Operating Load at Full Turn - Bucket
- 1875 lb
- Straight Tipping Load - Bucket
- 4500 lb
- Full Turn Static Tipping Load - Bucket
- 3760 lb
- Rack Back - Transport Position
- 52°
- Rated Operating Load at Full Turn - Forks (EN 474-3:2006, Firm and Level Ground, 500 mm [20 in] Load Center) (80% of FTSTL)
- 2410 lb
- Rated Operating Load at Full Turn - Forks (EN 474-3:2006, Firm and Level Ground, 500 mm [20 in] Load Center) (60% of FTSTL)
- 1805 lb
- With Additional Counterweight - Operating Weight
- 9480 lb
- With Additional Counterweight - Rated Operating Load at Full Turn - Bucket
- 2030 lb
- With Additional Counterweight - Straight Tipping Load - Bucket
- 4840 lb
- With Additional Counterweight - Full Turn Static Tipping Load - Bucket
- 4060 lb
- With Additional Counterweight - Rackback - Transport Position
- 52°
- With Additional Counterweight - Rated Operating Load at Full Turn - Forks (EN 474-3:2006, Firm and Level Ground, 500 mm (20 in) Load Center) (80% of FTSTL)
- 2590 lb
- With Additional Counterweight - Rated Operating Load at Full Turn - Forks (EN 474-3:2006, Rough Terrain, 500 mm (20 in) Load Center) (60% of FTSTL)
- 1940 lb
Standard Equipment
-
- Power Train
-
- Air cleaner, two stage with visual indicator
- Cat C2.4 engine: – Meets U.S. EPA Tier 4 Final emission standards
- Closed circuit breather
- Cold start plugs
- Electrical fuel priming pump
- Extended life coolant protects to –37° C (–34° F)
- Frame mounted heavy duty axles with outboard planetary reduction
- Maintenance free, sealed for life, prop shaft and universal joints
- Transmission, 16 km/h (10 mph)
-
- Electrical
-
- 12 volt direct electric starting
- Alternator, 70A
- Battery disconnect switch
- Cab mounted fuse panel
- Ignition key start/stop switch
- Maintenance free, sealed for life, 650 CCA heavy duty battery
-
- Operator Environment
-
- Cup holder
- Digital service hour meter
- Engine coolant temperature gauge
- Fuel level gauge
- Heavy duty, easy clean floor mat
- Operator warning system indicators: – DPF monitor – Parking brake applied – Hydraulic oil temperature – Engine oil pressure – Service brake pressure – Hydraulic filter bypass
- Seat: – Static, vinyl with 51 mm (2 in) retractable seat belt
- Two external mirrors – knock back
-
- Other Standard Equipment
-
- 3rd valve auxiliary hydraulics with continuous flow detent, standard flow
- Engine enclosure – lockable
- Guarded front headlight
- Hydraulic oil level sight gauge
- Lift arm safety brace
- Loader arm float function
- Lockable fuel filler cap
- Manual quick coupler, skid steer loader compatible
- Parking brake (secondary brake)
- Quick release fuel filter/water separator
- Reversing light
- Self-canceling direction indicators
- Work tool return to dig
- Z-bar linkage
Attachments
-
- Cab
-
- Open
- Enclosed
-
- Fenders
-
- Standard for use with 304 mm (12 in) tires
- Wide for use with 393 mm (15.5 in) tires
-
- Linkage
-
- Standard lift
- High lift
-
- Seats
-
- Mechanical suspension, vinyl with 51 mm (2 in) seat belt
- Mechanical suspension, vinyl with 75 mm (3 in) seat belt
- Mechanical suspension, fabric with 51 mm (2 in) seat belt
- Mechanical suspension, fabric with 75 mm (3 in) seat belt
-
- Tires
-
- 12-16.5 10PR
- Flotation 33-15.5 × 16.5
- Flexport™ 33 × 6 × 11
-
- Work Tools
-
- For all work tool options, consult your Cat dealer.
