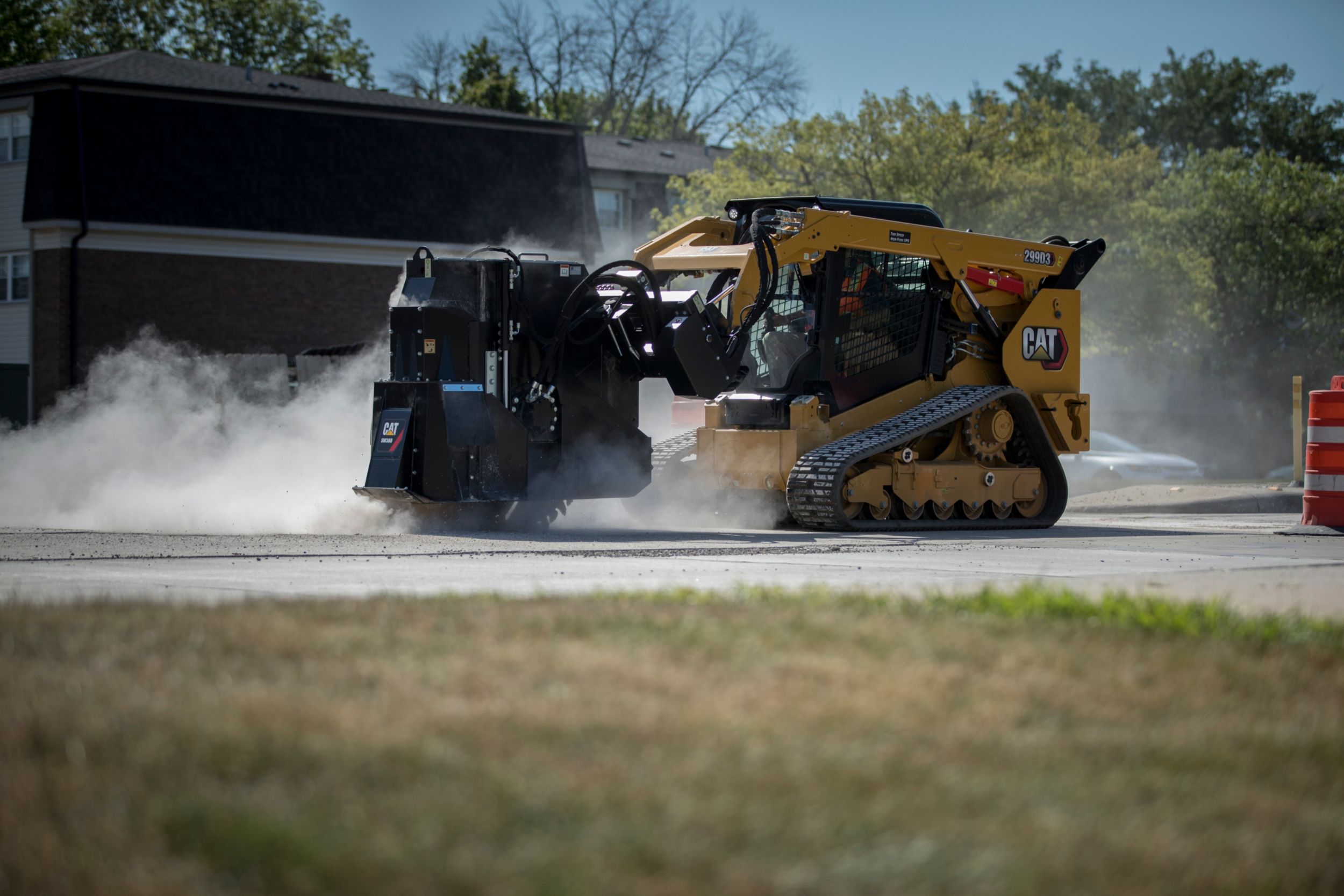

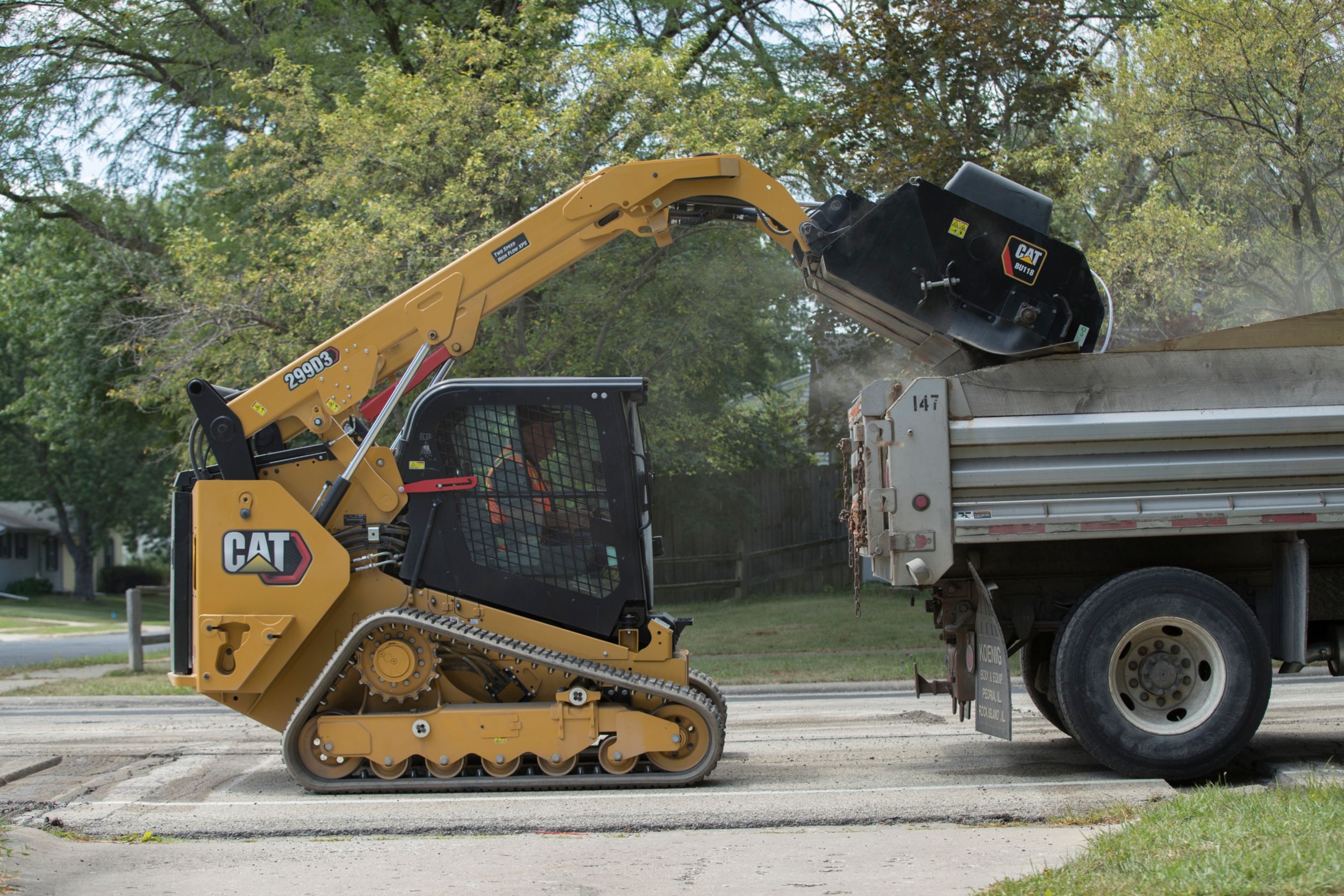

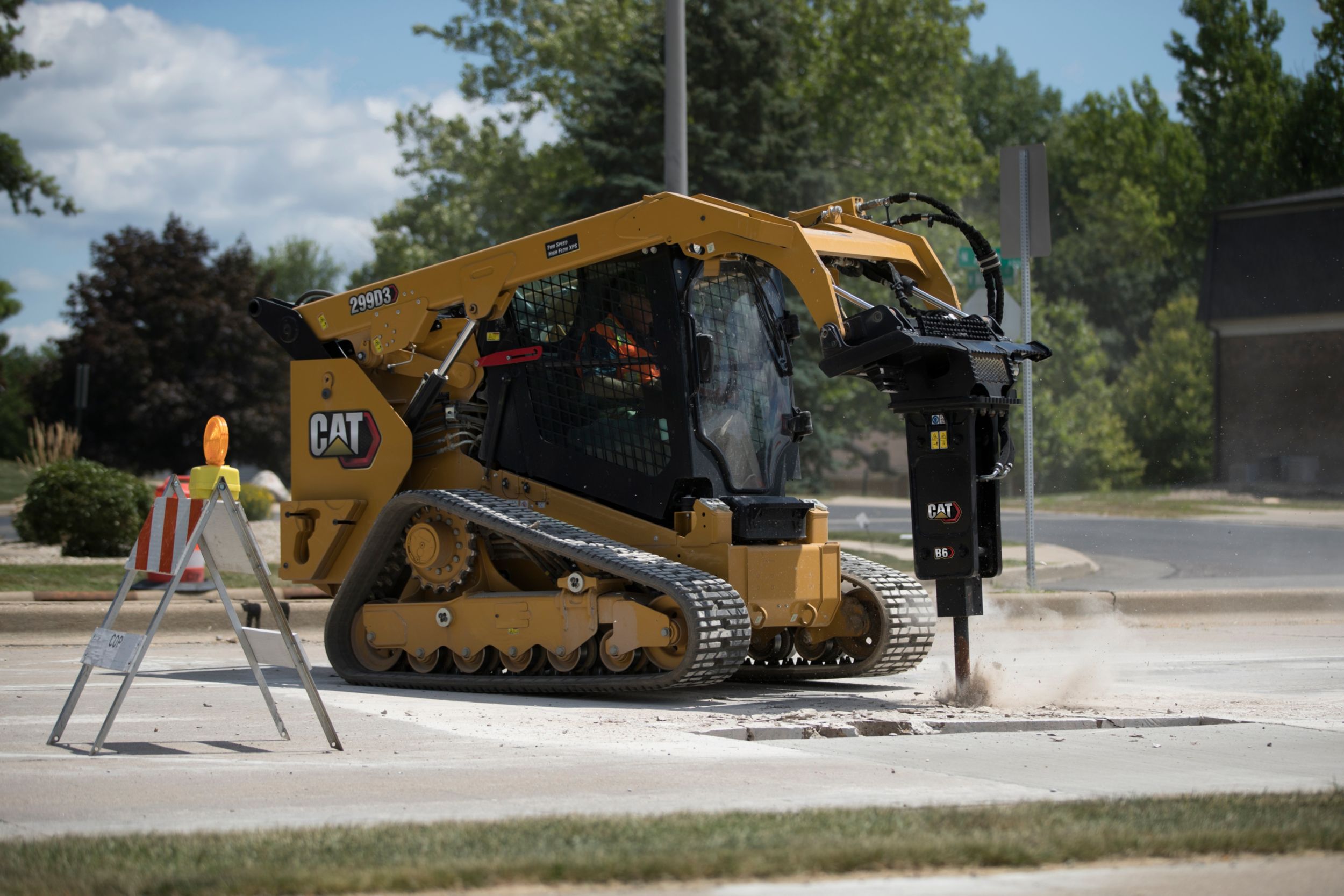

Exterior View
Product Specs
Engine
- Gross Power - SAE J1995
- 98 hp
- Net Power - SAE 1349
- 95 hp
- Displacement
- 232 in³
- Bore
- 3.9 in
- Stroke
- 4.7 in
- Net Power
- 95 hp
- Net Power - ISO 9249
- 95 hp
- Engine Model
- Cat C3.8 DIT (turbo)
- Peak Torque - 1,500 rpm - SAE J1995
- 246 ft·lbf
Operating Specifications
- Rated Operating Capacities - 35% Tipping Load
- 3480 lb
- Tipping Load
- 9945 lb
- Breakout Force - Tilt Cylinder
- 7270 lb
- Breakout Force - Lift Cylinder
- 6162 lb
- Rated Operating Capacity with Optional Counterweight
- 5240 lb
- Ground Contact Area - With 400 mm/15.7 in Track
- 2184 in²
- Ground Pressure - With 400 mm/15.7 in Track
- 5.3 psi
- Note
- Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, dual flange front idler/single flange rear idler, standard flow hydraulics,
- Rated Operating Capacities - 50% Tipping Load
- 4970 lb
- Ground Contact Area - With 450 mm/17.7 in Track
- 2463 in²
- Ground Pressure - With 450 mm/17.7 in Track
- 4.7 psi
Weights
- Operating Weight
- 11464 lb
- Note
- Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, dual flange front idler/single flange rear idler, standard flow hydraulics,
Service Refill Capacities
- Cooling System
- 4.1 gal (US)
- Engine Crankcase
- 3.5 gal (US)
- Fuel Tank
- 31.7 gal (US)
- Hydraulic System
- 14.5 gal (US)
- Hydraulic Tank
- 10.3 gal (US)
- Diesel Exhaust Fluid (DEF) Tank
- 5 gal (US)
Dimensions
- Length - Track on Ground
- 69.6 in
- Overall Length - Track
- 89.4 in
- Height - Top of Cab
- 83.6 in
- Ground Clearance
- 9.6 in
- Departure Angle
- 33°
- Maximum Dump Angle
- 54°
- Vehicle Width (450 mm/17.7 in tracks)
- 78 in
- Turning Radius from Center - Coupler
- 58.1 in
- Rack Back Angle - Maximum Height
- 81°
- Reach - Maximum Lift/Dump
- 33.6 in
- Vehicle Width (400 mm/15.7 in tracks)
- 76 in
- Bucket Pin Reach - Maximum Lift
- 19.4 in
- Bucket Pin Height - Carry Position
- 7.1 in
- Turning Radius from Center - Bucket (racked)
- 91.1 in
- Maximum Reach - With Arms Parallel to Ground
- 51.9 in
- Length - Without Bucket
- 125.5 in
- Length - With Bucket on Ground
- 154.7 in
- Clearance at Maximum Lift and Dump
- 94.5 in
- Bucket Pin Height - Maximum Lift
- 126.3 in
- Maximum Overall Height
- 158.7 in
- Roll Back Angle
- 25°
- Turning Radius from Center - Machine Rear
- 74 in
- Note
- Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, dual flange front idler/single flange rear idler, standard flow hydraulics,
Cab
- ROPS
- ISO 3471:2008
- FOPS
- ISO 3449:2005 Level I
Hydraulic System
- Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Pressure
- 4061 psi
- Hydraulic Flow - Standard - Loader Hydraulic Pressure
- 3335 psi
- Hydraulic Flow - Standard - Hydraulic Power (Calculated)
- 44 hp
- Hydraulic Flow - Standard - Loader Hydraulic Flow
- 23 gal/min
- Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Flow
- 32 gal/min
- Hydraulic Flow - High Flow XPS - Hydraulic Power (Calculated)
- 76 hp
Power Train
- Travel Speed - Forward or Reverse - Two Speed
- 8.4 mile/h
- Travel Speed - Forward or Reverse - One Speed
- 5.2 mile/h
Noise Level
- Note (2)
- *The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan spee
- Inside Cab*
- 83 dB(A)
- Note (3)
- **The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.
- Note (1)
- Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
- Outside Cab**
- 104 dB(A)
Air Conditioning System (if equipped)
- Air Conditioning
- The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.
Standard Equipment
-
- Electrical
-
- 12 volt Electrical System
- 100 ampere Alternator
- Ignition Key Start/Stop Switch
- Lights: Gauge Backlighting, Two Rear Tail Lights, Two Rear Halogen Working Lights, Two Adjustable Front Halogen Lights, Dome Light
- Backup Alarm
- Heavy Duty Battery, 850 CCA
-
- Operator Environment
-
- Gauges: Fuel Level, DEF Level, Hour Meter
- Operator Warning System Indicators: Air Filter Restriction, Alternator Output, Armrest Raised/Operator Out of Seat, Engine Coolant Temperature, Engine Oil Pressure, Air Inlet Heater Activation, Hydraulic Filter Restriction, Hydraulic Oil Temperature, Park Brake Engaged, Engine Emission System
- Adjustable Vinyl Seat
- Fold In Ergonomic Contoured Armrest
- Control Interlock System, when operator leaves seat or armrest raised: Hydraulic System Disables, Hydrostatic Transmission Disables, Parking Brake Engages
- ROPS Cab, Open, Tilt Up
- FOPS, Level I
- Top and Rear Windows
- Floor Mat
- Interior Rearview Mirror
- 12 volt Electric Socket
- Horn
- Hand (Dial) Throttle, Electronic
- Adjustable Joystick Controls
- Advanced Display with Rearview Camera: Full Color, 127 mm (5 in) LCD screen; Advanced Multi-operator Security System; On-screen Adjustments for Implement Response, Hystat Response and Creep Control
- Storage Compartment with Netting
-
- Power Train
-
- Cat C3.8, Turbo Diesel Engine, Meeting Tier 4 Final and Stage V Emission Standards
- Air Cleaner, Dual Element, Radial Seal
- S·O·SSM Sampling Valve, Hydraulic Oil
- Filters, Cartridge-type, Hydraulic
- Filters, Canister-type, Fuel and Water Separator
- Radiator/Hydraulic Oil Cooler (side-by-side)
- Spring Applied, Hydraulically Released, Wet Multi Disc Parking Brakes
- Hydrostatic Transmission, Two Speed Travel
- Suspension – Independent Torsion Axles (4)
-
- Other
-
- Engine Enclosure, Lockable
- Extended Life Antifreeze, –37° C (–34° F)
- Machine Tie Down Points (6)
- Support, Lift Arm
- Hydraulic Oil Level Sight Gauge
- Radiator Coolant Level Sight Gauge
- Radiator, Expansion Bottle
- Cat ToughGuard™ Hose
- Auxiliary, Hydraulics, Continuous Flow
- Heavy Duty, Flat Faced Quick Disconnects with Integrated Pressure Release
- Split D-Ring to Route Work Tool Hoses Along Side of Left Lift Arm
- Electrical Outlet, Beacon
- Belly Pan Cleanout
- Variable Speed Demand Fan
- Product Link™ PL240, Cellular
-
- Mandatory Equipment
-
- Hydraulics, Standard or High Flow XPS
- Quick Coupler, Mechanical or Powered
- High Visibility Seat Belt, 50 mm (2 in) or 75 mm (3 in)
- Steel Imbed Rubber Track – 400 mm (15.7 in) or 450 mm (17.7 in)
- Dual Flange Front Idler/Single Flange Rear Idler or Triple Flange Front/Rear Idlers
- PERFORMANCE PACKAGE (must select one of the following):
– Performance Package H1: Standard Flow (No Self Level)
– Performance Package H2: Standard Flow, Dual Direction Electronic Self Level (Raise and Lower), Work Tool Return to Dig, Work Tool Positioner, and Electronic Snubbing (Raise and Lower)
– Performance Package H3: High Flow XPS, Dual Direction Electronic Self Level (Raise and Lower), Work Tool Return to Dig, Work Tool Positioner, and Electronic Snubbing (Raise and Lower) - COMFORT PACKAGE (must select one of the following):
– Open ROPS (C0): Static Seat (No Foot Throttle, Headliner, Heater or Door)
– Open ROPS (C1): Foot Throttle, Headliner, Cup Holder, and choice of Seat (Mechanical Suspension or High Back, Heated, Air Ride Seat) (No Heater or Door)
– Enclosed ROPS with Heater (C2): Foot Throttle, Headliner, Heater and Defroster, Side Windows, Cup Holder, Radio Ready, choice of Seat (Mechanical Suspension or High Back, Heated, Air Ride Seat) and Door (Glass or Polycarbonate)
– Enclosed ROPS with A/C (C3): C2 + Air Conditioner
Attachments
-
- Optional Equipment
-
- External Counterweights
- Beacon, Rotating
- Engine Block Heater – 120V
- Oil, Hydraulic, Cold Operation
- Paint, Custom
- Heavy Duty Battery, 850 CCA, with Battery Disconnect
- Heavy Duty Battery, 1,000 CCA, with Battery Disconnect
- Product Link PL641, Cellular
- Variable Speed Demand Fan with Reversing Functionality
- Speed Sensitive Ride Control
- Work Tool Return to Dig and Work Tool Positioner
- Bluetooth® Radio with Microphone (AM/FM/Weather Band Receiver with USB and Auxiliary Input Jack)
