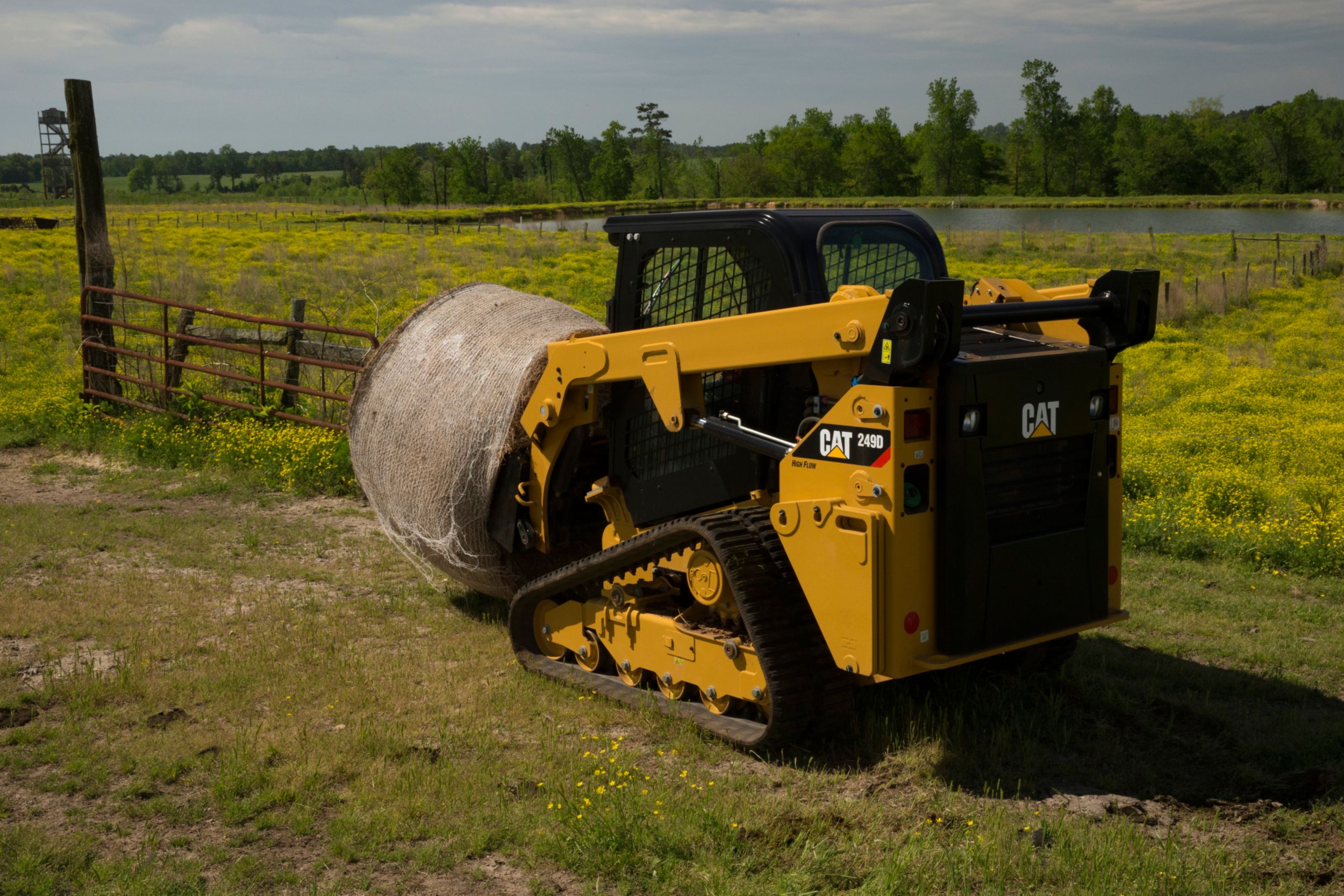

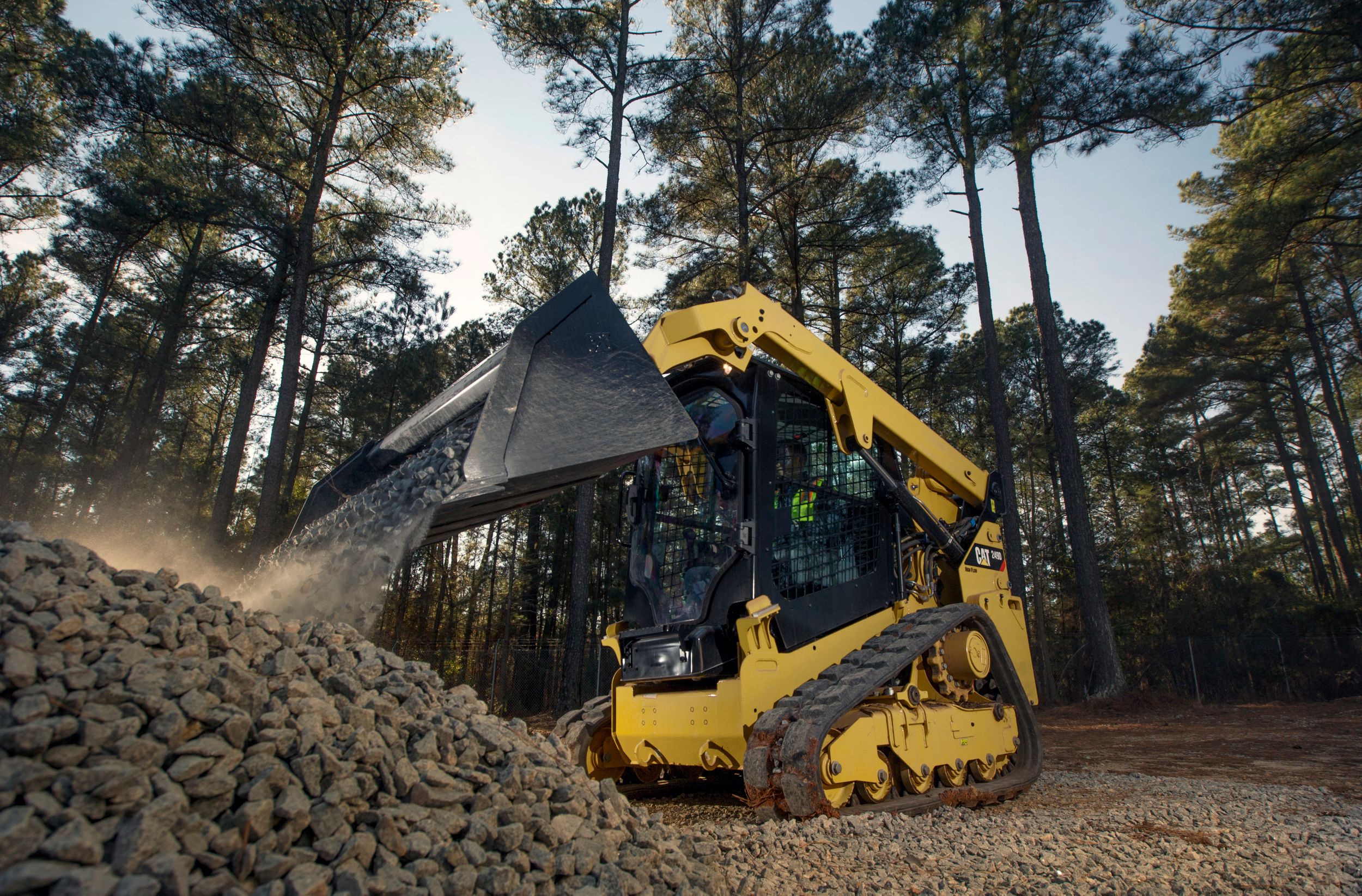

Product Specs
Engine
- Engine Model
- Cat C2.2 CRDI
- Net Power
- 65.8 hp
- Gross Power - SAE J1995
- 67.1 hp
- Net Power - SAE 1349
- 65.8 hp
- Displacement
- 134.3 in³
- Bore
- 3.3 in
- Stroke
- 3.9 in
- Peak Torque - 1,500 rpm - SAE J1995
- 153 ft·lbf
- Net Power - ISO 9249
- 66.5 hp
Weights
- Operating Weight
- 7685 lb
- Note
- Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1676 mm (66 in) dirt bucket, 320 mm (12.6 in) tracks, standard flow hydraulics, C0 cab (OROPS, static seat), 880 CCA battery, manual quick coupler,
Operating Specifications
- Tipping Load
- 4600 lb
- Breakout Force - Tilt Cylinder
- 3963 lb
- Ground Pressure - With 320 mm/12.6 in Track
- 5.6 psi
- Ground Contact Area - With 400 mm/15.7 in Track
- 1716 in²
- Ground Pressure - With 400 mm/15.7 in Track
- 4.6 psi
- Note
- Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1676 mm (66 in) dirt bucket, 320 mm (12.6 in) tracks, standard flow hydraulics, C0 cab (OROPS, static seat), 880 CCA battery, manual quick coupler,
- Rated Operating Capacity with Optional Counterweight
- 2500 lb
- Rated Operating Capacities - 50% Tipping Load
- 2300 lb
- Rated Operating Capacities - 35% Tipping Load
- 1610 lb
- Ground Contact Area - With 320 mm/12.6 in Track
- 1373 in²
Dimensions
- Length - Track on Ground
- 54.5 in
- Overall Length - Track
- 71.2 in
- Height - Top of Cab
- 80.3 in
- Ground Clearance
- 7.6 in
- Departure Angle
- 34.5°
- Maximum Dump Angle
- 48°
- Vehicle Width (400 mm/15.7 in tracks)
- 69.1 in
- Reach - Maximum Lift/Dump
- 28.6 in
- Turning Radius from Center - Machine Rear
- 57.4 in
- Vehicle Width (320 mm/12.6 in tracks)
- 66 in
- Bucket Pin Reach - Maximum Lift
- 12.2 in
- Bucket Pin Height - Carry Position
- 8.6 in
- Bucket Pin Height - Maximum Lift
- 118.2 in
- Clearance at Maximum Lift and Dump
- 88.7 in
- Length - With Bucket on Ground
- 127.3 in
- Length - Without Bucket
- 99.3 in
- Maximum Overall Height
- 150.8 in
- Maximum Reach - With Arms Parallel to Ground
- 51.8 in
- Rack Back Angle - Maximum Height
- 87.5°
- Turning Radius from Center - Bucket
- 81.1 in
- Turning Radius from Center - Coupler
- 45.7 in
- Note
- Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1676 mm (66 in) dirt bucket, 320 mm (12.6 in) tracks, standard flow hydraulics, C0 cab (OROPS, static seat), 880 CCA battery, manual quick coupler,
Cab
- ROPS
- ISO 3471:2008
- FOPS
- ISO 3449:2005 Level I
- FOPS Level II
- ISO 3449:2005 Level II
Hydraulic System
- Hydraulic Flow - High Flow - Loader Hydraulic Pressure
- 3336 psi
- Hydraulic Flow - High Flow - Hydraulic Power (Calculated)
- 50.9 hp
- Hydraulic Flow - High Flow - Loader Hydraulic Flow
- 26 gal/min
- Hydraulic Flow - Standard - Hydraulic Power (Calculated)
- 35.5 hp
- Hydraulic Flow - Standard - Loader Hydraulic Flow
- 18 gal/min
- Hydraulic Flow - Standard - Loader Hydraulic Pressure
- 3336 psi
Power Train
- Travel Speed - Forward or Reverse
- 7 mile/h
Service Refill Capacities
- Cooling System
- 3.2 gal (US)
- Engine Crankcase
- 2.6 gal (US)
- Fuel Tank
- 15.1 gal (US)
- Hydraulic System
- 11.9 gal (US)
- Hydraulic Tank
- 9 gal (US)
Air Conditioning System
- Air Conditioning
- The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.
Noise Level
- Inside Cab**
- 83 dB(A)
- Note (1)
- Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
- Note (2)
- **The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan spe
- Note (3)
- ***The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.
- Outside Cab***
- 103 dB(A)
Standard Equipment
-
- Electrical
-
- 12 volt Electrical System
- 80 ampere Alternator
- Ignition Key Start/Stop Switch
- Lights: Gauge Backlighting, Two Rear Tail Lights, Two Adjustable Front and Rear Halogen Lights, Dome Light
- Backup Alarm
- Heavy Duty Battery, 880 CCA
-
- Operator Environment
-
- Gauges: Fuel Level, Hour Meter
- Operator Warning System Indicators: Air Filter Restriction, Alternator Output, Armrest Raised/Operator Out of Seat, Engine Coolant Temperature, Engine Oil Pressure, Glow Plug Activation, Hydraulic Filter Restriction, Hydraulic Oil Temperature, Park Brake Engaged
- Adjustable Vinyl Seat
- Fold In Ergonomic Contoured Armrest
- Control Interlock System, when operator leaves seat or armrest raised: Hydraulic System Disables, Hydrostatic Transmission Disables, Parking Brake Engages
- ROPS Cab, Open, Tilt Up
- FOPS, Level I
- Top and Rear Windows
- Floor Mat
- Interior Rearview Mirror
- 12 volt Electric Socket
- Horn
- Hand (Dial) Throttle, Electronic
- Adjustable Joystick Controls
- Anti-theft Security System with 6-button Keypad
- Storage Compartment with Netting
-
- Power Train
-
- Cat C2.2, Turbo Diesel Engine, Meeting Tier 4 Final/Stage IIIB Emission Standards
- Air Cleaner, Dual Element, Radial Seal
- S·O·SSM Sampling Valve, Hydraulic Oil
- Filters, Cartridge-type, Hydraulic
- Filters, Cartridge-type, Fuel and Water Separator
- ATAAC/Radiator/Hydraulic Oil Cooler (side-by-side)
- Spring Applied, Hydraulically Released Parking Brakes
- Hydrostatic Transmission, One Speed Travel
- Suspension – Independent Torsion Axles (4)
-
- Other
-
- Engine Enclosure, Lockable
- Extended Life Antifreeze, –36° C (–33° F)
- Machine Tie Down Points (6)
- Support, Lift Arm
- Hydraulic Oil Level Sight Gauge
- Radiator Coolant Level Sight Gauge
- Radiator, Expansion Bottle
- Cat ToughGuard™ Hose
- Auxiliary, Hydraulics, Continuous Flow
- Heavy Duty, Flat Faced Quick Disconnects with Integrated Pressure Release
- Split D-Ring to Route Work Tool Hoses Along Side of Left Lift Arm
- Electrical Outlet, Beacon
- Belly Pan Cleanout
- Variable Speed Demand Fan
- Product Link™ PL240, Cellular
-
- Mandatory Equipment
-
- Hydraulics, Standard or High Flow
- Quick Coupler, Mechanical or Powered
- Seat Belt, 50 mm (2 in) or 75 mm (3 in)
- EU Preparation Package (Europe only)
- Steel Imbed Rubber Track – 320 mm (12.6 in) Block Tread or 400 mm (15.7 in) Bar Tread
- Dual Flange Front Idler/Single Flange Rear Idler
- PERFORMANCE PACKAGES:
- Performance Package H1: Standard Flow Hydraulics (No Self Level)
- Performance Package H2: Standard Flow Hydraulics, Dual Direction Electronic Self Level (Raise and Lower), Electronic Snubbing (Raise and Lower)
- Performance Package H3: High Flow Hydraulics, Dual Direction Electronic Self Level (Raise and Lower), Electronic Snubbing (Raise and Lower)
- COMFORT PACKAGES:
- Open ROPS (C0): Static Seat (No Foot Throttle, Headliner, Heater or Door)
- Open ROPS (C1): Foot Throttle, Headliner, Cup Holder, and choice of Seat (Mechanical Suspension or High Back, Heated, Air Ride Seat) (No Heater or Door)
- Enclosed ROPS with Heater (C2): Foot Throttle, Headliner, Heater and Defroster, Side Windows, Cup Holder, Radio Ready, choice of Seat (Mechanical Suspension or High Back, Heated, Air Ride Seat) and Door (Glass or Polycarbonate)
- Enclosed ROPS with A/C (C3): C2 + Air Conditioner
Attachments
-
- Optional Equipment
-
- Hand-Foot Style Controls
- External Counterweights
- Beacon, Rotating
- Engine Block Heater – 120V
- Oil, Hydraulic, Cold Operation
- Paint, Custom
- Product Link PL641, Cellular
- Ride Control
- Advanced Display: Full Color, 5 in LCD screen, Advanced Multi-operator Security System, On-screen Adjustments for Implement Response, Hystat Response, and Creep Control; Rearview Camera Ready
- Advanced Display: Rearview Camera Included (standard equipment in Europe only)
- Work Tool Return to Dig and Work Tool Positioner
- Bluetooth Radio with Microphone (AM/FM/Weather Band Receiver with USB and Auxiliary Input Jack)
