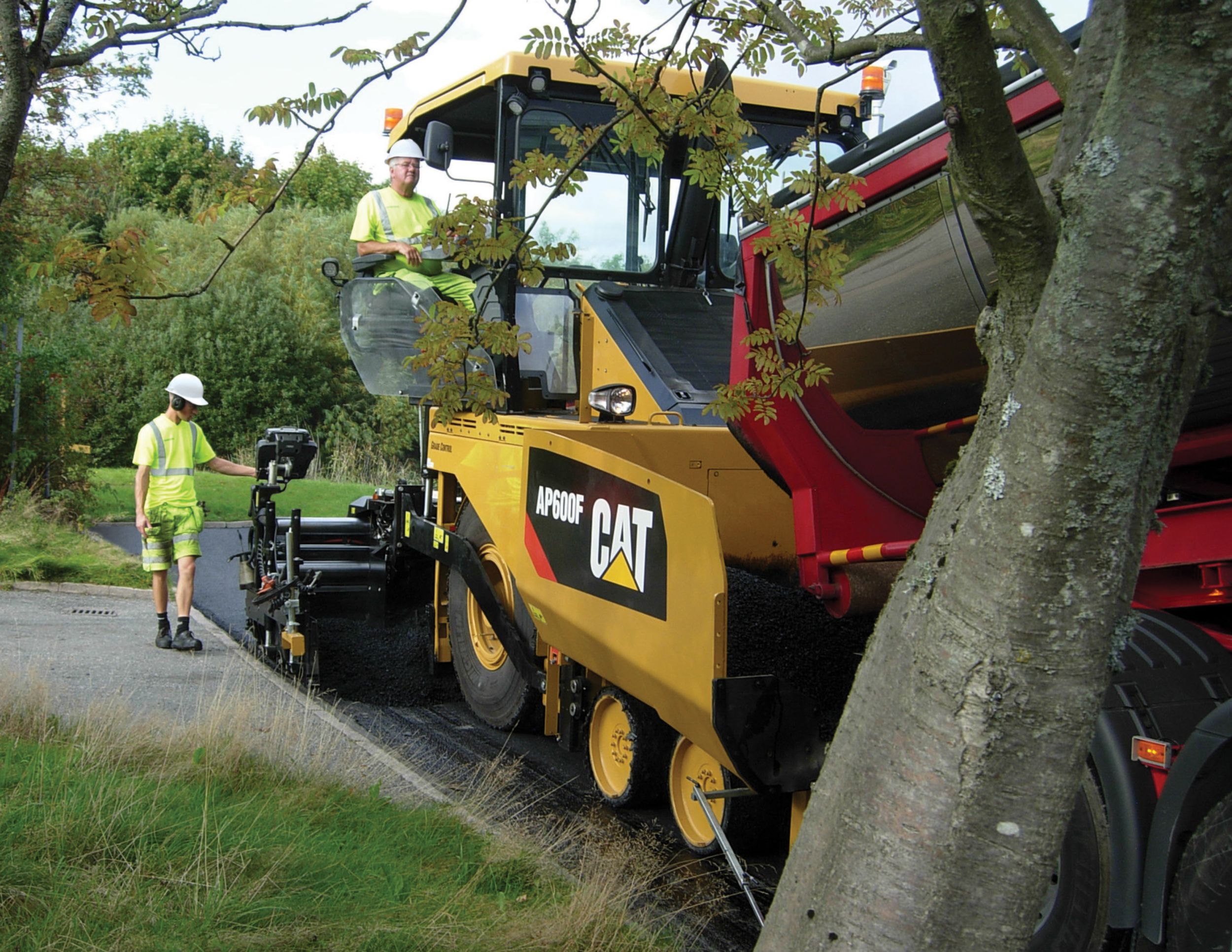

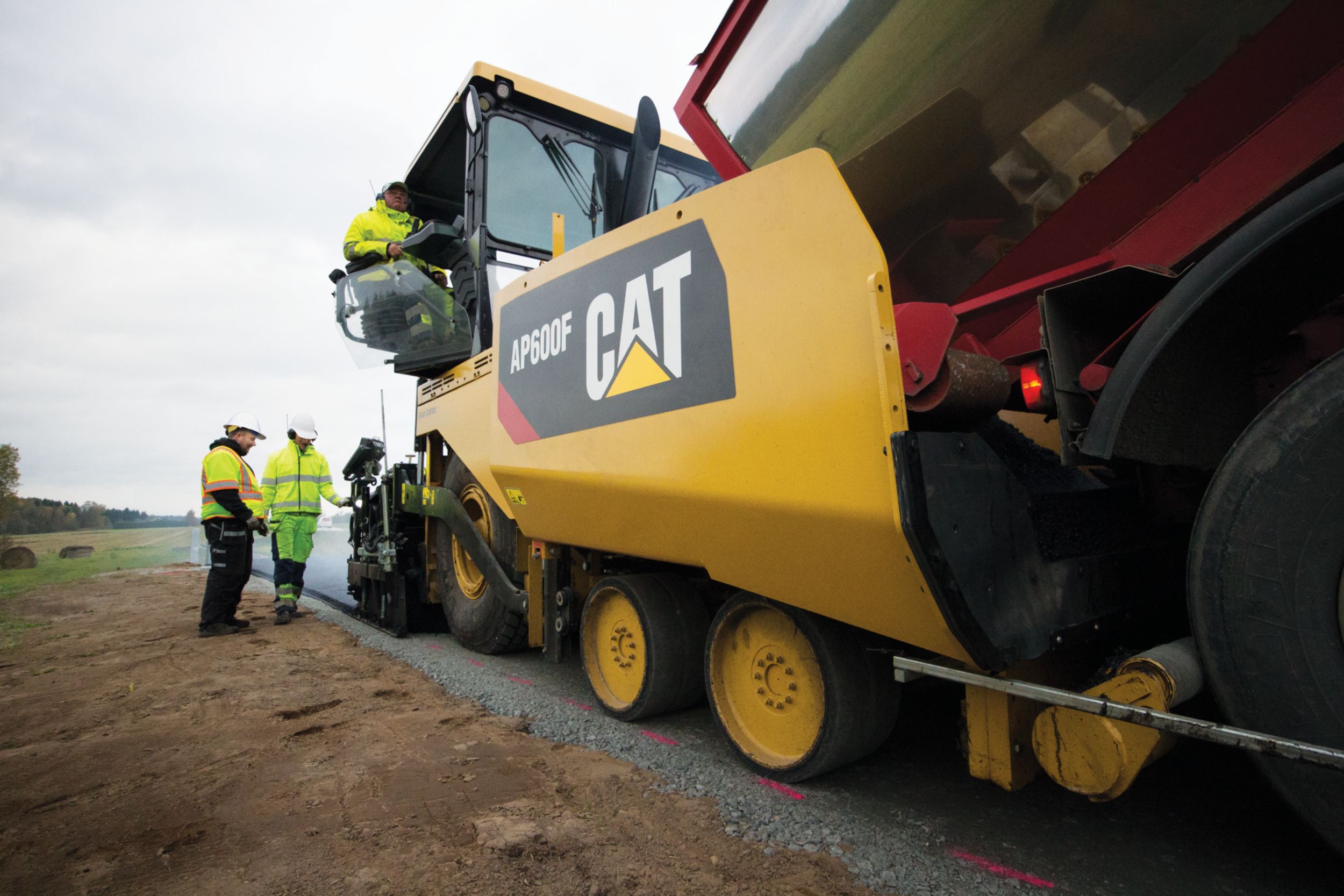

Exterior View
Product Specs
Engine
- Gross Power
- 173 hp
- Engine Model
- Cat C4.4 with ACERT
Operating Specifications
- Standard Paving Range - SE50 V, SE50 VT
- 2.55 - 5.0 m (8' 4" - 16' 4")
- Maximum Travel Speed
- 9 mile/h
- Hopper Capacity
- 250 ft³
- Maximum Paving Width - SE50 V
- 21.3 ft
- Maximum Paving Width - SE50 VT
- 26.3 ft
- Maximum Paving Width - SE60 V
- 25 ft
- Standard Paving Range - SE60 V
- 3.0 - 6.0 m (9' 10" - 19' 6")
- Maximum Paving Speed - With Tamper Bar Screed
- 82 ft/min
- Maximum Paving Speed - With Vibratory Screed
- 250 ft/min
- Inside Turn Radius
- 4.5 ft
- Maximum Throughput Capacity
- 1433 tonnes/hr
Weights
- Operating Weight - Paver Only
- 30522 lb
- Operating Weight - SE50 V Screed only
- 7239 lb
- Operating Weight - SE50 VT Screed only
- 7363 psi
- Operating Weight - SE60 V Screed only
- 7495 lb
- Shipping Weight - Paver Only
- 29891 lb
Service Refill Capacities
- Fuel Tank Capacity
- 73 gal (US)
- DEF Tank
- 5 gal (US)
Attachments
-
- Options
-
- Air-ride Seat with Heat
- All-Wheel Drive
- Auger and Mainframe Extensions
- Auxiliary Power Panel
- Ballast
- Cat Grade Control
- Decelerator Pedals
- Ecological Washdown System
- Feed Sensor (Sonic or Mechanical)
- Front Wheel Assist
- Hardtop Canopy
- HID Lights
- Leveling Devices
- Lights (Working or Roading)
- Mainframe Extensions (Power or Manual)
- Power Folding Front Apron
- Product Link
- Oscillating Push Rollers
- Steering Guide
- Tow Point Indicators (Upper)
- Truck Hitch
- Generator
- Umbrella
- Uptime Kit
- Ventilation System
- Warning Beacon
- Wide-width Paving Packages
- Windshield w/Hardtop Canopy
-
- Grade References
-
- Non-Contacting Sonic Grade Sensor
- Contacting Grade Sensor
- Outboard Leveler, 9.15 m (30') and 12.2 m (40')
- Inboard Leveler
- Mobile Stringline
- Fore ‘N Aft Leveler
- Sonic Averaging Beam
- Rigid Ski, 9.15 m (30') and 12.2 m (40')
-
- Screed Choices
-
- SE50 V Vibratory Screed
- SE50 VT Tamper Bar Screed
- SE60 V Vibratory Screed
