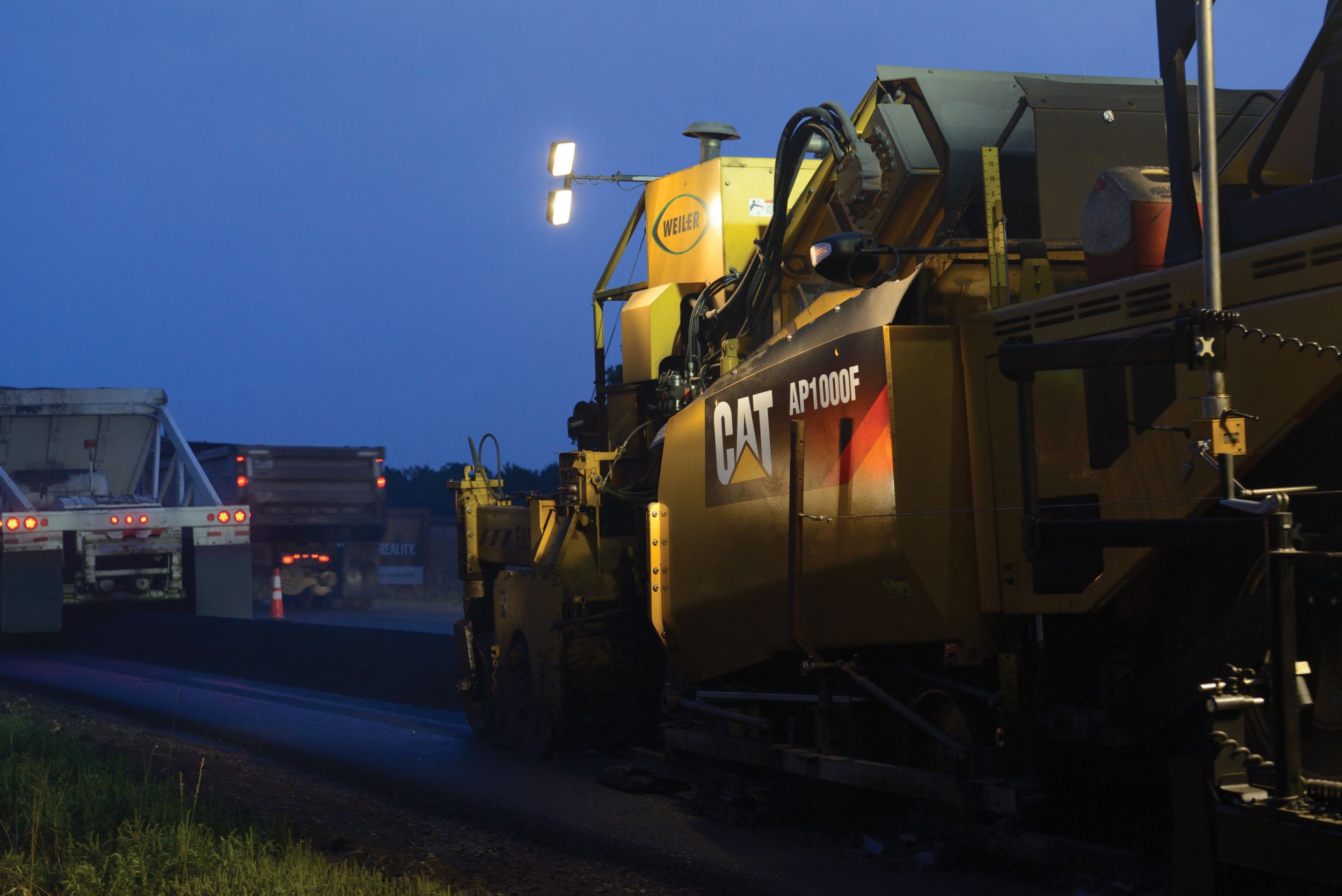

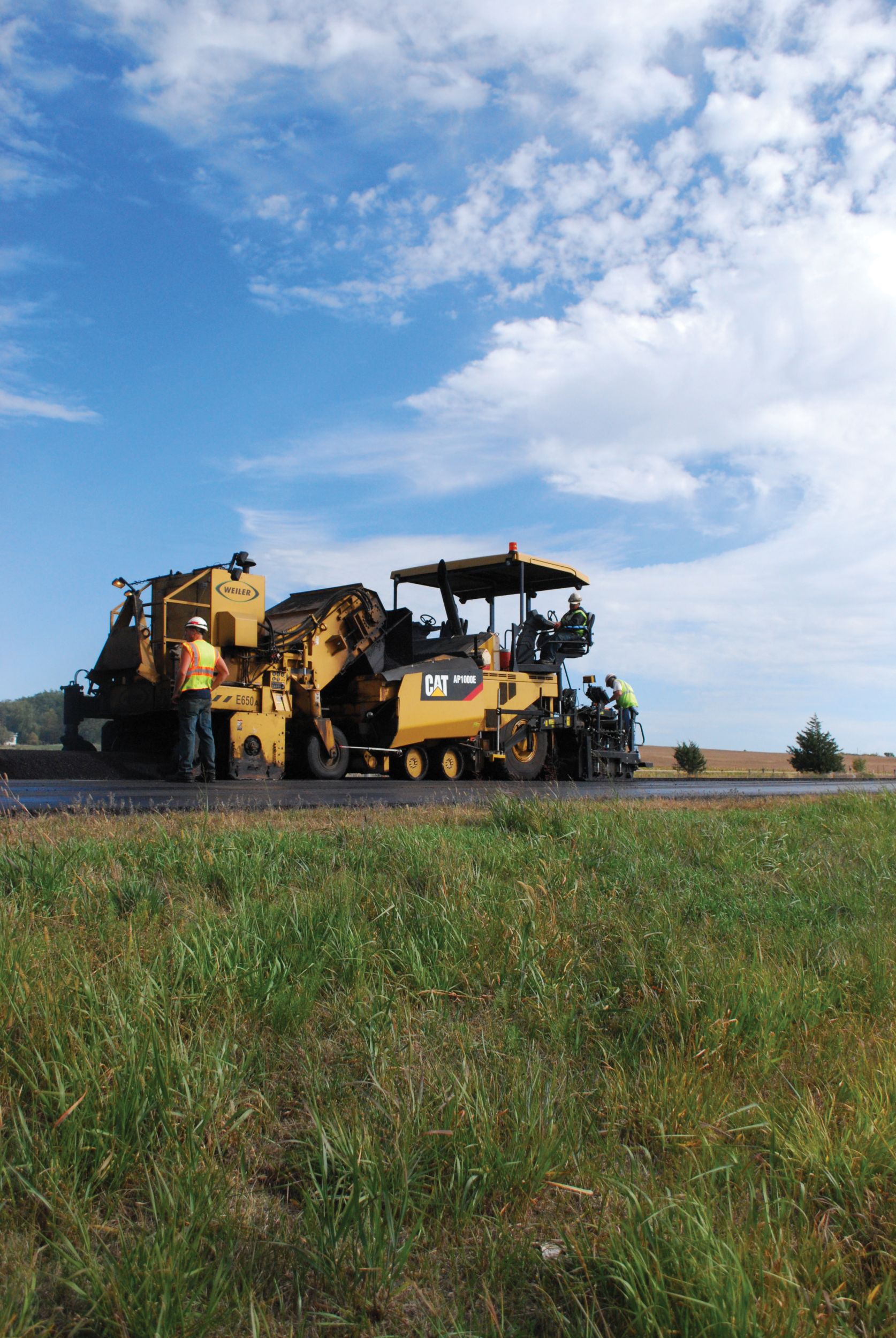

Exterior View
Product Specs
Engine
- Gross Power
- 225 hp
- Engine Model
- Cat C7.1 with ACERT
Operating Specifications
- Standard Paving Range
- 3 - 6 m (9' 10" - 19' 6")
- Maximum Paving Width - SE60 V Screed
- 25 ft
- Maximum Paving Speed - With Tamper Bar Screed
- 82 ft/min
- Maximum Paving Speed - With Vibratory Screed
- 250 ft/min
- Inside Turn Radius
- 1.5 ft
- Hopper Capacity - Standard Entry
- 267 ft³
- Hopper Capacity - Low Entry Hopper
- 286 ft³
- Maximum Throughput Capacity
- 1766 tonnes/hr
- Maximum Travel Speed
- 12 mile/h
- Maximum Paving Width - SE60 V XW, VT XW Screed
- 25 ft
Weights
- Operating Weight - With SE60 V XW
- 43472 lb
- Operating Weight - With SE60 VT XW
- 45419 lb
- Operating Weight - With SE60 V
- 41985 lb
- Tractor Operating Weight
- 34820 lb
- Tractor Shipping Weight
- 34228 lb
Dimensions
- Operating Width - Standard Entry Hopper
- 132 in
- Operating Width - Low Entry Hopper
- 142 in
- Operating Height - With Canopy
- 157 in
- Operating Height - Without Canopy
- 146 in
- Operating Length - With SE60 V XW Screed
- 23.1 ft
- Operating Length - With SE60 V Screed
- 22.5 ft
- Transport Length - With SE60 V Screed
- 22.1 ft
- Transport Length - With SE60 XW-Series
- 22.6 ft
- Transport Width - With Screed End Gates
- 10.66 ft
- Transport Width - With End Gates Folded
- 9.83 ft
- Transport Height - Canopy Retracted
- 10.1 ft
- Transport Height - Without Canopy
- 9.83 ft
- Truck Entry Height - With Standard Entry Hopper
- 22.5 in
- Truck Entry Height - With Low Entry Hopper
- 21 in
Service Refill Capacities
- Fuel Tank Capacity
- 92 gal (US)
- DEF Tank
- 5 gal (US)
Attachments
-
- Options
-
- Air-ride Seat with Heat
- All-Wheel Drive
- Auger and Mainframe Extensions
- Auxiliary Power Panel
- Ballast
- Cat Grade Control
- Decelerator Pedals
- Ecological Washdown System
- Feed Sensor (Sonic or Mechanical)
- Front Wheel Assist
- Hardtop Canopy
- HID Lights
- Leveling Devices
- Lights (Working or Roading)
- Mainframe Extensions (Power or Manual)
- Power Folding Front Apron
- Product Link
- Oscillating Push Rollers
- Steering Guide
- Tow Point Indicators (Upper)
- Truck Hitch
- Generator
- Umbrella
- Uptime Kit
- Ventilation System
- Warning Beacon
- Wide-width Paving Packages
- Windshield w/Hardtop Canopy
-
- Grade References
-
- Non-Contacting Sonic Grade Sensor
- Contacting Grade Sensor
- Outboard Leveler, 9.15 m (30') and 12.2 m (40')
- Inboard Leveler
- Mobile Stringline
- Fore ‘N Aft Leveler
- Sonic Averaging Beam
- Rigid Ski, 9.15 m (30') and 12.2 m (40')
-
- Screed Choices
-
- SE60 V Vibratory Screed
- SE60 V XW Vibratory Screed
- SE60 VT XW Vibratory and Tamper Bar Screed
