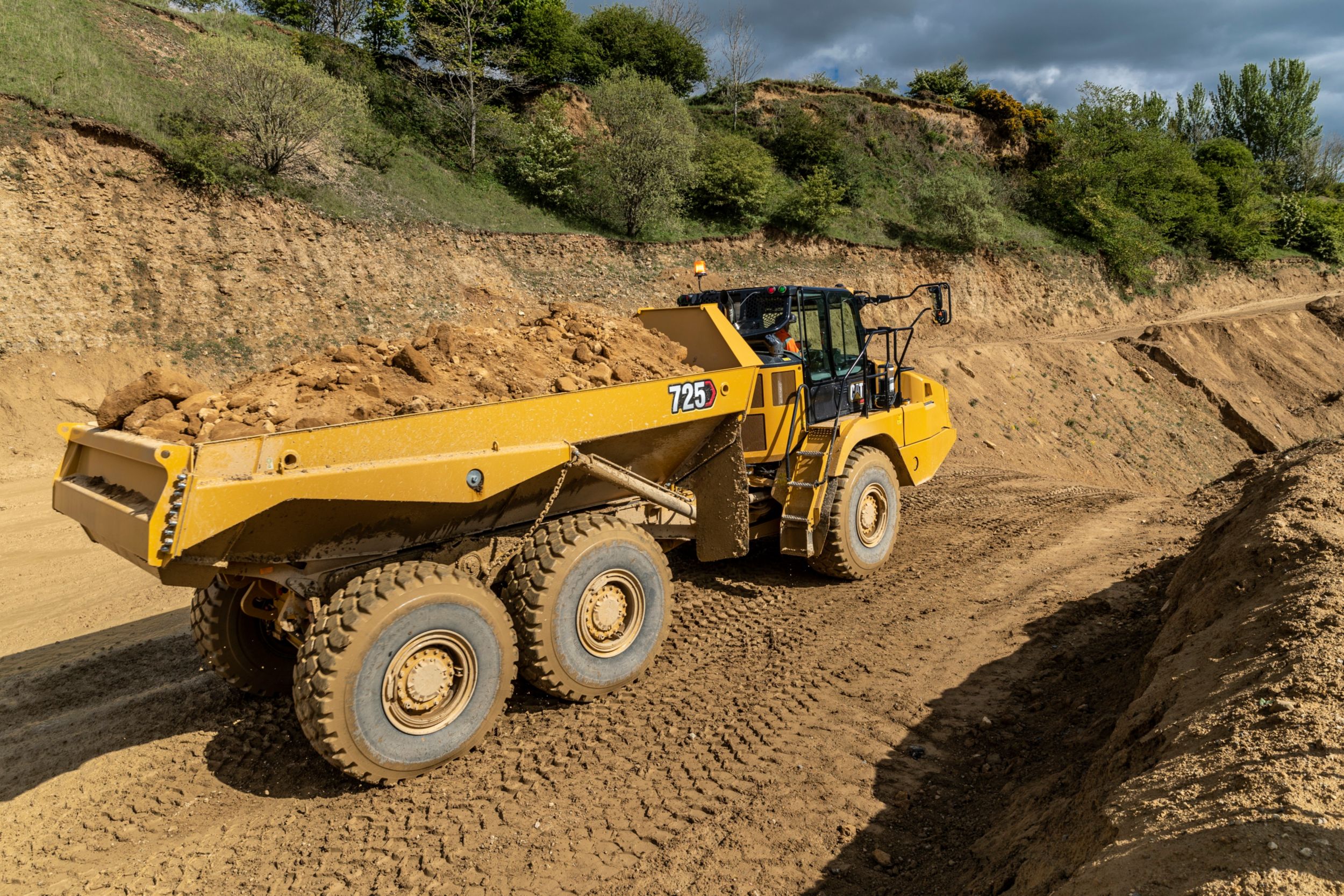

Exterior View
Product Specs
Engine
- Engine Model
- Cat C9.3
- Bore
- 4.5 in
- Stroke
- 45.2 in
- Displacement
- 567.5 in³
- Peak Engine Torque Gross (SAE J1995)
- 1275 ft·lbf
- Engine Model - U.S. EPA Tier 4 Final/EU Stage IV
- Cat® C9.3
- No Engine De-rating Below
- 3000 ft
- Peak Engine Torque Net (SAE J1349)
- 1263 ft·lbf
- Peak Engine Torque Speed
- 1200 r/min
- Note (1)
- The power ratings apply at rated speed of 1,700 rpm when tested under the conditions for the specified standard.
- Emissions
- The reference to Tier 4 Final/Stage IV includes U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 (Tier 4 Final), as well as Korea Tier 4 Final emission standards.
- Note (3)
- Net power when the fan is at maximum speed is 249 kW (334 hp) per the SAE reference conditions.
- Note (2)
- The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler and fan at minimum speed.
- Note (4)
- DEF used in Cat SCR systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241-1. ISO 22241-1 requirements are met by many brands of DEF, including those that carry the AdBlue or API certificatio
- Gross Power - SAE J1995:2014
- 342 hp
- Net Power - ISO 14396
- 338 hp
- Net Power - SAE J1349:2011
- 334 hp
Weights
- Rated Payload
- 26.5 ton (US)
Body Capacities
- Heaped (SAE 2:1)
- 19.6 yd³
- Struck
- 14.4 yd³
- Tailgate Heaped SAE 2:1
- 20.4 yd³
- Tailgate Struck
- 14.5 yd³
Transmission
- Forward - 1
- 5 mT/hr
- Forward - 2
- 9.4 mT/hr
- Forward - 3
- 14.4 mT/hr
- Forward - 4
- 22.1 mT/hr
- Forward - 5
- 30.7 mT/hr
- Forward - 6
- 36.3 mT/hr
- Reverse - 1
- 5.5 mT/hr
Service Refill Capacities
- Fuel Tank
- 91 gal (US)
- Cooling System
- 18 gal (US)
- Hydraulic System
- 29.1 gal (US)
- Engine Crankcase
- 8 gal (US)
- Transmission
- 10 gal (US)
- Final Drives/Differential
- 33 gal (US)
- Output Transfer Gear Box
- 5 gal (US)
- Final Drive - Each
- 1.6 gal (US)
- Steering/Hoist Hydraulic System
- 24 gal (US)
- DEF Tank
- 4 gal (US)
Sound Levels
- Interior Cab
- 69 dB(A)
- Note (1)
- The declared dynamic operator sound pressure level is 69±2 dB(A) when "ISO 6396:2008" is used to measure the value for an enclosed cab. The measurement was conducted at 70% of the maximum cooling fans speed. The sound level may vary at different cooling f
- Note (2)
- Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in noisy environments.
Body Hoist
- Raise Time
- 10 s
- Lower Time
- 8 s
Standards
- Brakes
- ISO 3450 – 2011
- Cab - FOPS
- ISO 3449 Level II – 2008
- Cab - ROPS
- ISO 3471 – 2008
- Steering
- ISO 5010 – 2007
Operating Weights
- Total - Loaded
- 103886 lb
- Rear Axle - Rated Load
- 23699 lb
- Total - Empty
- 50975 lb
- Total - Rated Load
- 52910 lb
- Center Axle - Loaded
- 33944 lb
- Front Axle - Rated Load
- 5511 lb
- Center Axle - Rated Load
- 23699 lb
- Center Axle - Empty
- 10242 lb
- Rear Axle - Loaded
- 33457 lb
- Front Axle - Loaded
- 36484 lb
- Rear Axle - Empty
- 9757 lb
- Front Axle - Empty
- 30974 lb
Body Plate Thickness
- Side Plates
- 0.43 in
- Front Plate
- 0.28 in
- Base Plate
- 0.51 in
Steering
- Lock to Lock
- 4.75 seconds @ 60 rpm
Body Plate
- Type
- High strength Brinell HB450 wear resistant steel
Turning Circle
- Turning Dimensions - Inside Radius
- 153 in
- Turning Dimensions - Aisle Width
- 210 in
- Turning Dimensions - SAE Turning Radius
- 294 in
- Turning Dimensions - Clearance Radius
- 318 in
- Turning Dimensions - Steer Angle - Left/Right
- 45°
- Note
- Dimensions are for machines equipped with 23.5R25 tires.
Optimal Loader/Truck Pass Matching
- Wheel Loader: 950M - Passes
- 5
- Wheel Loader: 962M - Passes
- 4-5
- Wheel Loaders: 966M/966M XE - Passes
- 4
- Hydraulic Excavators: 336F/336F XE - Passes
- 5-6
- Wheel Loaders: 972M/972M XE - Passes
- 3-4
- Hydraulic Excavators: 349F/349F XE - Passes
- 4-5
Standard Equipment
-
- Note
-
- Standard and optional equipment may vary. Consult your Cat dealer for details.
-
- Operator Environment
-
- Air conditioning with R134A refrigerant
- Machine operation monitoring system includes:
– Action lamp
– Engine oil pressure
– Primary steering system
– Left and right turn signal
– High beam
– Coolant temperature
– Tachometer
– Parking brake
– Fuel level
– Transmission oil temperature
– Brake system
– Transmission hold
– Hoist control
– Hydraulic system
– Charging system
– Retarder
– Transmission fault
– Traction control system
– Check engine lamp - Windows opening both sides, tinted
- Storage:
– Cup holder
– Flask receptacle
– Under seat storage
– Door pocket
– Behind operator seat storage
– Coat hook - Glass windows:
– Front, laminated and tinted
– Sides and rear, toughened and tinted - Seats:
– Operator: fully adjustable, air suspension
– Trainer: padded with lap belt - Tilt and telescopic steering wheel
- Retractable belt: Operator seat and second seat
- Adjustable air vents
- Heater and defroster with four-speed fan
- Sun visor
- Touchscreen display incorporating the rearview camera video feed
- Windshield wiper and washer, two speed, intermittent (front)
- Combined gear selection and hoist control lever
- Windshield wiper and washer, two speed (rear)
- Liquid Crystal Display (LCD):
– Alert indicator
– Selected gear and direction
– Speed or auto shift
– Review Operation and Maintenance Manual (OMM)
– Primary steering failure warning
– Seat belt warning
– Secondary steering failure warning
– Diesel Particulate Filter (DPF) regeneration filter
– Machine Security System (MSS) ready
– Secondary steering energy source engaged
– Hour meter
– Retarder active - Secondary steering – electro hydraulic
- Mirrors: extensive arrangement for improved visibility
-
- Cat Technologies
-
- Product Link
- Cat Detect with Stability Assist
-
- Electrical And Lighting
-
- Electrical system: 24-volt, 5A 24- to 12-volt converter
- Lighting systems:
– Cab interior
– Two head lamps
– Two width marker
– Two reversing
– Work light/cab access light
– Two stop/tail lights
– Front and rear direction indicators - Main disconnect switch
- Horn
- Batteries (two) maintenance free
- Remote starting receptacle (cables not included)
-
- Power Train
-
- Differentials: standard with automatic clutched inter- and cross-axle differential locks
- Cat Clean Emission Module (CEM) and exhaust aftertreatment package
- Cat C9.3 engine
- Three axle, six-wheel drive
- Retarder: engine compression brake
- Dual circuit oil immersed, enclosed brakes – all wheels
- Auto shift six-speed forward and single speed reverse transmission
-
- Safety
-
- Reverse alarm
- Rearview camera
- ROPS/FOPS cab
-
- Guards
-
- Front dump body spill guard, integral part of fabricated body
- Crankcase
- Axle
- Rear window
- Radiator
-
- Other Standard Equipment
-
- Vandalism protection: lockable caps
- Mud flaps: wheel arch and body mounted with transportation tiebacks
- Sound suppression (only standard in Europe)
- S·O·S sampling valves
- Tires, six 23.5R25
Attachments
-
- Note
-
- Standard and optional equipment may vary. Consult your Cat dealer for details.
-
- Optional Equipment
-
- Cold weather coolant –51° C (–60° F)
- Infrared glass – high ambient cab
- Auto lube installation for automatic greasing of bearings
- Cold weather start attachment
- Bare chassis (no body) standard wheel base
- Roof mounted High Intensity Discharge (HID) work lights
- Product Link Elite: PLE641 (cellular). Product Link is optional.
- Heated/cooled seat
- Exhaust heated body
- Fuel additive – anti-waxing
- Flashing LED beacon
- Body liners
- Ether start
- Four-point seat belt
- Machine Security System (MSS)
- Cat Production Measurement payload monitoring system
- Sound suppression (only standard in Europe)
- Fast fuel fill
- Wheel chocks
- Engine block heater
- Heated rearview motorized mirrors
- Window blinds
- Bluetooth radio stereo system
- Scissor tailgate
