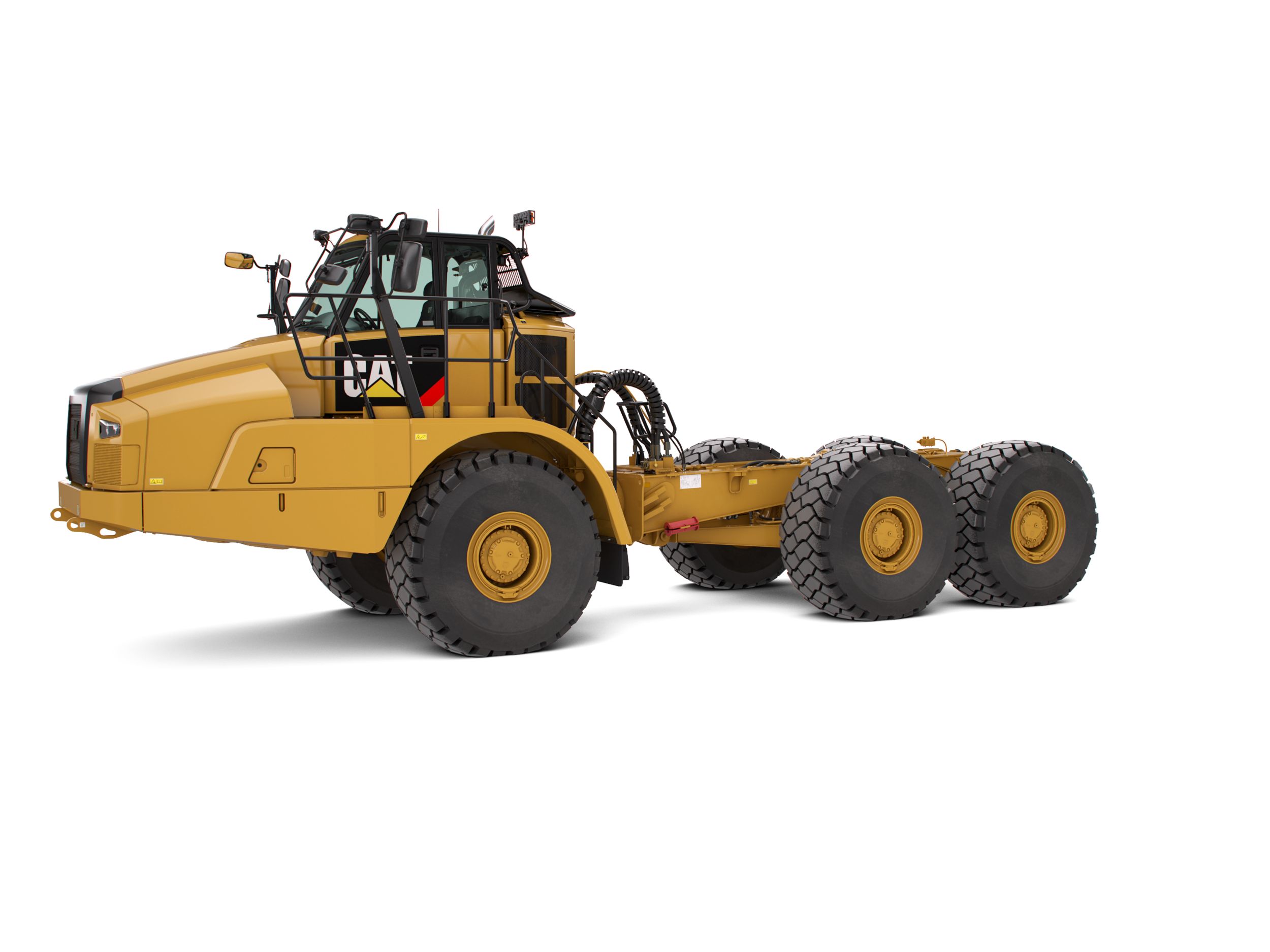

735C Bare Chassis Articulated Truck

Wheel Base Length

Standard Wheel Base

162.4 in

Long Wheel Base

228.4 in

Weights

Rated Payload

36 t

Engine

Engine Model

Cat C15 ACERT

Bore

5.4 in

Stroke

6.75 in

Displacement

926 in³

Net Power - ISO 14396

447 hp

Peak Engine Torque Net (SAE J1349)

1887 lb/ft

Engine Model - U.S. EPA Tier 4 Final/EU Stage IV/Japan 2014 (Tier 4 Final)/Korea Tier 4 Final

Cat® C15 ACERT™

Gross Power - SAE J1995:2014

452 hp

Net Power - SAE J1349:2011

441 hp

No Engine De-rating Required Below

10000 ft

Peak Engine Torque Gross (SAE J1995)

1931 lb/ft

Peak Engine Torque Speed

1200 r/min

Transmission

Forward - 1

3.7 mile/h

Forward - 2

4.9 mile/h

Forward - 3

6.8 mile/h

Forward - 4

8.6 mile/h

Forward - 5

11.4 mile/h

Forward - 6

14 mile/h

Forward - 7

19.3 mile/h

Forward - 8

23.1 mile/h

Reverse - 1

3.9 mile/h

Reverse - 2

8.9 mile/h

Forward - 9

33.5 mile/h

Service Refill Capacities

Fuel Tank

126.8 gal (US)

Cooling System

23.7 gal (US)

Engine Crankcase

10.6 gal (US)

Steering/Hoist Hydraulic System

36.9 gal (US)

Axles - Each

15.8 gal (US)

DEF Tank

6.6 gal (US)

Final Drive - Each

1.3 gal (US)

Transmission - OTG

19.8 gal (US)

Brake Cooling Tank

17.69 gal (US)

Sound Levels

Interior Cab

79 dB(A)

Standards

Brakes

ISO 3450-2011

Cab - FOPS

ISO 3449 Level II-2005

Cab - ROPS

ISO 3471-2008

Steering

ISO 5010-2007

Steering

Lock to Lock

4.6 seconds @ 60 rpm

Turning Circle

Note

Dimensions are for machines equipped with 26.5R25 tires.

Turning Dimensions - Aisle Width

221 in

Turning Dimensions - Clearance Radius

331 in

Turning Dimensions - Inside Radius

157 in

Turning Dimensions - SAE Turning Radius

314 in

Turning Dimensions - Steer Angle - Left/Right

45°
