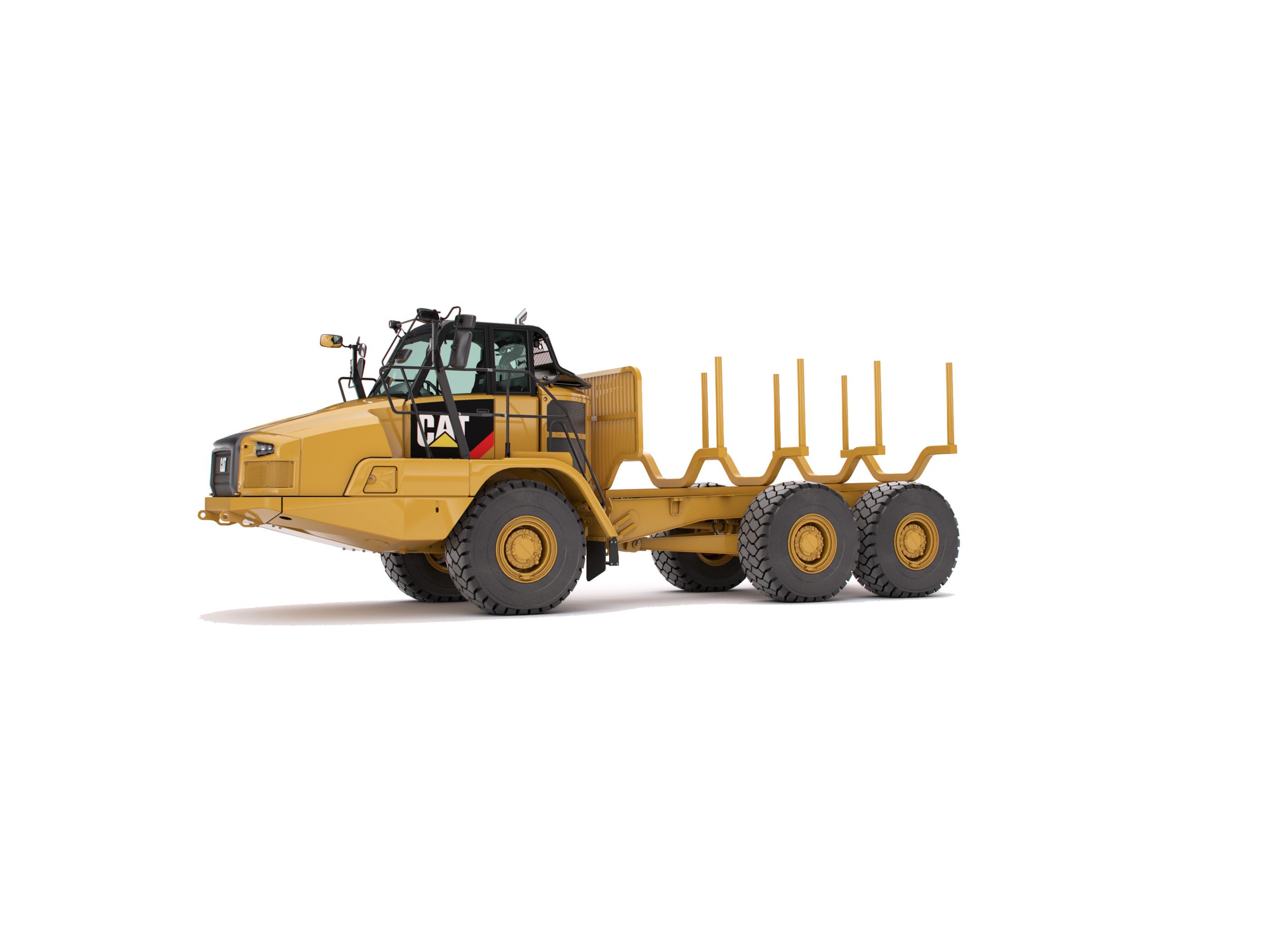

725C2 Bare Chassis Articulated Truck

Wheel Base Length

Standard Wheel Base

156.7 in

Long Wheel Base

215.2 in

Weights

Rated Payload

26 t

Engine

Engine Model

Cat C13 ACERT

Gross Power - SAE J1995:2014

320 hp

Net Power - SAE J1349:2011

314 hp

Bore

5.1 in

Stroke

6.2 in

Displacement

762.8 in³

Net Power - ISO 14396

316 hp

Engine Model - U.S. EPA Tier 4 Final/EU Stage IV

Cat® C9.3 ACERT™

No Engine De-rating Required Below

7500 ft

Peak Engine Torque Gross (SAE J1995)

1275 lb/ft

Peak Engine Torque Net (ISO 14396)

1262 lb/ft

Peak Engine Torque Speed

1200 r/min

Transmission

Forward - 1

5 mile/h

Forward - 2

9 mile/h

Forward - 3

14 mile/h

Forward - 4

21 mile/h

Forward - 5

29 mile/h

Forward - 6

36 mile/h

Reverse - 1

6 mile/h

Service Refill Capacities

Fuel Tank

108.8 gal (US)

Cooling System

21.9 gal (US)

Hydraulic System

29.1 gal (US)

Engine Crankcase

10 gal (US)

Transmission

12.4 gal (US)

Final Drives/Differential

33 gal (US)

Output Transfer Gear Box

6.3 gal (US)

DEF Tank (ISO 2224-1)

5.2 gal (US)

Sound Levels

Interior Cab

76 dB(A)

Standards

Brakes

ISO 3450 - 2011

Cab - FOPS

ISO 3449 Level II - 2005

Cab - ROPS

ISO 3471 - 2008

Steering

ISO 5010 - 2007

Steering

Lock to Lock

4.75 seconds @ 60 rpm

Turning Circle

Note

Dimensions are for machines equipped with 23.5R25 tires.

Turning Dimensions - Aisle Width

210 in

Turning Dimensions - Clearance Radius

318 in

Turning Dimensions - Inside Radius

153 in

Turning Dimensions - SAE Turning Radius

294 in

Turning Dimensions - Steer Angle - Left/Right

45 °
