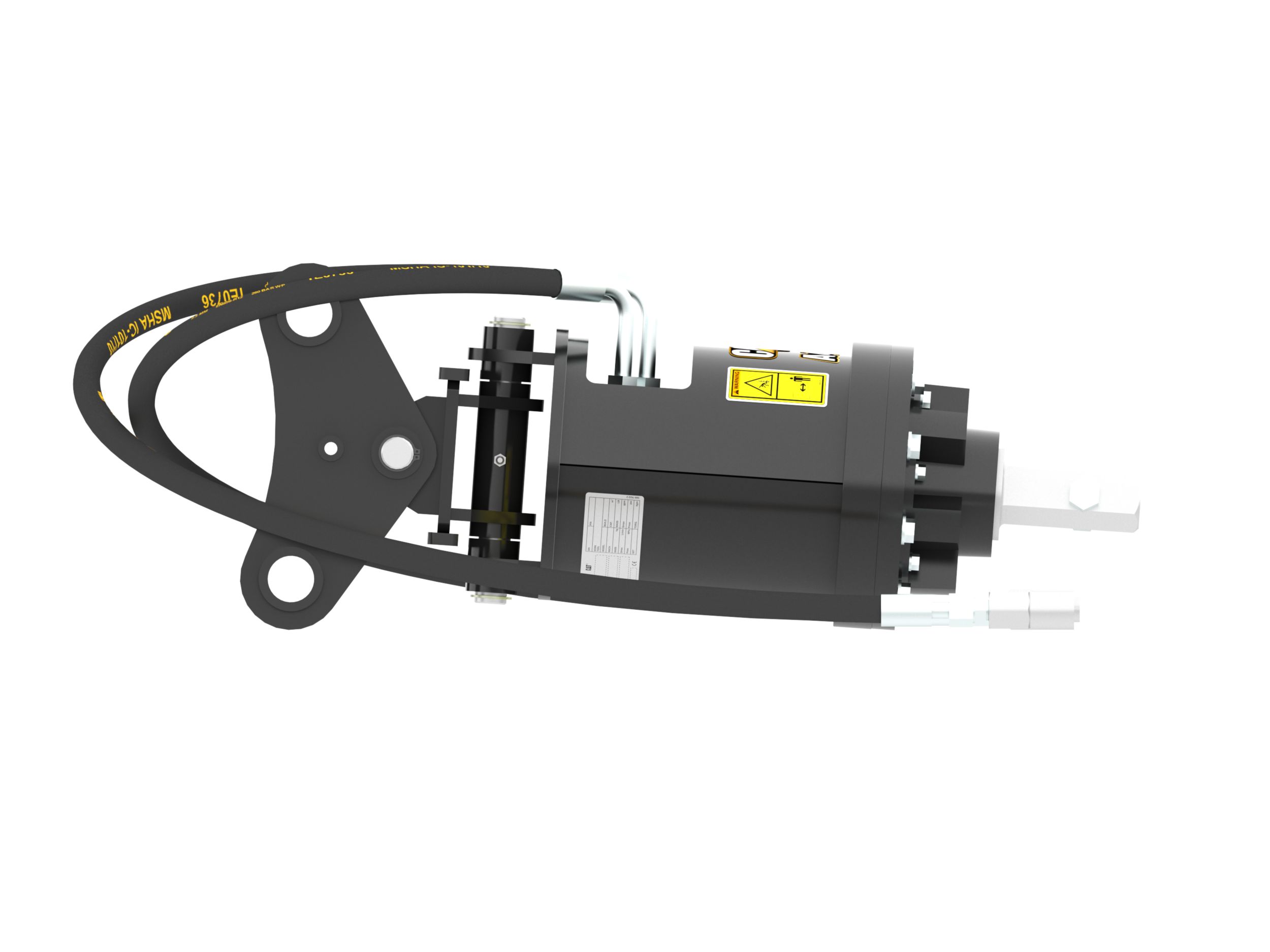

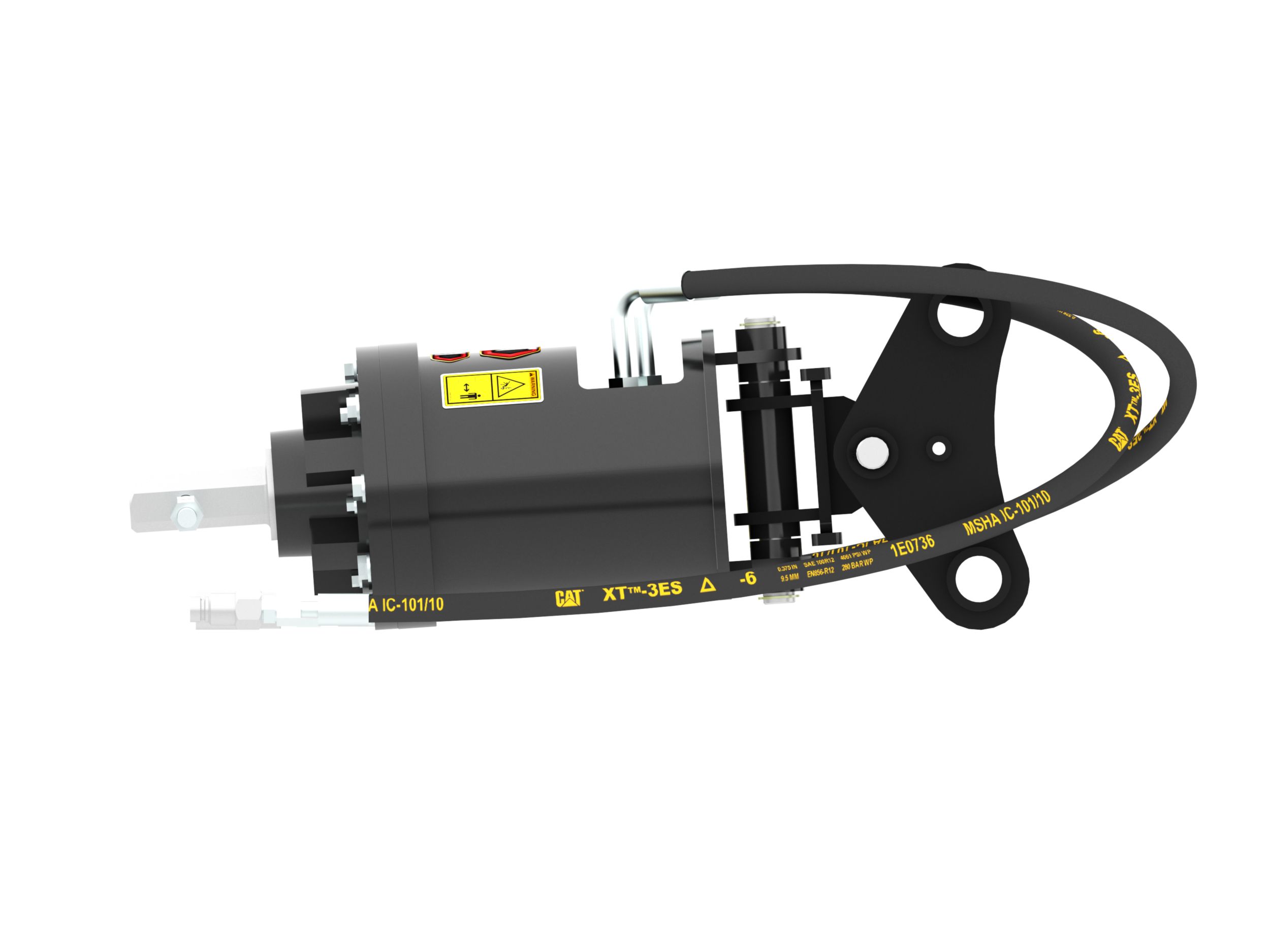

Exterior View
Product Specs
Dimensions
- Drive Shaft Torque at Maximum Pressure
- 3038.8 lb/ft
- Drive Method
- Gerotor Motor - Single Planetary Reduction
- Mounting Bracket Design
- 5 Ton Mini Excavator Pin On
- Required Hydraulics
- Standard Flow
- Optimal Hydraulic Flow
- 42-83 L/min (11-22 gpm)
- Optimal Hydraulic Pressure
- 145-235 bar (2100-3400 psi)
- Overall Width - With Bracket
- 11.4 in
- Overall Length - With Bracket
- 14.2 in
- Overall Height
- 34.4 in
- Housing Diameter
- 11 in
- Swing Range (fore/aft)
- 72 degrees
- Swing Range (L/R)
- 76 degrees
- Weight
- 207.2 lb
- Motor Displacement
- 15.26 in³
- Bit Speed at Maximum Flow
- 71 rpm
- Hex Output Shaft Size
- 2 in
Attachments
-
- Other Attachments
-
- No bumper
